Food / Hygiene Meter PCE-DOM 10

Order no.: PCE-DOM 10
GTIN (EAN): 4250348722744
US$ 376.00
ex. VAT, ex. delivery costs
:
4250348722744
PCE-DOM 10
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Food / Hygiene Meter PCE-DOM Series
Oxygen meter with exchangeable probes / Automatic temperature compensation / Oxygen saturation and the sample temperature / For mobile use

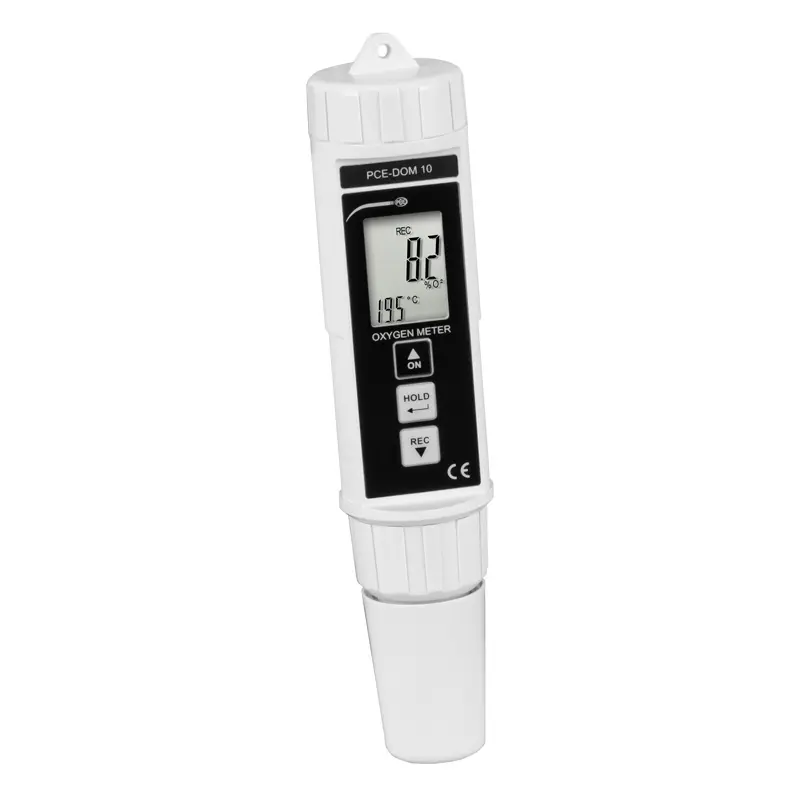

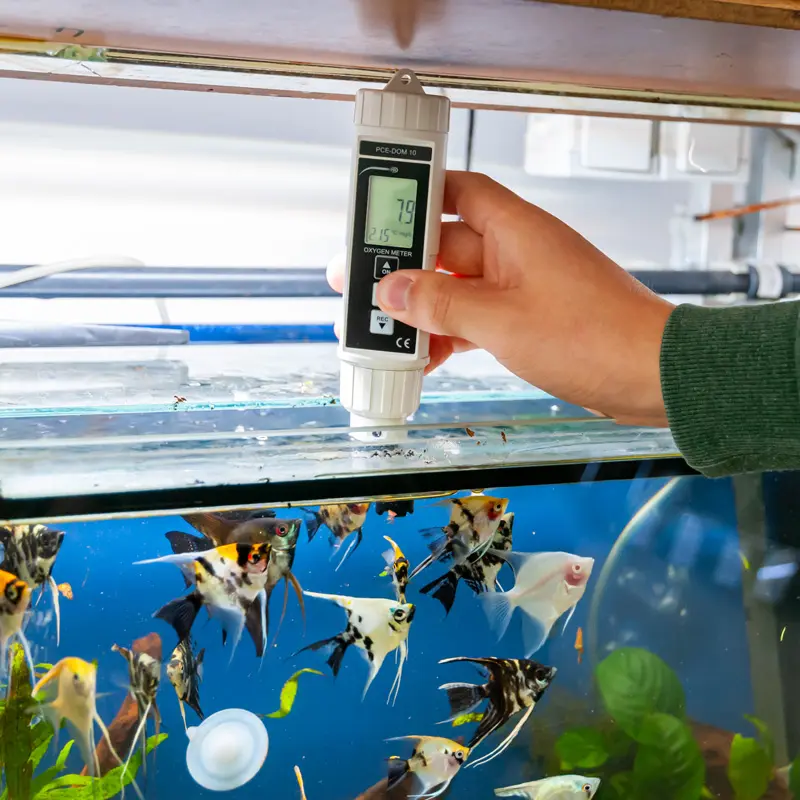

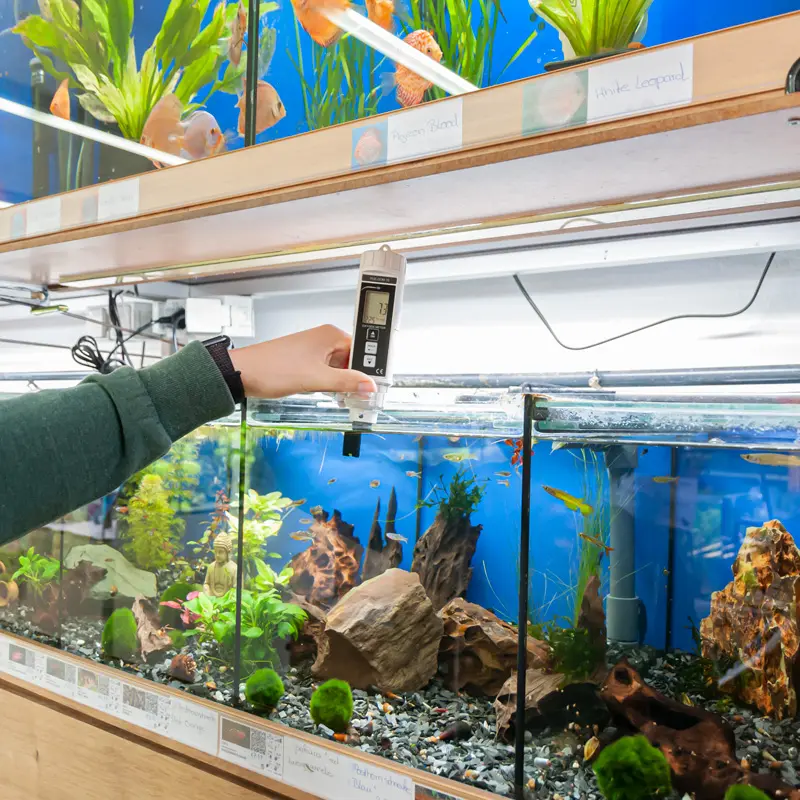

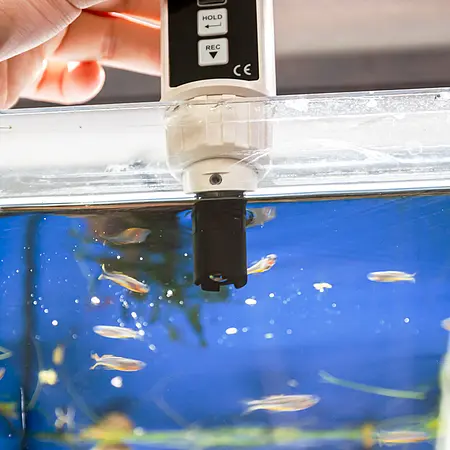

The oxygen meter PCE-DOM 10 is a measuring device to determine the oxygen content both in liquids and in the ambient air. With this oxygen meter, water analysis can be carried out on the oxygen content in a very short time and with an integrated temperature sensor, the oxygen meter is able to carry out an automatic temperature compensation. As a result, the oxygen meter is also used for analyzing the oxygen content of lakes or streams, as strong temperature fluctuations can occur here, which falsify the measurement result. This oxygen meter is also used, for example, in fish farming.

Before the initial start-up, the sensors on the oxygen meter are initially dry. In order to carry out a measurement, the sensors of the oxygen meter must be provided with the electrolyte supplied. Even if the membrane is possibly damaged, it can be replaced with the oxygen meter in just a few steps. This ensures that the oxygen meter is ready for use again within a very short time.

Highlights

- Measuring range up to 20 mg / L
- For oxygen analysis
- Temperature compensation up to 50°C / 122°F
- Electrolyte included
- For measurements in liquids and in air

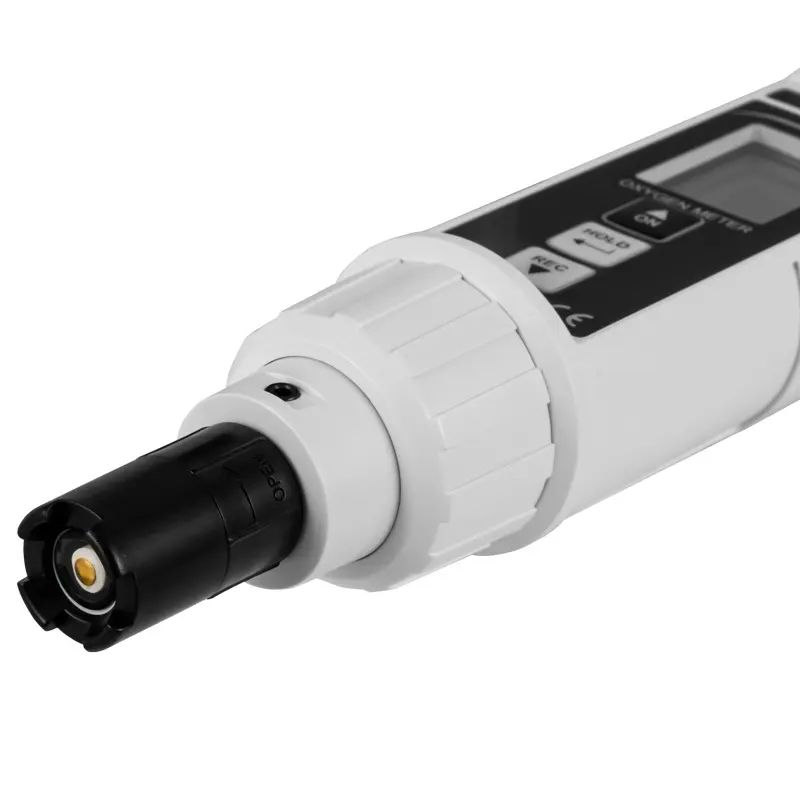

- Exchangeable oxygen sensor

Specification

Oxygen in liquids
Measuring range 0 ... 20 mg / L
Resolution 0.1 mg / L
Accuracy ± 0.4 mg / L




Oxygen in the air (reference measurement)

Measuring range 0 ... 100%
Resolution 0.1%
Accuracy ± 0.7%



Temperature


Measuring range 0 ... 50°C / 32 ... 122°F
Resolution 0.1°C / 0.18°F
Accuracy ± 0.8°C / 1.4°F

Temperature units °C / °F

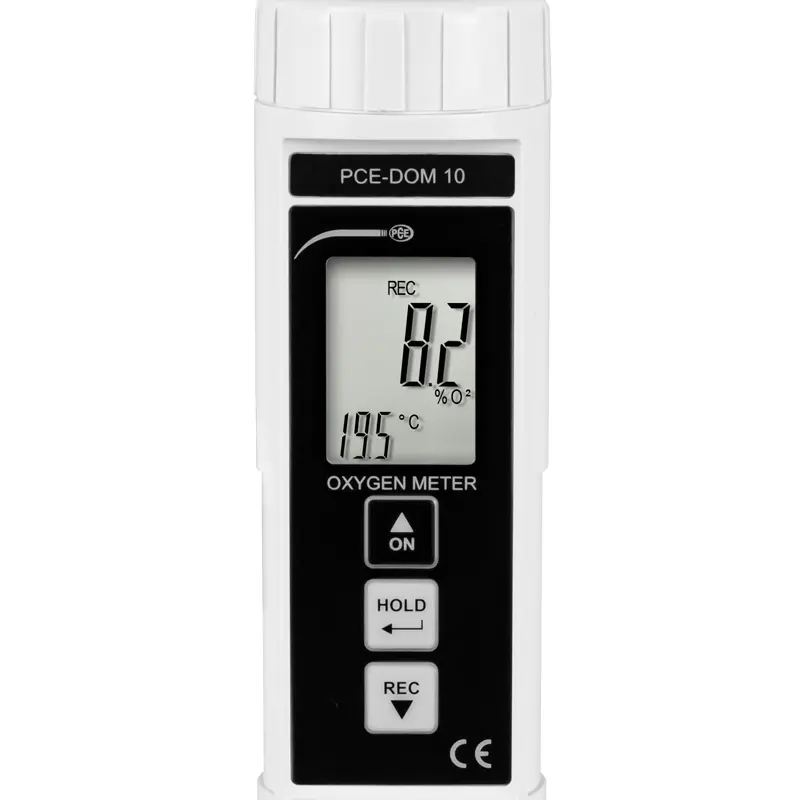

Display LCD display 29 x 28 mm / 1.1 x 1.1 in
Temperature compensation Automatically
Storage MIN, MAX
Automatic shutdown After approx. 15 minutes
Operating conditions 0 ... 50°C / 32 ... 122°F, < 80% RH
Power supply 4 x 1.5V AAA batteries
Power consumption Approx. 6.2-mA
Dimensions 180 x 40 x 40 mm / 7.1 x 1.6 x 1.6 in
Weight Approx. 176 g / < 1 lb

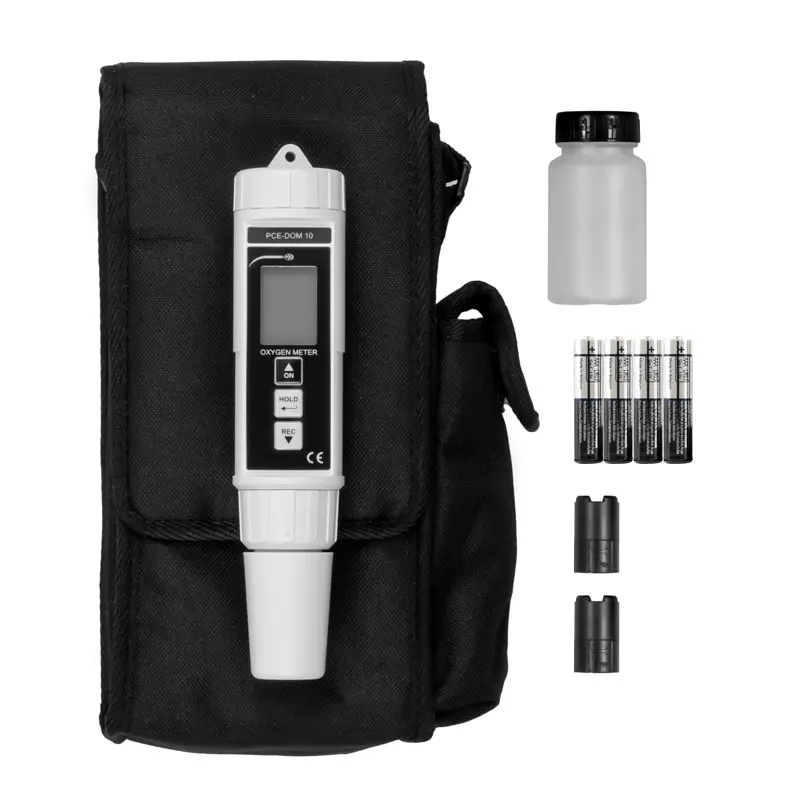

Delivery Scope

1 x Food / hygiene meter PCE-DOM 10

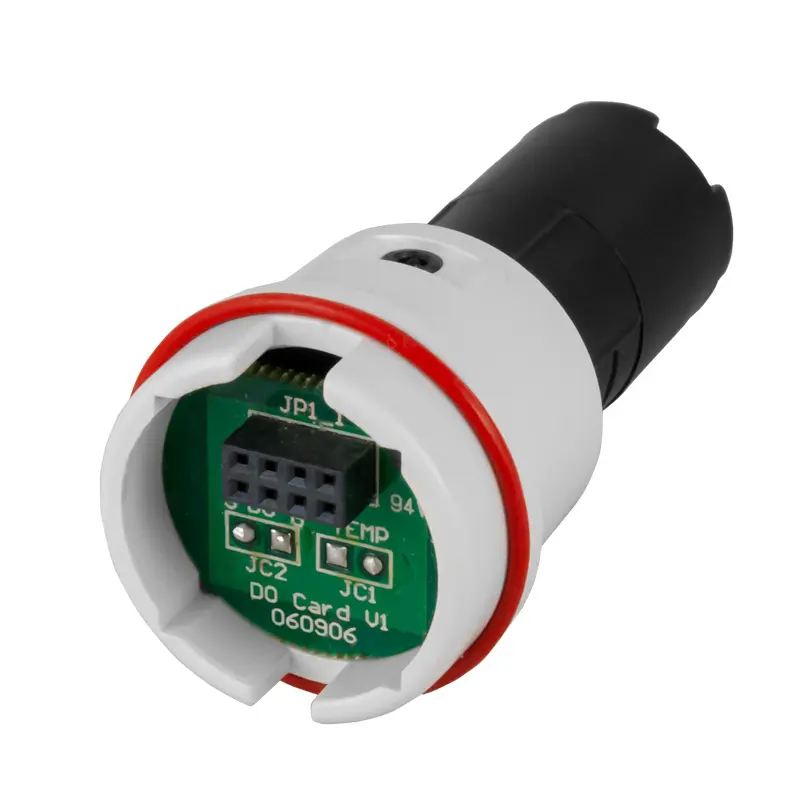

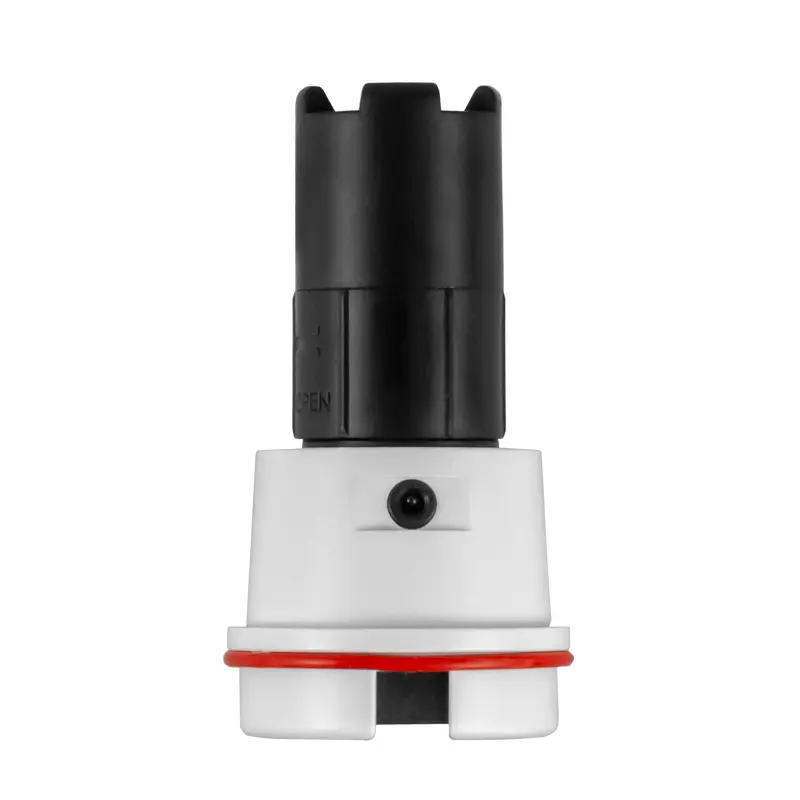

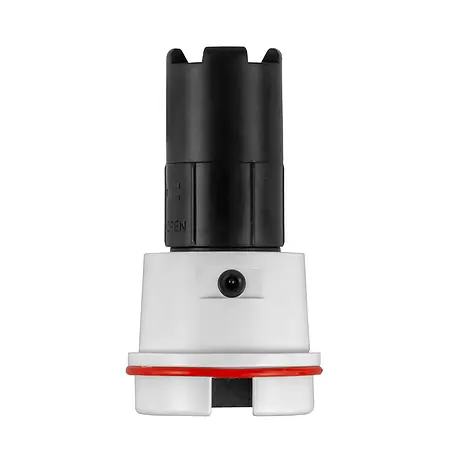

1 x Internal oxygen probe (OXPB-19)
1 x Electrolyte (OXEL-03)
2 x Membrane (OXHD-04)
1 x Transport bag
4 x 1.5V AAA batteries
1 x Instruction manual
