Force Gage PCE-C-R8LFC series 10-50 kg

Name: Force Gage PCE-C-R8LFC series 10-50 kg
Brand: PCE Instruments
SKU: 6001202
Price: 225.900000001 USD
Availability: InStock

Order no.: PCE-C-R8LFC

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description
Specification

Description

The miniature Force Gage can be used in many applications due to its compact dimensions. With a small force application surface, the miniature force transducer enables force measurement at small contact surfaces.

Specification

Rated load / force F.S.	10 / 20 / 30 / 50 kg 100 / 200 / 300 / 500 N ! Rated load / force selectable !
Limit load / force	150 %
Breaking load / force	200 %
Rated output	1.0 – 1.5 mV/V
Operating range of supply voltage	2.5 V – 5 V
Maximum supply voltage	5 V
Deviations of the zero signal	± 2 % F.S.
Linearity deviation	1.0 … 5.0 % F.S.
Reverse voltage (hysteresis)	1.0 … 5.0 % F.S.
Repeatability	1.0 … 5.0 % F.S.
Stress creep (30 min)	0.1 … 0.5 % F.S.
Input resistance	350 ± 10 Ω
Output resistance	350 ± 3 Ω
Insulation resistance	≥5000 MΩ / 100 VDC
Nominal range of ambient temperature	-10 … 60 °C / 14 ... 140 °F
Service temperature range	-20 … 80 °C / -4 ... 176 °F
Temperature coefficient of characteristic value	0.1 % F.S. / 10 °C
Temperature coefficient of zero point	0.1 % F.S. / 10 °C
Sensor cable	Ø 2 x 3 m / (ends open)
Cable assignment	EXC+ = red EXC- = black SIG+ = green SIG- = white GND = yellow
Material / measuring body	stainless steel
Protection	IP65
! N.B. Rated load / force selectable !

Force Gage PCE-C-R8LFC series 10-50 kg

Force Gage PCE-C-R8LFC series 10-50 kg - connection

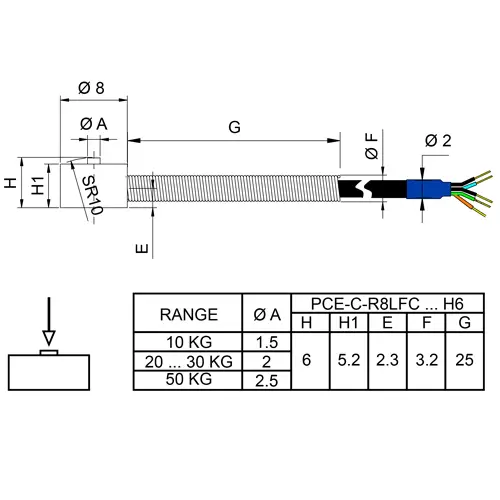

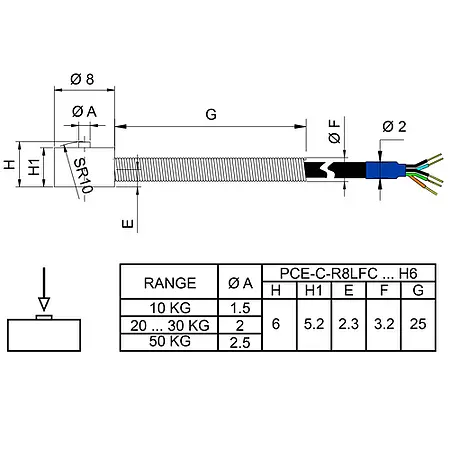

Force Gage PCE-C-R8LFC series 10-50 kg - dimension

Force Gage PCE-C-R8LFC series 10-50 kg
