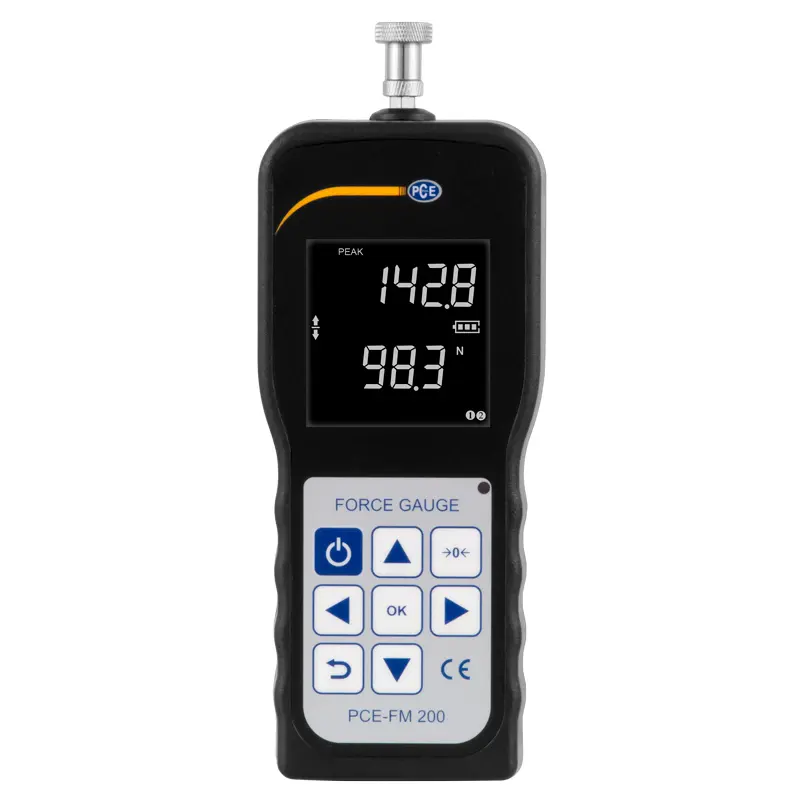

Force Gage PCE-FM 200

Force gage for tensile force measurement and pressure force measurement up to 200 N

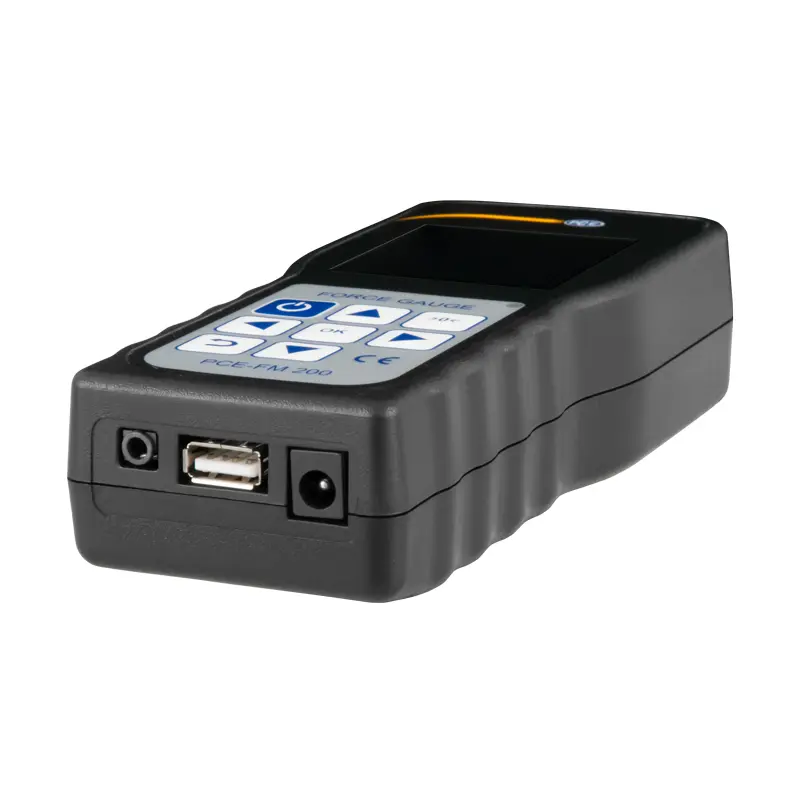

USB interface and downloadable evaluation software for data transmission / Many measuring adapters

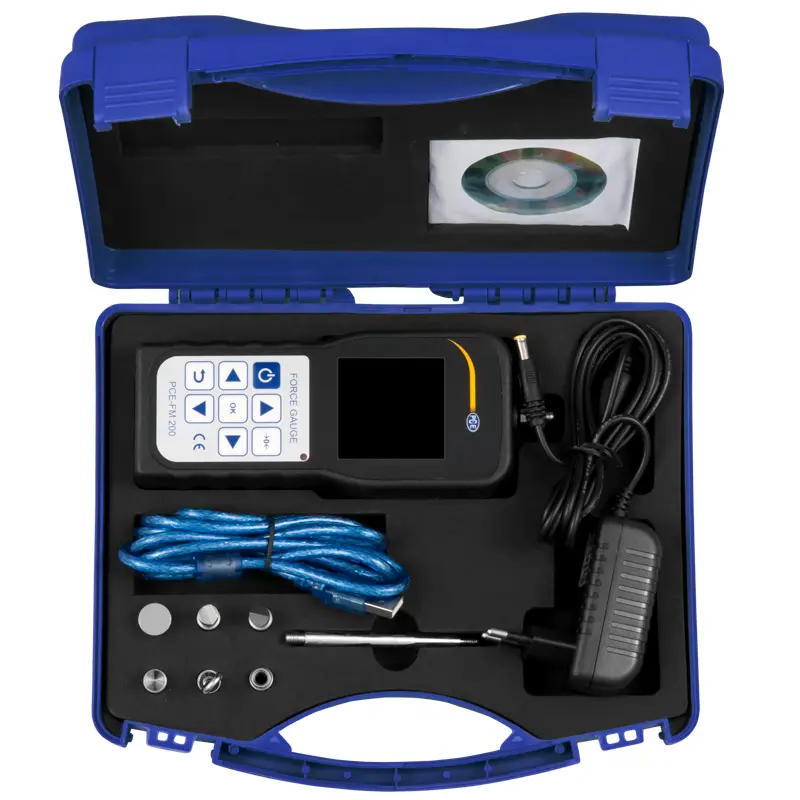

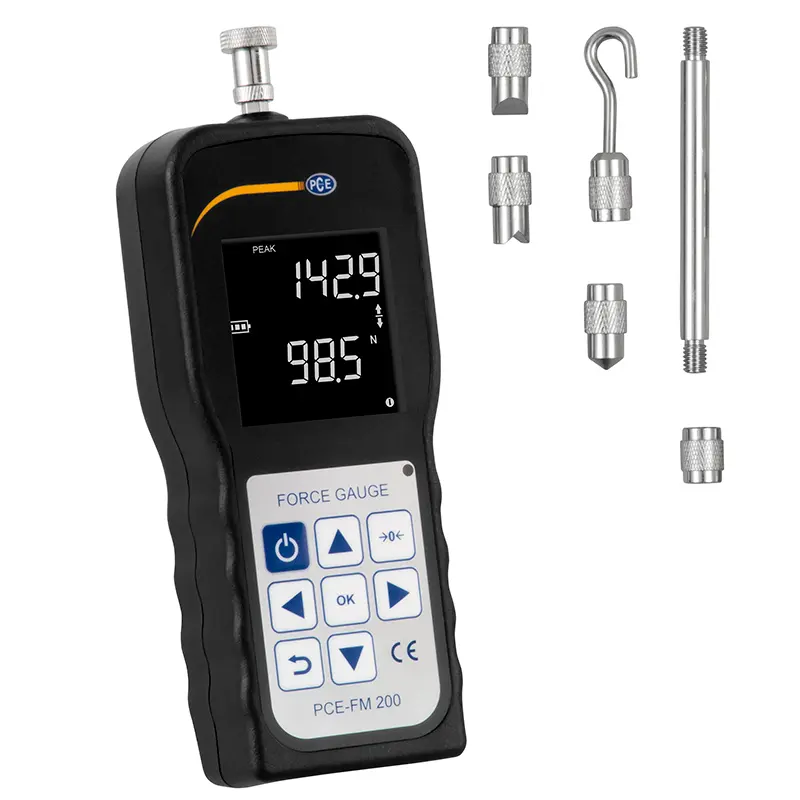

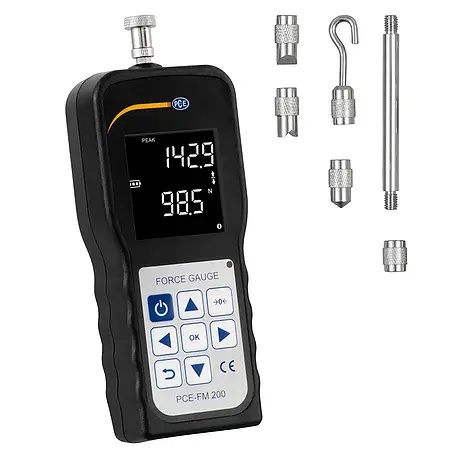

The force gage PCE-FM 200 is a handheld device that measures up to 200 N. The force gage can determine the units N, kg and lb. The scope of delivery of the PCE-FM 200 force gage includes various adapters with different shapes. These can be screwed onto the device and thus offer the optimum solution for differently designed surfaces in the measurement of pressure and tension. In addition to the adapters, an extension rod is also supplied, which allows measurements in hard to reach places. This extension rod has a length of 65 millimeters. The scope of delivery of the PCE-FM 200 force gage includes flat head adapter, hook adapter, ball head adapter, chisel head adapter and a notched head adapter, whereby the hook adapter is used for tensile force measurements.

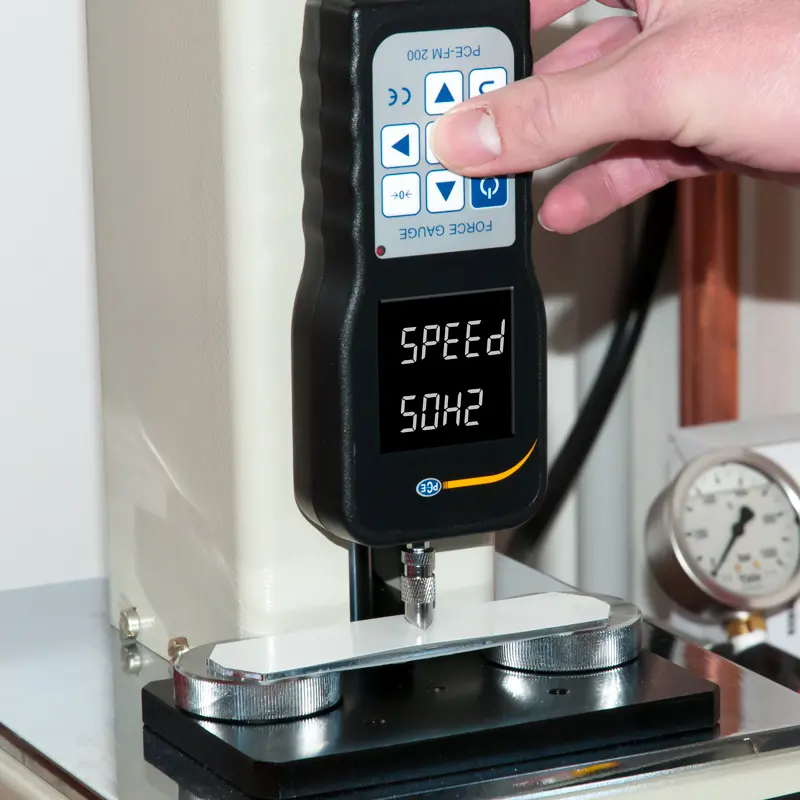

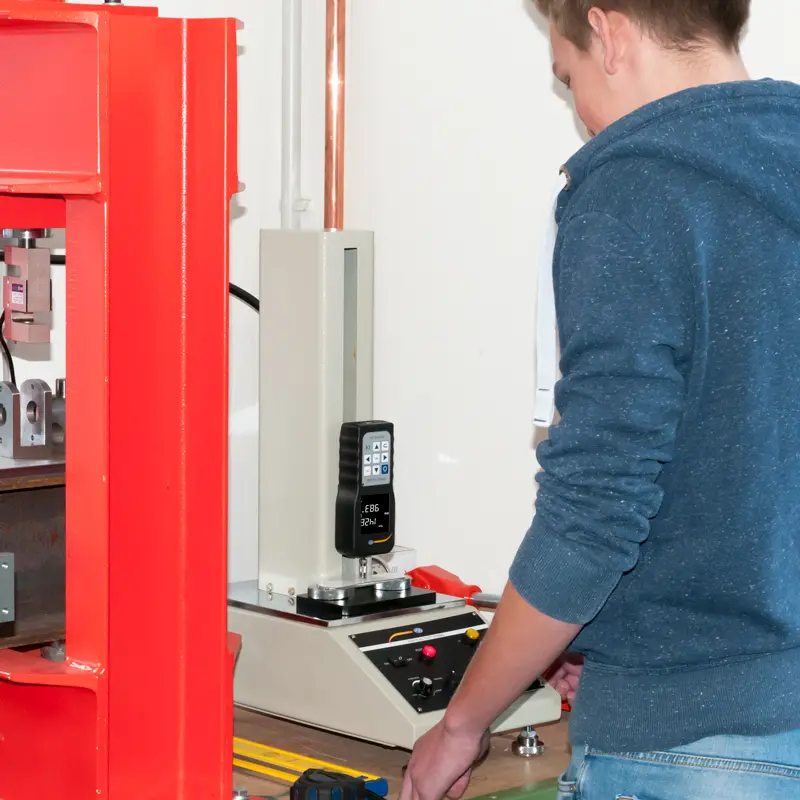

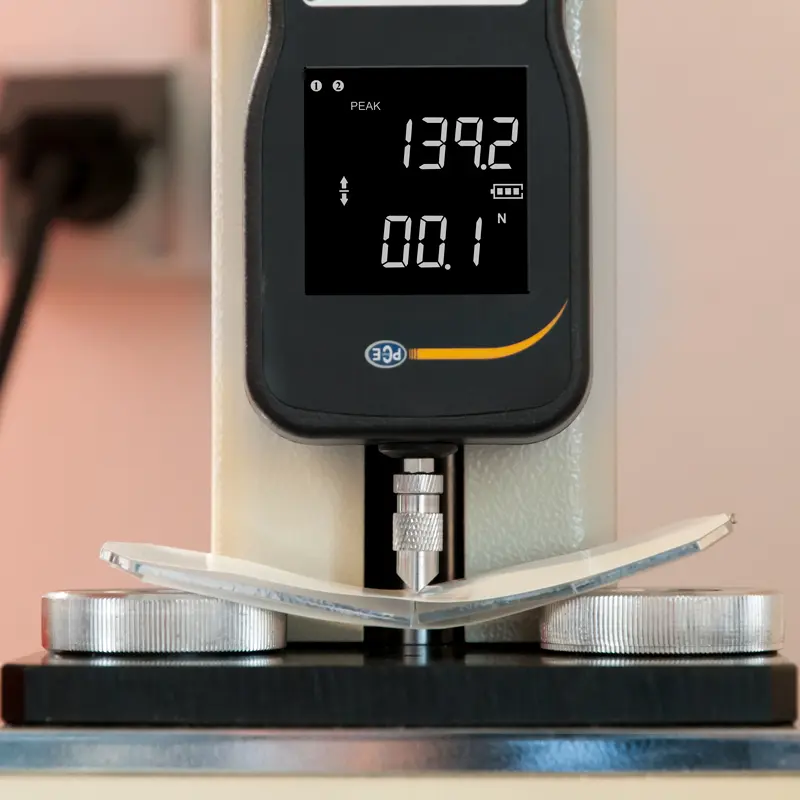

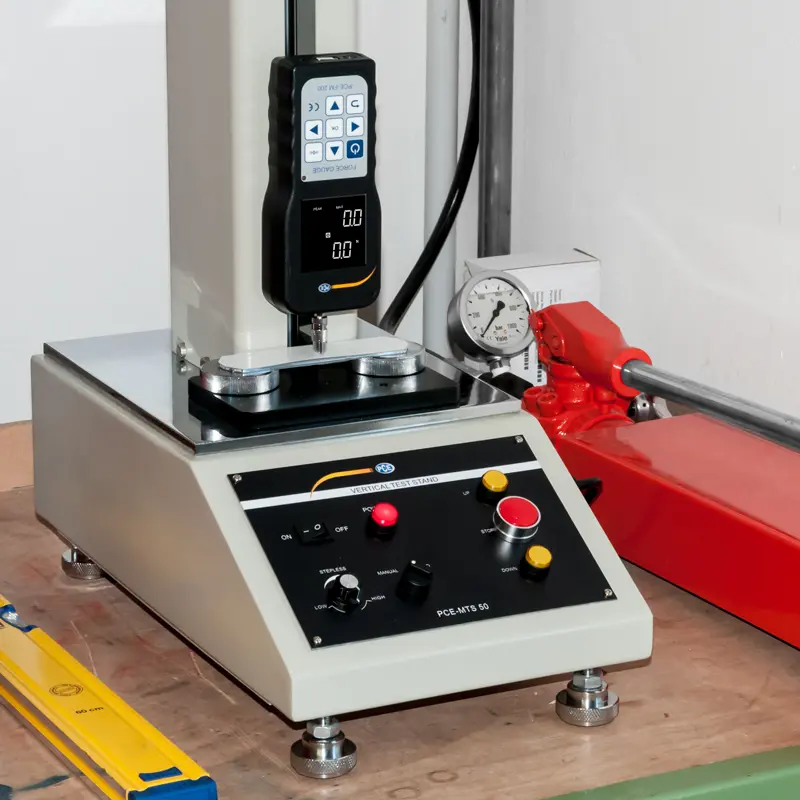

The PCE-FM 200 force gage offers the option of mounting the force gauge on a test stand by means of threads on the rear of the device. Test stands are always used in a force gage if reproducible measurement results are required during the force measurement. These test stands are ideal additions to a force gage, because they are operated by a precise handwheel or a motor. In addition, both tensile and compressive force measurements can be performed on them. Experiments in the laboratory are thus possible with the force gage as well as the inspection of incoming goods.

Attention: The internal load cell is maintenance-free, light and characterized by extremely long service life. For the production of this load cell only high quality materials are used, which guarantee maximum safety and longevity. The force gage has an overload range. If you exceed this, you destroy the internal load cell. So if you select a force gage for your application, then for safety's sake move to the next higher model at the measuring range.
