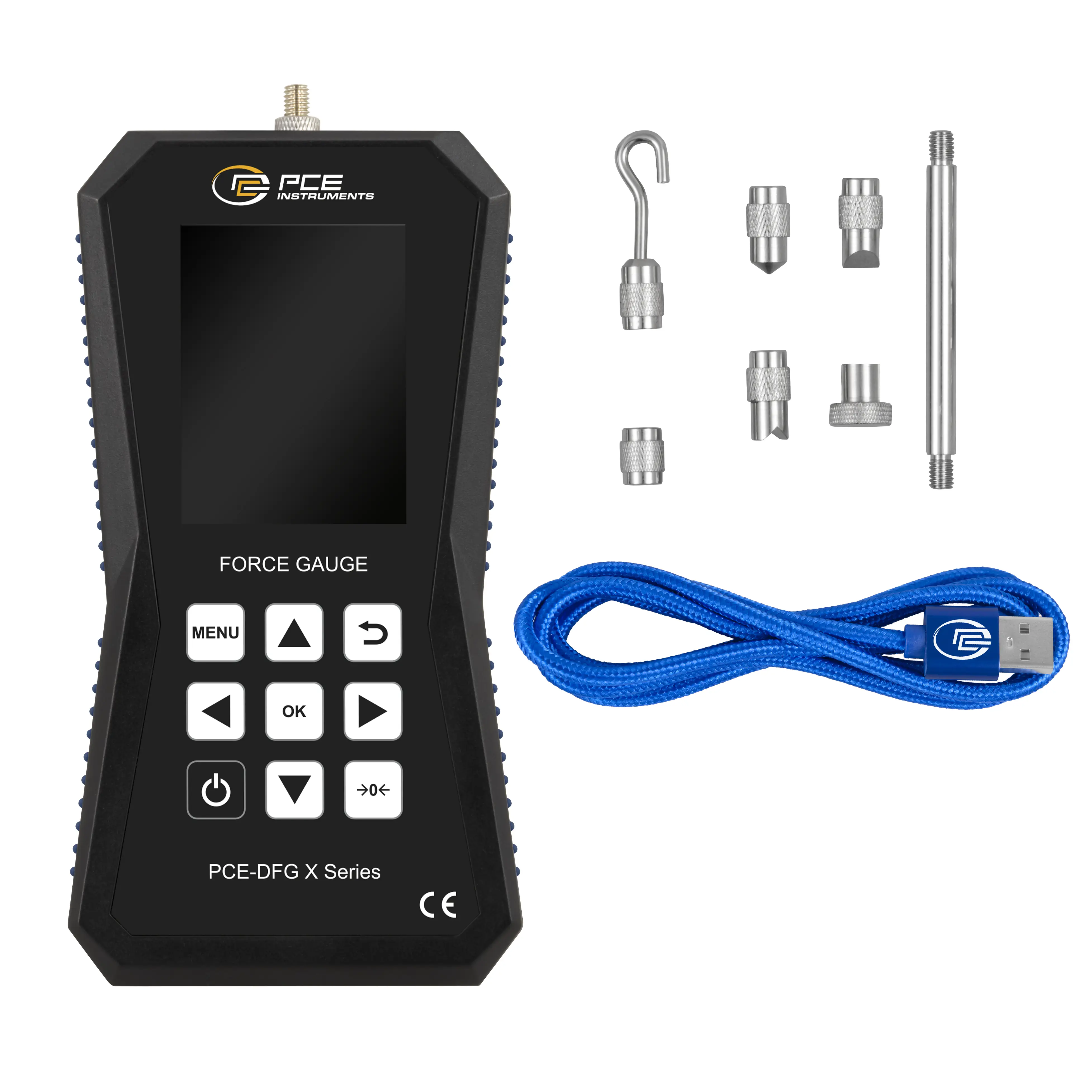

Both tensile and compressive forces can be measured with high accuracy using this Force Gauge / Digital Force Gauge / Digital Force Gauge / Digital Force Gauge. Tensile and compressive forces are frequently measured in test laboratories. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The Force Gauge / Digital Force Gauge / Digital Force Gauge / Digital Force Gauge has an internal measuring cell and can measure forces up to 10 N. Various eyelets or hooks with an M6 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads.

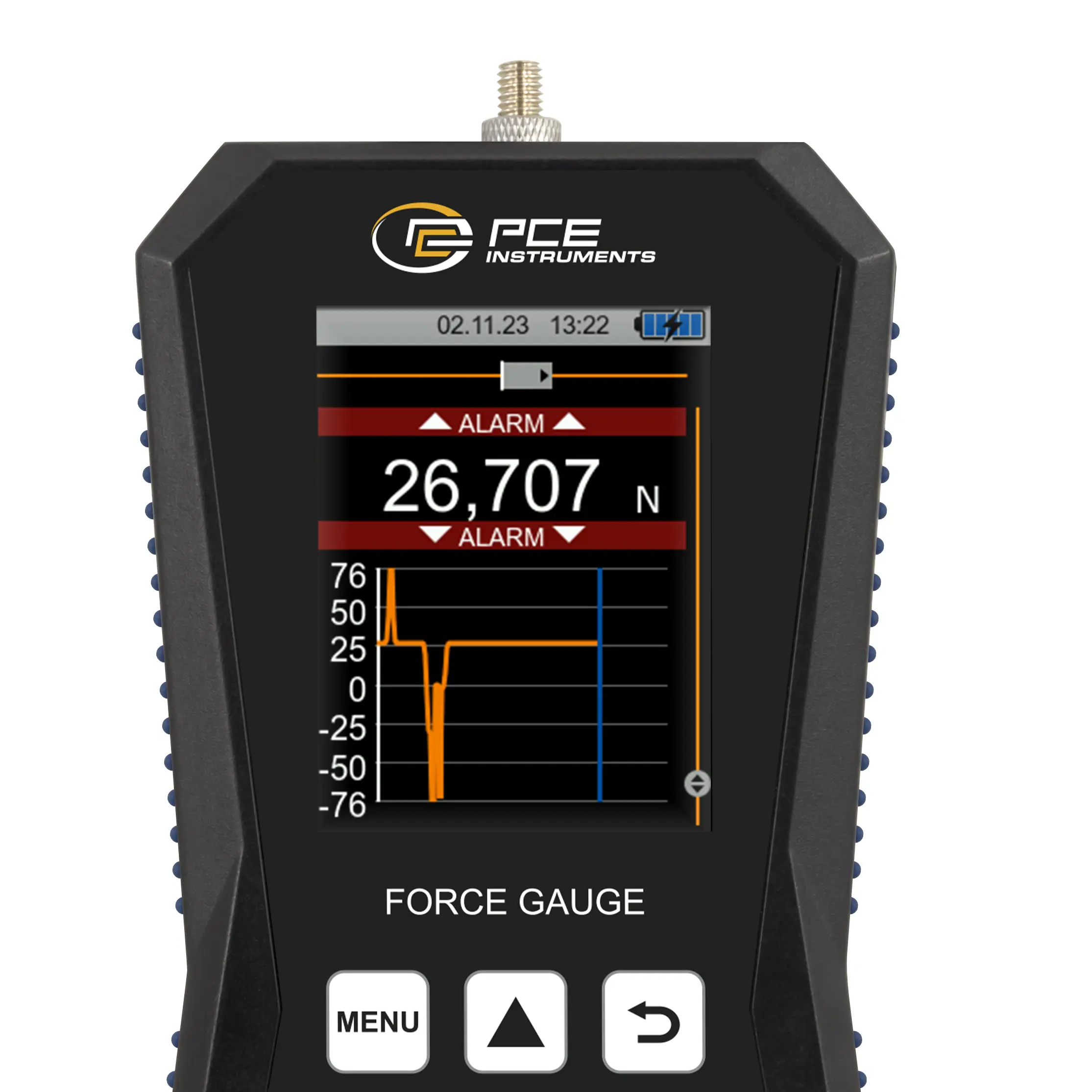

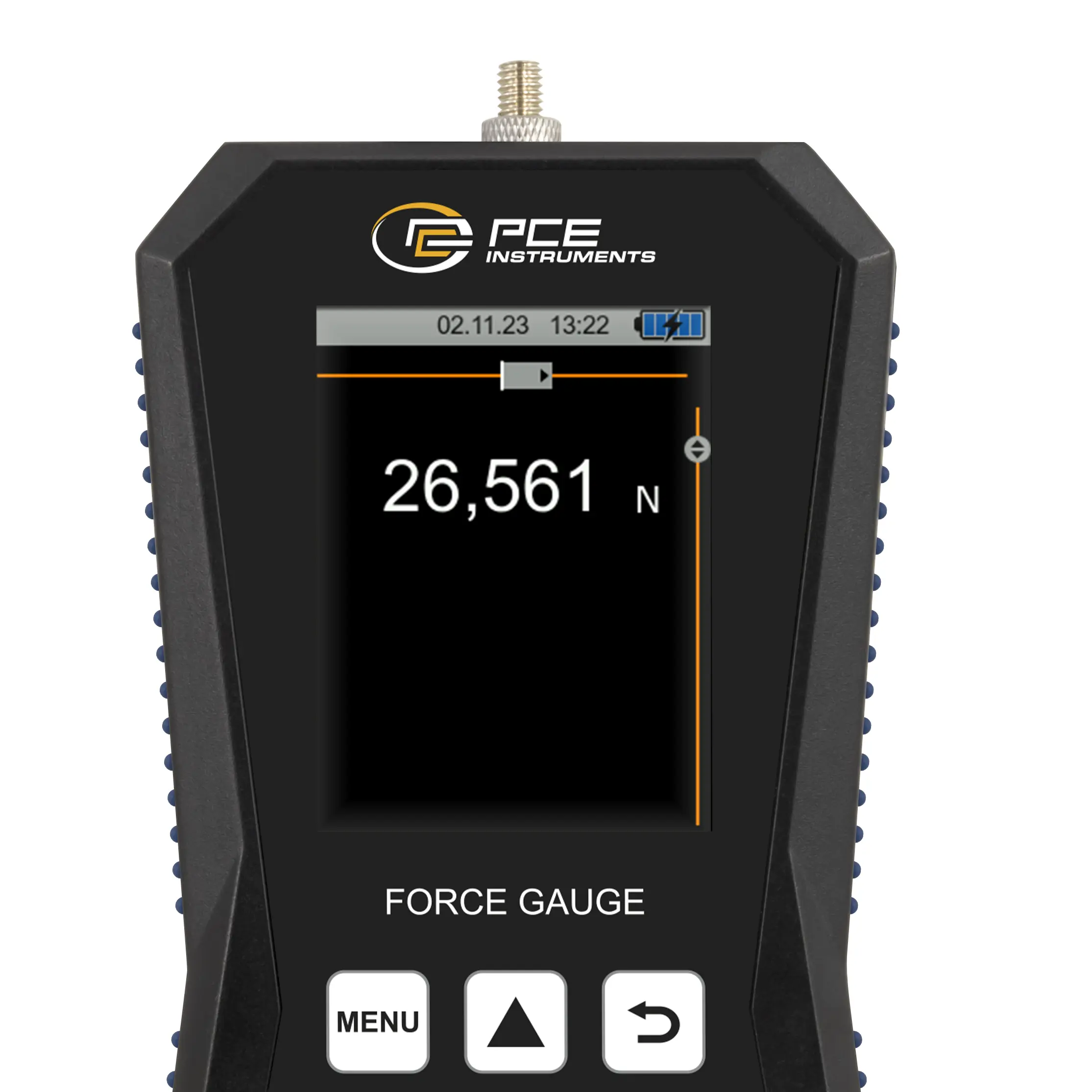

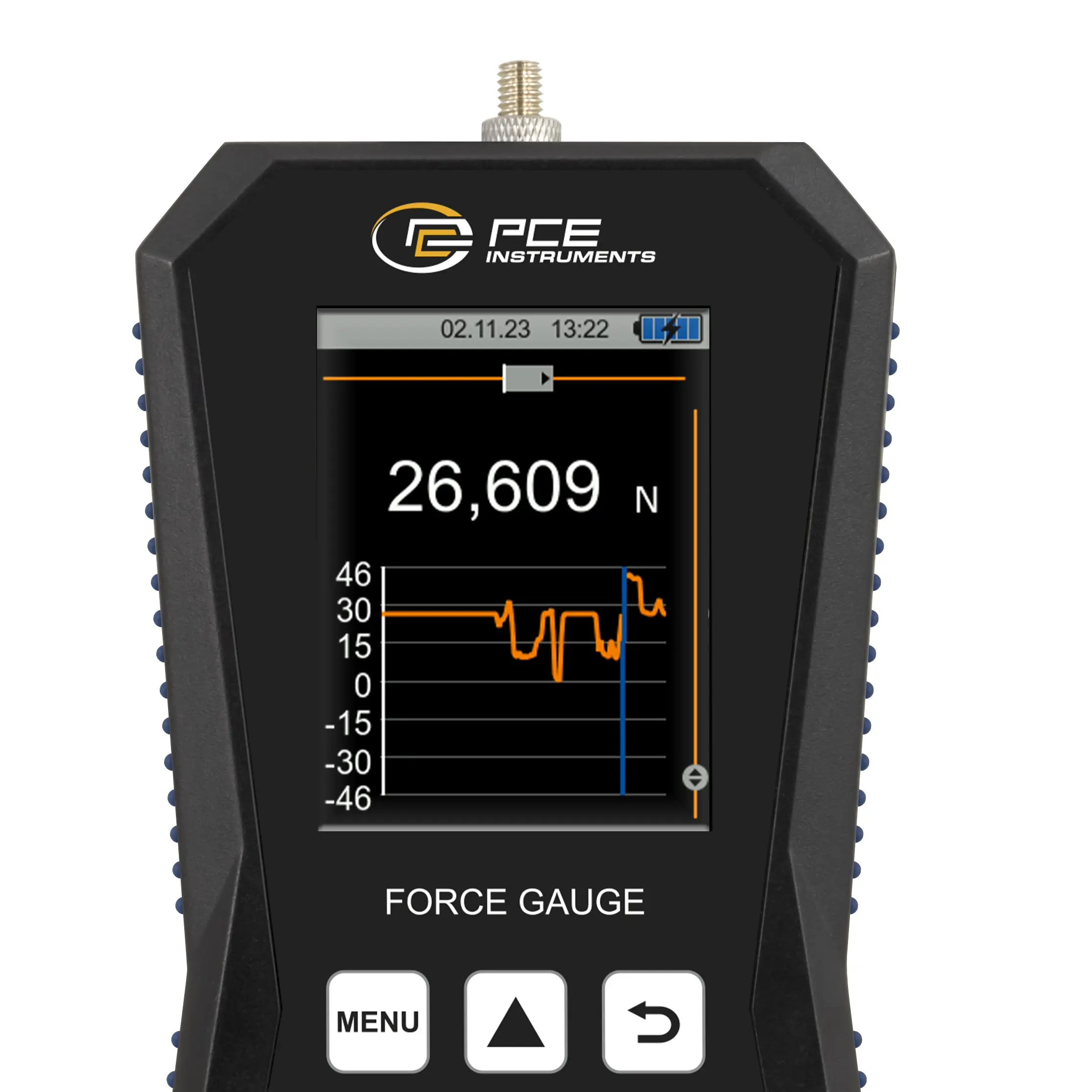

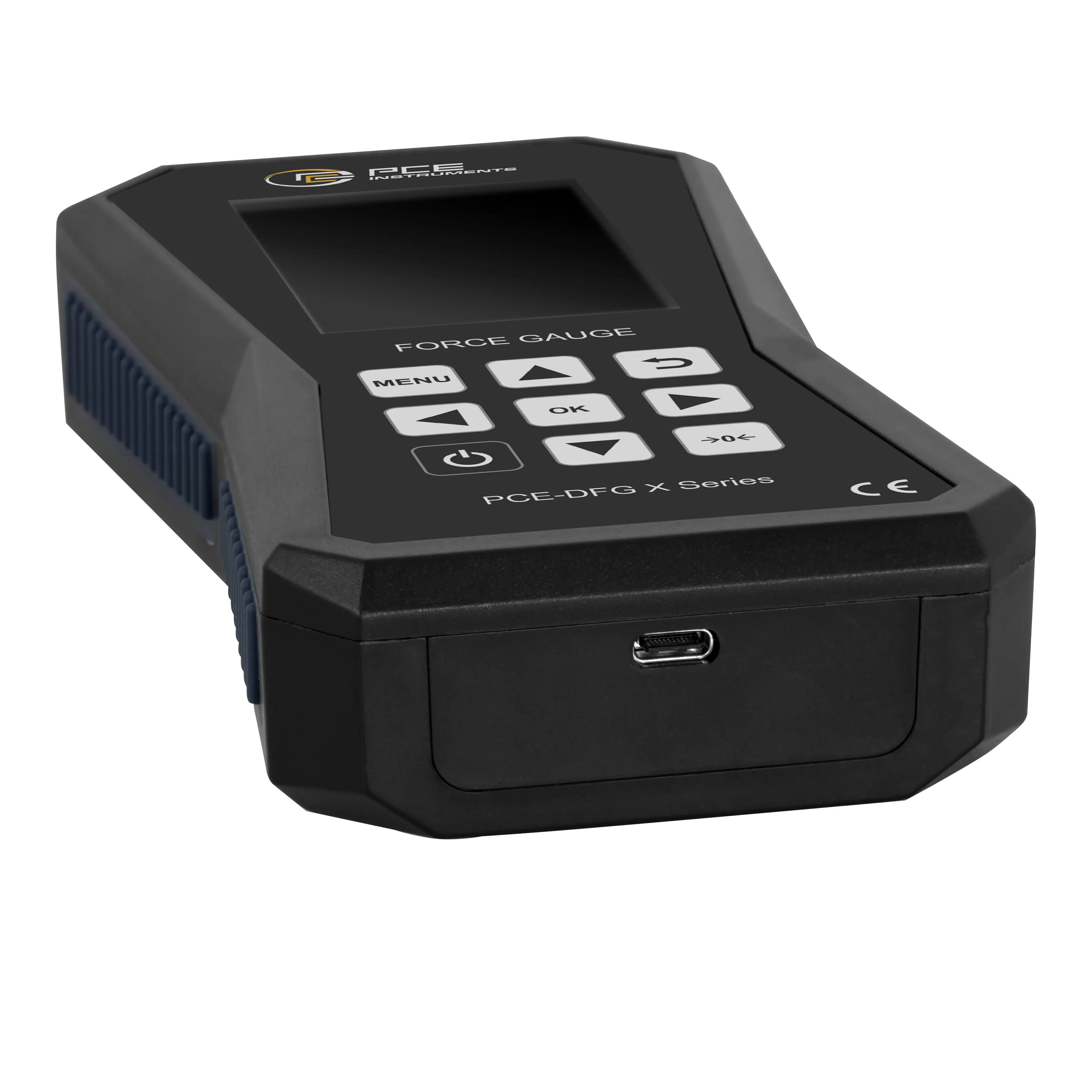

The internal memory of 32 GB offers space for 30 million measuring points. This can be used to create, save and export measurement logs. The Force Gauge / Digital Force Gauge / Digital Force Gauge / Digital Force Gauge has a USB-C interface that can be used to read the measurement data into the PC software. The Force Gauge / Digital Force Gauge / Digital Force Gauge / Digital Force Gauge is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value within the selected measurement range.
Various force test stands are available for adapting the Force Gauge / Digital Force Gauge / Digital Force Gauge / Digital Force Gauge.
| Force | |
| Measurement range up to | 0 ... 10 N |
| Resolution | 0.005 N |
| Accuracy | ±0.05 % F.S. |
| General technical data | |
| Units | N, kg, t, kn, Nm, Ncm, lb, ft, g |
| Display type | LCD with backlight |
| Display size | 2,8 Inch |
| Adjustable measuring rate | 1 ... 7200 Hz |
| Storage medium | Internal memory |
| Storage capacity | 32 GB |
| Storage interval from | 1 Hz |
| Storage interval to | 7200 Hz |
| Interface | USB-C |
| Operating time | 13 h |
| Automatic power-off from...to | 1 ... 15 min. |
| Automatic power-off can be deactivated | Yes |
| Alarm | optical, Acoustic |
| Alarm modes | Within, beyond, fracture, off |
| Menu language | Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese |
| Protection class (device) | IP52 |
| Power supply | USB 5 V DC, 500 mA |
| Weight | 255 g |
| Operating conditions | -20 ... 65 °C , 10 ... 95 % r.F |
| Storage conditions | -20 ... 65 °C , 10 ... 95 % r.F |
| Capacity | 2500 mAh |
| Dimensions ( L x W x H ) | 165 x 85 x 32 mm |
