Measuring range |
2 ... 200 N / 0.2 ... 20 kg / 0.4 ... 45 lbs |
Resolution | 0.1 N / 0.02 lbs |
Pressure calibration | 1 Mpa |

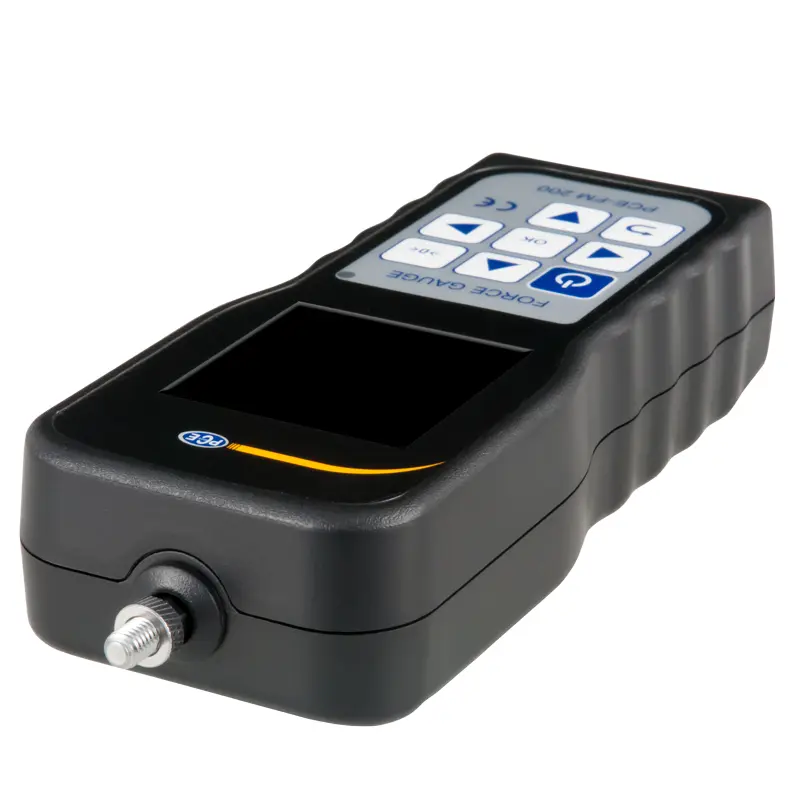

Load cell | Integrated load cell with M6 connection |
Measuring range | 1 ... 100% of the full scale |
Measurement accuracy | ±0.5% |
Units | n, kg, lb |

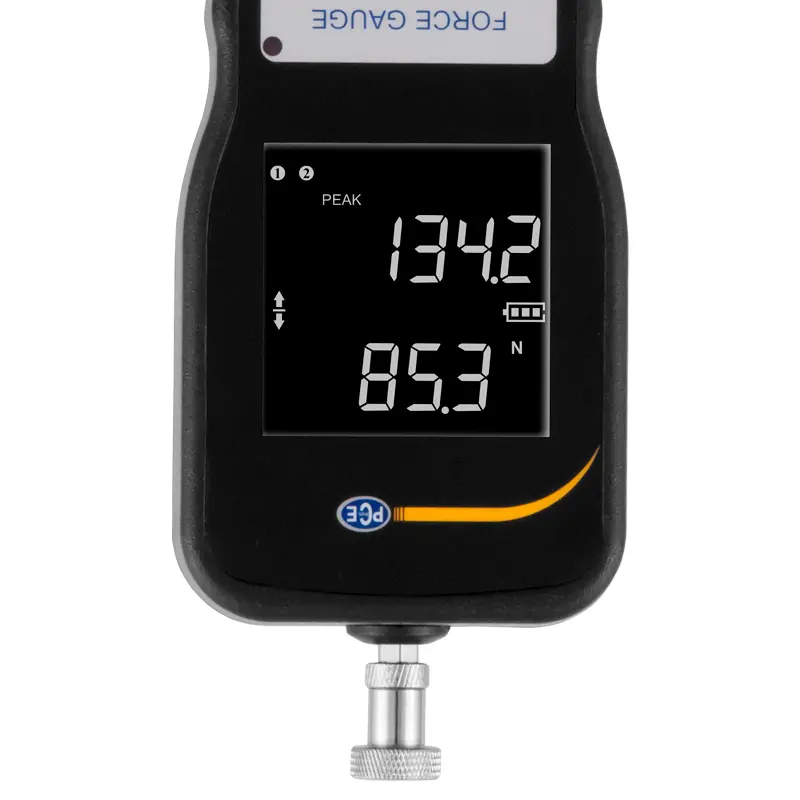

Display | LCD |
Operating temperature | 10 ... 30°C / 50 ... 86°F |
Relative humidity | 15 ... 80% |
Working conditions | The device must not be located near sources of vibration or corrosive substances |
Weight | 1 kg / 2.2 lb |

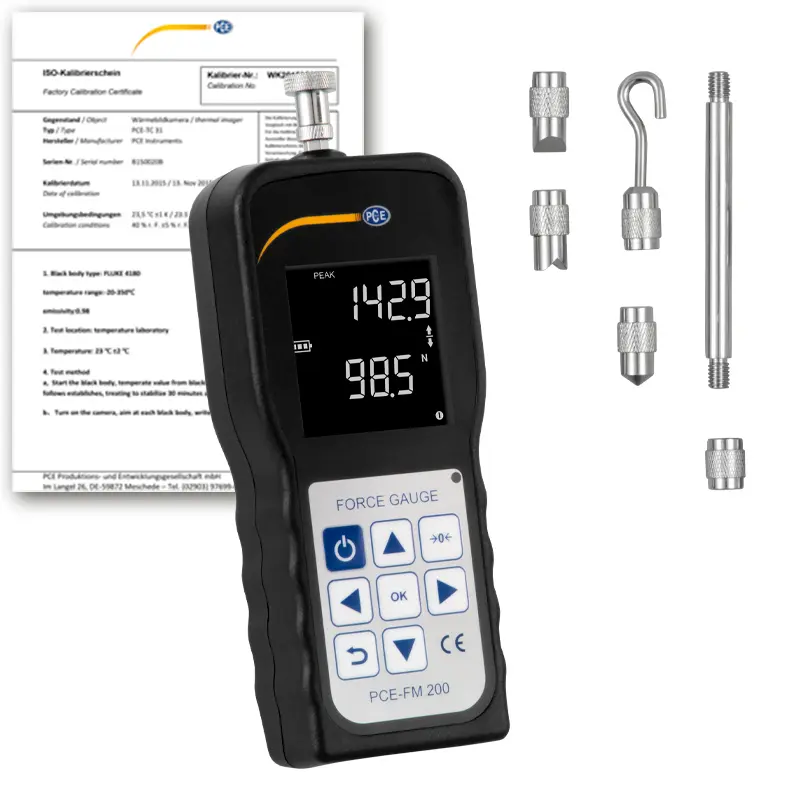

1 x ISO calibration certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
The force gauge test stand is used in various combinations with our force measuring devices. Manual force measuring test stand for tensile and compressive force measurement. Suitable for many devices from PCE force measurement technology with an internally built-in force measuring cell.
ex. VAT, ex. delivery costs
Thread reducer for SJJ accessories and force gauges / test stands
ex. VAT, ex. delivery costs
ISO re-calibration incl. certificate for force gauge over 50 kg / 500 N / 112 lbs. This is often required to comply with DIN ISO 9000.
If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.
Calibration certificates are issued specifically for the customer and are excluded from the right of return
ex. VAT, ex. delivery costs
Mounting plate for adapting the load cell of the PCE-FM1000 to the test stand LTS-20.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Spare adapter set for force gauges for:
Force Gauge PCE-FM 50N
Force Gauge PCE-FM 200
Force Gauge PCE-FM 500N
ex. VAT, ex. delivery costs
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
ex. VAT, ex. delivery costs
The motorized tension-compression test stand is a motorized test station with a force range of up to 500 N. With the help of the horizontal test stand, it is possible to to carry out tension-compression tests.
ex. VAT, ex. delivery costs

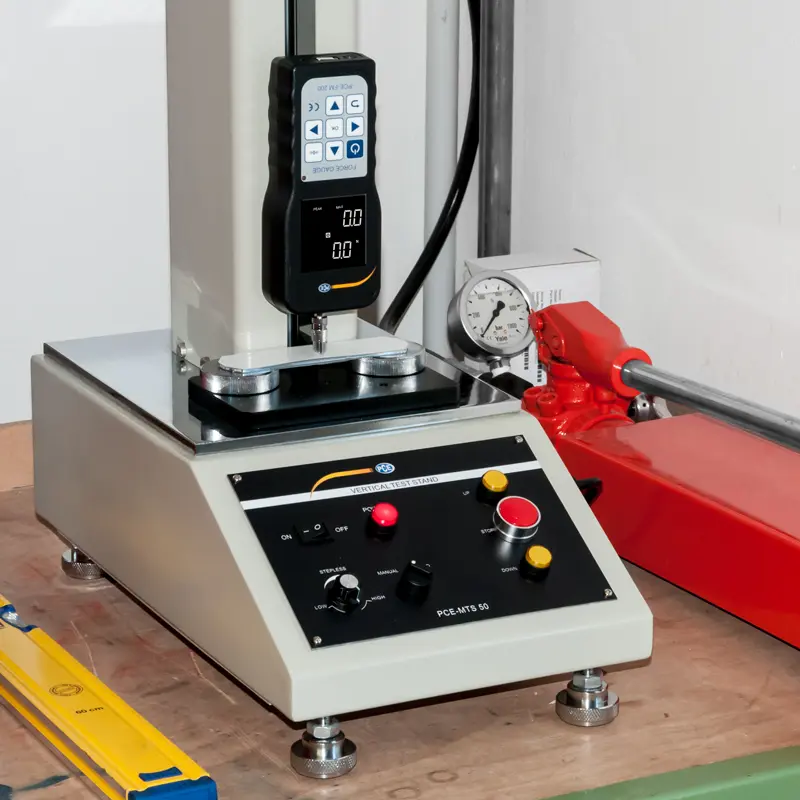

This vertical force test stand is a motorized test station with a force range of up to 500 N. In addition to setting the speed, the vertical force test stand also offers the option of switching between automatic and manual mode.
ex. VAT, ex. delivery costs
Fork holder for tensile and pressure tests.
ex. VAT, ex. delivery costs
Use clamping pliers for tensile tests of electronic components, wires, etc.
ex. VAT, ex. delivery costs
Use clamping device for tensile testing of electronic parts, wires, etc.
ex. VAT, ex. delivery costs
Adapter clamps for tensile testing of wire and filaments.
ex. VAT, ex. delivery costs
Adapter-stamp for pressure force test of spring and sponge etc.
ex. VAT, ex. delivery costs
Pliers for trigger tests.
ex. VAT, ex. delivery costs
Holder for knob and rivet test.Max. Capacity: 500 N / 112 lbs
ex. VAT, ex. delivery costs
Clamping device for tensile tests of rubber, wires and cables, paper, plastic film, etc.
ex. VAT, ex. delivery costs
Clamping device for testing bristles.Max. Capacity: 500 N / 112 lbs
ex. VAT, ex. delivery costs
Clamping device with soft jaws for tension testing of paper, film etc.
ex. VAT, ex. delivery costs
Clamping device for testing bristles.Max. Capacity: 500 N / 112 lbs
ex. VAT, ex. delivery costs
Adapter ring for tensile tests. Diameter is 20 mm and capacity is 0.5 kN / 500 N / 112.4 lbs.
ex. VAT, ex. delivery costs
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
ex. VAT, ex. delivery costs
Clamping device with large opening width for peel test of block, glass and cardboard.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Tensioning device for tensile tests.
ex. VAT, ex. delivery costs
Adapter clamp for tensile tests.
ex. VAT, ex. delivery costs
Adapter for pressure force testing of sponge, foam glass, rock material, etc.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.
ex. VAT, ex. delivery costs
Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.
