Fixed Gas Detector Base AQ-FM S900

Order no.: AQ-FM S900

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

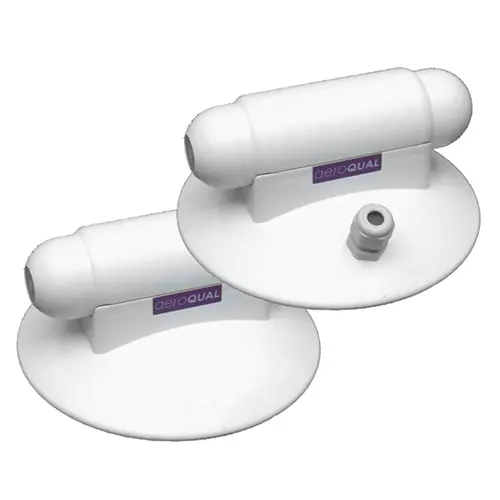

Fixed Gas Detector Base
For AQ-sensor heads / Analog output 4-20 mA /
Application to control ozone generators / Integrated into networks /
Environmental, monitoring and control

The fixed gas detector base AQ-FM S900 for AQ-sensor heads can communicate with a variety of hardware systems. The transmitter can also be used as switching relays with user-set values as a 4-20 mA gas transmitter and it can communicate with a network via the RS485 interface. Changing sensor heads is quick and easy, no configuration changes required. Calibration certificate included.

Attention! No AQ sensor head is included in the delivery, it must be ordered separately as an accessory!

Highlights

- Active sampling for higher accuracy
- Real-time network monitoring
- Monitoring of indoor air quality
- Multiple analog and digital outputs
- Used in a real-time network
- Replaceable sensor head
- PC data logging and network option
- Application in health and safety

Specification


Power supply	Regulates 12V, 800 mA
Analog output	4-20 mA (optional isolated), 10... 30V
Externalsignal	Transistor output
External control signal	Min.- Max. Alarm,control and diagnostics
Energy supply	Standby switch
Interface	RS485
Jumper	J1, J2, J3 Terminal resistance
Connector	Screwed
ID	1 Standard - Customer configurations from 1 to 255
Alarm thresholds	Customer configurable
Control of the switching points	Customer configurable
Sensor head	Removable, interchangeable and reprocessed
Scanning	Active sampling by internal blower
Temperature and humidity sensor	Measuring range temp.: -40°F... 255°F / -40°C... 124°C Measuring range air humidiy: 0... 100% RH
Software	Configuration via the included software
PC Data Logging & Networking CD	Optional - Article-No.: R60
USB Connection	Optional - RS485 to USB Adapter: R53
Power supply	Optional - 12V DC DIN mounting rail 100... 250V AC R37
Included housing	Polycarbonate equivalent IP20 and NEMA 1
Size with base unit	64 x 130 Ø (mm); 2½ x 5 1/8 Ø (in)
Attachment	Screw device
Weight	Approximately .5 lbs / 200 g
Approval pursuant to Part 15 of the FCC Regulation	EN 50082-1: 1997 EN 50081-1: 1992

Delivery Scope

1 x Fixed base unit
1 x Software for configuring on PC
1 x Operating instructions

Attention! No AQ-sensor head is included in the delivery, it must be ordered separately as an accessory!
