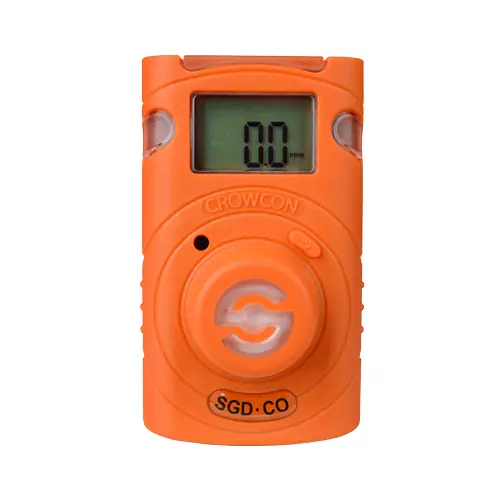

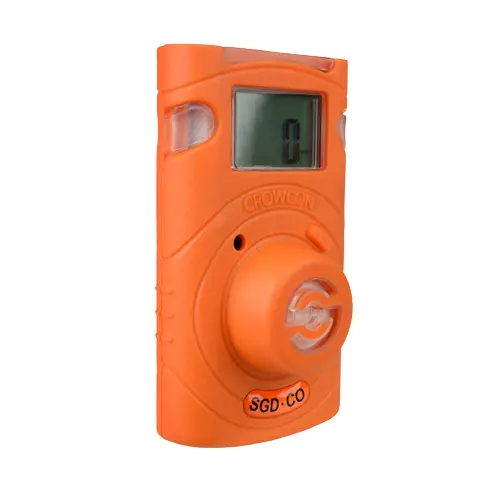

Gas Leak Detector Crowcon Clip SGD CO

Order no.: CL-C-30
GTIN (EAN):

US$ 197.00
ex. VAT, ex. delivery costs
CL-C-30
Available in: 1 week
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Gas Leak Detector Crowcon Clip and Clip+ with 24- or 36-month lifetime / triple alarm-signaling / no service or calibration necessary / self-testing function / CO, H2S or O2

This Gas Leak Detector is a compact and reliable meter, which is built to guarantee the safety of factory workers. The Gas Leak Detector has a lifespan of 2 years and is prepared for every condition that could possibly emerge in the industry. It’s worth mentioning that while the Gas Leak Detector Crowcon Clip+ also has a lifespan of 2 years, it has an additional standby mode that enables a utilization of the device for more than 3 years with discontinuity. The Gas Leak Detector Crowcon Clip can measure the parameters for hydrogen sulfide (H2S), carbon monoxide (CO) and oxygen (O2). The Gas Leak Detector guarantees optimal security due to its reliability and the fact that is does not require any maintenance. At the same time, the Gas Leak Detector is uncomplicated so that time-consuming briefings become unnecessary. Via the additional software and the IR-link, various alarm-steps can be adjusted, the measuring data can be shown in real-time, or interpreted and documented by meanings of the integrated IR- interface. The Gas Leak Detector also notifies the user if a gas - detection should become necessary (Bump-test). As previously mentioned, the Gas Leak Detector is prepared for any conditions that could emerge in the industry. Measurements can be executed at a temperature range of -40 to +50°C / -40 to 144°F or relative humidity of 5 to 95%. The Gas Leak Detector has IP 66 and 67 standard protections and, with measures of 81 mm x 50 mm x 28 mm / 3.2 x 2 x 1.1 in, they are very compact.


Highlights

- Robust enclosure
- Self-test function
- 24 months operation time / detection
  time
- 36 months with discontinuity with Clip+
- Optic, acoustic, and haptic alarm
- No service or maintenance
- Adjustable alarm levels
- Gas level- or service life-display
- For CO (Carbon Monoxide)
- Short briefing time

Specification

Technical specification of the Carbon Monoxide Meter Crowcon Clip/Clip+
Measuring ranges and alarm level of Carbon Monoxide Meter Crowcon Clip
GasMeasuring range sensor Alarm1Alarm 2
H20 ... 100 ppm 5ppm 10 ppm
CO0 ... 300 ppm 30ppm 100 ppm
O0 ... 30% Vol.19% Vol.23.5% Vol.
Common technical data for the Gas Alerter Crowcon Clip/Clip+
Operation time24 months nonstop operation Clip
36 months with standby mode Clip+
if max. 4 minutes alarm duration daily
Storage optionMax. 1 year before first activation
DisplayLCD, Remaining life, gas level and further information
Alarm display
optic
acoustic
haptic
LED on top, bottom and sidewise
95 dB
Vibration
Self-testEvery 2 hrs. after turn-on, constant battery monitoring
Power SupplyInternal battery
Environmental conditions
H2S
CO
O2
-40 ... +50°C / -40 ... 122°F / 5 ... 95 % r.h. non-condensing
-40 ... +50°C / -40 ... 122°F / 5 ... 95 % r.h. non-condensing
-35 ... +50°C / -31 ... 122°F / 5 ... 95 % r.h. non-condensing
Dimensions81 x 50 x 28 mm / 3.9 x 2 x 1.1 in
Weight76 g / < lb
Protection typeIP 66/ IP 67
ComplianceEMC- guideline 89/336/EWG
CertificationUL-913 & CSA-C22.2 Nr.157
Class 1 Div. 1 and 2, Group A, B, C, D
ATEX II 1G Ex ia IIC T4 Ga
IECEx Ex ia IIC T4

Delivery Scope

1 x Gas Leak Detector Crowcon Clip
1 x Instruction manual
