Gas Leak Detector PCE-AQD 10

Name: Gas Leak Detector PCE-AQD 10
Brand: PCE Instruments
SKU: 5887157
Price: 600 USD
Availability: InStock

Order no.: PCE-AQD 10

GTIN (EAN): 4250348719362

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Calibration certificate for PCE-AQD 10 (CO2 function only)

US$ 161.00

ISO Calibration Certificate for Temperature and Humidity

US$ 211.00

Description

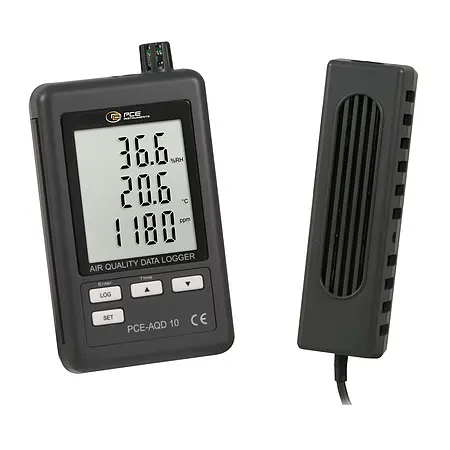

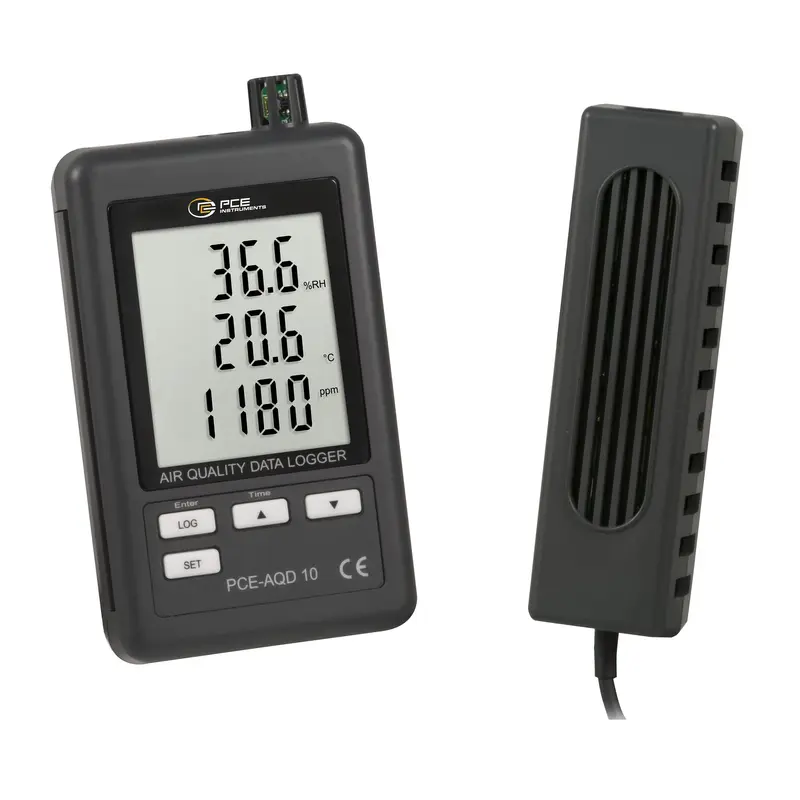

PCE-AQD 10 Gas leak detector
CO2 datalogger for air quality testing / Adjustable storage rate / Backlit LCD / Storage on SD card / Storage as XLS

The CO2 data logger PCE-AQD 10 is used to measure air quality. The CO2 data logger measures carbon dioxide, temperature and humidity. The CO2 sensor from the CO2 data logger is separated from the main unit with a connection cable. The measured values are displayed on the large display of the CO2 data logger. The air quality measurement data is stored on an SD card. The CO2 data logger can set the measured data in adjustable intervals of 1 ... 600 seconds.

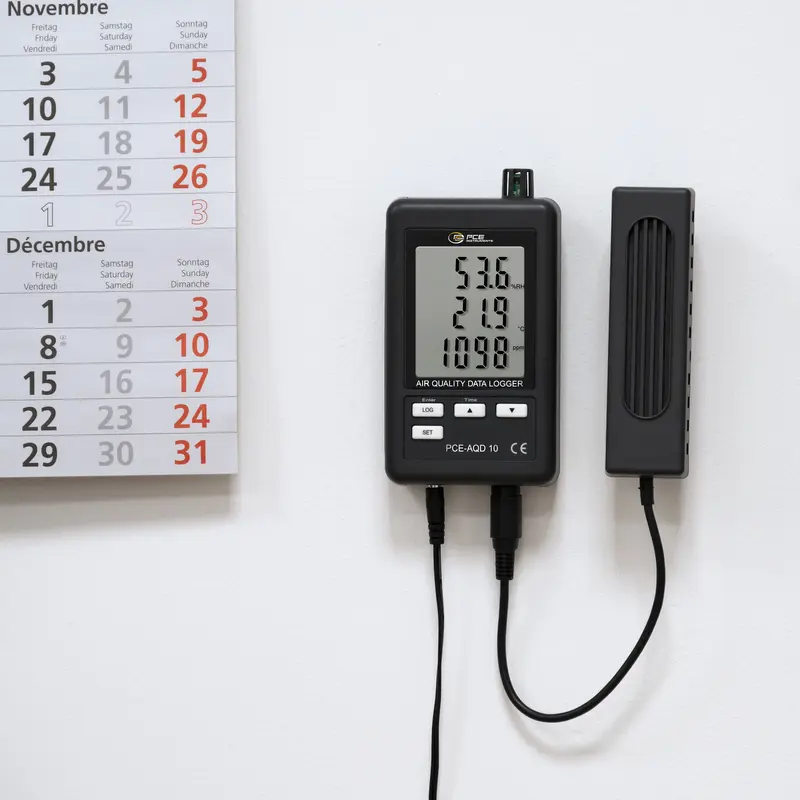

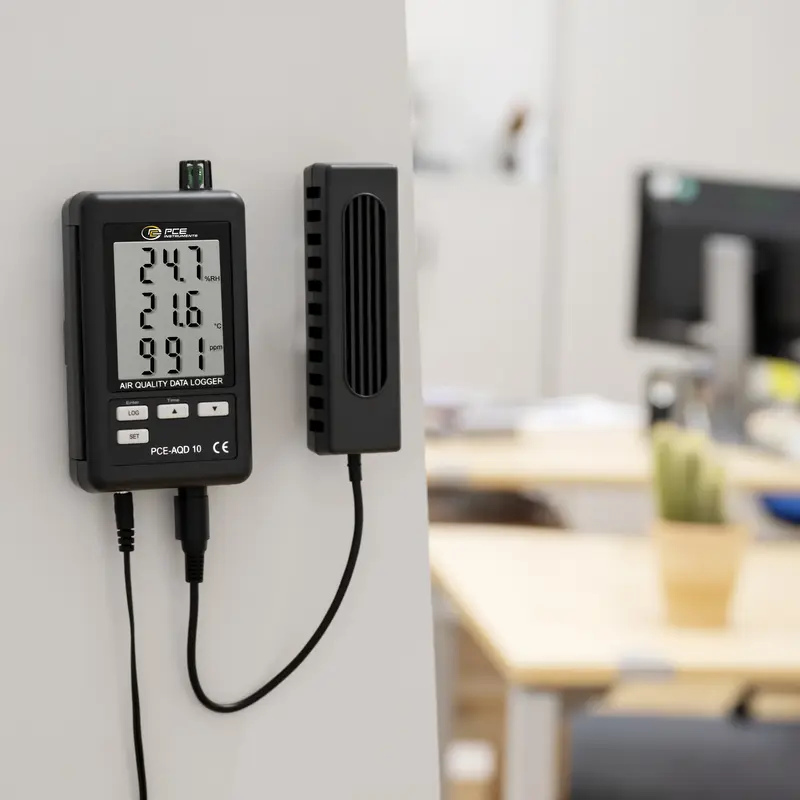

The CO2 data logger is used to monitor indoor air quality in lounges, offices, schools, etc. Through the SD memory, the CO2 measurement data can be monitored over a long period of time to initiate further measures to improve the room air quality.

Highlights

- Memory on SD card
- 3 parameters of air quality
- CO2, air temperature and humidity
- Mains operation, A/C power adapter
- Save as XLS file
- Large display with lighting

Specification

Measured quantity CO2
Measuring range	0 ... 4000 ppm
Resolution	1 ppm
Accuracy	± 70 ppm (<1000 ppm)
	± 5% of rdg. (<3000ppm)
	± 250 ppm (> 3000 ppm)
Measured air humidity
Measuring range	10 ... 90% rh
Resolution	0.1% RH
Accuracy	± (4% of rdg. + 1% rh) (> 70% rh)
	± 4% RH (<70% RH)
Measured variable temperature
Measuring range	0 ... 50°C / 32 ... 122°F
Resolution	0.1°C / 0.18°F
Accuracy	± 0.8°C / 1.4°F

Storage rate	1, 2, 5, 10, 30, 60, 120, 300, 600 seconds
Storage	SD card up to 16 GB
Display	LCD with lighting
Refresh rate display	1s
Power supply	6 x 1.5V AA battery (for time back-up only)
	Plug-in power supply 9V / 800-mA
Operating conditions	0 ... 50°C / 32 ... 122°F, <85% rh
Dimensions	Main unit: 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3 in
	CO2 sensor: 132 x 38 x 32 mm / 5.2 x 1.5 x 1.3 in
Weight	Approx. 390 g / < 1 lb (total)

Delivery Scope

1 x Gas leak detector PCE-AQD 10
1 x CO2 sensor
1 x Mains power adapter
1 x SD memory card
2 x Wall holder
1 x Adhesive pad
1 x User manual

Downloads

Manual

Datasheet
