Handheld Tachometer PCE-DT 65-ICA Incl. ISO Calibration Certificate

Order no.: PCE-DT 65-ICA
GTIN (EAN):

US$ 339.00
ISO Calibration
ex. VAT, ex. delivery costs
PCE-DT 65-ICA
Available in: 10 - 14 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

PCE-DT 65 Handheld Tachometer-ICA incl. ISO calibration certificate
For both contact and non-contact measurements of rotation speed and linear speed

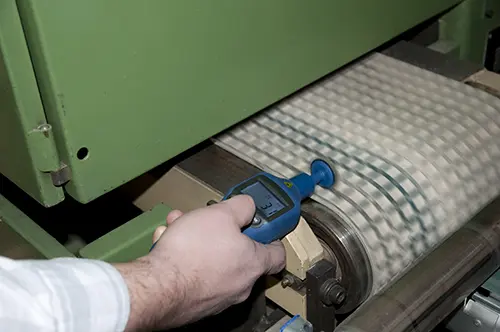

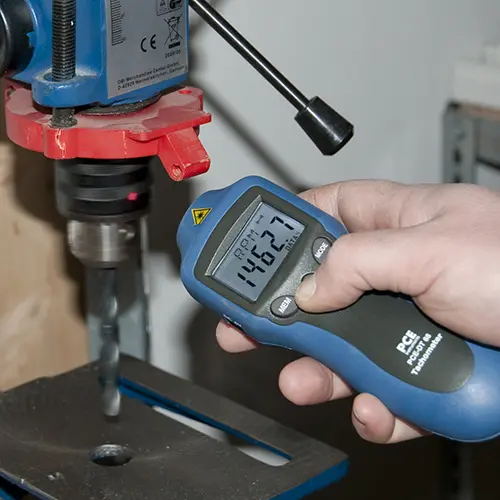

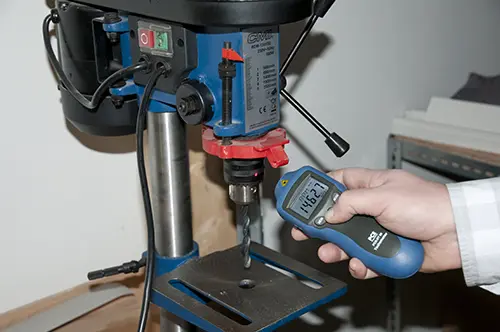

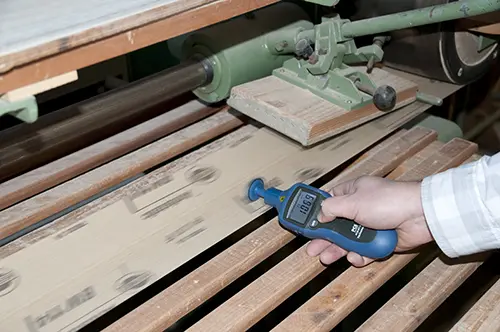

PCE-DT 65 is a digital handheld tachometer, or rotation meter, that can take both contact and non-contact measurements of rotation speed and linear speed. This handheld tachometer features an integrated laser and includes a mechanical attachment with contact probes, making it the ideal measuring instrument for machines, motors, conveyor belts and other moving parts.

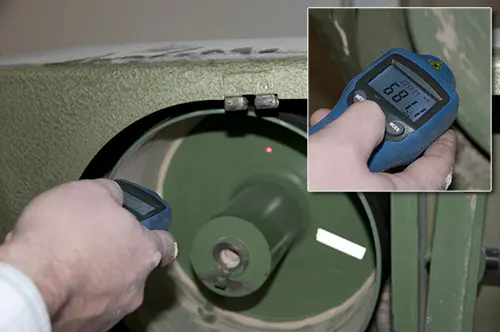

Non-contact measurements are taken with the help of laser-reflective tape that is fixed on the moving part. 3 x strips of reflective tape (each 20 mm or 0.8 in) are included in the delivery contents. (For additional reflective tape, please see the accessories tab.) Contact measurements are taken using the included mechanical attachment and contact probes. The tachometer comes factory calibrated. Optional ISO calibration is available for an additional fee - see accessories for details.


Highlights

- Speed measurement: rpm
- Surface velocity: m/min
- Number of rotations: counter
- Frequency: m, in, ft, yd
- Linear measurement: m, in, ft, yd
- Incl. ISO calibration certificate

Specification

Measuring range laser-optical       2 ... 99999 rpm
Measuring range mechanical2 ... 20,000 rpm
Resolution0.1 rpm in the range 2.0 ... 9999.9 rpm
1 rpm in the range 10000 ... 99999 rpm
Accuracy± 0.05% of the speed reading ± 1 digit
Measuring distance 50 ... 500 mm / 2 ... 20 in
Storage10 readings
Power supply1 x 9V block / 6V external power supply
Working temperature range0 ... 50°C / 32 ... 122°F
CasingABS Plastic
Speed ​​displayLCD display, 5 digits, 22 mm high
Dimensions160 x 60 x 42 mm / 6.3 x 2.4 x 1.7 in
Weight200 g / < 1 lb


Delivery Scope

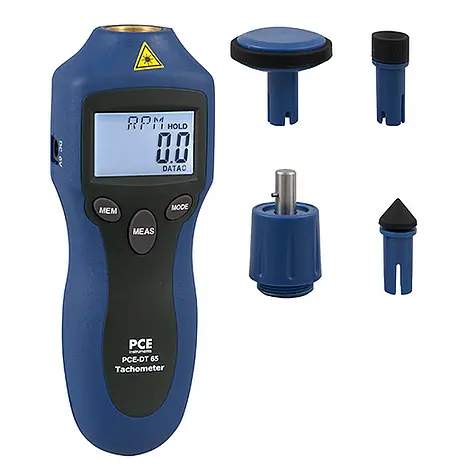

1 x PCE-DT 65 Handheld tachometer
1 x Mechanical attachment
1 x Adapter wheel
1 x Measuring probe (outer cone)
1 x Measuring hollow point (inside cone)

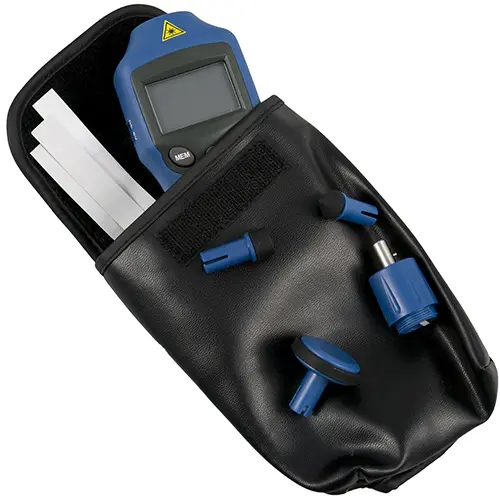

1 x Belt bag
1 x Battery
3 x Strips of reflective tape (each 20 mm or 0.8 in)
1 x User manual

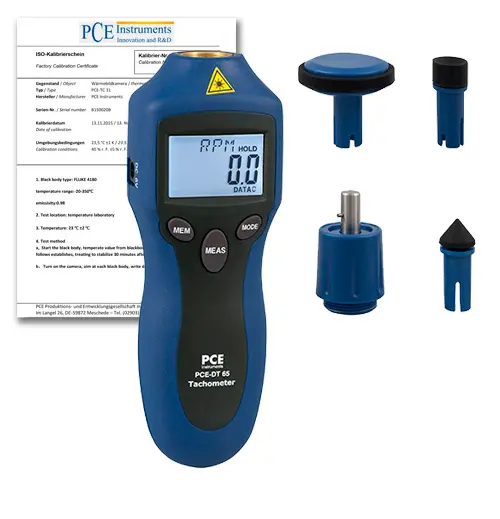

1 x ISO calibration certificate
