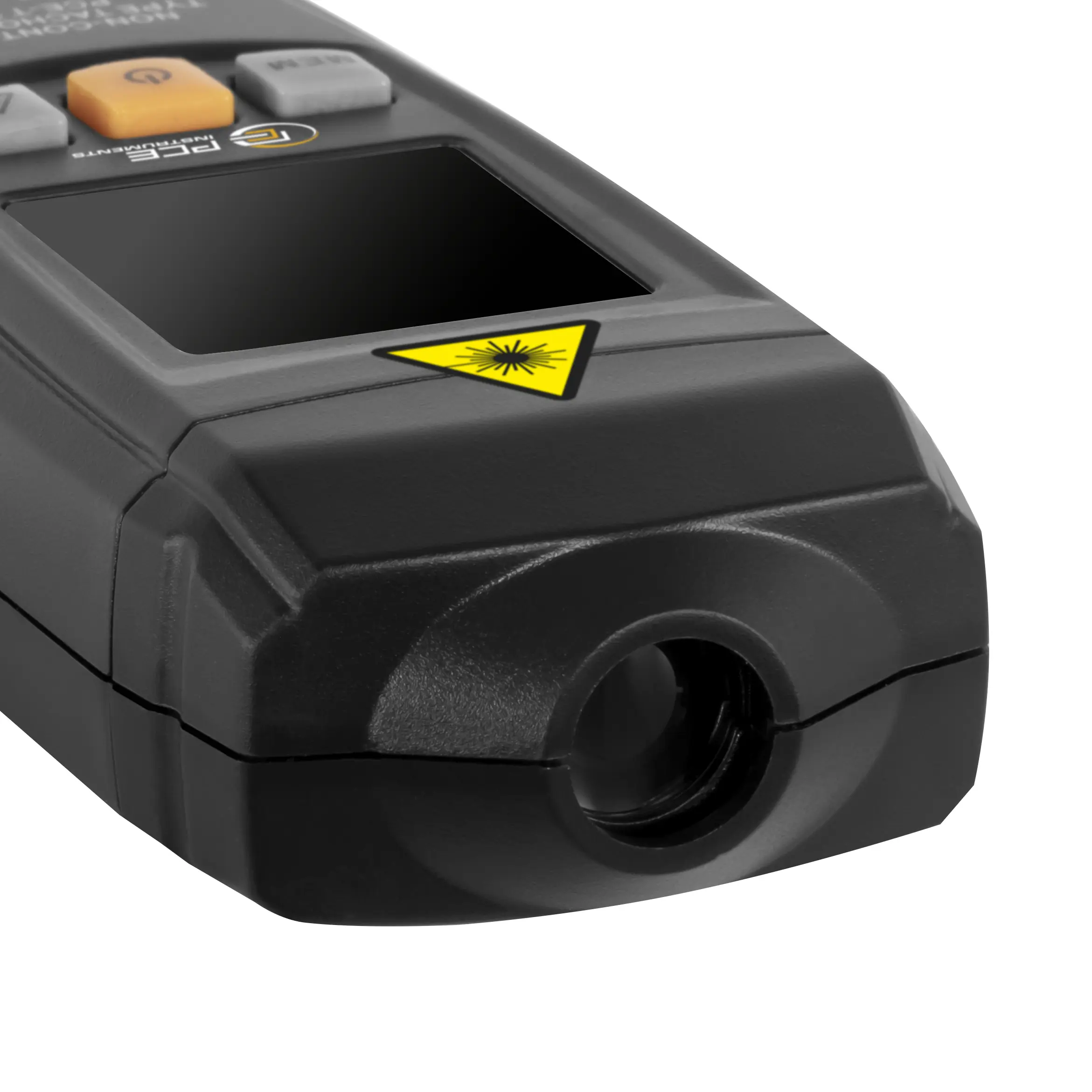

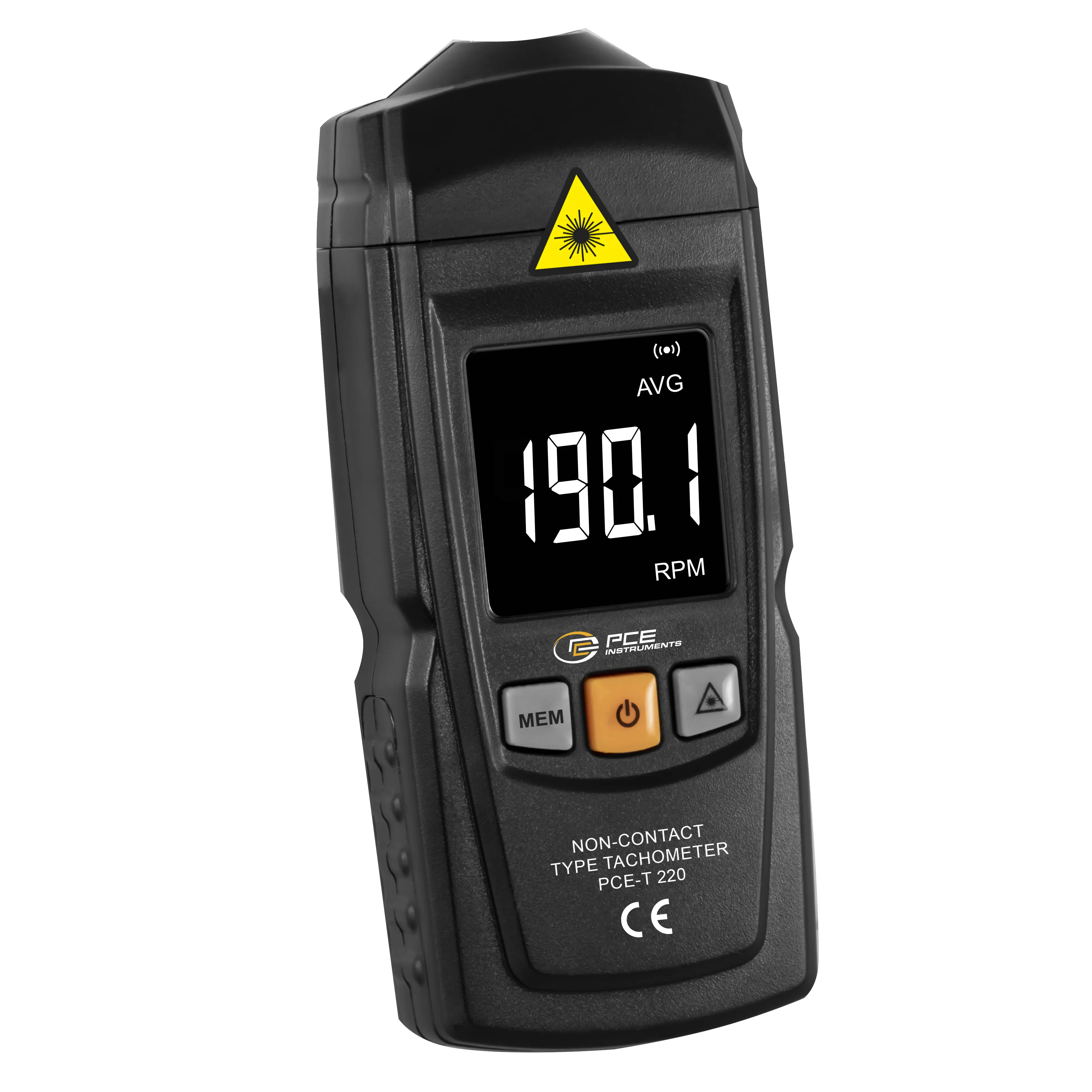

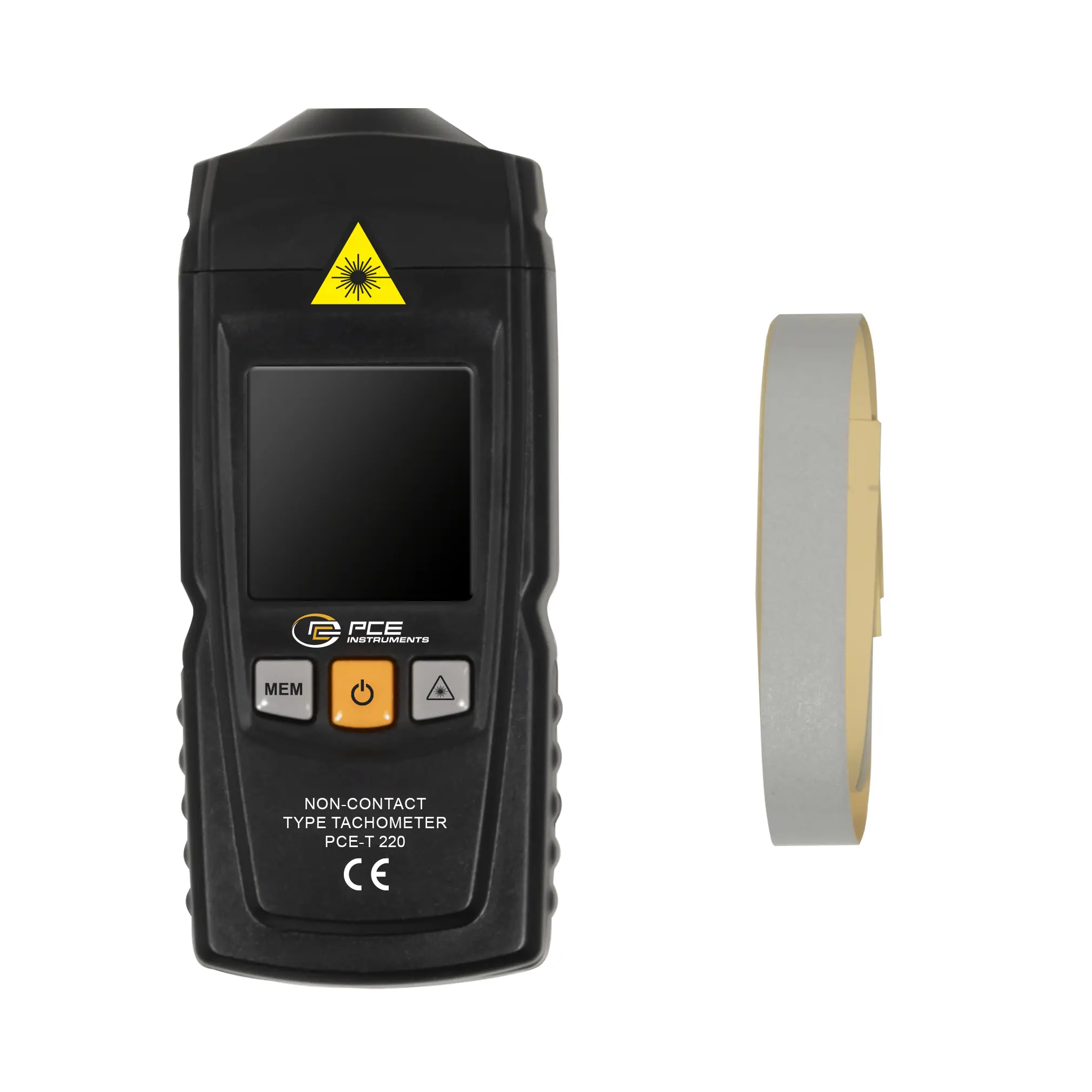

Our Handheld Tachometer is a digital, battery-operated optical meter that can be used up to a distance of 50 cm from the measuring point thanks to its optical sensor. It covers a measurement range from 2.5 to 99999 revolutions per minute (rpm) and offers a resolution of 0.1 rpm to provide reliable results.
Equipped with minimum, maximum, last and average value functions, the Handheld Tachometer enables the recording of current and extreme measured values over the measurement period. The 1.8-inch LC display provides a clear view under all conditions. The compact design with dimensions of 127 x 55 x 30 mm makes the device handy and easy to use. The laser enables precise measurements at a distance of 50 to 500 mm. The trigger key must be held down to make a measurement. The values are updated by our Handheld Tachometer every second.

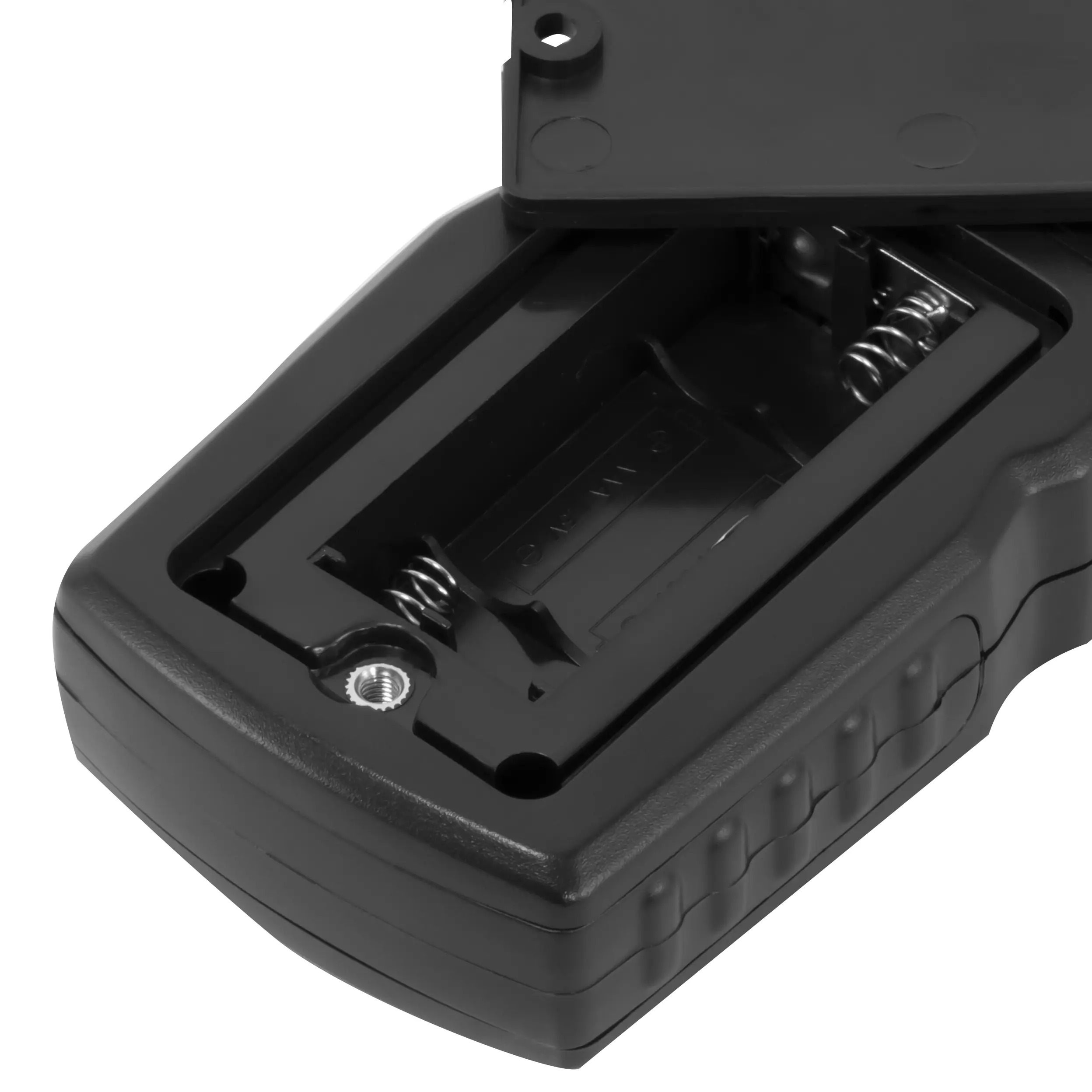

Our Handheld Tachometer switches off automatically after 60 seconds of inactivity to prevent the 2 AAA batteries from discharging unintentionally. Ideal for use in various industries such as engineering, automotive and maintenance, it provides the precision and reliability for a variety of applications.
Optical speed | |
Measurement range up to | 2,5 ... 999,9 RPM |
Resolution | 0,1 RPM |
Accuracy | ± (0.1 % of Rd + 5 digits) |
Optical speed | |
Measurement range up to | 1000 ... 99999 RPM |
Resolution | 1 RPM |
Accuracy | ± (1 % of Rd + 5 digits) |
General technical data | |
Measuring functions | MIN, MAX, LAST, AVG |
Display type | LCD |
Display size | 1,8 Inch |
Measuring rate | 1 x per second |
Automatic power-off | 60 s |
Laser | Class 3A 2-5 mW |
Measuring distance | 50 ... 500 mm |
Menu language | English, English (GB) |
Protection class (device) | IP20 |
Weight | 100 g |
Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
Storage conditions | -10 ... 80 °C , 10 ... 75 % RH |
(Rechargeable) battery | 2 x 1,5 V AAA battery , Zinc carbon |
Capacity | 400 mAh |
Dimensions ( L x W x H ) | 127 x 55 x 30 mm |
