Hardness Tester PCE-DD-A Shore A

Name: Hardness Tester PCE-DD-A Shore A
Brand: PCE Instruments
SKU: 2131528
Price: 131 USD
Availability: InStock

Order no.: PCE-DD-A

GTIN (EAN): 4250348707949

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

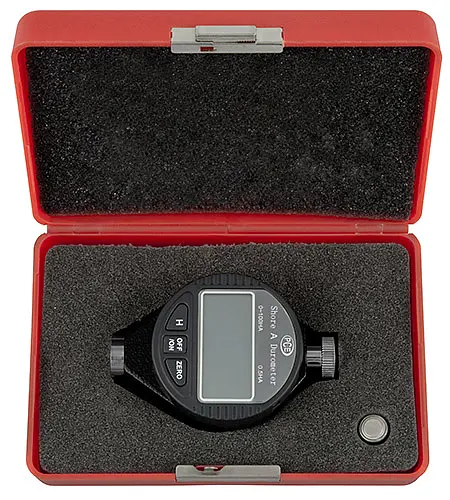

PCE-DD-A Hardness Tester
To measure Shore A hardness in soft gums, rubber and elastomers / Easy-to-read digital display / Resolution of 0.5 degrees of hardness

The PCE-DD-A Hardness Tester is an ergonomic device that checks Shore hardness in gum, plastic and other non-metallic materials. The PCE-DD-A Hardness Tester is used primarily for soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. If the material thickness is not enough, it should be tightened on the back with the same material to increase its thickness. Calibration is not an option.

Highlights

- Handheld device
- Large digital display
- Plastic case included
- For Shore A measurements
- Easy to use

Specification

Measurement area	0 ... 100 Shore A
Resolution	0.5
Accuracy	± 2
Depth of indentation	0 mm ... 2.5 mm / 0 in ... 0.01 in
Pressure force	1 kg / 2.2 lbs
Indenter	35°
Dimensions	80 mm x 60 mm x 25 mm / 3.14 in x 2.36 in x 0.4 in
Power supply	1 x 1.5V (SR44)
Weight	Approx. 300 g / < 1 lb
