Hardness Tester PCE-DDD 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-DDD 10-ICA

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Test stand STAND-PCE-DDx10

US$ 888.00

Description

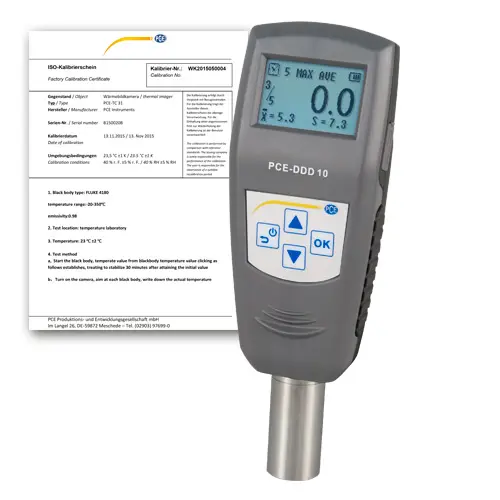

Digital Hardness Tester to measure Shore D hardness in materials such as hard rubber and thermoplastic with USB port and downloadable software

The PCE-DDD 10 hardness tester is an ergonomic device to check Shore D hardness in materials such as hard rubber and thermoplastic. It has been designed with a very high quality. If the material thickness is not enough, it should be tightened on the back with the same material in order to increase its thickness.

Highlights

- Handheld device

- Digital display

- Plastic case included
- For Shore D measurements

- Large display

- Single and Serial Measurements
- Data transfer to pc
- Incl. ISO Calibration Certificate

Specification

Measurement range	0 ... 100 Shore D
Resolution	0.1
Accuracy	< ± 1
Indenter	35°± 0.25°
Memory	Saves up to 500 measurements
Dimensions	153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
Weight	Approx. 300 g / < 1 lb
Power supply	3.6V rechargeable Ni-MH battery
Max. operating time	Up to 20 h continuous use at full charge
Charging time	Approx. 3 h
Standards	GB/T 531.1, ISO7619-1, ASTM D 2240

Delivery Scope

1 x PCE-DDD 10 hardness tester
1 x Power supply
1 x Storage case
1 x Standard calibration plate
1 x Mini USB cable
1 x User's manual
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Downloads

Manual

Datasheet

Software
