Hardness Tester PCE-DDO 10 Shore O

Order no.: PCE-DDO 10

GTIN (EAN):

Accessory

Calibration certificate CAL-PCE-DX

US$ 211.00

Test stand STAND-PCE-DDx10

US$ 888.00

Description

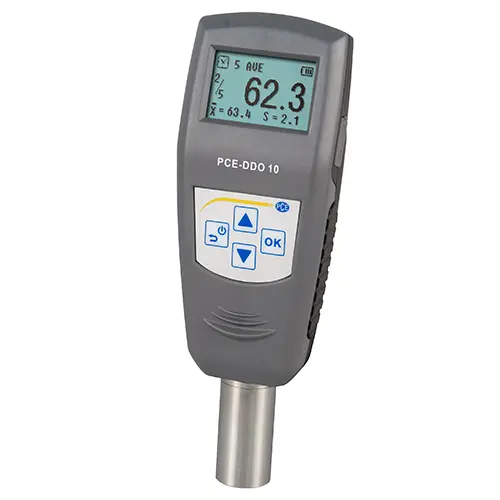

Digital hardness tester to measure Shore A hardness in soft gums with USB-Port and software

The PCE-DDO 10 hardness tester is an ergonomic device to check Shore hardness in gum. It has been designed with a high quality. The PCE-DDO 10 hardness tester is mainly used for soft gums. If the material thickness is not enough, it should be tightened on the back with the same material in order to increase its thickness.

Highlights

- Handheld device

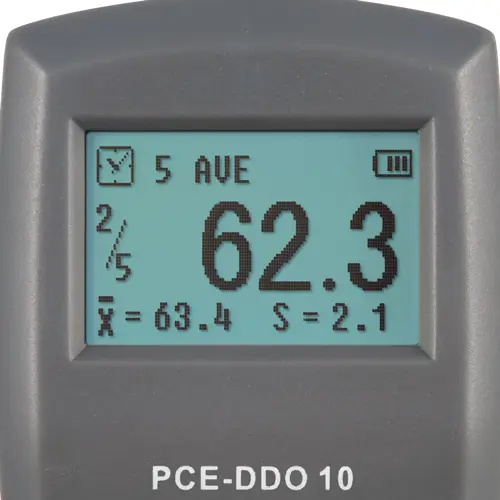

- Digital display
- Plastic case included
- For Shore O measurements
- Large display
- Single and Serial-Measurements

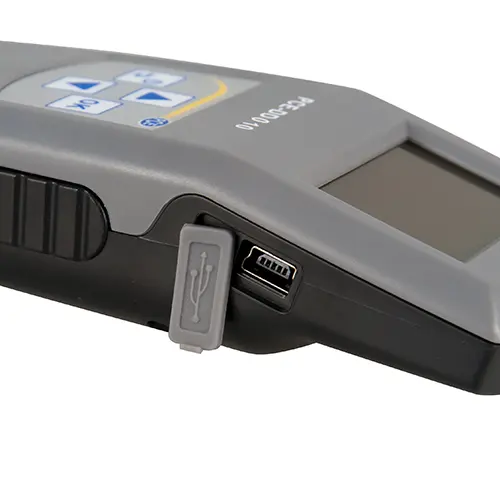

- Datatransfer to pc

Specification

Measurement area	0 ... 100 Shore O
Resolution	0.1
Accuracy	< ± 1

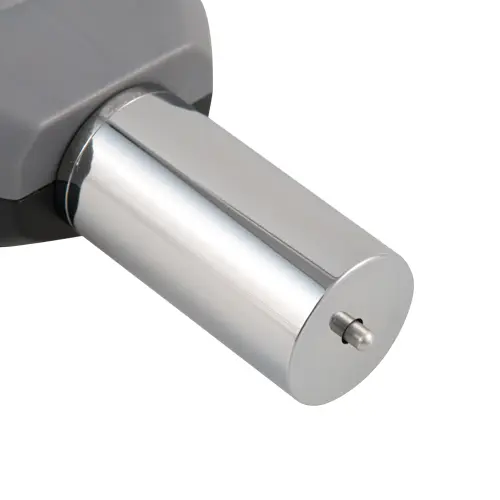

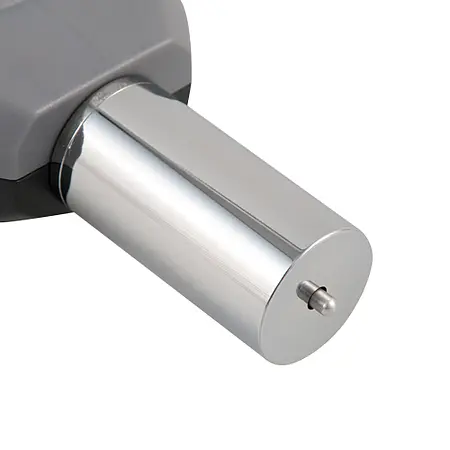

Indenter	35°± 0.25°
Memory	500 measurements
Dimensions	153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (mainbody)
Weight	Approx. 300 g / < 1 lb
Power supply	3.6V rechargeable Ni-MH accu
Max. work time	Up to 20h
Charging time	About 3h

Delivery Scope

1 x PCE-DDO 10 hardness tester
1 x Power supply
1 x Standard calibration plate
1 x Case
1 x Software CD
1 x Battery
1 x User's manual

Downloads

Manual

Datasheet
