Portable Metal Hardness Tester PCE-900

Name: Portable Metal Hardness Tester PCE-900
Brand: PCE Instruments
SKU: 5838726
Price: 1037 USD
Availability: InStock

Order no.: PCE-900

GTIN (EAN): 4250348715869

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Adaptor spherical inside HK16.5-30

US$ 47.00

Adaptor spherical inside HK12.5-17

US$ 47.00

Adaptor spherical inside HK11-13

US$ 47.00

Adaptor convex outside Z10-15

US$ 53.00

Adaptor convex outside vZ25-50

US$ 53.00

Adaptor concave inside HZ16.5-30

US$ 47.00

Adaptor concave inside HZ12.5-17

US$ 53.00

Adaptor concave inside HZ11-13

US$ 47.00

Adapter set for hardness measuring instruments with Impact D impactor

US$ 439.00

Impact Body Type D for PCE-900

US$ 273.00

Re-calibration certificate for hardness tester PCE-900

US$ 354.00

Software for PCE-900

US$ 105.00

Description

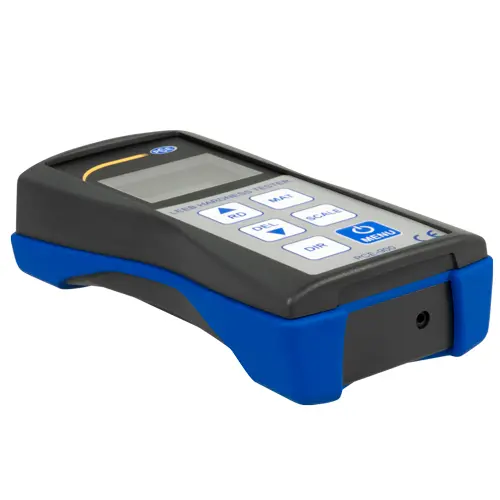

PCE-900 Portable metal hardness tester for metals
9 materials pre-calibrated / Conversion into 6 different hardness scales / Type D impact probe

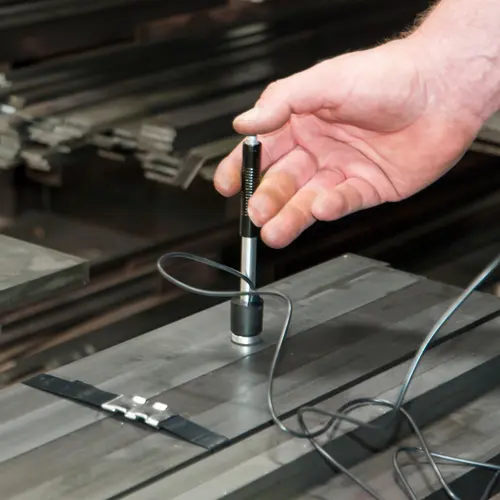

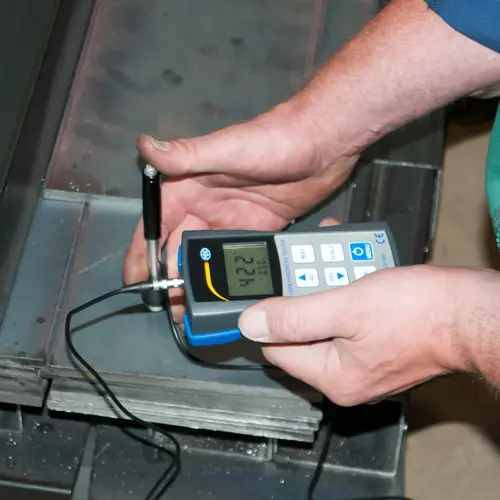

The Leeb Portable Metal Hardness Tester PCE-900 measures the hardness of nine different metals using the Leeb rebound method. This means that with the hardness tester a firing pin bounces on a metallic surface and the intensity of the rebound is used as an indicator of the material hardness. The hardness tester PCE-900 measures the metal hardness in 6 different hardness scales, including: Rockwell, Vickers, Leeb, Brinell and Shore. A distinction is made between Rockwell B and C when measuring in the Rockwell scale.

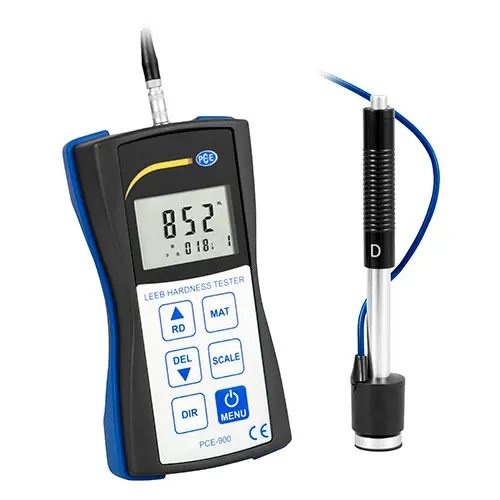

The Leeb hardness tester PCE-900 comes with a type D impact probe as standard. This probe can be used for many measurements. Via the optional software, the measured values can be transmitted live to the PC. This makes the PCE-900 Leeb hardness tester an important instrument in the field of material inspection in goods control.

Highlights

- Hardness test by the rebound method
- 9 material presets
- Easy to handle
- Data interface
- Six different hardness scales

Specification

Measuring range	200 ... 900 HL
Measuring accuracy	± 0.8% at HLD=900
Materials	9 common material presets
Hardness scales	Leeb: HL Rockwell C: HRC Rockwell B: HRB Brinell: HB Vickers: HV Shore: HSD

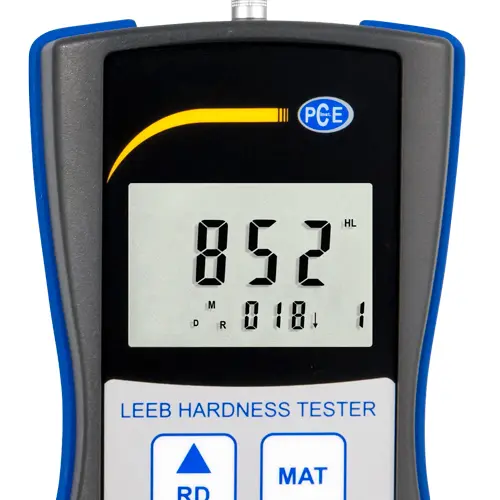

Display	12.5 mm / 0.5" LCD with backlight

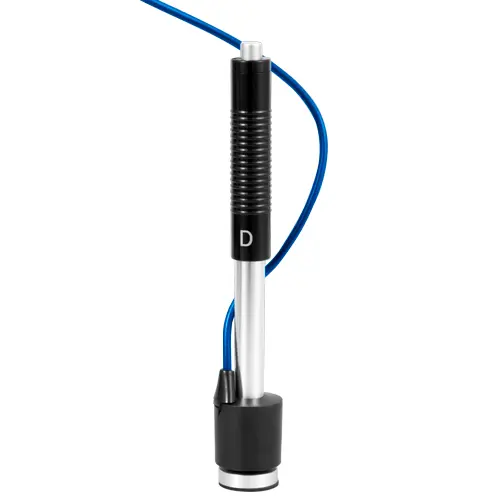

Impact probe	Type D
Memory	50 data sets
Interface	RS-232
Power supply	4 x 1.5V AAA batteries
Environmental conditions	Operating temperature: -10 ... 50°C / 14 ... 122°F Storage temperature: -30 ... 60°C / -22 ... 140°F Relative humidity: < 90%
Dimensions	142 x 77 x 40 mm / 5.59 x 3.03 x 1.58 in
Weight	Device weight: ca. 130 g / < 1 lb Probe weight: 75 g / < 1 lb
Cable length	ca. 1.2 m / 3.9 ft
