Health & Safety PCE-HAD 5

Order no.: PCE-HAD 5
GTIN (EAN): 4250348736154
US$ 174.00
ex. VAT, ex. delivery costs
:
4250348736154
PCE-HAD 5
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

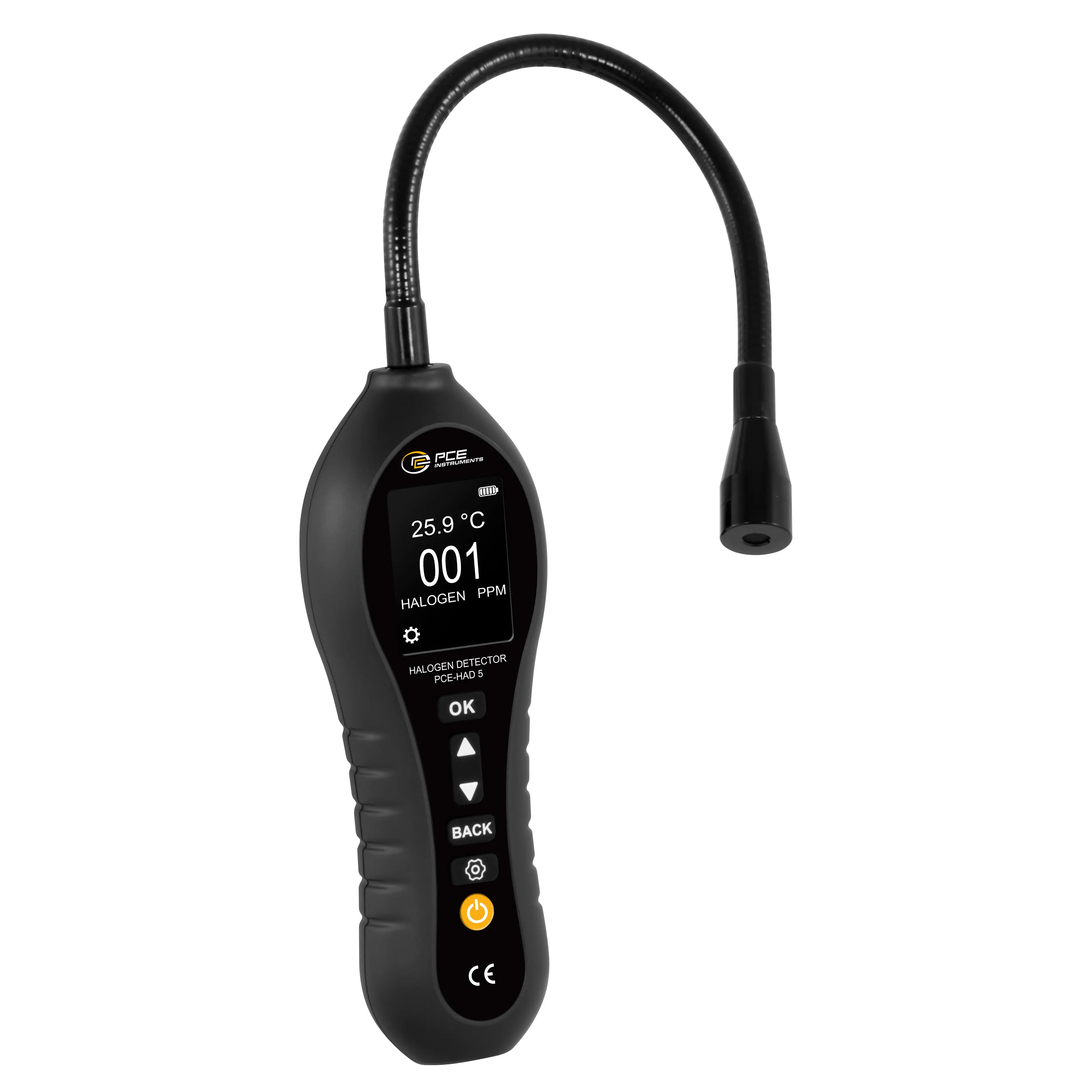

Health & Safety / triple alarm: audible, visual, vibration / flexible probe with a length of 265 mm / battery operation / easy use

Our Health & Safety is a versatile instrument for the detection of halogen gases such as chlorine, fluorine, medical ethylene oxide, ethanol vapour and other refrigerants. It is used in fire extinguishing systems, air conditioning systems, cooling systems and refrigerant recovery systems to detect gases such as CFCs, HCFCs and HFCs. The leak detector offers precise measurement within the range of 0 ... 1000 ppm with a resolution of 1 ppm and a quick response time (T90) of below 30 seconds as well as a warm-up time of only 30 seconds.

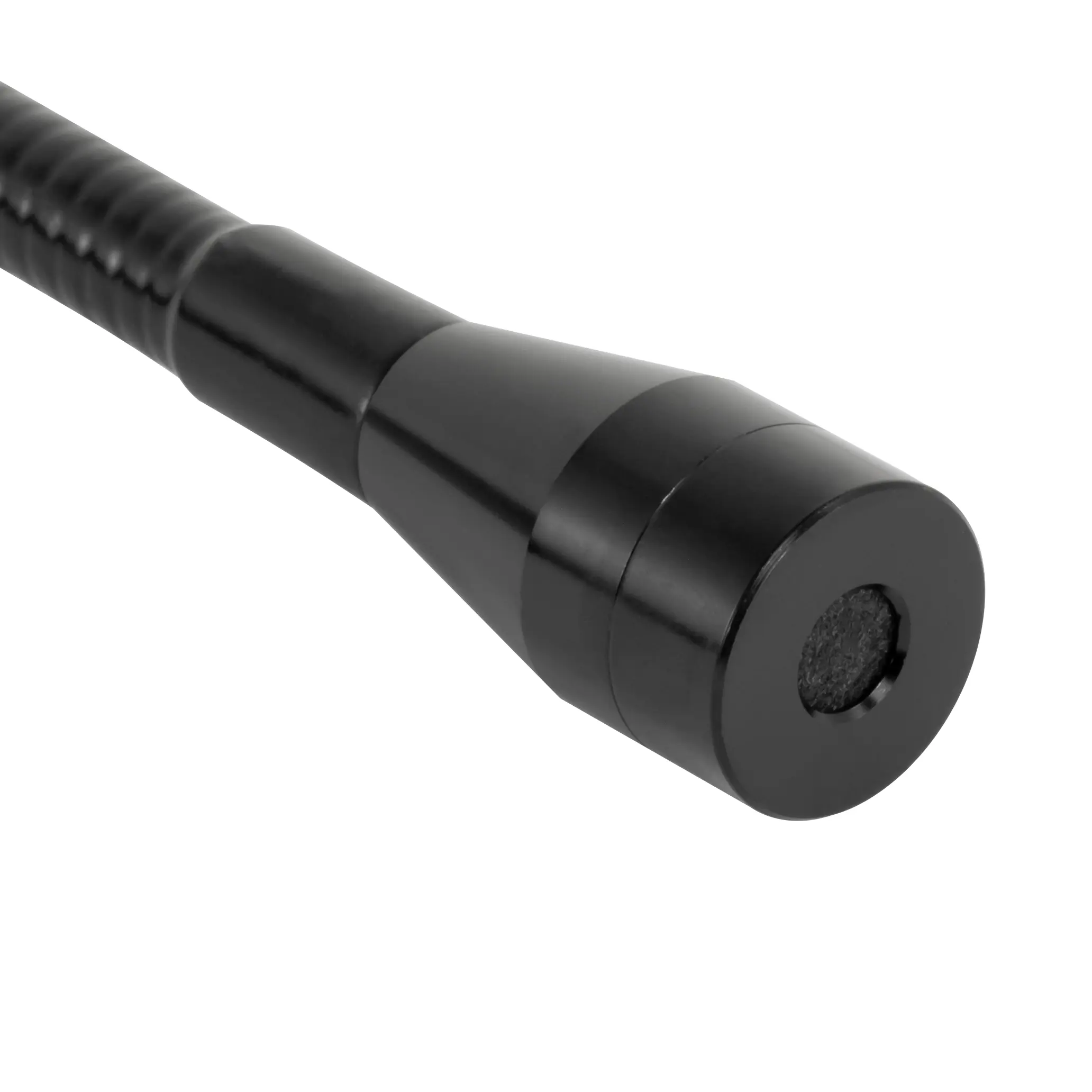

The Health & Safety has an ergonomic housing and a flexible, 265 mm long universal probe that can be adapted for measurements in different environments. It utilises a semiconductor sensor for real-time measurement of gas concentration. The temperature and battery level are also shown on the colour display. The alarm settings include audible signals, colour changes of the display and vibration alarms, which are differentiated according to the gas concentration: a slow tone with intermittent vibration at values between the lower and upper limit value and a fast continuous alarm at values above the upper limit value.

Our Health & Safety offers automatic power off after 15, 30 or 60 minutes, depending on the setting, and an operating time of up to 6 hours. The Health & Safety is characterised by its compact construction, non-slip design and simple operation, making it ideal for use in various industrial and commercial applications.


Highlights

- refrigerant gases CFC, HCFC and HFC
- ergonomic housing
- triple alarm: visual, audible, vibration
- automatic power off
- operating time: 6 h
- T90 warm-up time: 30 s
- response time T90: <30 s
- flexible probe

Specification

Gas
Measurement range up to  0 ... 1000 ppm
Resolution  1 ppm
Accuracy  ±5 % FS

Temperature
Measurement range up to  -10 ... +50 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Temperature
Measurement range up to  14 ... 122 °F
Resolution  0,1 °F
Accuracy  ±2 °F

General technical data
Display type  LC colour display
Display size  2 Inch
Response time  30 s
Warm-up time  30 s
Operating time  6 h
Automatic power-off from...to  15 ... 60 min.
Automatic power-off can be deactivated  Yes

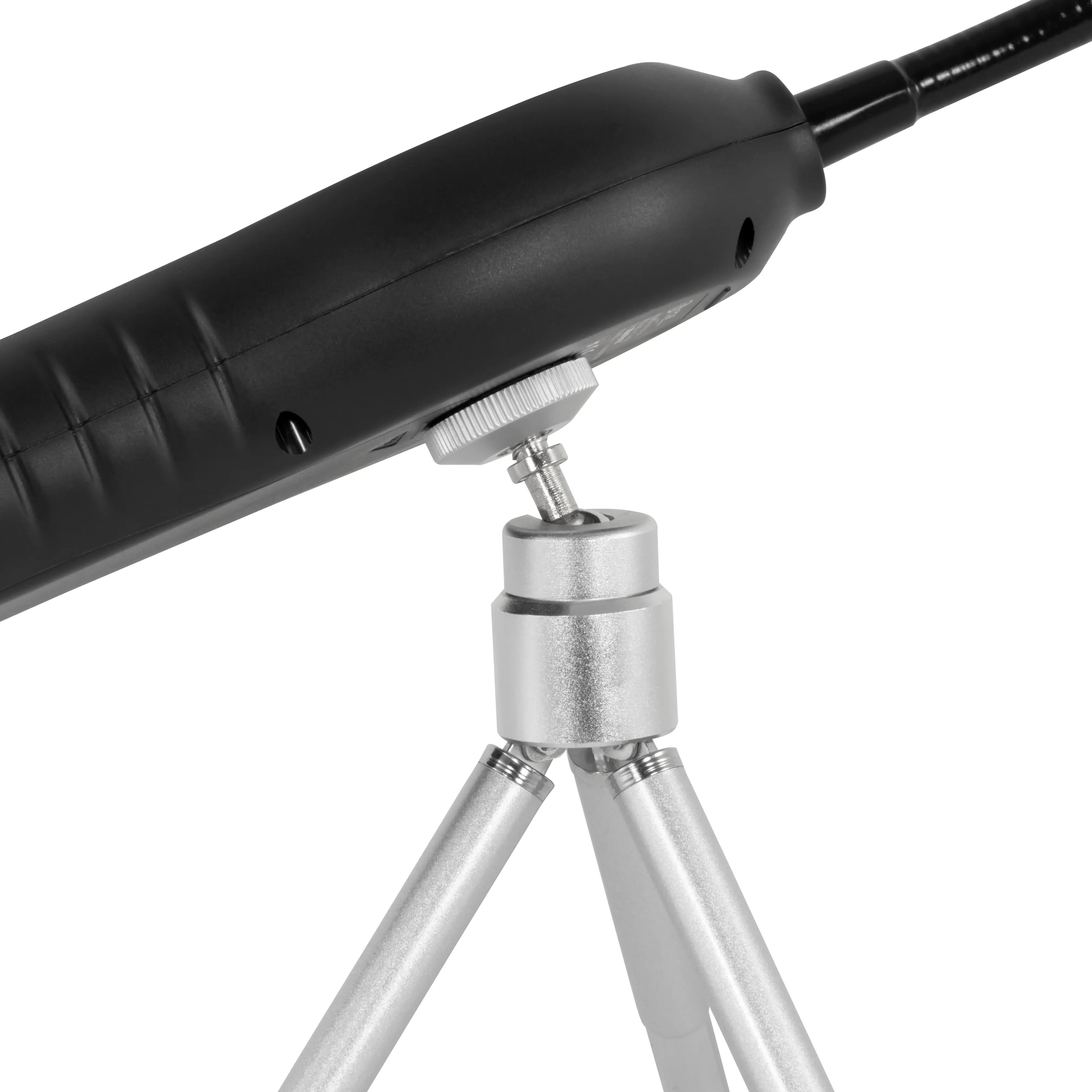

Tripod thread  1/4 inch
Refrigerant  R12, R502, R500, R22, R32, R402A, R402B, R409A, R410A, R134a, R404A, R407C, R507, R11, R13, R113, R114, R503, R170, R600a, R1270, R123, R124, R1416, R142b, R403A, R125, R417A, R23, R1343
Sensor length  265 mm
Alarm  Acoustic, Vibration, optical

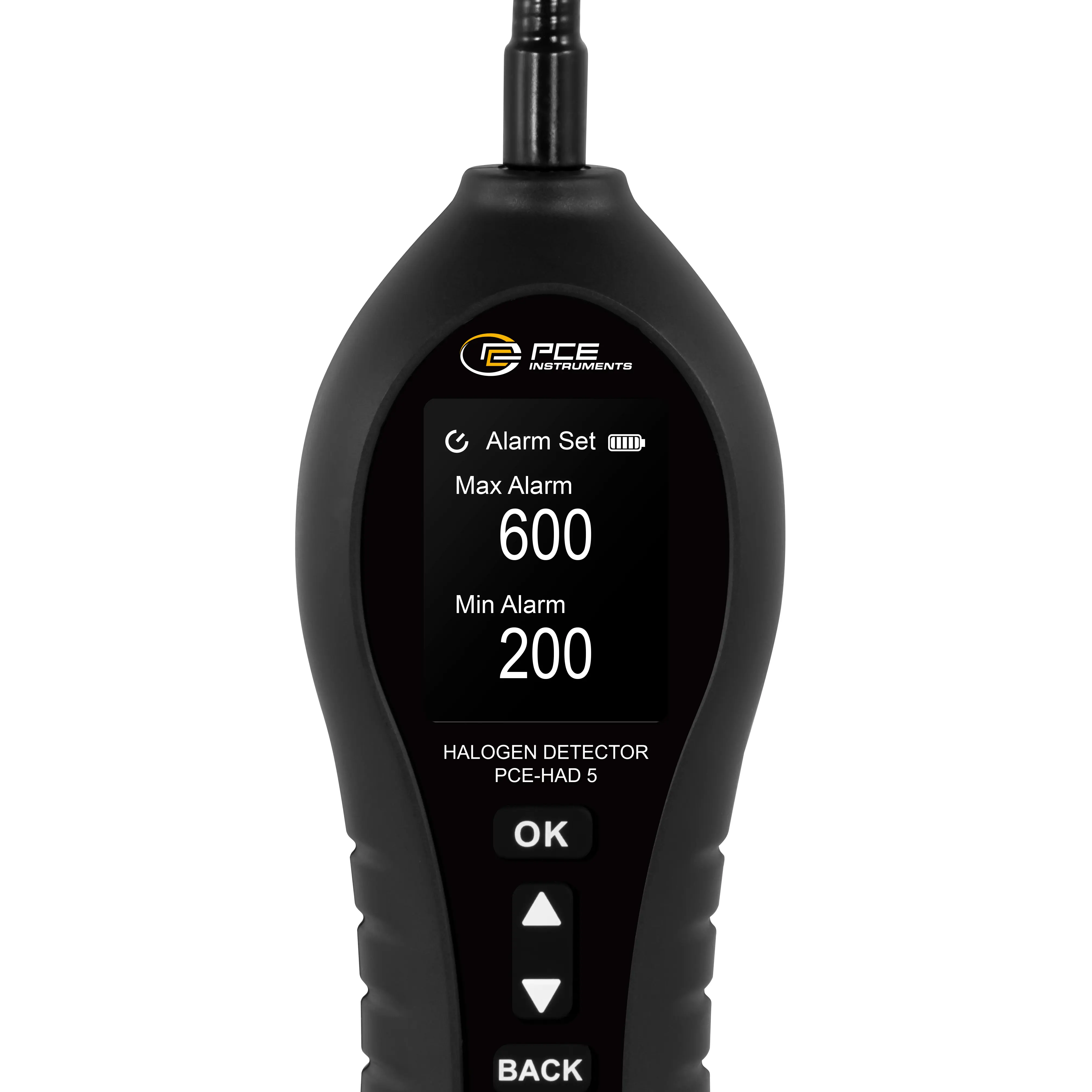

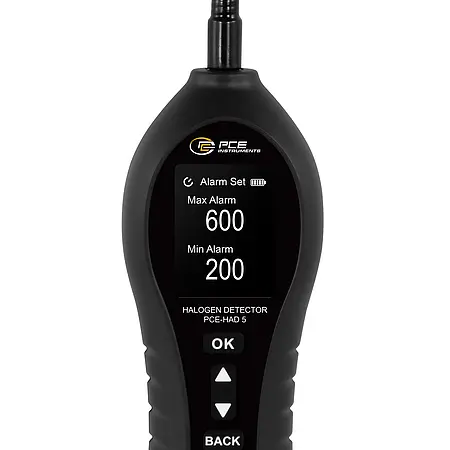

Alarm modes  Upper alarm limit adjustable: 110 ... 990 ppm
Lower alarm limit adjustable: 100 ... 890 ppm
Menu language  English, English (GB)
Protection class (device)  IP40
Weight  177 g
Operating conditions  -10 ... 50 °C , 10 ... 99 % RH
Storage conditions  -10 ... 50 °C , 10 ... 99 % RH

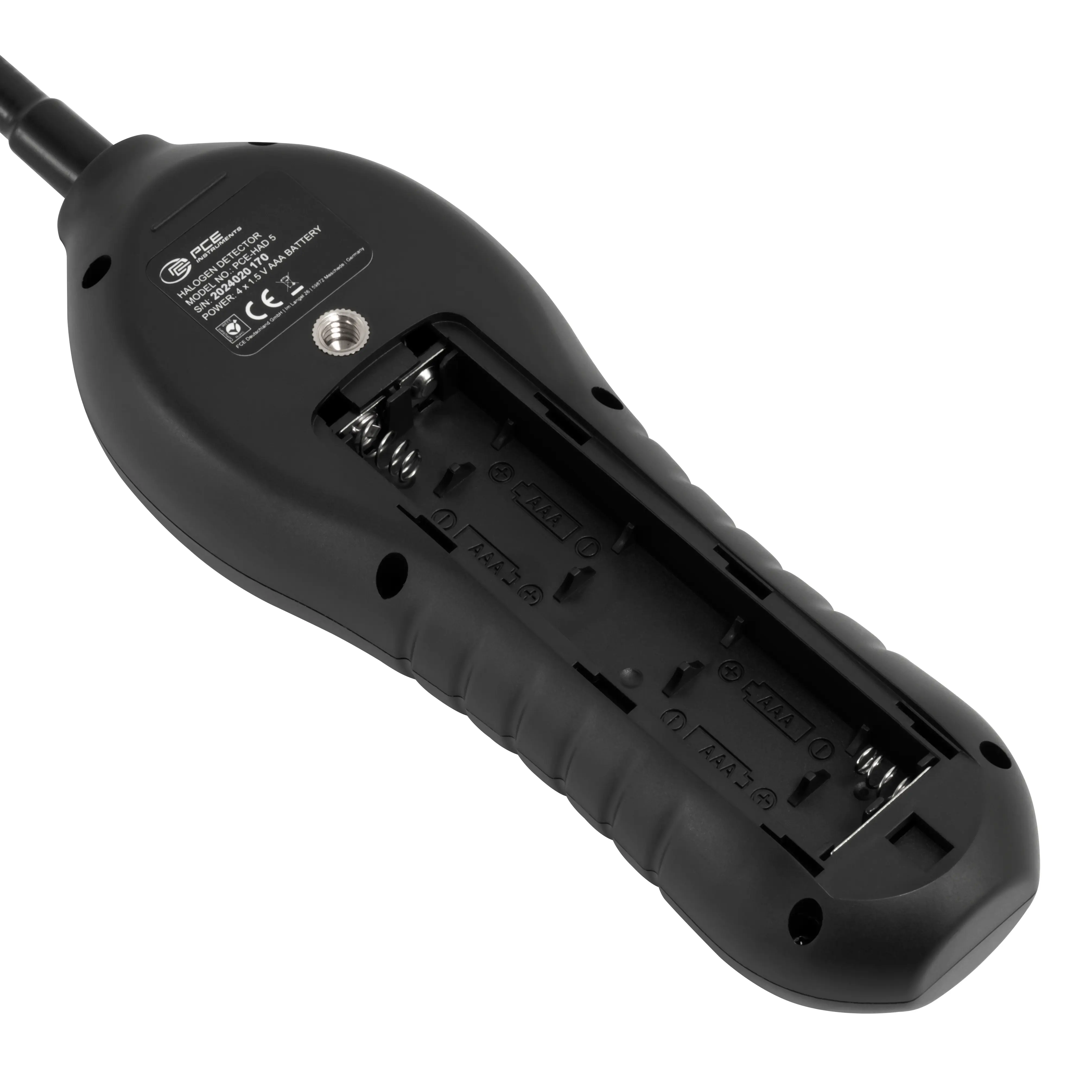

(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Dimensions ( L x W x H )  173 x 64 x 30 mm

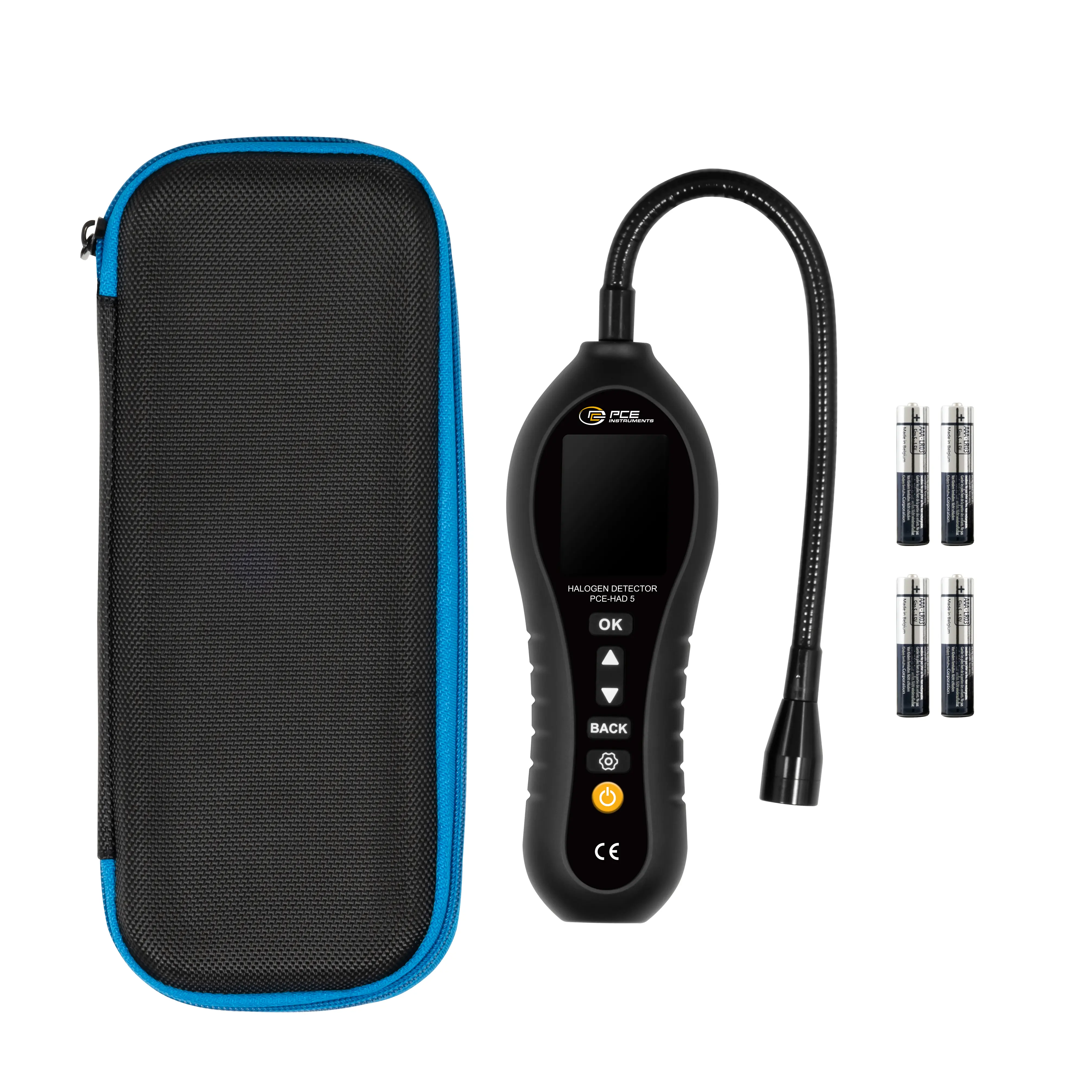

Delivery Scope

1 x Health & Safety PCE-HAD 5
4 x 1.5 V AAA battery
1 x carrying case
1 x user manual
