Health & Safety Sound Level Meter PCE-324

Order no.: PCE-324
GTIN (EAN): 4250348735201
US$ 99.00
ex. VAT, ex. delivery costs
:
4250348735201
PCE-324
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

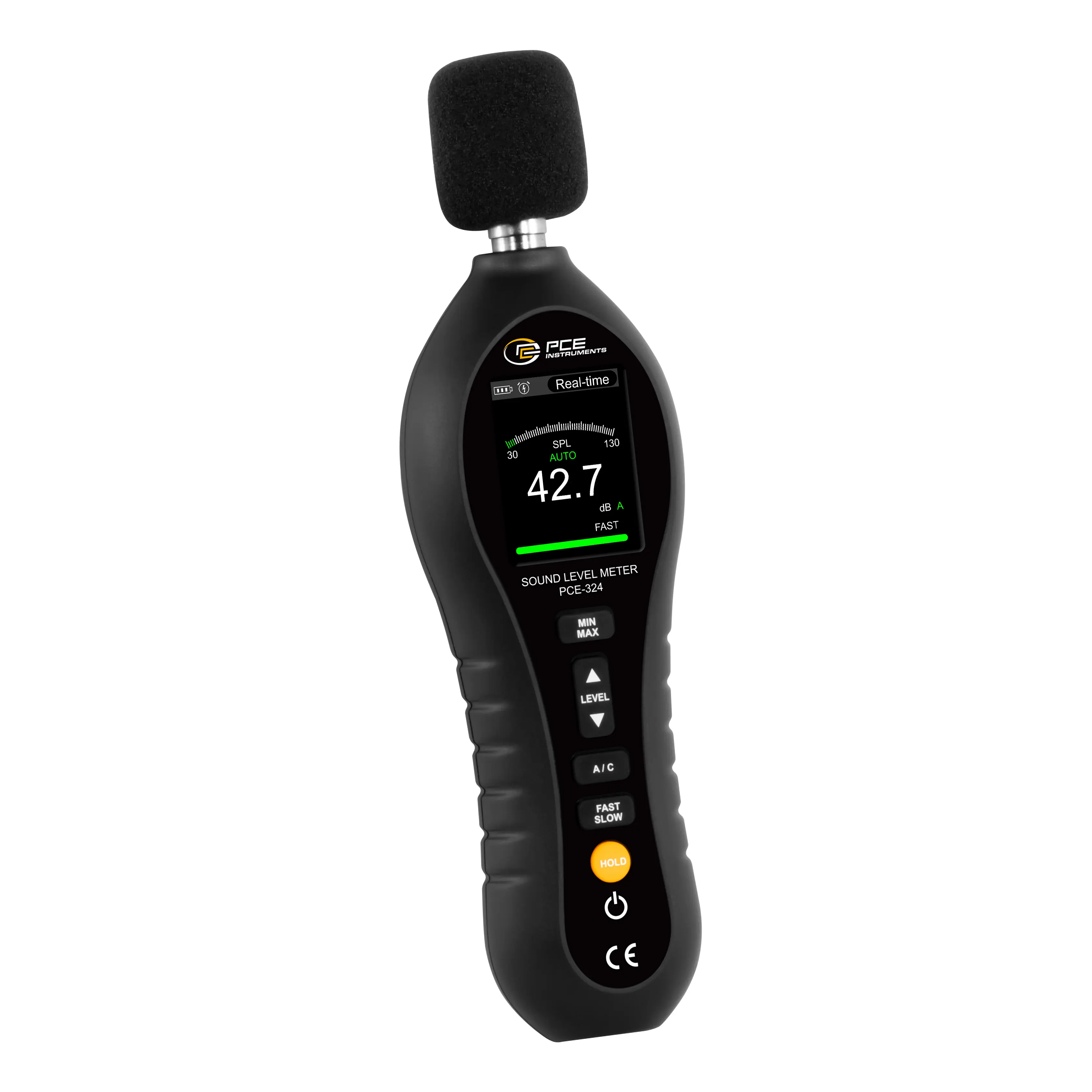

Sound Level Meter / LC colour display with backlight / numerical values and traffic light display / ergonomic shape / accuracy class 2 / battery operation

The Sound Level Meter offers a wide measurement range of 30 to 130 dB (dBA) and 35 to 130 dB (dBC), making it suitable for accurate measurements in various acoustic environments. The accuracy of the device is ±1.5 dB at 94 dB @ 1 kHz. Equipped with functions for A and C frequency weighting and both fast and slow time weighting, our Sound Level Meter is versatile and adaptable to different requirements.

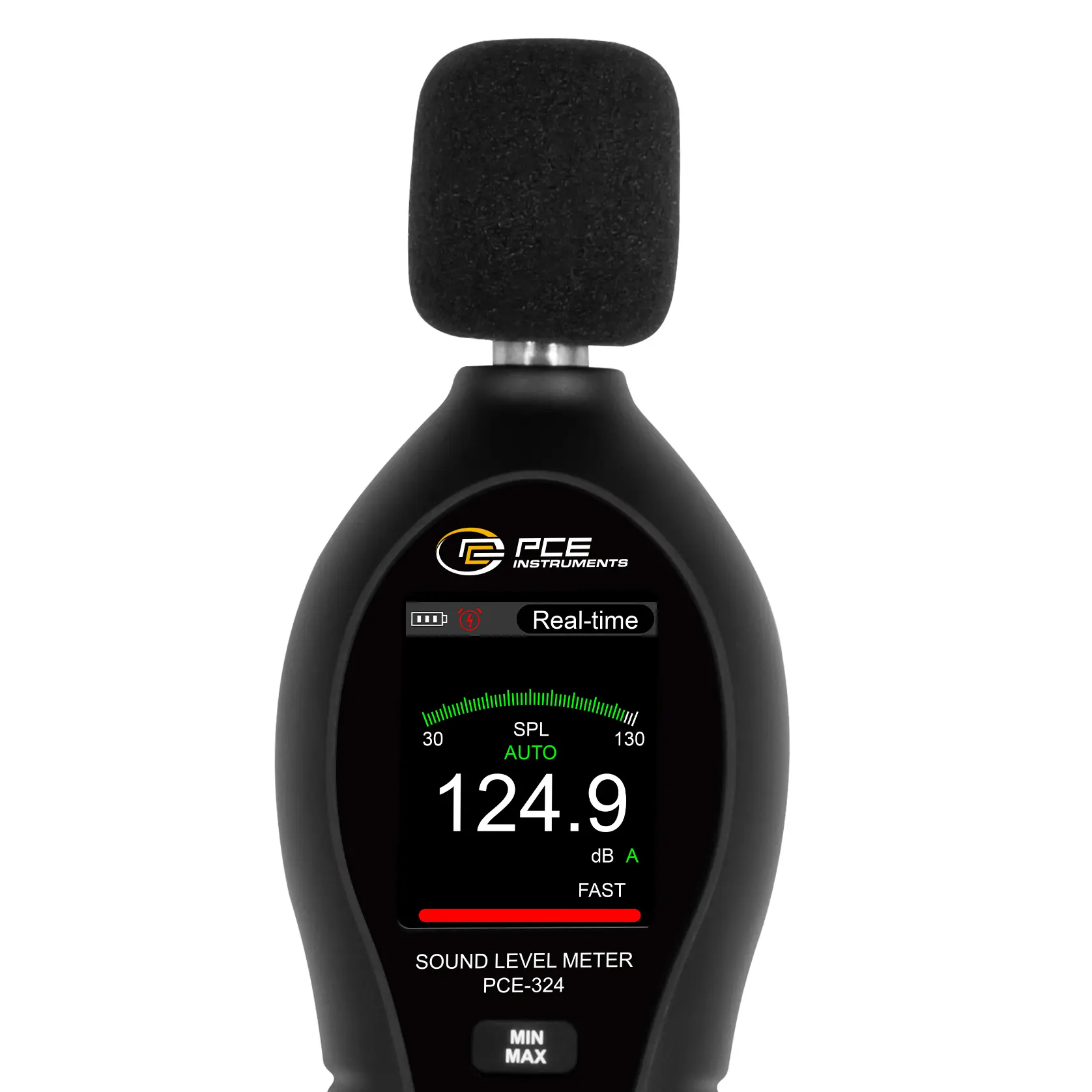

The 2-inch LC colour display provides a clear and easy-to-read display of the measured values in numerical form. In addition, the device has a scale that enables a quick visual assessment of the sound level. With a sampling rate of 2 x per second, the Sound Level Meter records acoustic changes almost in real time and is therefore particularly suitable for monitoring sound levels in dynamic environments.

The Sound Level Meter is equipped with functions such as MIN, MAX and HOLD. Thanks to the automatic power off function, the device is energy-efficient and saves battery power, which extends the operating time. The Sound Level Meter complies with IEC 61672-1 (class II). It is powered by 4 AAA batteries and is therefore mobile and flexible in use. Whether in residential areas, offices, production facilities or other environments - this Sound Level Meter is versatile and delivers precise results in a wide variety of acoustic scenarios.


Highlights

- automatic / manual measurement range selection
- fast and slow time weighting
- frequency weighting A and C
- numerical values and traffic light display
- measuring functions: MIN, MAX, HOLD
- automatic power off
- accuracy class 2

Specification

Sound level
Measurement range up to  30 ... 130 dBA
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to  35 ... 130 dBC
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to  30 ... 80 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to  60 ... 110 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to  80 ... 130 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

General technical data
Measuring functions  MIN, MAX, HOLD
Time weighting  fast (125 ms), slow (1 s)
Frequency weighting  A, C
Display type  LC colour display with backlight
Display size  2 Inch
Measuring rate  2 x per second

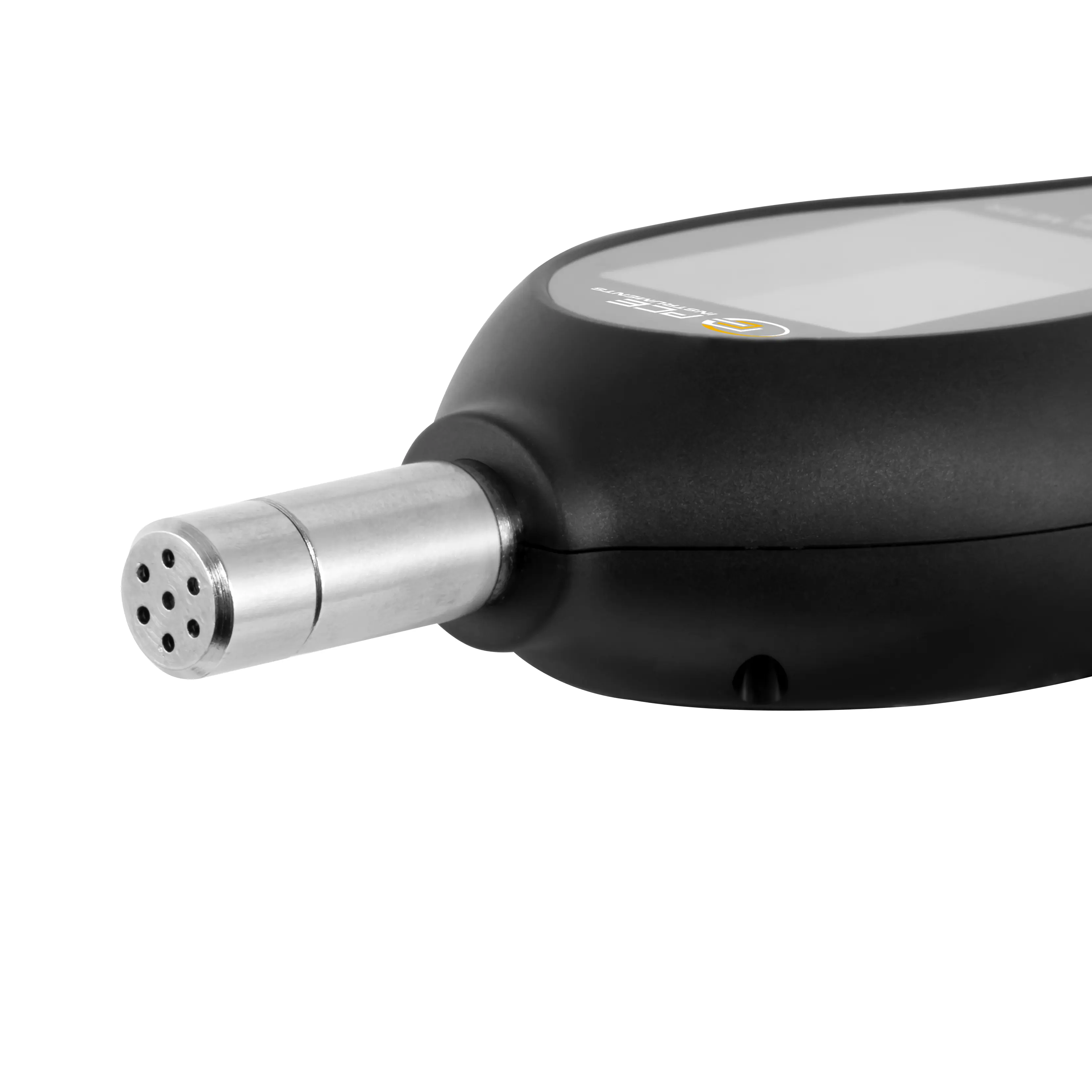

Microphone type  Condenser microphone
Standard(s)  IEC 61672-1 (Class II)
Automatic power-off  20 min
Automatic power-off can be deactivated  Yes

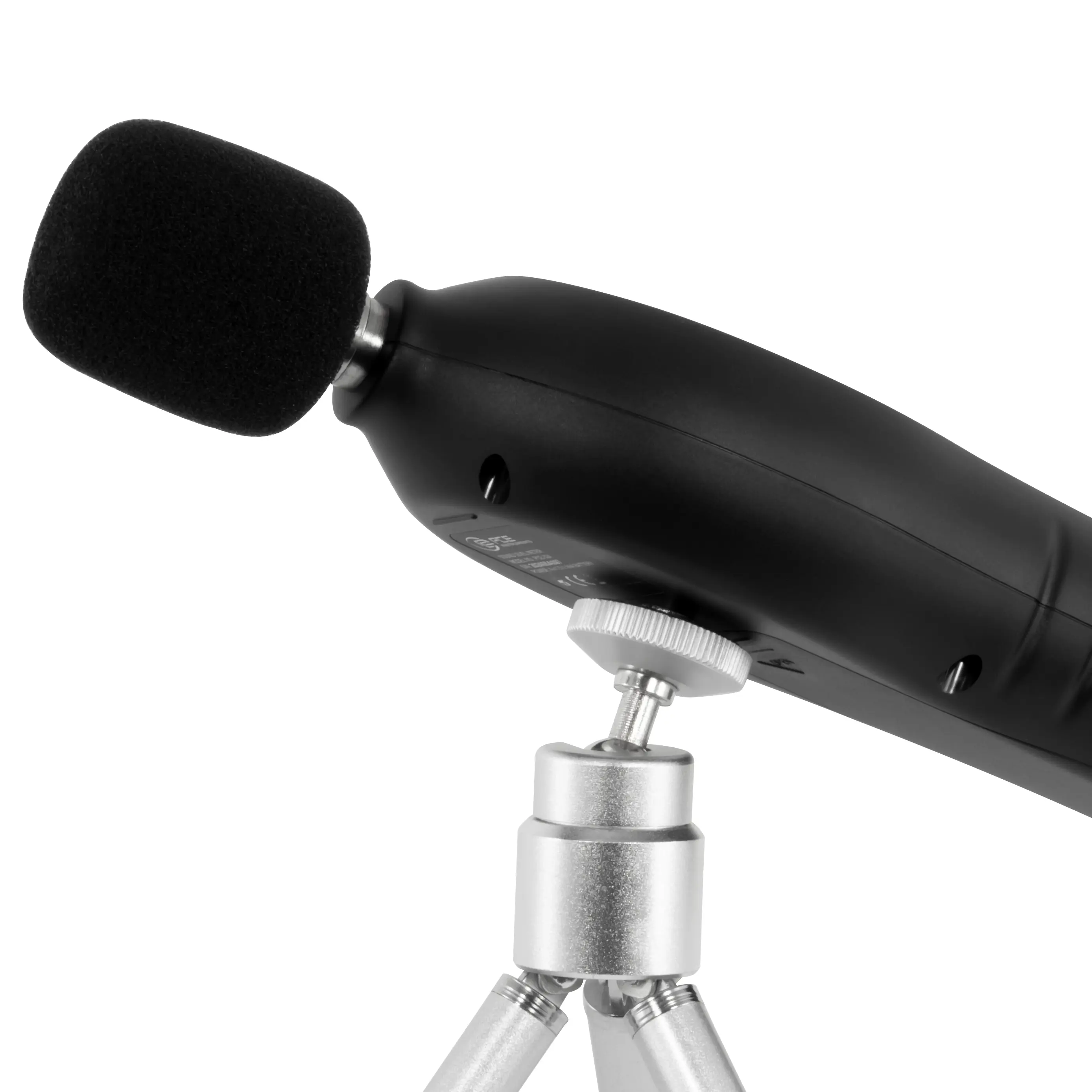

Tripod thread  1/4 inch
Menu language  English, English (GB)
Protection class (device)  IP20
Weight  123 g
Operating conditions  0 ... 40 °C , 10 ... 80 % RH
Storage conditions  -10 ... 60 °C , 10 ... 70 % RH

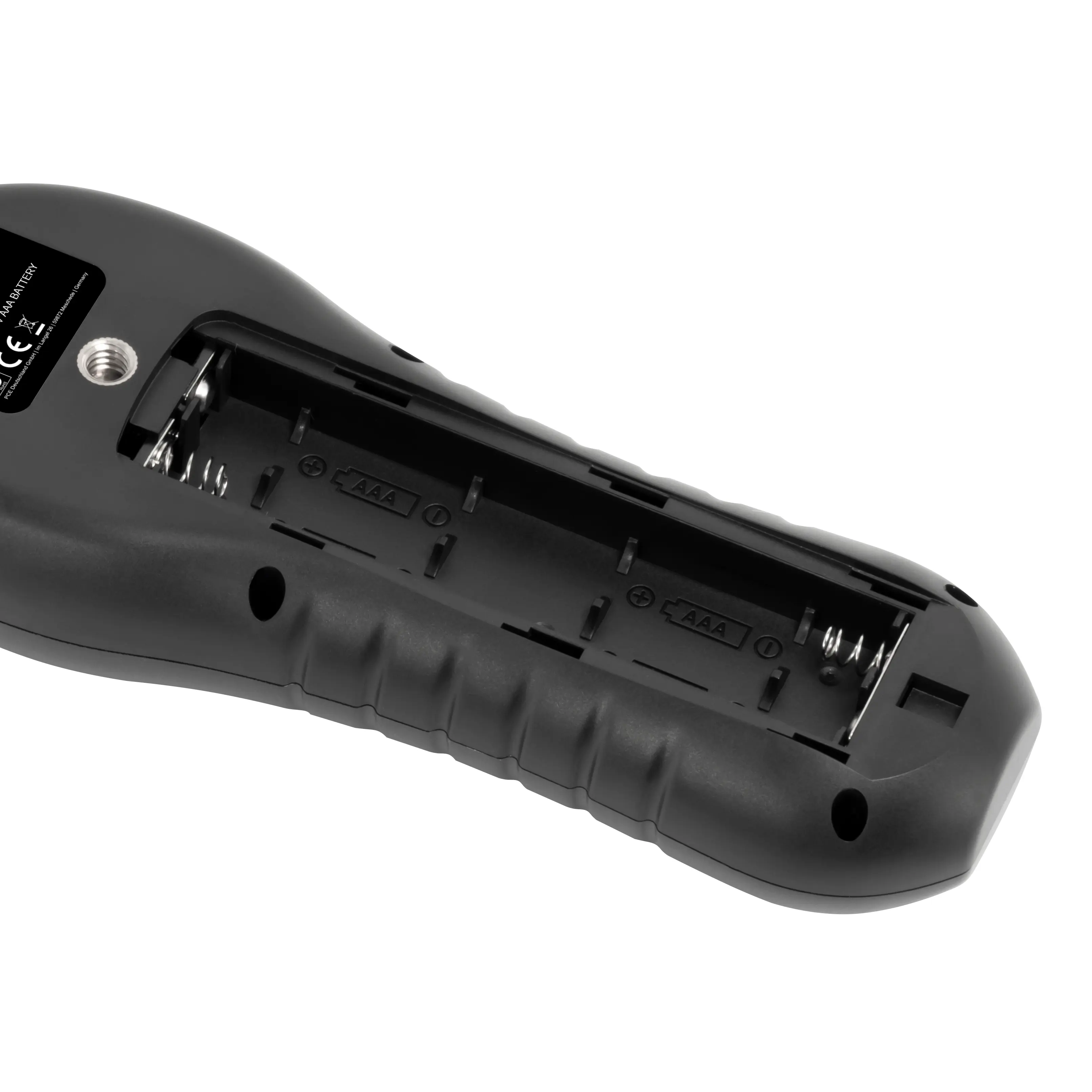

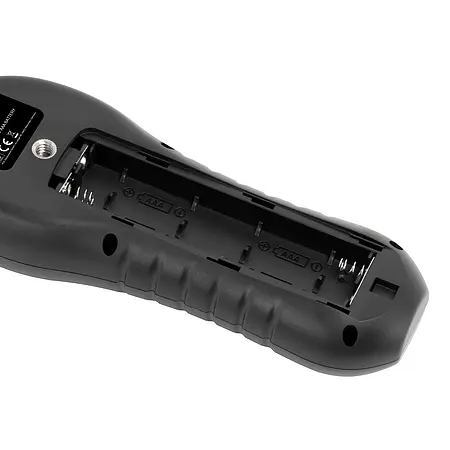

(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Dimensions ( L x W x H )  210 x 64 x 32 mm

Delivery Scope

1 x Sound Level Meter PCE-324

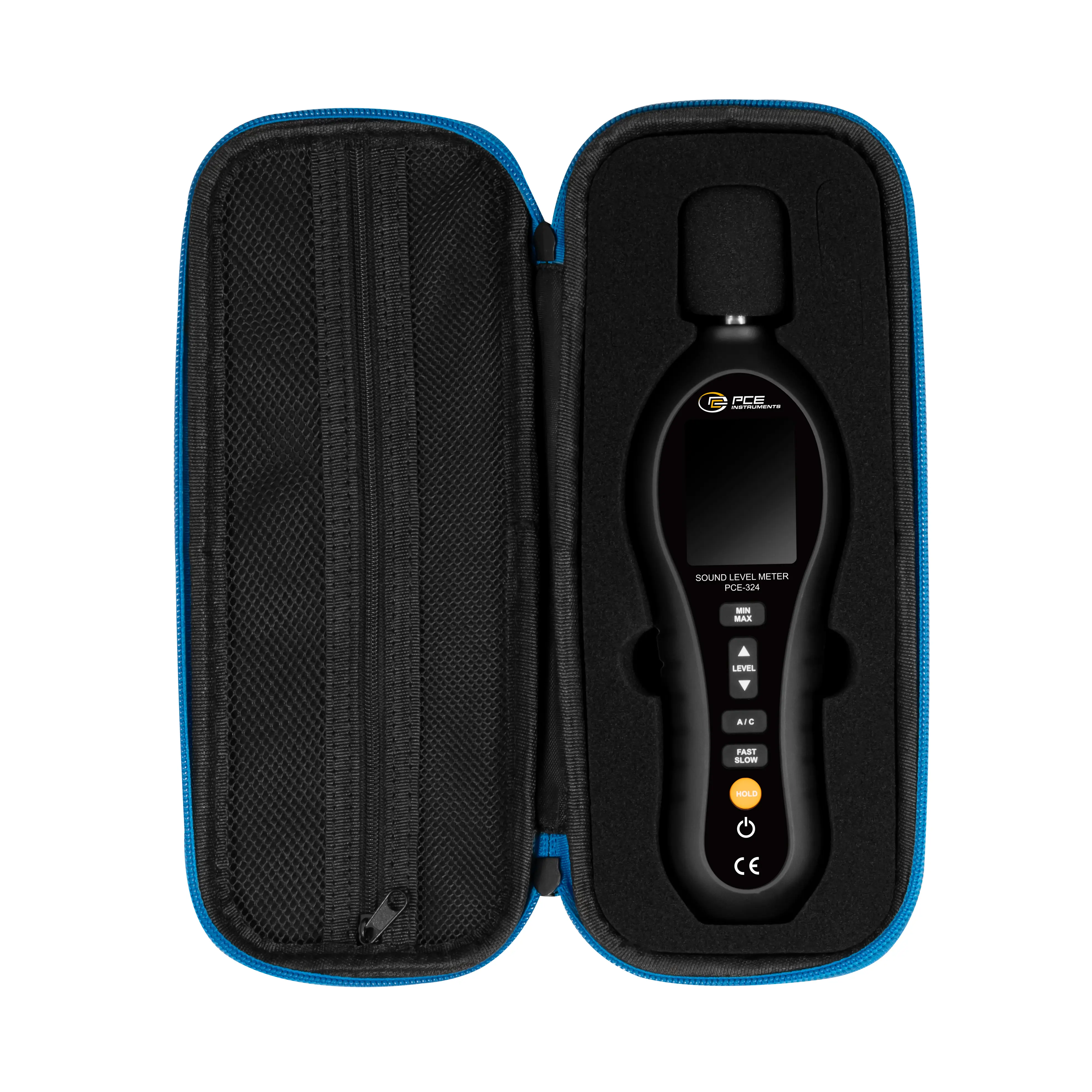

1 x carrying bag
4 x 1.5 V AAA batteries
1 x user manual
