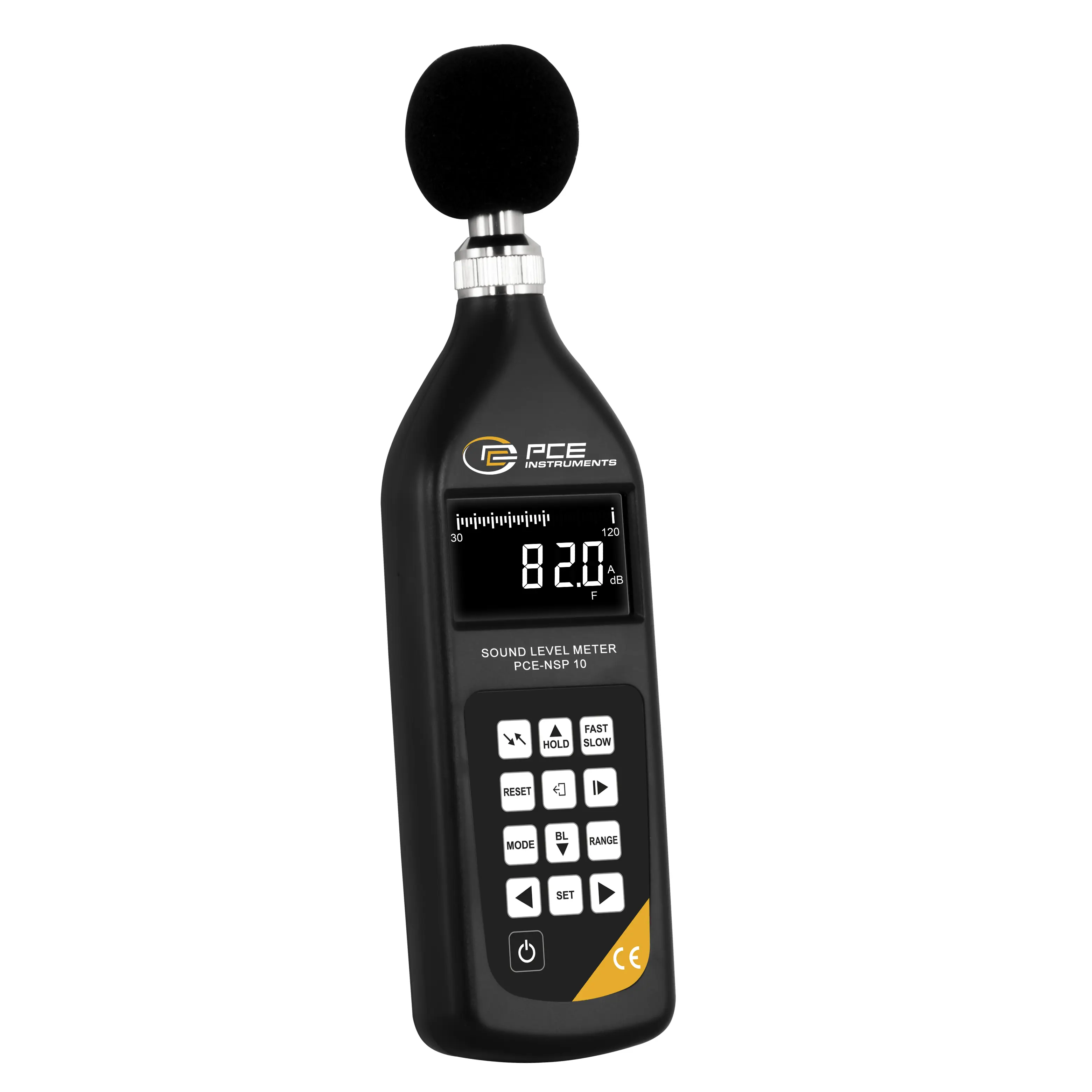

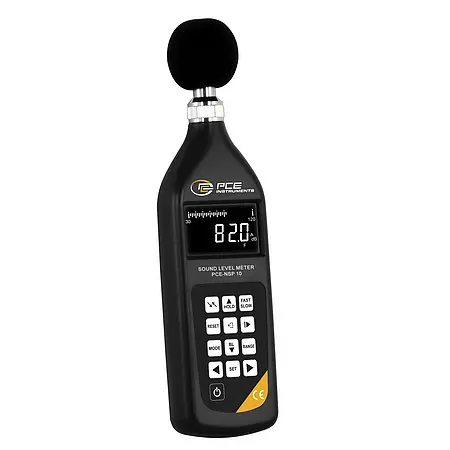

Thanks to its wide measurement range and versatile functions, our Health & Safety Sound meter is suitable for noise measurements in industry, the environment, occupational health and safety, at events and in research. Our Health & Safety Sound meter records and visualises sound levels within a range from 20 to 130 dB in three manual measurement ranges and offers various measurement functions such as Hold, Max and Leq value. The Health & Safety Sound meter supports time weighting F, S and I as well as frequency weighting A, C and Z and can record sound within a frequency range from 25 to 130 dB.
With operation modes for Leq, 1/1 and 1/3 octave filter measurements, it covers a wide range of measurement requirements. The internal memory function enables automatic storage of up to 12 data groups for octave band measurements. In addition, up to 800 individual measurements and regular measurements can be saved over a period of up to 6 days. These functions make Health & Safety Sound meter indispensable tools in acoustics to ensure both the protection of people and the quality of rooms and products. An RS232 interface can transfer the data via the optional software. An AC output is also available.

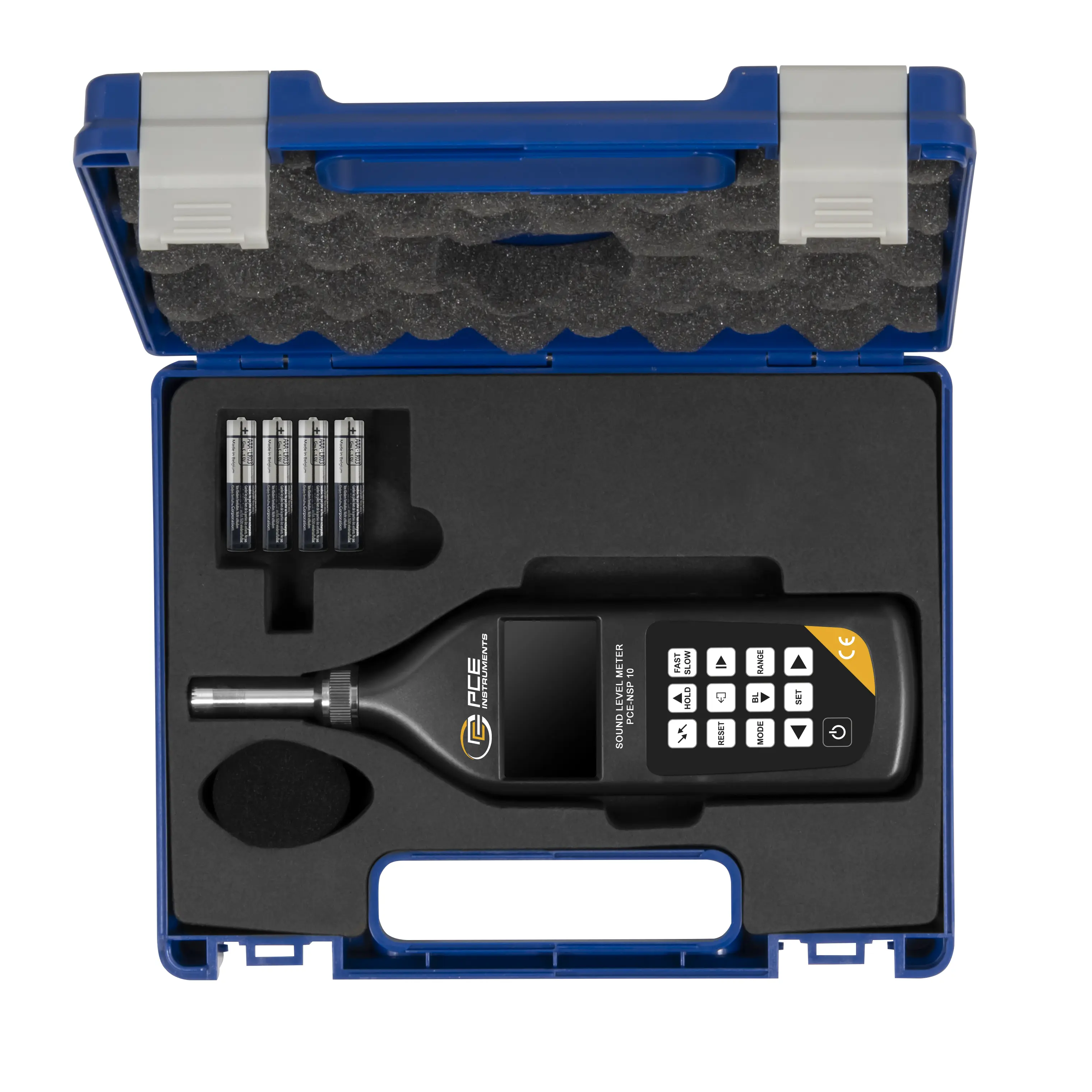

The Health & Safety Sound meter fulfils several standards, including IEC 61672-1, GB/T3785.2-2010 and IEC 1260-2014, all in class II, making it the ideal choice for standard-compliant measurements. The Health & Safety Sound meter is supplied with a windscreen in a practical carrying case.
Sound level | |
Measurement range up to | 20 ... 90 dB |
Resolution | 0,1 dB |
Accuracy | ±1.5 dB |
Sound level | |
Measurement range up to | 40 ... 110 dB |
Resolution | 0,1 dB |
Accuracy | ±1.5 dB |
Sound level | |
Measurement range up to | 60 ... 130 dB |
Resolution | 0,1 dB |
Accuracy | ±1.5 dB |
General technical data | |

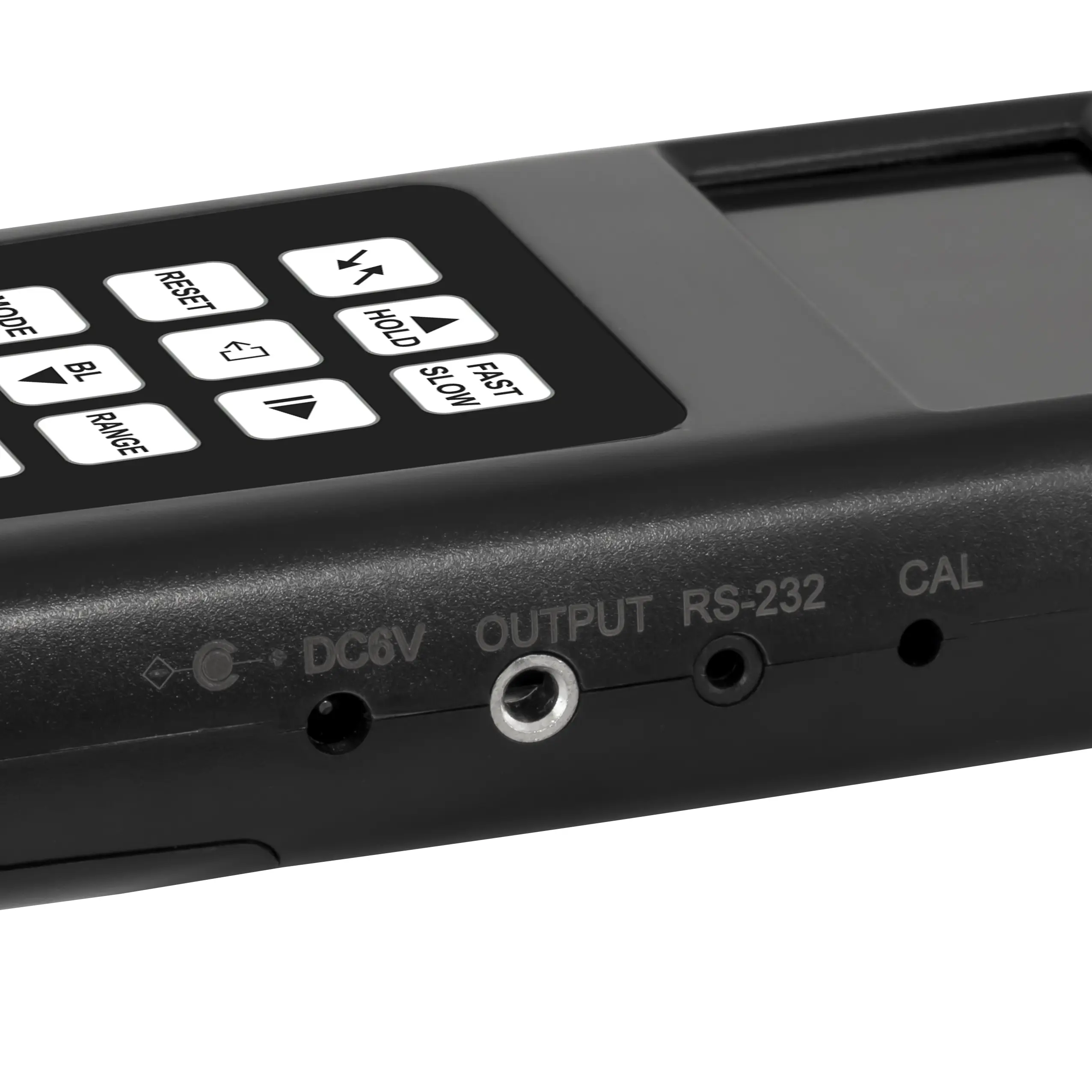

Outputs | AC signal (3.5 mm jack) |
Measuring functions | HOLD, MAX, Leq |
Measuring functions (additional information) | Working mode selection between: - Leq - 1/1-octave filter measurement - 1/3-octave filter measurement |
Connections | 1/2 inch microphone |
Time weighting | fast (125 ms), slow (1 s), Pulse (35ms) |
Frequency | 20 ... 8000 Hz |
Frequency weighting | A, C, Z |
Display type | LCD with backlight |
Display size | 2,2 Inch |
Storage medium | Internal memory |
Storage capacity | 800 Data records |
Memory information | - Frequency octave band measurement: automatic storage of up to 12 data groups - Integration and statistics function: storage of up to 800 individual measurements |

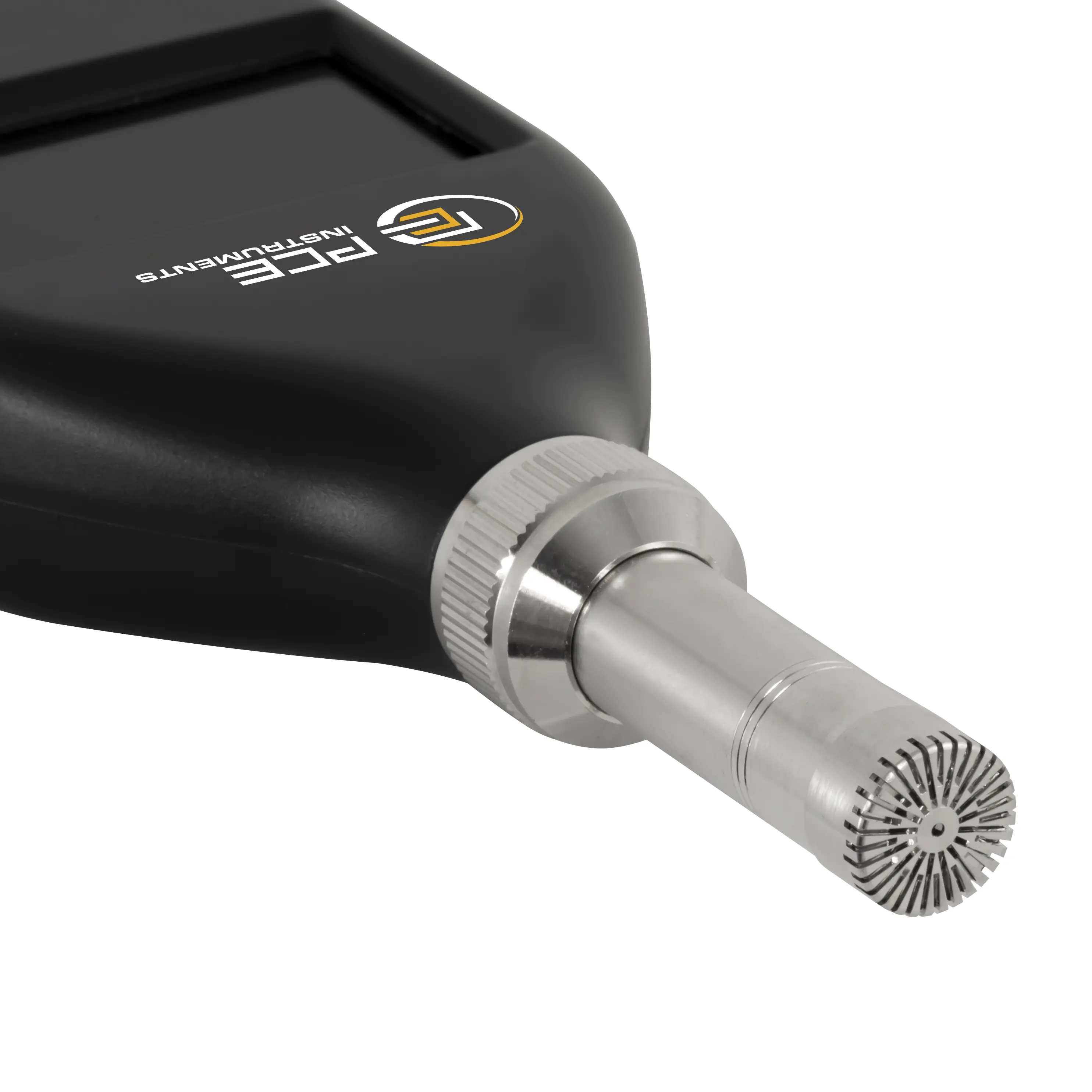

Microphone type | Condenser microphone |
Interface | RS232 |
Standard(s) | IEC 61672-1 (Class II), GB/T3785.2-2010, JJG 188-2017, GB/T 3241-2014 (class II), IEC 1260-2014 (class II) |
Menu language | English, English (GB) |
Protection class (device) | IP20 |
Power supply | 6 V DC |
(Rechargeable) battery | 4 x 1,5 V AAA battery , Alkali-manganese |
Capacity | 1200 mAh |
Operating conditions | -10 ... 50 °C , 0 ... 90 % RH |
Storage conditions | -10 ... 50 °C , 0 ... 90 % RH |
Dimensions ( L x W x H ) | 230 x 65 x 25 mm |
Weight | 186 g |
