Automotive Tester PCE-OCM 10

Order no.: PCE-OCM 10
GTIN (EAN): 4250348719706
US$ 132.00
ex. VAT, ex. delivery costs
:
4250348719706
PCE-OCM 10
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

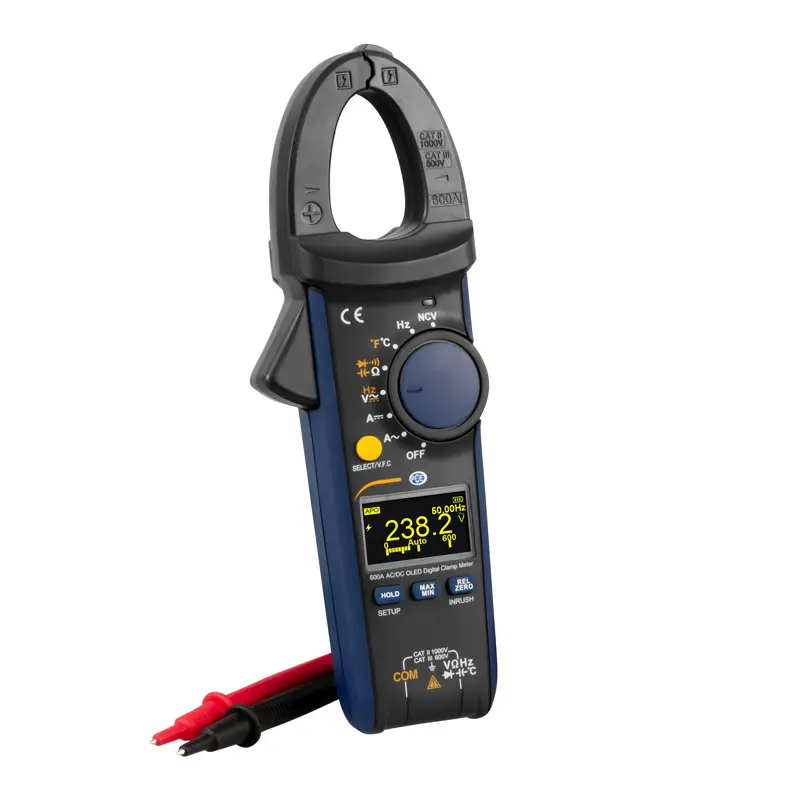

Automotive tester PCE-OCM 10
Current clamp up to 600 A / TRMS measurement / MAX MIN memory / OLED display / Inrush measurement / 6000 digit display / Measuring point illumination

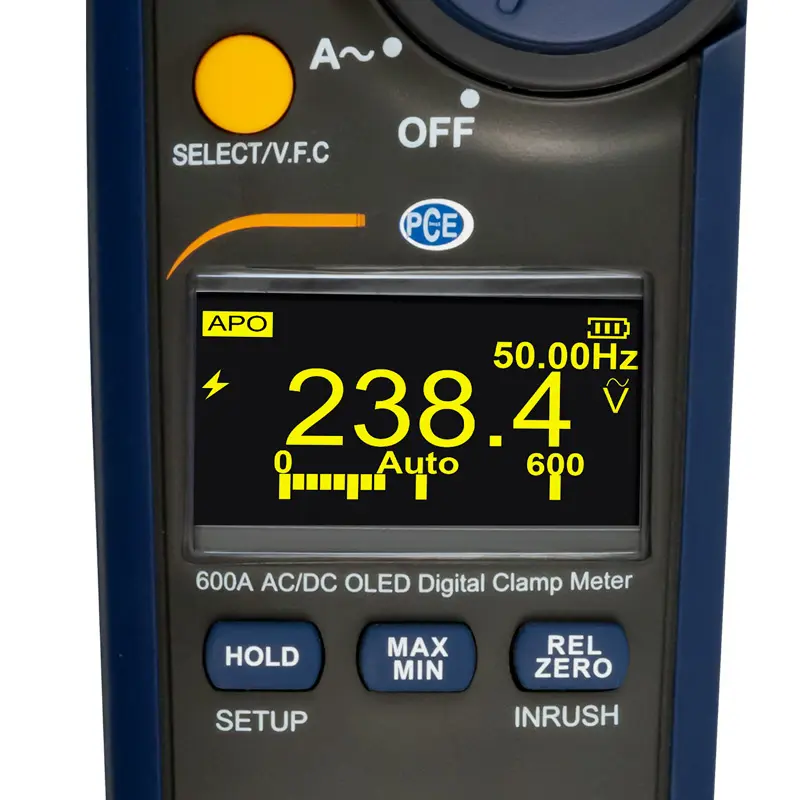

The current clamp PCE-OCM 10 is characterized by the OLED display. The OLED display on this clamp makes it possible to read the display even in the dark, as it is self-luminous. The current clamp measures DC and AC up to 600 A. In addition to the regular current measurement, the PCE-OCM 10 current clamp can be used to measure start-up currents. AC voltage can be measured up to 750V AC and DC voltage even up to 1000V. Furthermore, the current clamp has the standard multimeter functions such as resistance measurement, diode test, capacitance measurement, continuity test, etc. The current clamp can also be used for temperature measurement with the aid of the external thermocouple.

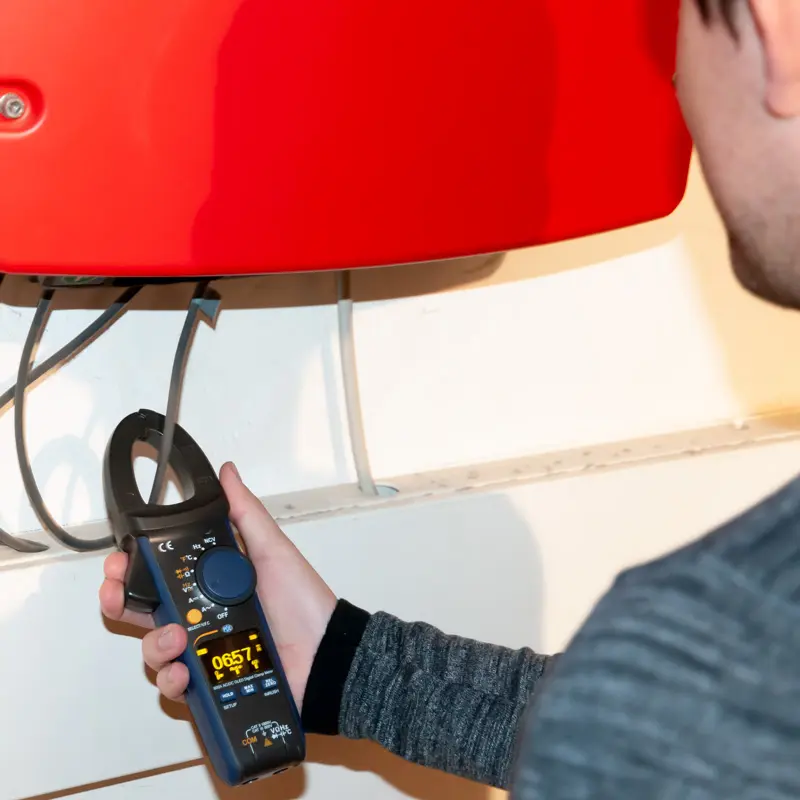

The current clamp is particularly suitable for industrial applications, for example in the daily use of a company electrician. The wide measuring range and the diverse measuring functions of the current probe cover a large part of the measuring tasks. The front led on the current clamp completes this meter.

Highlights

- Inrush measurement
- MAX-MIN measured value memory
- OLED display
- NCV function
- TRMS AC A
- Clamp with multimeter functions
- Measurable up to 600 A
- 6000 digit display

Specification

Measuring functionMeasuring range     Resolution  Accuracy
Alternating current
(max. 600 A AC RMS /
@50/60 Hz)		60 A
600 A		0.01 A
0.1 A		±(2.5 % of reading + 5 digits)

AC / Inrush
(starting current)		600 A0.1 A±(7.5 % of reading + 5 digits)

Direct current
(max. 600 A DC)		60 A
600 A		0.01 A
0.1 A		±(2.5 % of reading + 5 digits)

AC voltage
(@45 ... 400 Hz)		6 V
60 V
600 V
750 V		0.001 V
0.01 V
0.1 V
1 V		±(1.2% of reading + 5 digits)
±(1.2% of reading + 3 digits)
±(1.2% of reading + 3 digits)
±(1.5% of reading + 5 digits)

AC voltage
(VFC)		600 V0.1 V±(6.5% of reading + 5 digits)

DC voltage
(max. 1000 V DC)		600 mV
6 mV
60 mV
600 V
1000 V		0.1 mV
0.001 V
0.01 V
0.1 V
1 V		±(1% of reading + 5 digits)
±(0.8% of reading + 3 digits)
±(0.8% of reading + 3 digits)
±(0.8% of reading + 3 digits)
±(1% of reading + 5 digits)

Resistance600 Ω
6 kΩ
60 kΩ
600 kΩ
6 MΩ
60 MΩ		0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ		±(1.2% of reading + 2 digits)
±(1% of reading + 2 digits)
±(1% of reading + 2 digits)
±(1% of reading + 2 digits)
±(1.2% of reading + 2 digits)
±(1.5% of reading + 5 digits)

Continuity test600 Ω0.1 Ωacoustic signal: <30Ω



no acoustic signal: >100 Ω

Diode test6 V0.001 V0.5 ... 0.8 V

Capacity60 nF
600 nF
6 µF
60 µF
600 µF
6 mF
60 mF		0.01 nF
0.1 nF
0.001 µF
0.01 µF
0.1 µF
0.001 mF
0.01 mF		±(4% of reading + 20 digits)
±(4% of reading + 20 digits)
±(4% of reading + 20 digits)
±(4% of reading + 20 digits)
±(4% of reading + 20 digits)
±(10% of reading)
for reference measurements only

Temperature-40 ... +40 °C / -40 ... 104 °F
40 ... 400 °C / 104 ... 752 °F
400 ... 1000 °C / 752 ... 1832 °F  		1 °C / 1.8 °F
1 °C / 1.8 °F
1 °C / 1.8 °F 		±(3 % of reading + 5 digits)
±(2.5 % of reading + 3 digits)
±(3 % of reading + 5 digits)

Display6000 digit OLED
Sampling rate3 Hz

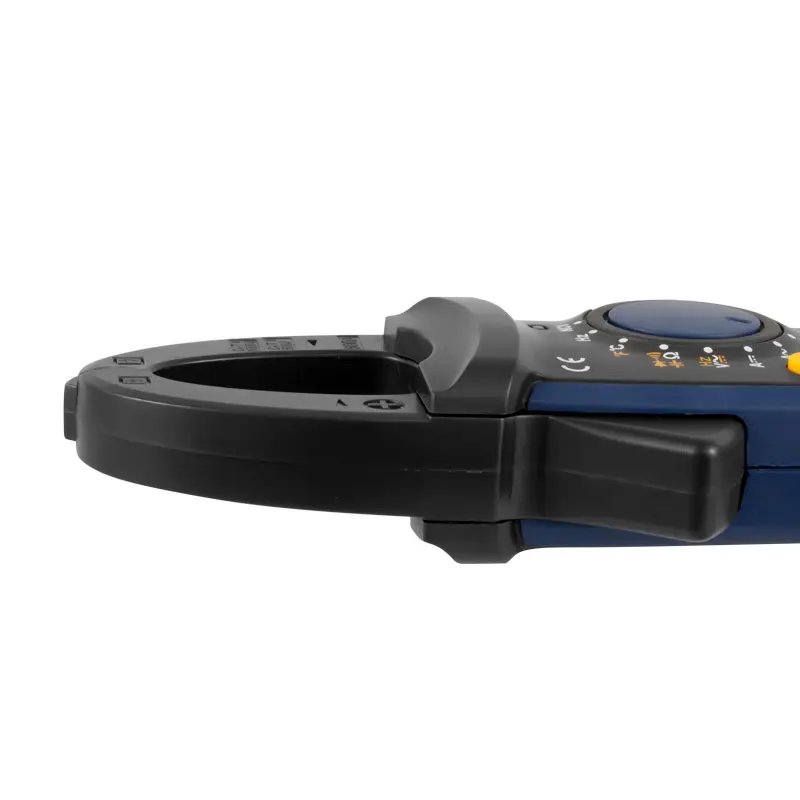

Clamp opening diameter
30 mm / 1.18"
Power supply3 x 1.5 V AAA battery
Automatic switch-off1 ... 30 minutes (adjustable)
Operating conditions0 ... 30 °C / 32 ... 86 °F / max. 80 % r.H.

30 ... 40 °C / 86 ... 104 °F / max. 75 % r.H.

40 ... 50 °C / 104 ... 122 °F / max. 45 r.H.


Storage conditions-20 ... 60 °C / -4 ... 140 °F / max 80 % r.H.
Dimensions228 x 72 x 29 mm / 9 x 2.8 x 1.1"
Weightca. 260 g / 9.1 oz

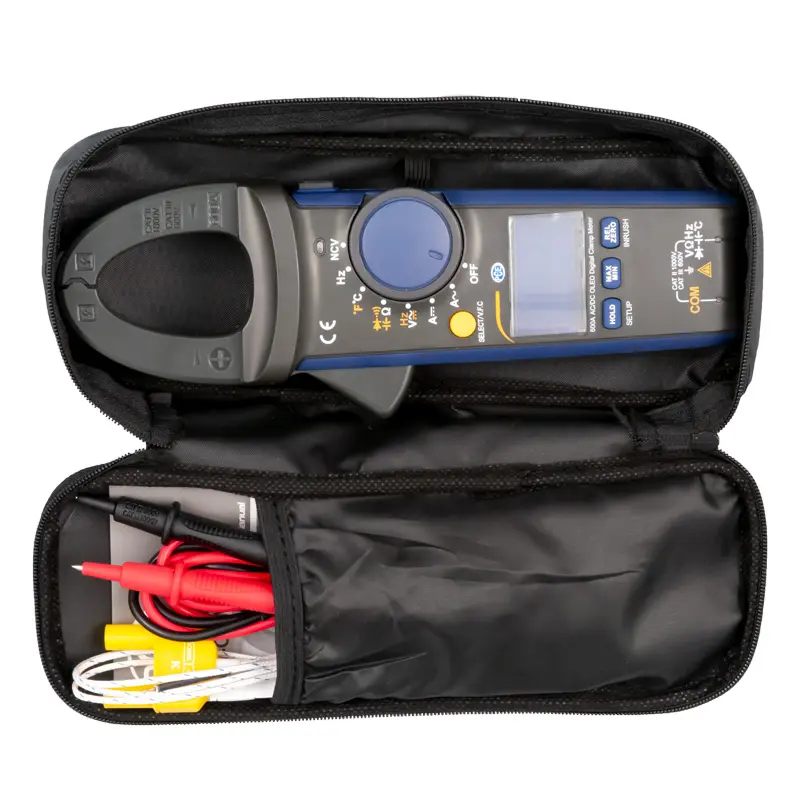

Delivery Scope

1 x Automotive tester PCE-OCM 10
1 x Test leads (red & black)
1 x Thermocouple type K
3 x 1.5V AAA batteries
1 x User manual
