PCE-MWM 240-B VHF-Band Sensor / continuous moisture measurement in bulk (tank / silos)

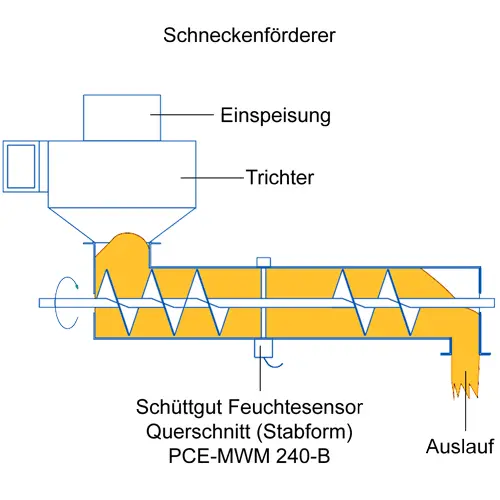

Designed specifically for use in humidity measurement of bulk material, this humidity detector is installed in bins, silos, troughs, bunkers case, distributors, screw conveyors and on conveyors. Material in bulk or flowing mass, such as dyes, gravel, sawdust, fly ash (mineral), wood chips (surface to 5 cm) feed grain, flour, seed, pastes, ... is smoothly and continuously measurable in the process.

Also in this humidity detector, the measuring principle is based on the use of waves in the VHF range. The unit used for measuring moisture consists of an electronic box and the humidity detector itself. The sensor part is manufactured in two versions. Both are made of AISI 321 stainless steel (tube diameter 15 ... 30mm), but differ in their structural design.
Variant 1 (PCE-MWM 240-A): Bow sensor (length 200 mm)

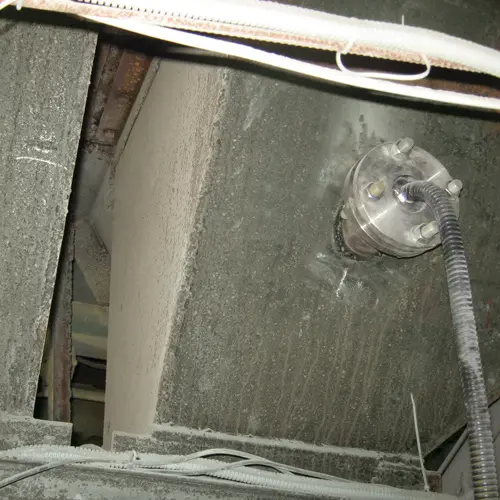

The bow shape makes it extremely robust against shocks and mechanical abrasion. It is fastened by means of adapters on the wall of tanks and silos.

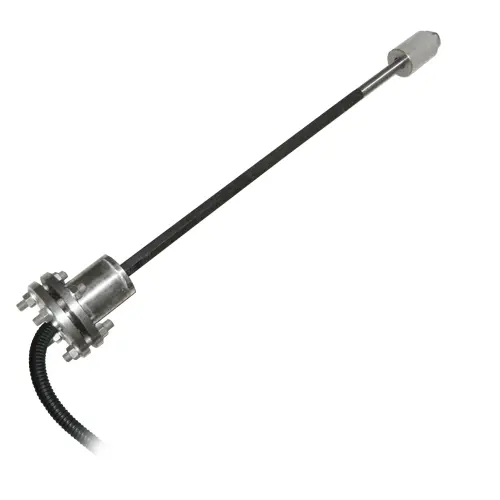

Variant 2 (PCE-MWM 240-B): Rod sensor (length 500 ... 1500 mm)

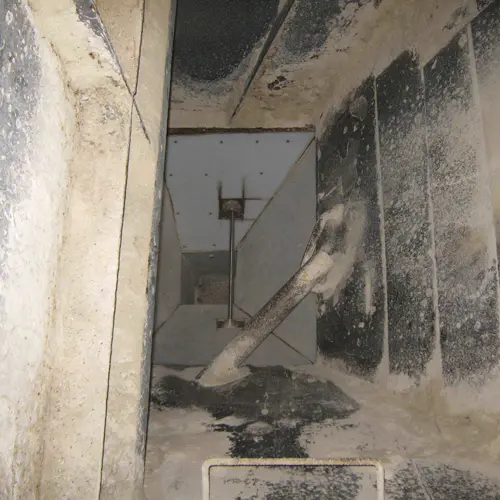

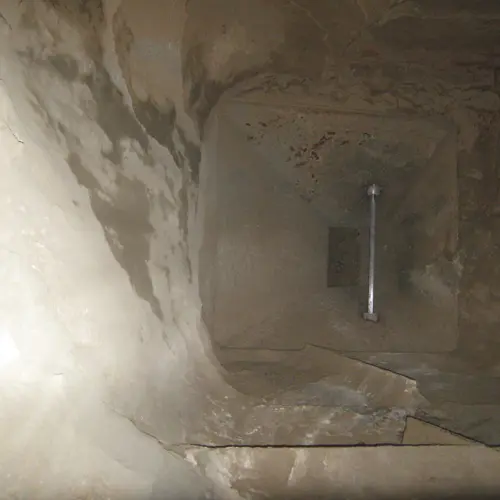

It is attached like a connecting strut between two container walls.
Variant 3 (PCE-MWM 240-C): Bow sensor (length 200 mm)
A bow sensor that is designed specifically for high conductivity materials like iron ores, coal, and other metals.

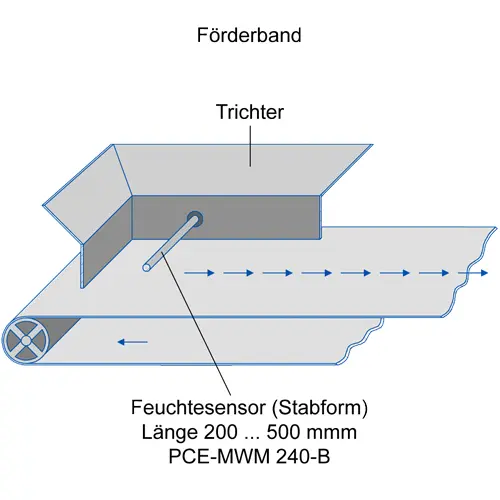

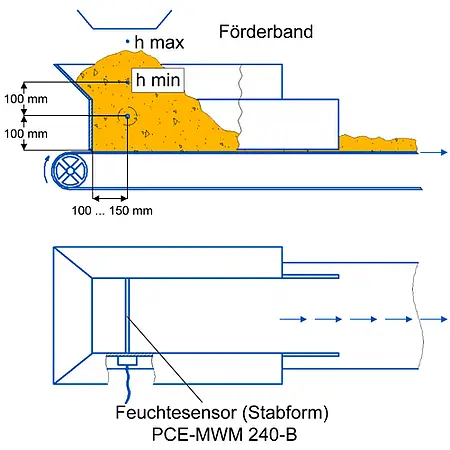

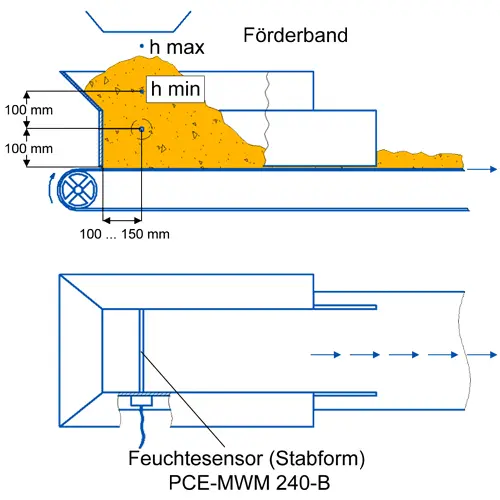

Both sensor types require a perfect cover with bulk (100mm) in order to ensure a high measurement accuracy. For this reason, the rod sensor is often installed in case hoppers. On the bow shaped sensor additional guiding plates provide sufficient coverage with the material to be measured. Regulation of the speed of a conveyor belt may also be sufficient to always keep a sufficient cover on the humidity sensor. This is particularly important to keep the density of the material to be measuredas even as possible.
