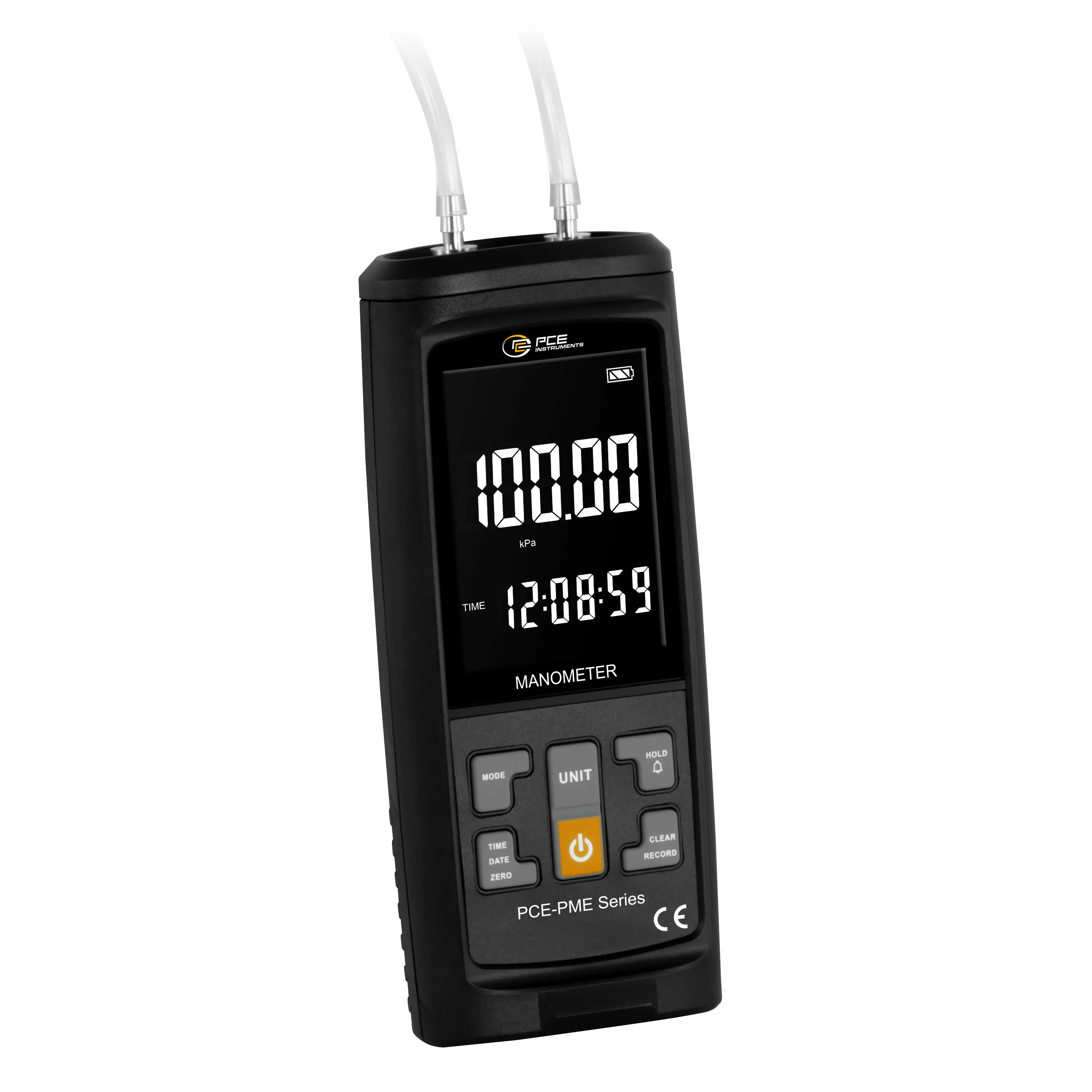

HVAC Meter / HVACR Tester PCE-PME 100

Order no.: PCE-PME 100
GTIN (EAN): 4250348733832
US$ 181.00
ex. VAT, ex. delivery costs
:
4250348733832
PCE-PME 100
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

HVAC Meter / HVACR Tester up to ±100 kPa / 13 selectable units / data logging and USB-C interface / PC software / export to xls file

The digital HVAC Meter / HVACR Tester is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The HVAC Meter / HVACR Tester is suitable for measuring non-aggressive and non-explosive gases.

The HVAC Meter / HVACR Tester offers a variety of measuring functions such as maximum, minimum and average value calculation and a HOLD function. It offers an integrated data logging function with adjustable logging interval and real-time communication with a PC as well as export of the logged data as an xls file. The rechargeable battery enables an operating time of approx. 13 hours. The HVAC Meter / HVACR Tester has an audible alarm for monitoring during use. With 13 selectable pressure units, it can be flexibly adapted to individual requirements.


Highlights

- MAX, MIN, AVG value, HOLD
- audible alarm
- 13 selectable pressure units
- data logging and software
- rechargeable lithium battery
- LC colour display
- date and time display

Specification

Differential pressure
Measurement range up to  -100 ... +100 kPa
Resolution  0,01 kPa
Accuracy  ±1 % FS

Differential pressure
Measurement range up to  -1 ... +1 bar
Resolution  0,01 bar
Accuracy  ±1 % FS

General technical data
Measuring functions  MIN, MAX, HOLD, AVG
Units  inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O

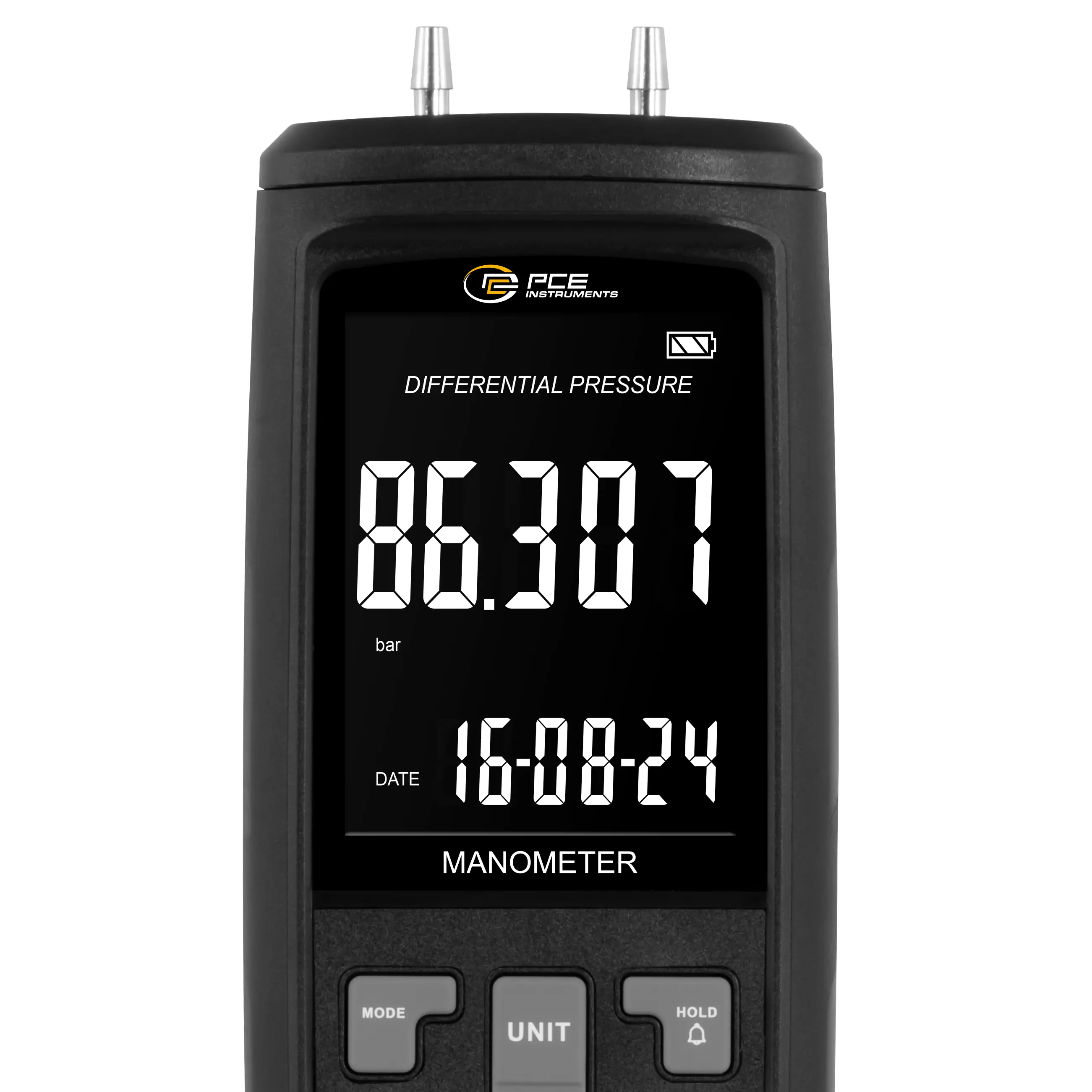

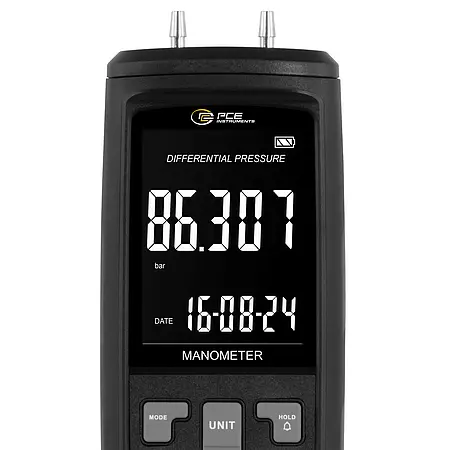

Display type  LC colour display
Storage medium  Internal memory
Storage capacity  15996 Measurements
Storage interval from  1 s
Storage interval to  9999 s

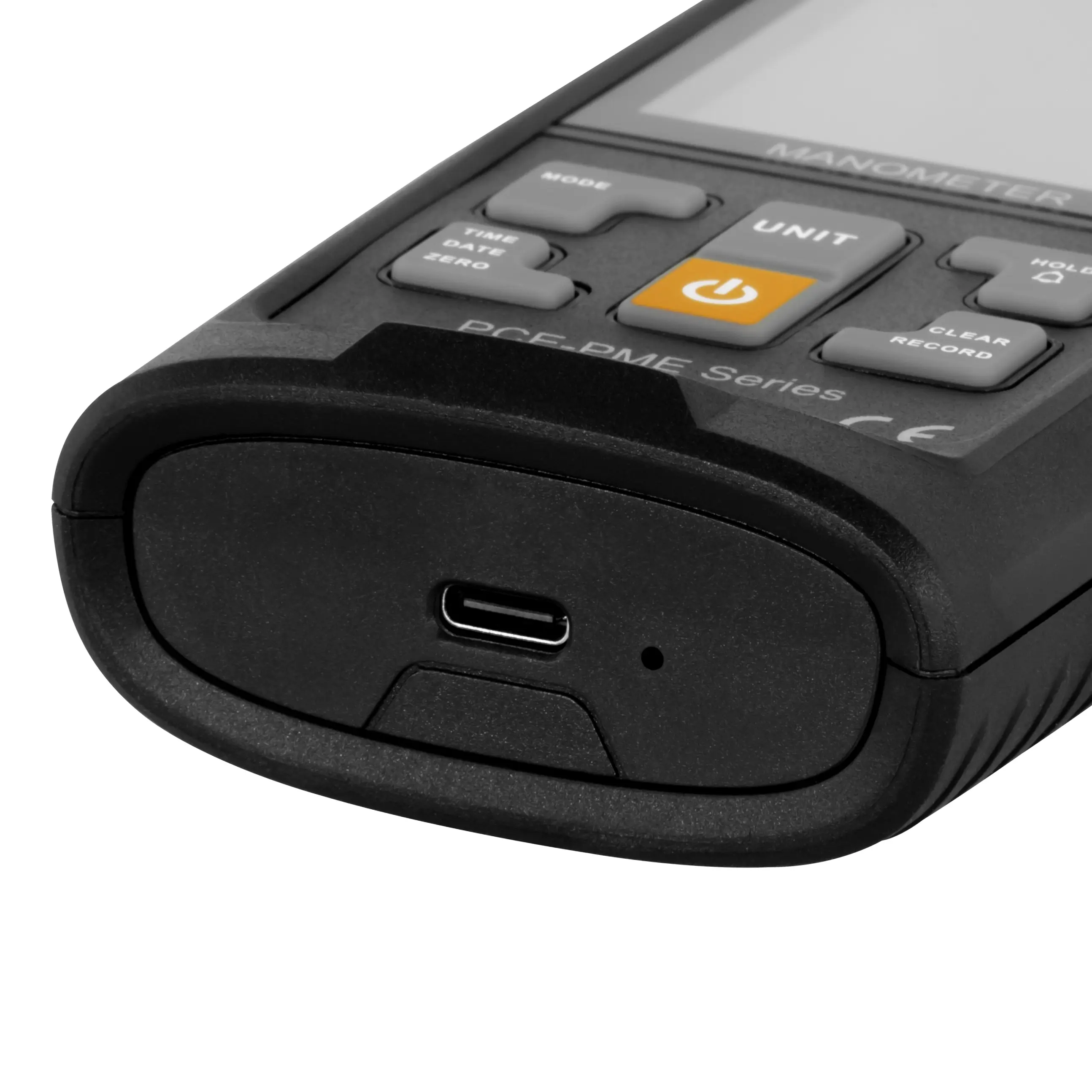

Interface  USB-C
Operating time  13 h
Automatic power-off from...to  1 ... 99 min.
Automatic power-off can be deactivated  Yes
Alarm  Acoustic
Alarm modes  Above, below
Overpressure  3 kPa
Menu language  English
Protection class (device)  IP20
Power supply  5 V
Weight  180 g
Operating conditions  -10 ... 60 °C , 0 ... 95 % RH
Storage conditions  -10 ... 60 °C , 0 ... 95 % RH
Capacity  1000 mAh
Dimensions ( W x H x D )  63 x 162 x 32 mm

Delivery Scope

1 x HVAC Meter / HVACR Tester PCE-PME 100

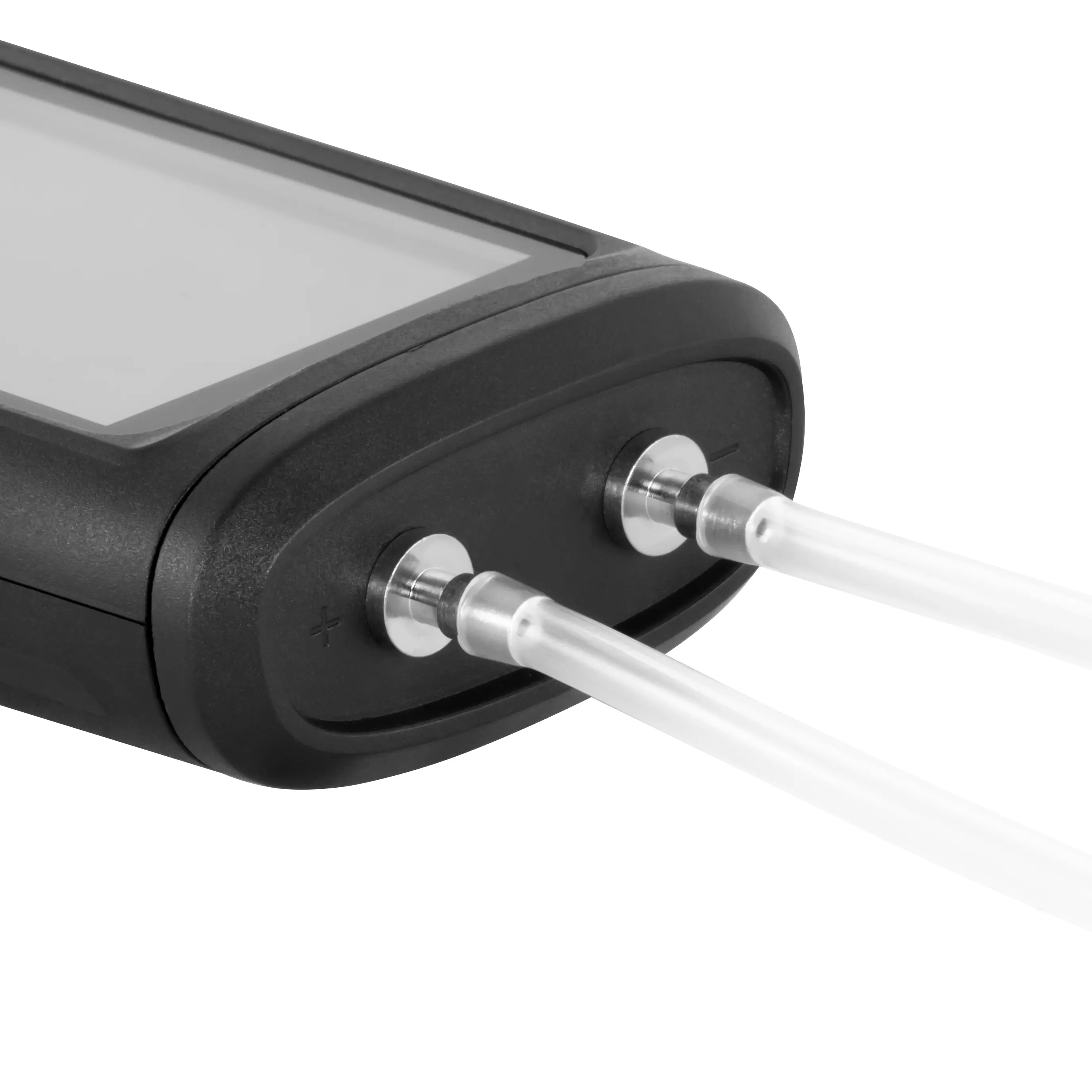

2 x hose approx. 25 cm
1 x USB-A - USB-C cable (mains adapter not included)

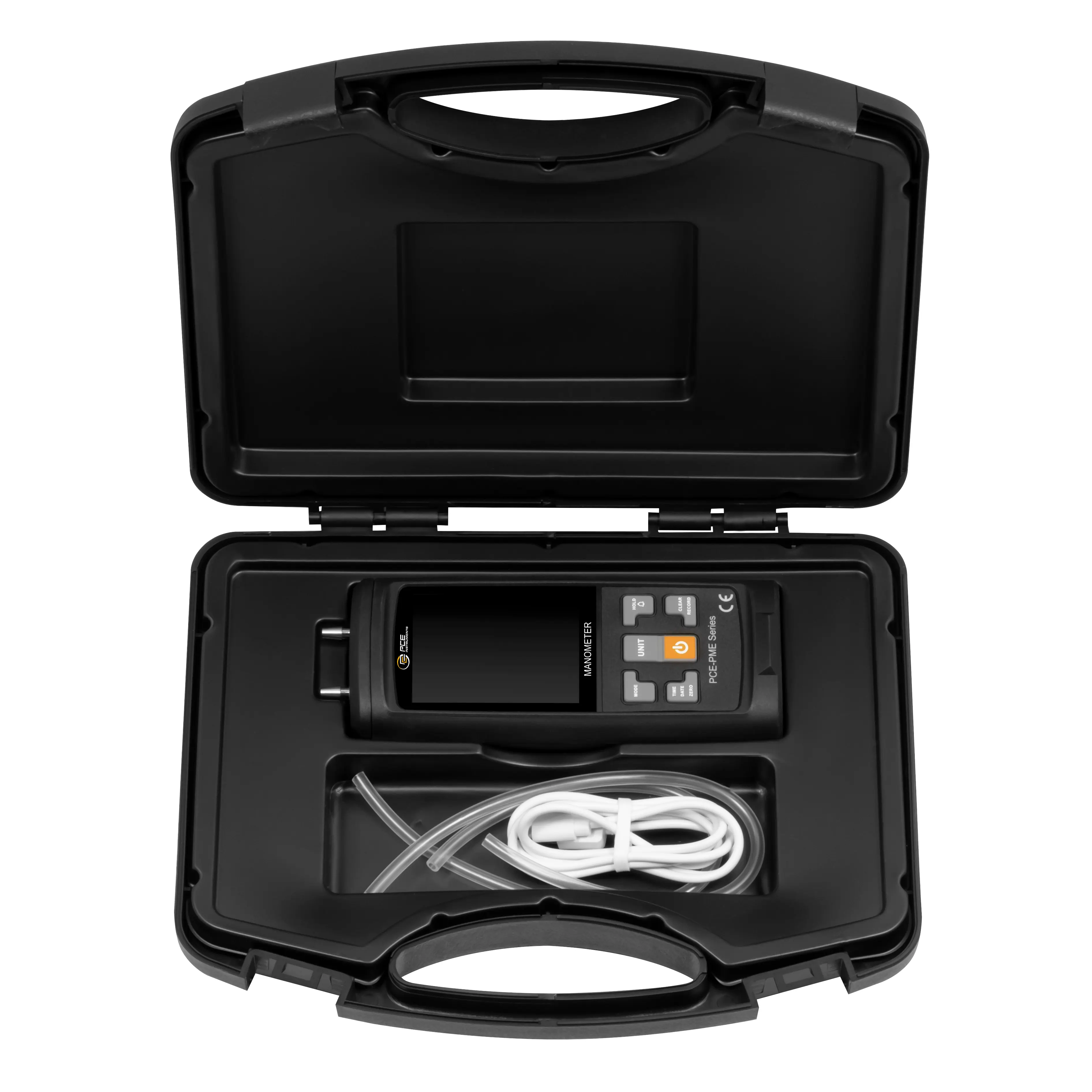

1 x carrying case
1 x PC software (in the download area)
1 x user manual
