HVAC Meter PCE-360-ICA incl. ISO Calibration Certificate

Order no.: PCE-360-ICA

GTIN (EAN):

Description

PCE-360 HVAC Meter
Power-analyzing clamp meter with data logger functionality / Includes clamps, clips, leads, PC software and data cable

The PCE-360 is a HVAC Meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period. The PCE-360 is used for the analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent energy (MVAh), reactive energy (MVArh), harmonics (1 ... 63 order, via software), and waveforms (via software).

The meter's large and easy-to-read screen displays up to 10 measurements simultaneously. In manual mode, the device stores up to 99 measurements directly. In data logger mode, the device stores up to 10,000,000 sets of measurements to the 4 GB internal memory. Measured values are transferred easily to a PC using the included Windows-compatible software and data cable. In addition, four current clamps, four alligator clips, and four measuring leads are included in the delivery contents.

Highlights

- For measurement in real time and over an extended time period
- Includes clamps, clips, leads, PC software and data cable
- Large, easy-to-read screen displays up to 10 measurements simultaneously
- Stores up to 99 measurements directly in manual mode or up to 10,000,000 sets of measurements to the 4 GB internal memory in data logger mode
- For analysis of voltage (V), current (A), active power (kW), apparent power (kVA), reactive power (kVar), power factor (cos Φ), phase angle (Φ), frequency (Hz), rotary field (UL > 50V), active energy (MWh), apparent energy (MVAh), reactive energy (MVArh), harmonics (1 ... 63 order, via software) and waveforms (via software)
- Battery-saving automatic shutdown after approximately 30 minutes of inactivity
- incl. ISO Calibration Certificate

Specification

AC voltage AC
Measuring range	+10 V ... +999.9 V
Resolution	0.1 V
Accuracy	±(0.3 % v.Mw. ±10 digits)

Alternating current AC
Measuring range	+3 A ... +999.9 A
Resolution	0.1 A
Accuracy	±(0.5% v.Mw. ±10 digits) at >10A

Effective power
Measuring range	0.15 kW ... +999.9 kW
Resolution	0.1 kW
Accuracy	±1 % v.Mw. ±20 digits

Power factor
Measurement range	-1 ... +1
Resolution	0.001
Accuracy	±10 digits

Phase angle
Measuring range	-180 ° ... +180 °
Resolution	0.1 °
Accuracy	±15 digits

Frequency
Measuring range	+40 Hz ... +60 Hz
Resolution	0.1 Hz
Accuracy	±0.1 % v.Mw. ±2 digits

Harmonic measurement (harmonics)
Measurement range	+1 (ordinal number) ... +63 (ordinal number)
Current range	10 ... 999.9 A
Voltage range	10 ... 999.9 V

General technical data
Storage medium	SD card
Storage capacity	4 GB
Storage capacity additional information	(99 storage locations with 350,000 data records each)
Menu language	English
Protection class (device)	IP30
Power supply	12V DC
Plug type	Euro plug device
Weight	730 g / 1.61 lbs
Dimensions (L x W x H)	235 x 117 x 54 mm / 9.25 x 4.61 x 2.13"
Operating conditions	0 ... 40 °C , 85 % r.h.
Storage conditions	0 ... 40 °C , 85 % r.h.
Protection class / standards	IP 30 / IEC 61 010, 600 V / CAT III
Languages of the instructions	German, English

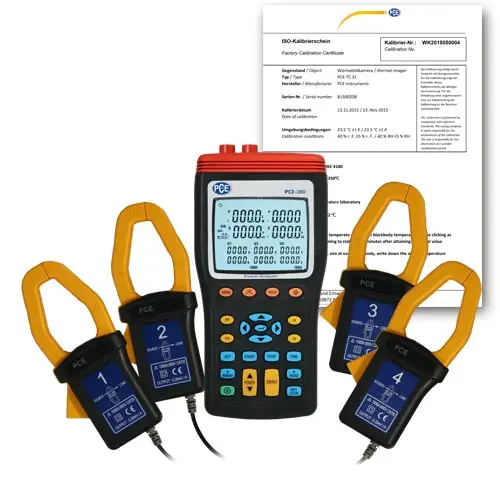

Delivery Scope

1 x PCE-360 HVAC Meter
4 x Current clamps
4 x Measuring leads
4 x Alligator clips
8 x 1.5 V AA batteries
1 x Power adapter
1 x USB cable
1 x PC software CD-ROM
1 x User manual
1 x Carrying case
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
