HVAC Meter PCE-IVE 320
Industrial
endoscope, videoscope or borescope on an extension rod / Ideal for
gutter, chimney and home inspections as well as under-vehicle security
and tactical use

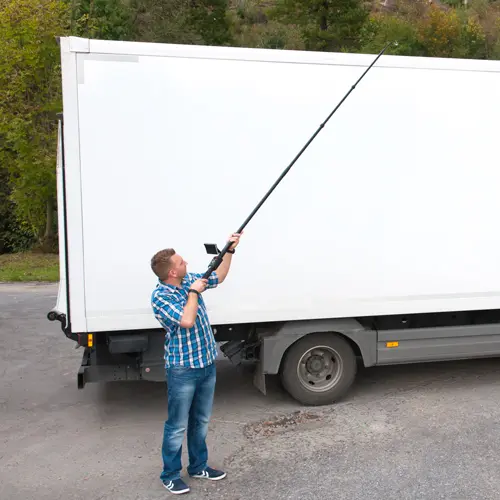

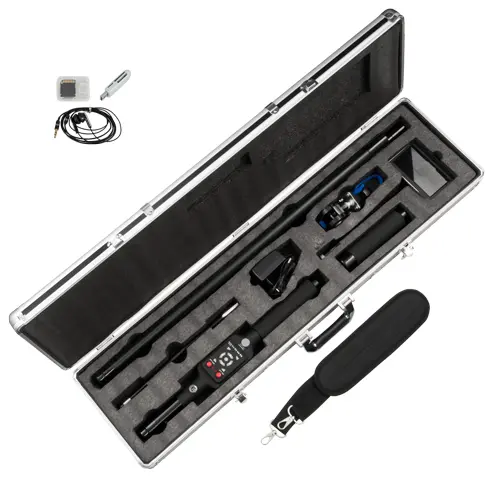

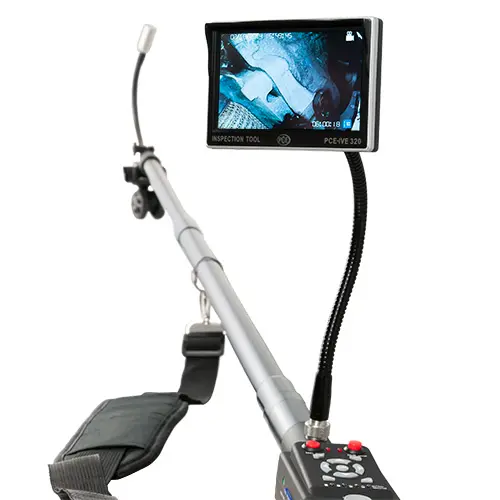

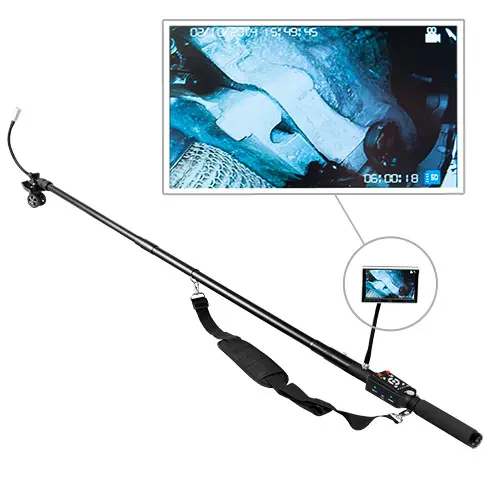

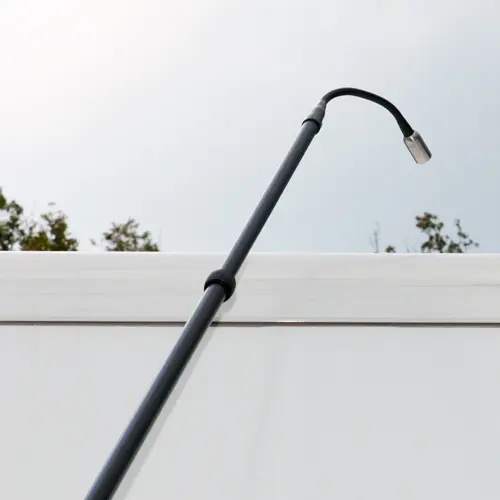

The HVAC meter is the ideal solution for inspecting hard-to-reach places. This HVACR tester , inspection camera, videoscope or industrial borescope comes with a rigid telescoping pole that extends up to 2.3 m (7.55') in length (3 m long total with camera connection). Plus, the HVACR tester's 0.3 megapixel camera has a 23 mm (0.91") diameter flexible head with microphone and 12 white LEDs offering adjustable brightness. A 12.7 cm / 5 " LCD monitor with 800 x 480 pixel resolution allows for live viewing. For video recording, the PCE-IVE 320 accommodates SD memory cards from 2 ... 32 GB. An SD card reader is included in the delivery contents.

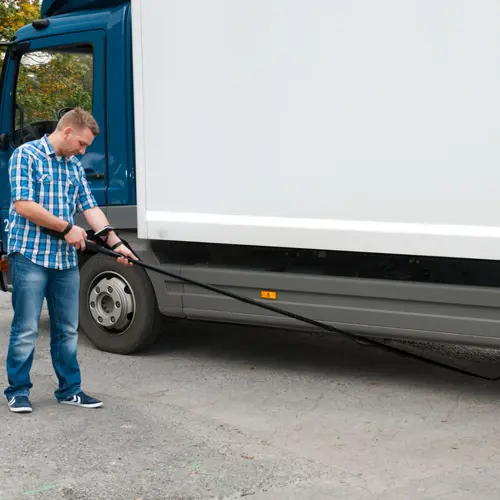

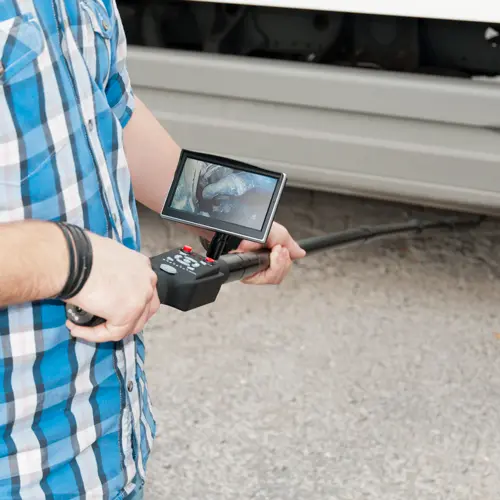

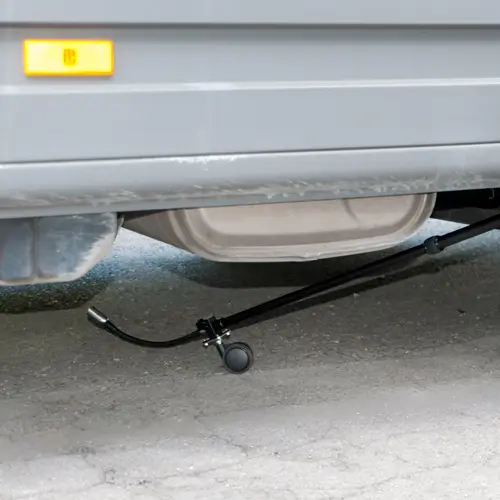

The HVAC meter allows quick and easy viewing, monitoring and diagnosis of inaccessible areas of machines, engines and equipment. The endoscope is a useful tool for recognizing potential hazards or broken parts. The device's flexible camera head can be bent to capture images at any angle. Includes wheel attachment for under vehicle inspection. The brightness of the LEDs on the camera head can be conveniently adjusted by means of a thumb wheel located on the handle of the telescoping pole. The HVACR tester also features a microphone for obtaining audio (headphone included).
***Not for medical use***
Camera | |
Camera head | 1/4 CMOS |
Pixel | 0.3 Megapixel |
Lighting | 12 x LEDs (white) |
Camera length | 320 mm / 12.60" |
Camera diameter | 23 mm / 0.91" |
Monitor | |

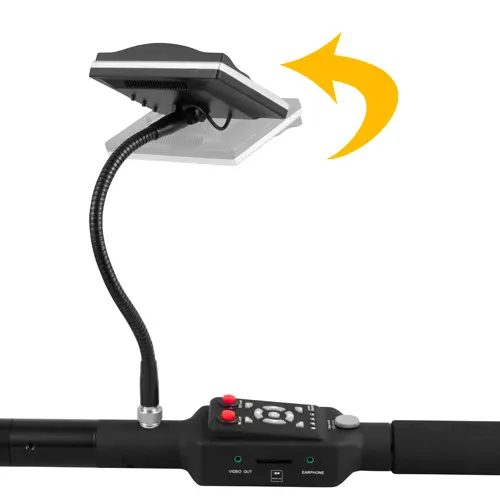

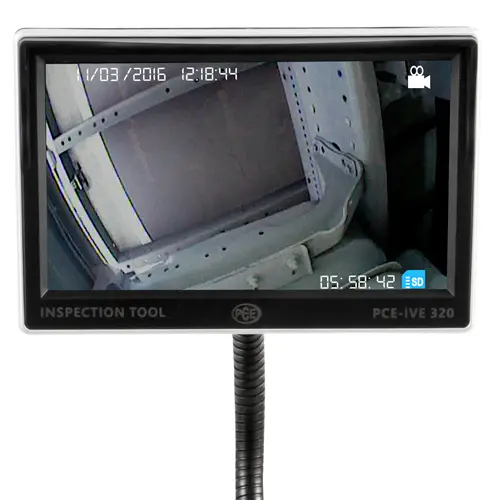

LCD | 12.7 cm / 5" screen |
Full dimensions | 130 x 80 x 10 mm / 5.12 x 3.15 x 0.39" |
Resolution | 800 x 480 pixels |
Telescopic pole | |
Maximum length | 2.3 m / 7.55' |
Minimal length | 0.9 m / 2.96' |
Rechargeable battery | |
Battery capacity | 1500 mAh |
Output voltage | 12 V DC, 500 mA, 5-hour runtime |
Battery charger | |
Input voltage | 100 ... 240 V AC, 50 / 60 Hz |
Output voltage | 12 V DC, 500 mA, 4-hour charge time |
Video recording | |
Output | 704 x 576 (PAL) |
Video format | MPEG-4 |
Recording format | ASF |
Memory | 2 ... 32 GB SD card |
General specifications | |
Overall length | Maximum 3 m / 9.84' |
Operating conditions Weight | -20 ... +50 °C / -4 ... +122 °F 1.5 kg / 3.31 lbs |
