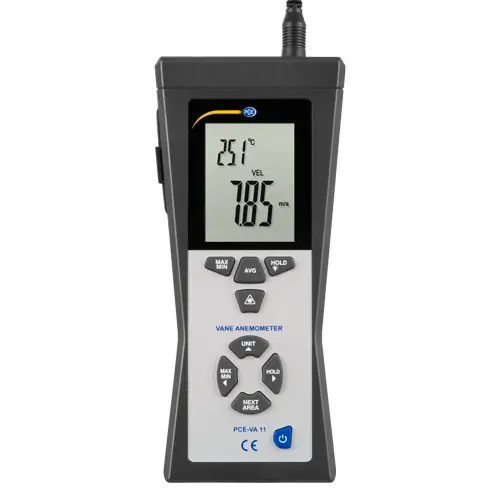

HVAC Meter PCE-VA 11-ICA incl. ISO Calibration Certificate

Order no.: PCE-VA 11-ICA
GTIN (EAN):
US$ 595.00
ISO Calibration
ex. VAT, ex. delivery costs
PCE-VA 11-ICA
Available in: 10 - 14 days
Speed, Temperature, Volume/flow
Impeller
No
Yes (USB)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

HVAC Meter PCE-VA 11-ICA for air temperature and infrared temperature incl. ISO Calibration Certificate/ Extreme value measurement / Measurement of air velocity and volume flow / Backlit LCD / Measurement in °C and °F / Measurement of m/s, km/h, ft/min, knot, mph

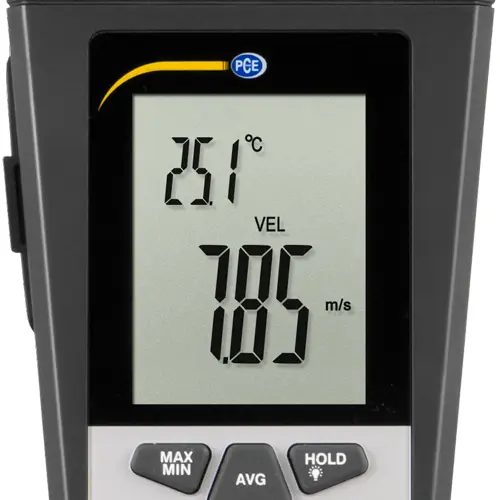

The HVAC meter is an extensively used measuring instrument. The HVAC meter provides the opportunity to determine air speeds, air temperature and infrared temperature. The backlit LCD allows comfortable readings and facilitates use in dimly lit areas. To mount the windmill it has a thread on the back. Here it is possible to mount the wind meter on a thread. Thanks to the fast response time of the device, real-time measurement is possible without problems. The large display provides an accurate overview of the measured values and can optionally be backlit, which makes the wind meter useful even in low light conditions. Immediately after the impeller has been connected, the measurement can be started and measured values are immediately displayed on the display. Even if a specific temperature is to be measured at special measuring spots, this is possible by means of simple keystroke. The light laser serves as an orientation point. The measurement of the ambient temperature is then automatically deactivated. In addition to the wind speed, the device can also measure the airflow and the air temperature and is thus a very versatile measuring device, which can be used in different areas.


Highlights

- Suitable for low air velocities
- Measuring units m / s, km / h, ft / min, knot, mph
- Large LCD
- Max and Min values
- Data Hold function
- High precision
- Incl. ISO Calibration Certificate

Specification

Display

Backlit LCD

Functions

Automatic shutdown
Hold
Extreme value measurement (Min / Max)
Average
Range Selection

Cable length

1.2 m / 3.9 ft

Power supply

9V block battery

Airspeed

Measuring Range

m/s: 0.4 ... 30
ft/min: 80 ... 5900
km/h: 1.4 ... 108
MPH: 0.9 ... 67
Knots: 0.8 ... 58

Resolution

m/s: 0.1
ft/min: 1
km/h: 0.1
MPH: 0.1
Knots: 0.1

Accuracy

m/s: ± 3% ± 20 m/s
ft/min: ± 3% ± 40 ft/min
km/h: ± 3% ± 0.8 km/h
MPH: ± 3% ± 0.4 MPH
Knots: ± 3% ± 0.4 Knots

Air temperature

Measuring Range

-10 ... 60°C / 14 ... 140°F

Resolution

0.1°C / 0.18°F

Accuracy

± 2°C / 3.6°F

Infrared temperature

Measuring Range

-50 ... 500°C / -58 ... 932°F

Resolution

0.1°C / 0.18°F

Accuracy

at -50 ... -20°C / -58 ... -4°F: ± 5°C / 41°F
at -20 ... 500°C / -4 ... 932°F: ± 2% of measured value / ± 2°C / 3.6°F

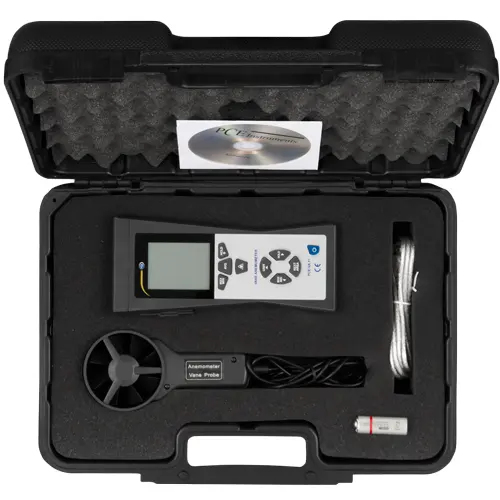

Delivery Scope

1 x HVAC Meter PCE-VA 11
1 x Impeller with 1.2 m / 3.9 ft cable
1 x USB cable
1 x 9V block battery
1 x Software
1 x Transport case
1 x Instruction manual
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
