Industrial Borescope PCE-IVE 320

Name: Industrial Borescope PCE-IVE 320
Brand: PCE Instruments
SKU: 2202055
Price: 1506 USD
Availability: InStock

Order no.: PCE-IVE 320

GTIN (EAN): 4250348714329

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

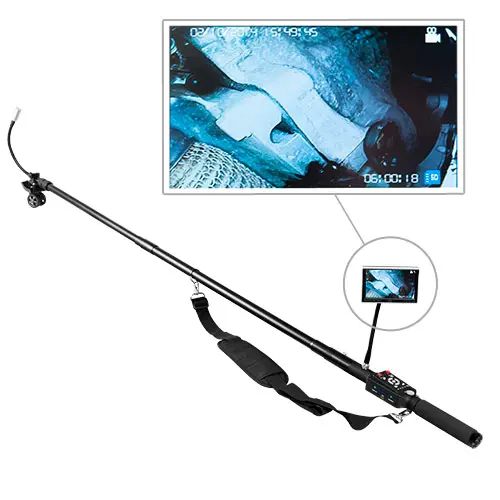

PCE-IVE 320 Industrial Borescope with Telescoping Pole

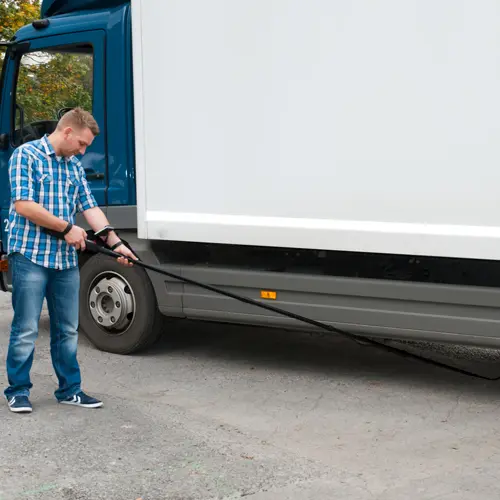

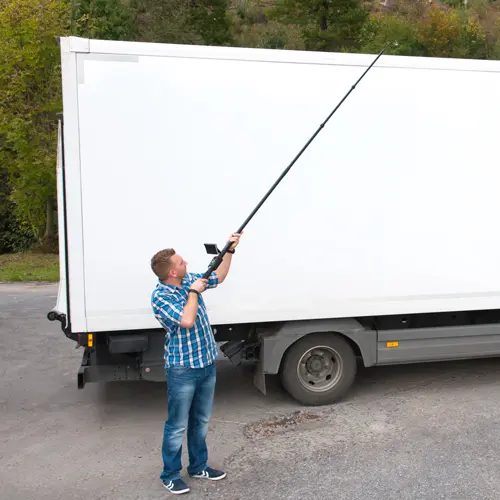

Industrial endoscope, videoscope or borescope on an extension rod / Ideal for gutter, chimney and home inspections as well as under-vehicle security and tactical use

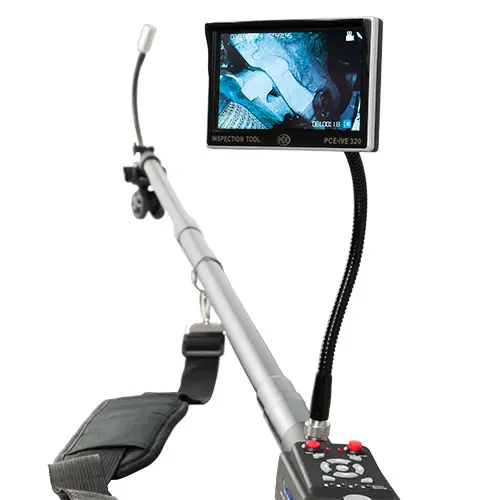

The Industrial Borescope is the ideal solution for inspecting hard-to-reach places. This industrial borescope, inspection camera, videoscope or industrial endoscope comes with a rigid telescoping pole that extends up to 2.3 m (7.6 ft) in length (3 m / 9.8 ft long total with camera connection). Plus, the industrial borescope's 0.3 megapixel camera has a 23 mm (0.91 in) diameter flexible head with microphone and 12 white LEDs offering adjustable brightness. A 12.7 cm / 5" LCD monitor with 800 x 480 pixel resolution allows for live viewing. For video recording, the industrial borescope accommodates SD memory cards from 2 ... 32 GB. An SD card reader is included in the delivery contents.

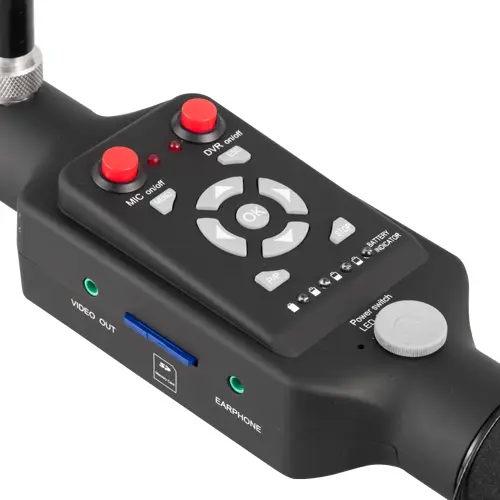

The industrial borescope allows quick and easy viewing, monitoring and diagnosis of inaccessible areas of machines, engines and equipment. The borescope is a useful tool for recognizing potential hazards or broken parts. The device's flexible camera head can be bent to capture images at any angle. Includes wheel attachment for under vehicle inspection. The brightness of the LEDs on the camera head can be conveniently adjusted by means of a thumb wheel located on the handle of the telescoping pole. The borescope also features a microphone for obtaining audio (headphone included).

***Not for medical use***

Highlights

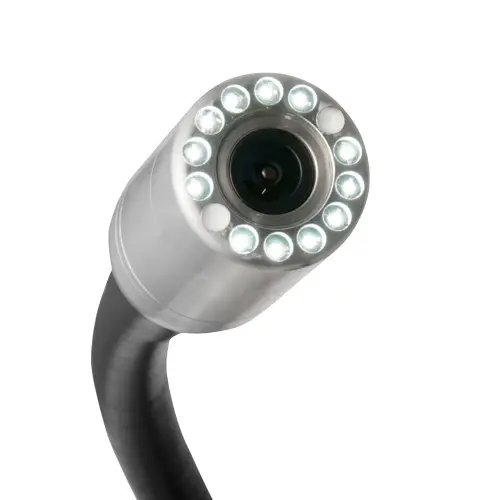

- 23 mm (0.91 in) diameter flexible camera head

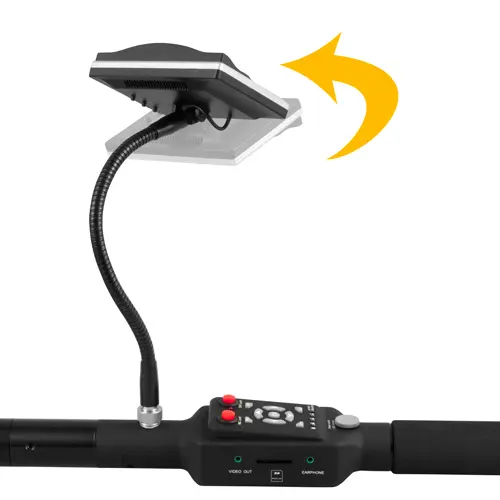

- LCD monitor

- 12 LEDs offer adjustable brightness

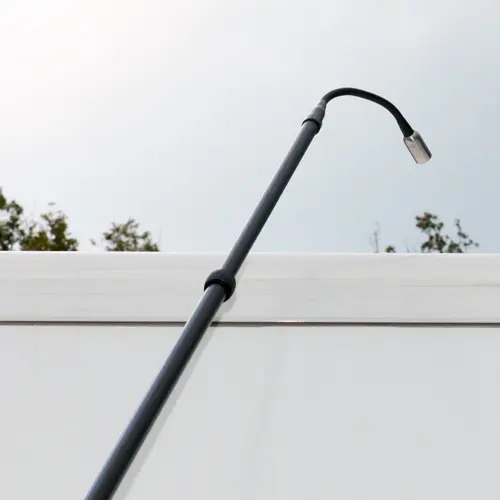

- Telescopic pole extends up to 2.3 m (7.6 ft) in length (3 m / 9.8 ft long total with camera connection)

- Video recording capability

- SD card memory

- Microphone for obtaining audio (headphone included)

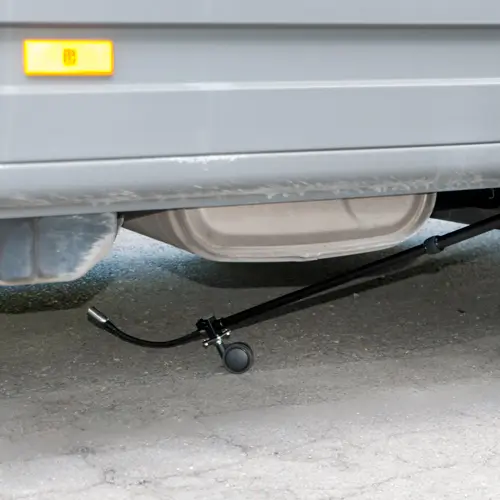

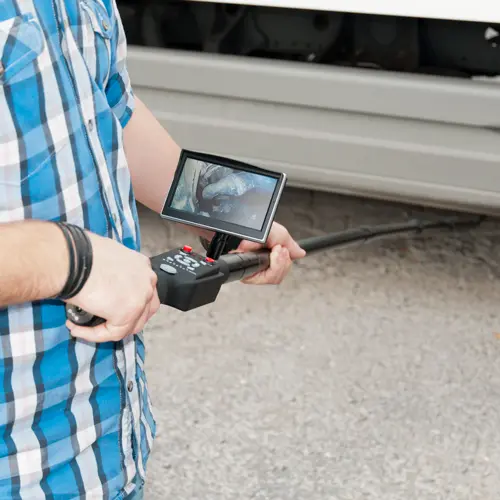

- Includes wheel attachment for under vehicle inspection
- Spare battery to allow all day operation

Specification

Camera
Camera head	1/4 CMOS
Pixel	0.3 Megapixel
Lighting	12 x LEDs (white)
Camera length	320 mm / 12.60 in
Camera diameter	23 mm / 0.91 in
Monitor

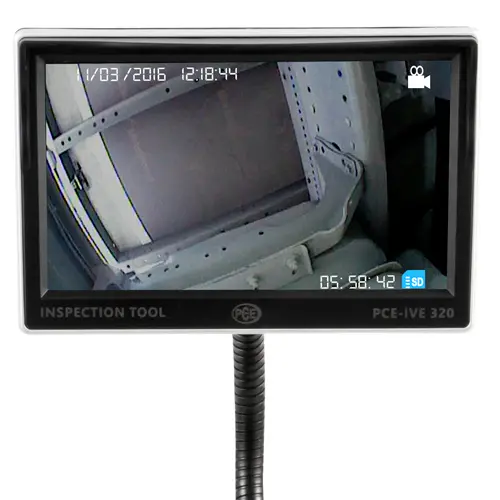

LCD	12.7 cm / 5" screen
Full dimensions	130 x 80 x 10 mm / 5.12 x 3.15 x 0.39 in
Resolution	800 x 480 pixels
Telescopic pole
Maximum length	2.3 m / 7.6 ft
Minimal length	0.9 m / 3 fg
Rechargeable battery
Battery capacity	1500-mAh
Output voltage	12V DC, 500-mA, 5-hour runtime
Battery charger
Input voltage	100 ... 240V AC, 50 / 60 Hz
Output voltage	12V DC, 500-mA, 4-hour charge time
Video recording
Output	704 x 576 (PAL)
Video format	MPEG-4
Recording format	ASF
Memory	2 ... 32 GB SD card
General specifications
Overall length	Maximum 3 m / 9.8 ft
Operating conditions Weight	-20 ... 50°C / -4 ... 122°F 1.5 kg / < 1 lb

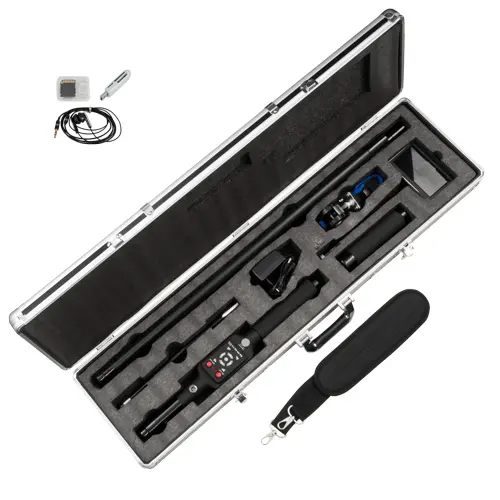

Delivery Scope

1 x Industrial Borescope PCE-IVE 320
1 x Flexible camera head with microphone
1 x Telescoping pole
1 x Rotary coupling
1 x Handle
1 x Carrying strap
1 x Headphone
1 x Operating element

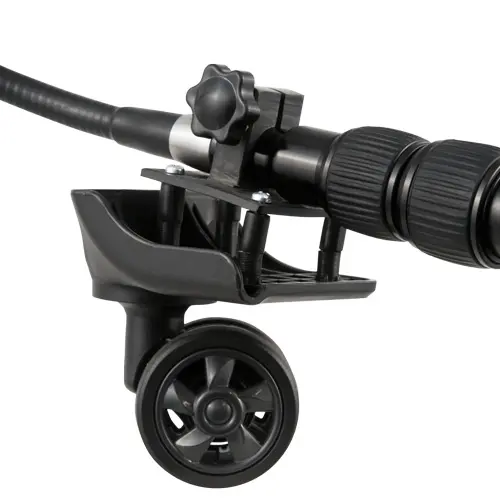

1 x Guide roller with mounting fixture
1 x LCD monitor
1 x SD card
1 x SD card reader
2 x Rechargeable battery
1 x Battery charger
1 x User manual
