Industrial Borescope PCE-VE 180

Order no.: PCE-VE 180
GTIN (EAN): 4250348717054
US$ 396.00
ex. VAT, ex. delivery costs
:
4250348717054
PCE-VE 180
Available in: 1-2 Days
Flexible
Yes
3.9 mm
1 m
1280 x 980 pixel
Digital
No
Image, Video
Yes (Micro SD)
No
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

PCE-VE 180 Industrial Borescope

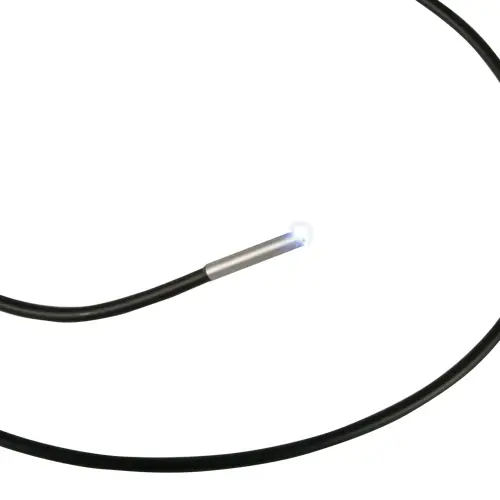

LED illumination / MicroSD memory / Detachable remote control display / 3.9 mm (.16 in) small diameter waterproof camera head / 1 m (3.28 ft) cable length

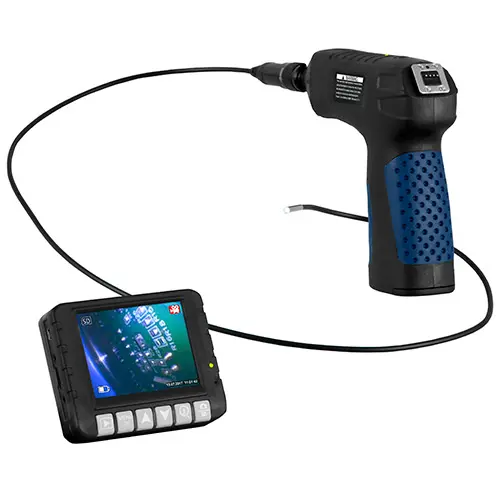

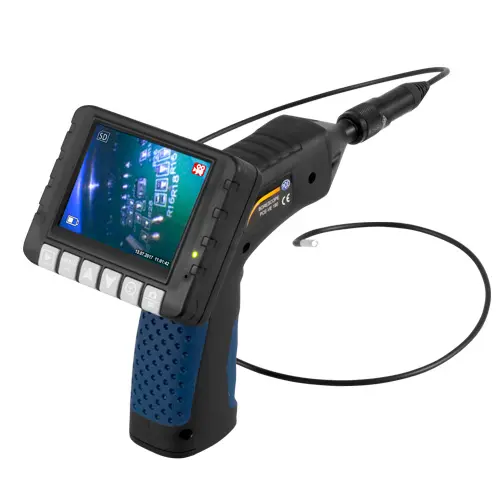

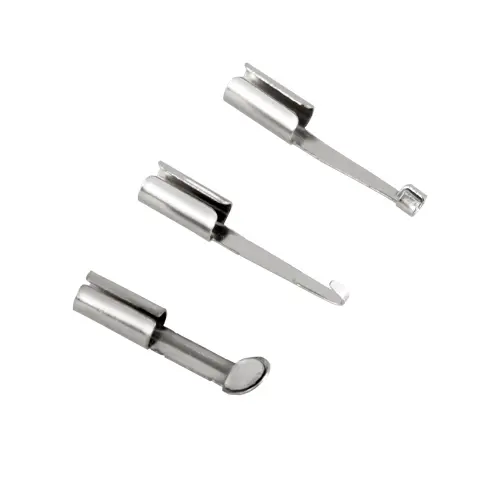

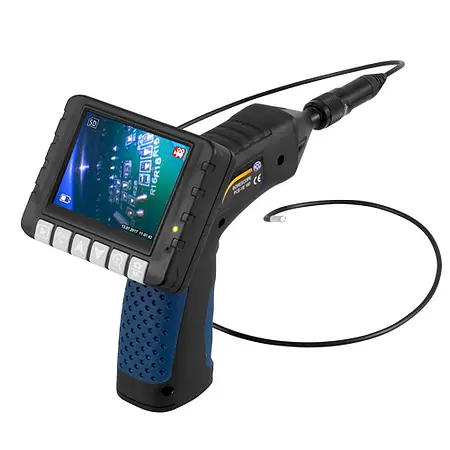

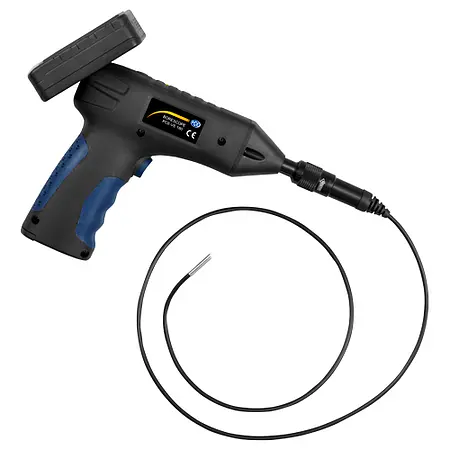

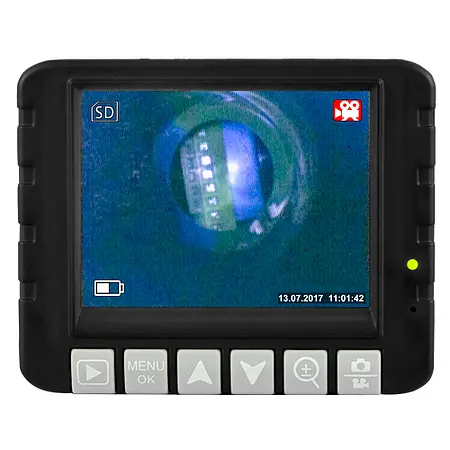

PCE-VE 180 is a rechargeable handheld pistol-grip industrial borescope inspection camera with video recording and image capture functionality. Equipped with built-in LED lighting on the waterproof camera tip, the PCE-VE 180 industrial borescope features a detachable remote control with integrated 3.5" LCD for easy viewing and navigation. The remote control communicates using radio transmission at 2.4 GHz. The industrial borescope is powered by a rechargeable battery that allows for up to 3 hours of continuous use. Recorded images and videos are saved to a MicroSD memory card with a capacity of up to 32 GB. The semi-flexible gooseneck cable of the borescope has a small diameter of just 3.9 mm / .16 in for insertion into tiny cavities. An IP67 ingress protection rating protects the borescope's camera head against dust and water, allowing for use in adverse conditions. The borescope comes with three different attachments: a 90° angle mirror for viewing side walls and around corners, as well as a hook and a magnet for pulling parts out of cavities.

***Not for medical use***


Highlights

- Semi-flexible gooseneck cable
- 1 m / 3.28 ft cable length
- 3.9 mm / .16 in cable diameter
- IP67 ingress protection rating against water, oil and dust
- Image capture and video recording functionality
- 30 ... 80 mm / 1.18 ... 3.15 in focal distance
- 2.4 GHz remote control radio transmission
- Powered by rechargeable battery
- 1280 x 980 pixel interpolated resolution
- Includes AC power adapter / battery charger

Specification

Cable length 1 m / 3.28 ft
Type of cable Semi-flexible (gooseneck)
Cable diameter 3.9 mm / .16 in
Illumination 2 LEDs
Resolution 1280 x 980 pixels (interpolated)
Ingress protection rating IP67 protection against water, oil and dust
Focal distance 30 ... 80 mm / 1.18 ... 3.15 in
Field of view 60°
Display size 3.5" / 320 x 240 pixels
Memory formats Images: JPG / BMP
Video: AVI

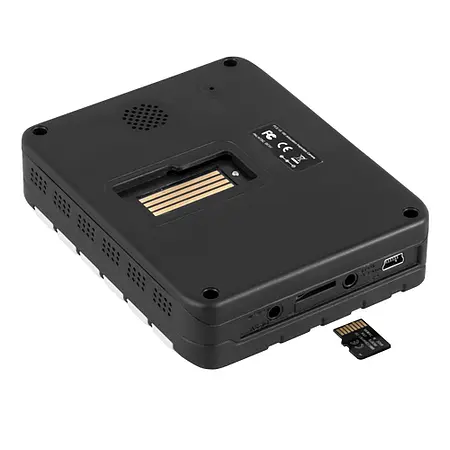

Memory Micro SD card (max. 32 GB)
Radio transmission 2.4 GHz
Power supply Remote / display: Li-Ion 3.7 V 1200-mAh
Pistol grip: Li-Ion 3.7 V 1600-mAh
AC power adapter / battery charger: 5V / 2 A
Battery life Approx. 1 ... 3 hours continuous use

Delivery Scope

1 x PCE-VE 180 industrial borescope
1 x Mirror attachment
1 x Hook attachment
1 x Magnet attachment
1 x AC power adapter / battery charger
1 x User manual
