Industrial Borescope PCE-VE 320HR

Order no.: PCE-VE 320HR
GTIN (EAN): 4250348715647

US$ 1,188.00
ex. VAT, ex. delivery costs
:
4250348715647
PCE-VE 320HR
Available in: 1-2 days
Flexible
No
5.5 mm
1 m
320 x 240 / 640 x 480 pixels
Digital
No
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

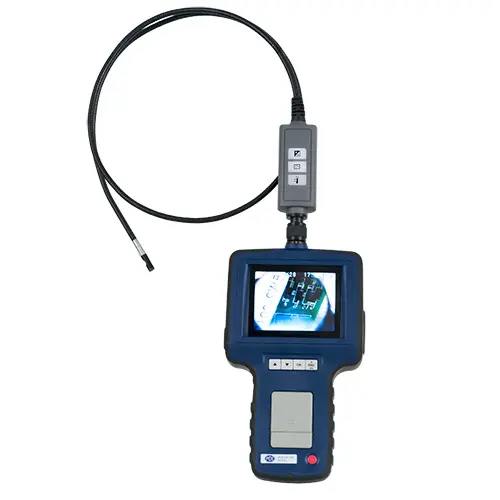

PCE-VE 320HR is an industrial borescope, inspection camera or industrial endoscope for the non-destructive inspection (NDI) of engines, machines and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for better illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost function for improved image quality in the dark.

The borescope stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 1 m / 3.28 ft cable length and 5.5 mm / 0.22 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.


***Not for medical use***

Highlights

- With boost function: better images in dark surroundings
- Image rotation possible
- Diameter camera head: Ø 5.5mm / 0.22"
- Storage of images and videos
- 8 GB SD memory card (incl.)
- LED lighting (2 additional side LEDs for better lighting)
- Robust carrying case included
- Additional camera cables optional

Specification

Cable diameter

5.5 mm / 0.22 in

Cable length

1 m / 3.28 ft

Depth of field

1.5 … 10 cm / 0.59 ... 3.94 in

Field of view

67°

Bending radius 90 mm / 3.54 in.
Illumination 6 LEDs (4 front, 2 side)
Boost function For improved image quality in the dark
Image sensor CMOS
Picture rate 30 frames per second (fps)
Display
88.9 mm / 3.5 in TFT LCD monitor
Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage 8 GB memory card (can be increased to 32 GB)
Compression format MPEG 4
Picture format JPEG (640 x 480 pixel resolution)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature -10 ... 60°C / 14 ... 140°F
Voltage supply Rechargeable 3.7 V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 450 g / 1 lb
Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft

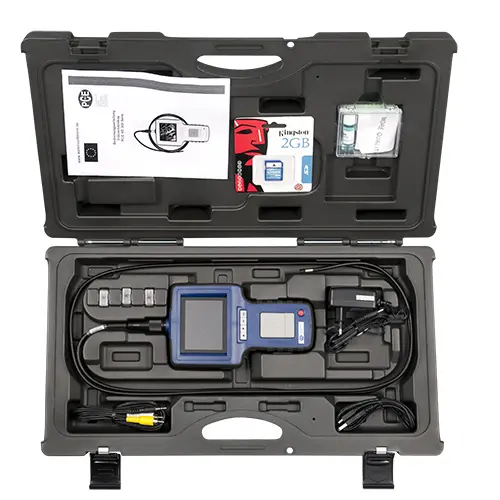

Delivery Scope

1 x Industrial Borescope PCE-VE 320HR
1 x 8 GB SD memory card
1 x USB cable
1 x Carrying case
1 x Mains power adapter
1 x User manual

Please note: Not to be used for medical applications!
