Fixed Mount Infrared Thermometer PCE-IR10

Order no.: PCE-IR10

GTIN (EAN): 4250348702081

Description

Fixed Mount Infrared Thermometer with LCD for continuous measurement of surface temperature of all solid materials, designed for fixed installation

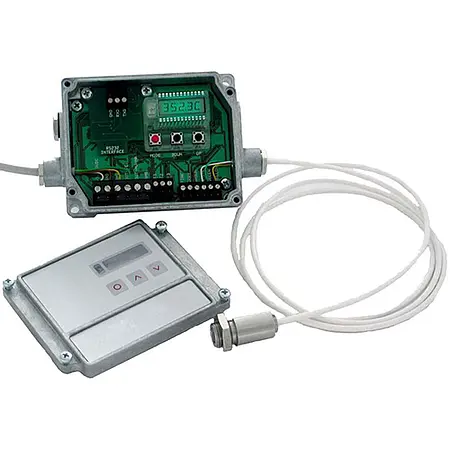

The PCE-IR10 fixed mount infrared thermometer is made up of a small sensor head and a separate electrical component. The fixed mount infrared thermometer sensor is so small that it can fit in almost any space. Apart from this, the device offers similar specifications as other devices. The electrical component of the PCE-IR10 facilitates the use of functions hat are not normally found in a device of this quality. Among these are adjustable emissivity, minimum, maximum and average value, as well as software to program the device via a computer or directly from the unit's LCD. Due to its small size, this temperature tester is ideal for different systems in a production line. The device is accurate, easy to install and economical.

Measuring temperature with the PCE-IR10 non-contact temperature tester is an economical alternative to similar contact devices (additional information about the functioning principle of measuring temperature with fixed mount infrared thermometers). Also, look at this brief text about the practice of measuring temperature with infrared devices. To get the highest precision from this device, the user can adjust the emissivity, which is different for each type of surface material being measured. If the user measures a material which is not in the table, they can establish the emissivity value and adjust the temperature measured by the temperature reader.

Highlights

- High temperature range of up to 600°C / 1112°F

- Small sensor head for use in tight spaces

- Analogue output

- USB/ RS-232 / RS-485 / relay outputs

- Operating temperature up to 180°C / 356°F (sensor head); 65°C / 149°F (device)

- adjustable emissivity, minimum / maximum Hold, average value

- LCD

- Can funstion in a network of up to 32 sensors connected by optional RS-485

- Power of 8 ... 36V DC

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.

Specification

Electronic parameters
Outputs	Analogue: 4 ... 20-mA, 0 ... 20-mA, 0 ... 5V (adjustable), Type-J or K sensors Temperature sensor head 10 mV / °C or °F alarm Relay (via software) optional digital outputs USB, RS-232, RS-485, relay
Inputs	Emissivity, temperature compensation, trigger (by software)
Cable length	1 m / 3.3 ft, other lengths can be ordered separately
Consumption	Max. 100-mA
Power	8 ... 36V DC
General parameters
Ingress protection	IP65 (NEMA-4)
Operating temperature for Sensor head	-20 ... 180°C / -4 ... 356°F
Storage conditions	-40 ... 85°C / -40 ... 185°F
Operating relative humidity	10 ... 95% without condensation
EMI	IEC 801-3, level 3 (maximum cable length of 3m)
Weight
Sensor head	40 g / .09 lb
Electronic component	420 g / < 1 lb
Technical parameters
Temperature range	40 ... 600°C / 104 ... 1112°F
Spectral range	8.0 ... 14 µm
Optical resolution ¹	15:1
Accuracy ²	± 1% or ± 1°C³/ 1.8°F³
Repeatablility	± 0.5% or ± 0.5°C³/ 0.9°F³
Temperature coefficient	± 0.05°C / 0.09°F, °C / °F or ± 0.05% / °C³°F³
Temperature resolution	0.1°C⁵/ 1.8°F⁵
Response time	150 ms (95%)
Emissivity	0.100 - 1.000 adjustable in digital mode, by units of 0.001
Functions	Maximum, minimum Hold and average value
	¹ 90% of energy ² at an operating temperature of 23°C / 73°F, ± 5°C / 9°F ³ shighest value is considered correct ⁴ ISO calibration certificate based on the NIST / DKD measurement ⁵ for a temperature margin of 300K
