Infrared Thermometer PCE-675-ICA Incl. ISO Calibration Certificate incl Type K

Order no.: PCE-675-ICA

GTIN (EAN): 4250348725004

Accessory

ISO Calibration Certificate for Infrared Thermometer

US$ 160.00

Insulated Surface Temperature Sensor TF-102A

US$ 73.00

Temperature Sensor TF-101

US$ 90.00

Air Sensor TF-108

US$ 63.00

Penetration / Immersion Sensor TF-106

US$ 66.00

PCE-MS 25 Measuring Point Sticker

US$ 20.00

Description

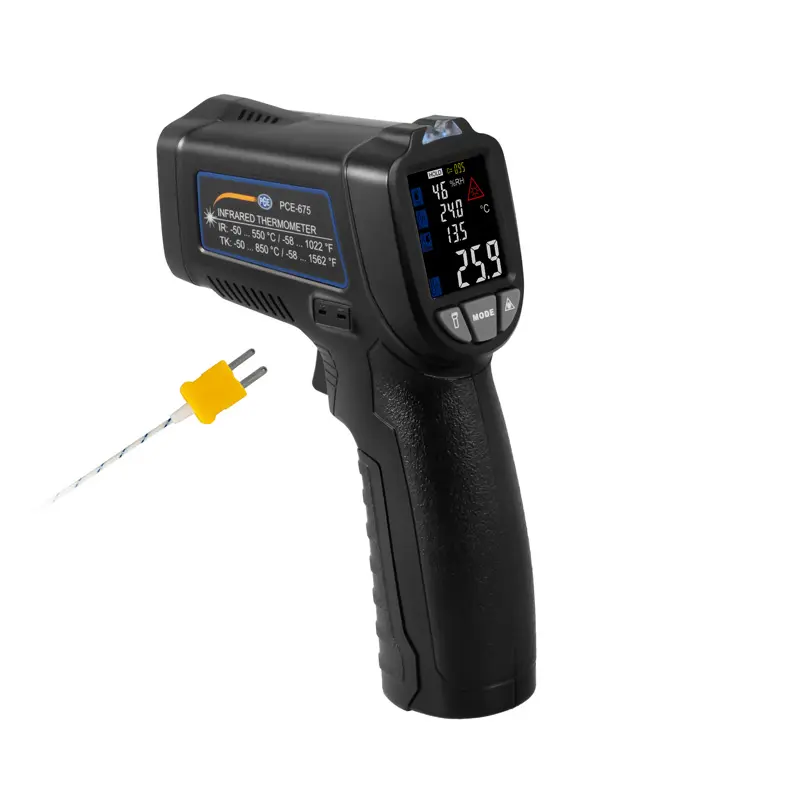

Infrared Thermometer PCE-675-ICA incl. ISO calibration certificate

Easy-to-use infrared thermometer with red laser pointer / Measuring input for K-type / Surface temperatures / Air temperature / Humidity / Dew point temperature

The infrared thermometer has a 13:1 spot-to-spot ratio and can accurately measure surface temperatures and ambient humidity over a very long distance. The infrared thermometer brings advantages, such as a simple operation and a red sighting laser. These features allow the near perfect alignment of the infrared thermometer for accurate measurements.

The infrared thermometer is universally applicable. The integrated flashlight allows the measuring point to be illuminated in the dark. The individual settings of the infrared thermometer allow a wide range of temperatures and humidity to be measured. The infrared thermometer does not have a fixed emission value, but has a setting span of 0.1 to 1.0, thus covering more than 90% of all temperature measurement tasks.

Highlights

- Low measurement sequence

- Emissivity adjustable between 0.1 and 1.0

- Automatic shutdown

- Switchable laser sighting aid

- Measured value display selectable between °C and °F

- Different exhibition settings

- Battery operation

- Compact and robust design

- Incl. ISO calibration certificate

Specification

Measuring function	Infrared
Measuring range	-50 ... 550 °C
Resolution	≤ 1000 °C/°F: 0.1 °C/°F
	> 1000 °C/°F: 1 °C/°F
Accuracy	-50 … 0 ºC: ± 3 ºC
	> 0º C: ± 1.5 % or ± 2.0
	the larger value counts

Measuring function	Type K
Measuring range	-50 … 850 ºC
Resolution	≤ 1000 °C/°F: 0.1 °C/°F
	> 1000 °C/°F: 1 °C/°F
Accuracy	± 1.5 % or ± 1.5 °C
	the larger value counts

Measuring function	Air temperature
Measuring range	-20 … 60 ºC
Resolution	0.1 °C
Accuracy	0 … 40 ºC: ± 1.0 ºC
	Other: ± 2 °C

Measuring function	Humidity
Measuring range	0 … 100 % r.H.
Resolution	1 %
Accuracy	35 … 75 % r.H.:
	± 3.0 % r.H.
	Other: ± 5 % r.H.

Measuring function	Dew point
Measuring range	-20 … 60 ºC
Resolution	0.1 °C
Accuracy	25 ºC, 40 … 80 % r.H.: ± 1.5 ºC

	Wet bulb temp.
Measuring range	-20 … 60ºC
Resolution	0.1 °C
Accuracy	25 °C: ± 1.5 °C

Emissivity	adjustable between 0.1 and 1.0
Optical resolution	13 : 1
Response time	≤ 500 ms
Spectral sensitivity	8 … 14 um
Laser	≤ 1 mW, 630 … 670 nm, class 2 laser
Automatic shutdown	after one minute
Operating conditions	0 … 50 ºC / ≤ 95% r.H.
Storage conditions	-20 … 70 ºC / ≤ 80 % r.H.
Power supply	9 V battery
Weight	ca. 130 g
