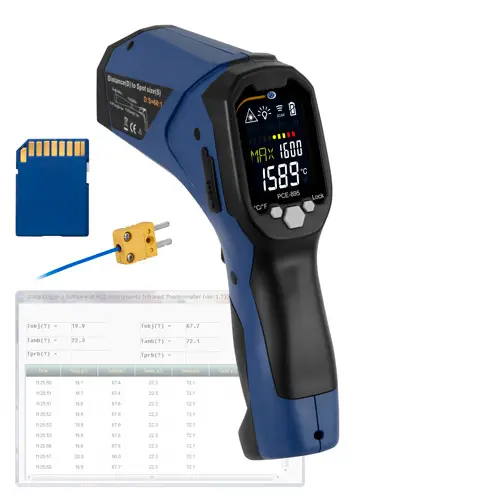

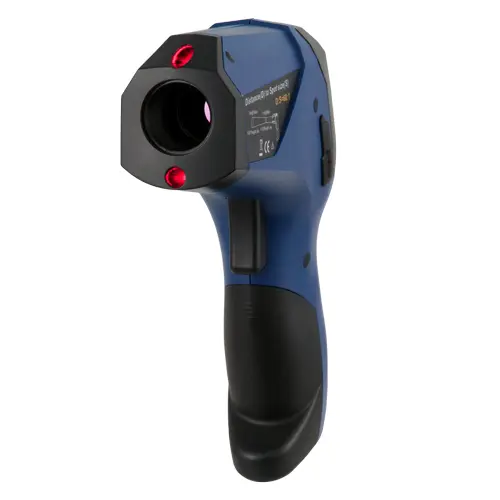

The Dual Laser Thermometer PCE-895 is used for fast surface temperature measurement. The two laser points of the dual laser thermometer PCE-895 mark the exact measuring point and thus offer excellent assistance with the temperature measurement. Due to the cross laser function, the two laser spots indicate exactly how large the actual IR spot is. The emissivity of the dual laser thermometer PCE-895 is adjustable in the range of 0.10 ... 1.0. Thus, the dual laser thermometer PCE-895 is suitable for almost all surfaces.

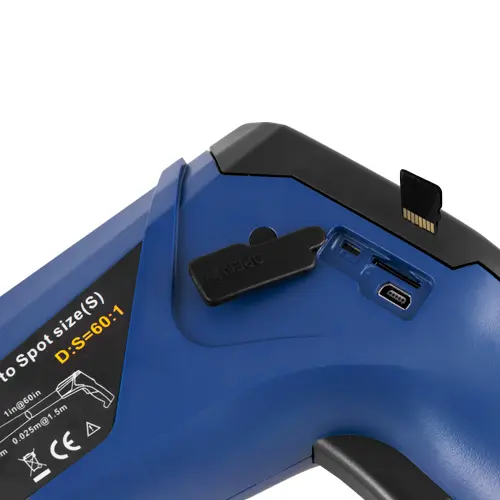

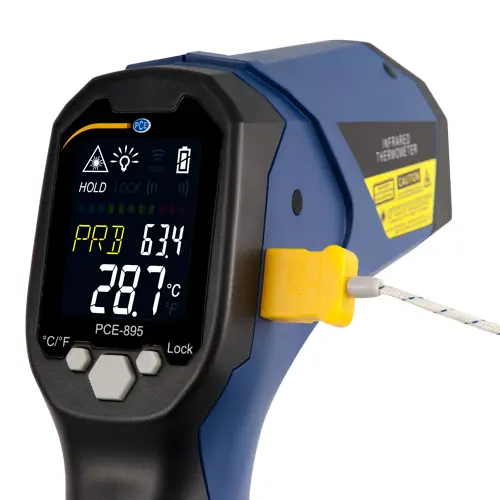

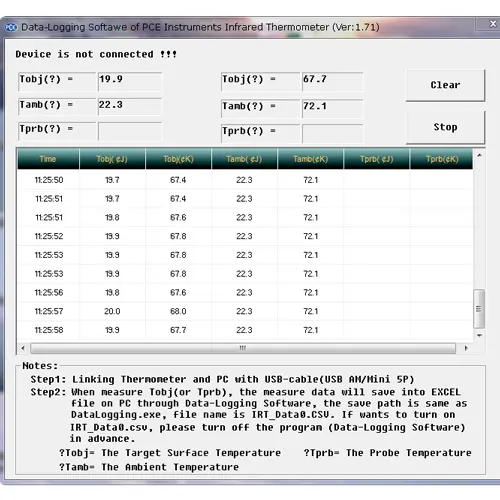

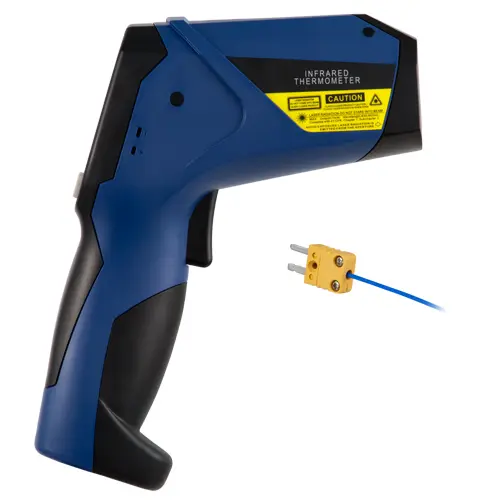

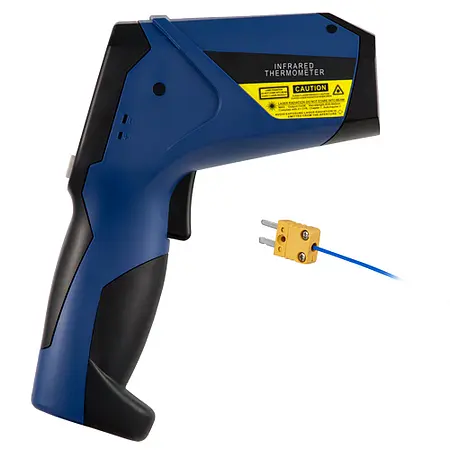

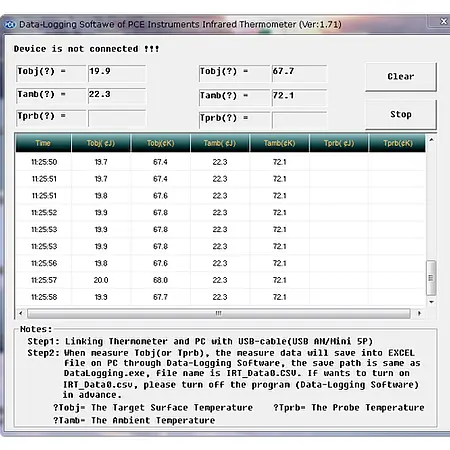

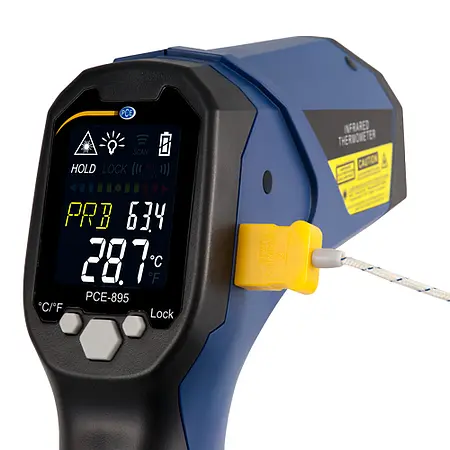

The temperature measuring range extends from -35 ... 1600°C / -31 ... 2912°F. In addition to the IR function, a type K thermocouple can also be connected to the dual laser thermometer. A USB interface and an SD memory card slot complete the functionality of this professional thermometer. The SD card enables data logging of several hours on machines and systems. Using the PC software, the stored temperature profiles can be read out and exported. This makes the Dual Laser Thermometer ideal for long-term temperature measurements.
Infrared |
|
Measuring range | -35 ... 1600°C / -31 ... 2912°F |
Measuring accuracy (at 23 ... 25°C ambient temperature) | -35 ... 0°C / 0°F: ± 2°C / 3.6°F + 0.05*TObj 0 ... 1600°C: ± 2% of rdg. or ± 2°C / 3.6°F |
Resolution | 1°C / 1.8°F at 1000 .... 1600°C / 1832 ... 2912°F |
Thermocouple | |
Measuring range | Type K: -64 ... 1400°C / -83 ... 2552°F |
Measuring accuracy (at 23 ... 25°C ambient temperature) | ± 1% of rdg. or ± 1°C / 1.8°F |
Resolution | 0.1°C / 0.18°F at -64 ... 999.9°C / -83.2 ... 1831.8°F |
Emissivity | Adjustable 0.10 ... 1.0 |
Spectral range | 8 ... 14 µm |
Response time | 1 s |

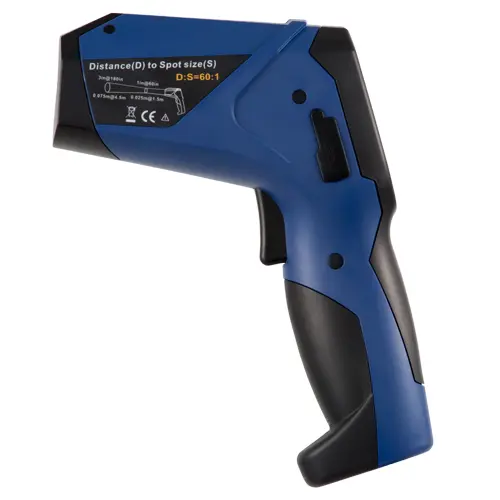

Optical resolution / measurement spot ratio | 60:1 |
Storage | Internal: 24 memory points External (micro-SD card): max. 8 GB supported |
Interface | USB |

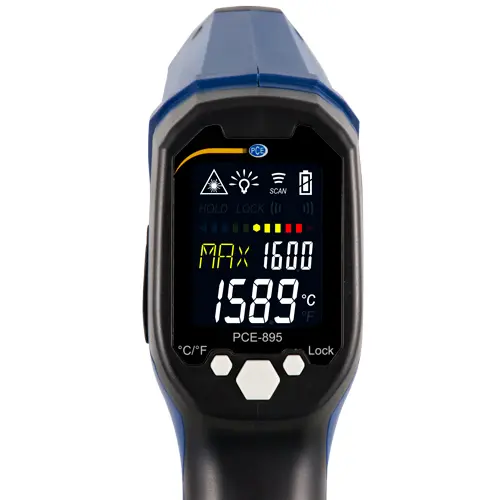

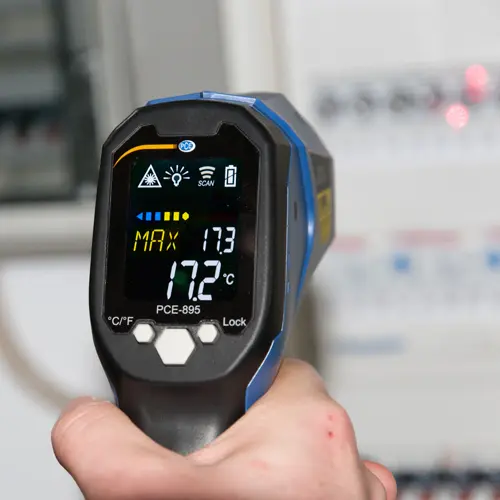

Display | LCD illuminated |
Power supply | 2 x 1.5V AA batteries |
Operating time | Typical: 14 h Continuous: 10 h |
Operating conditions | 0 ... 50°C / 32 ... 122°F |
Weight | ca. 400 g / 14.1 oz |
Dimensions | 203 x 176 x 89 mm / 7.9 x 6.9 x 3.5 in |
