PCE-MM 200UV UV USB Inspection Camera
UV inspection camera with up to 200 x magnification connects to computer via USB port

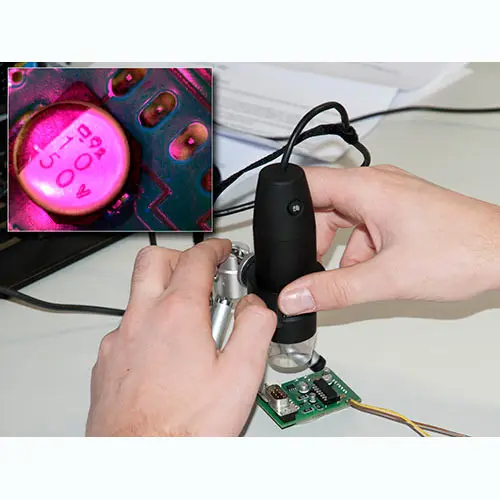

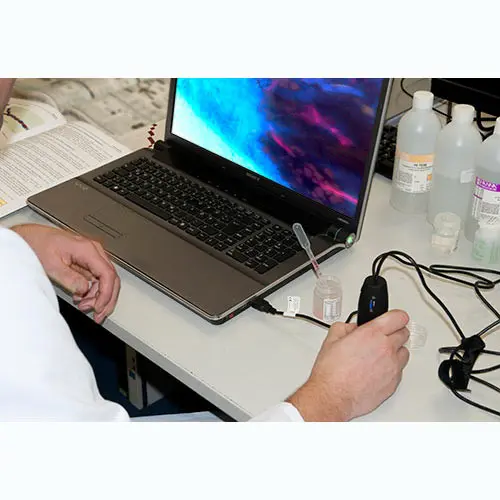

PCE-MM 200UV is a UV USB inspection camera, or UV USB microscope, that magnifies objects up to 200 times. This UV inspection camera uses 8 UV LEDs with a wavelength of 365 nm for illumination. The inspection camera captures photos and videos as well as displays magnified objects in real time on your computer screen.
The included software allows you to add text and draw lines, squares and circles in a photo. The software also facilitates calibration for accurate measurement.
- Enlargement: continuous 10 ... 200-fold
- Resolution: 1600 x 1200 pixels
- Frame rate: 30 frames per second
Magnification Continuous, 10... 200 times (infinitely variable)
Resolution 1600 x 1200 pixels
Light source 8 x LED UV 400 nm (MM200 UV)
Colors 24-bit RGB
Image frequency 30 frames per second
Video format AVI
Computer connection USB 2.0
Power supply USB 2.0
System requirements Windows XP SP2 upwards / MAC OS 10.5 (without photo button)
Approx. dimensions 110 x 33 mm / 4.33 x 1.30 in
Approx. weight 90 g / < 1 lb
