Inspection Camera PCE-VE 100N4

Order no.: PCE-VE 100N4
GTIN (EAN): 4250348723352
US$ 2,125.00
ex. VAT, ex. delivery costs
:
4250348723352
PCE-VE 100N4
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

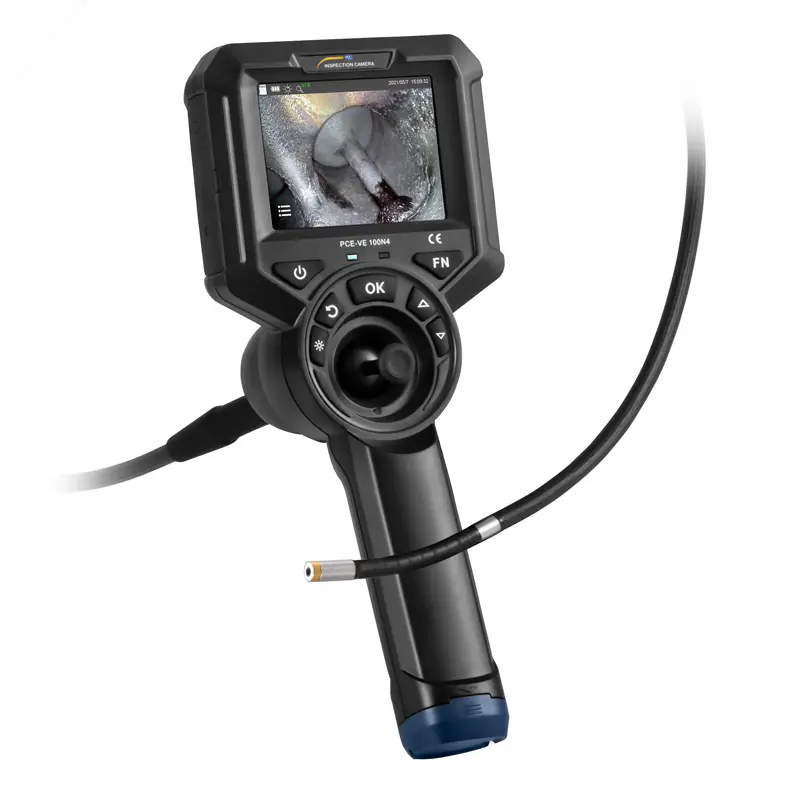

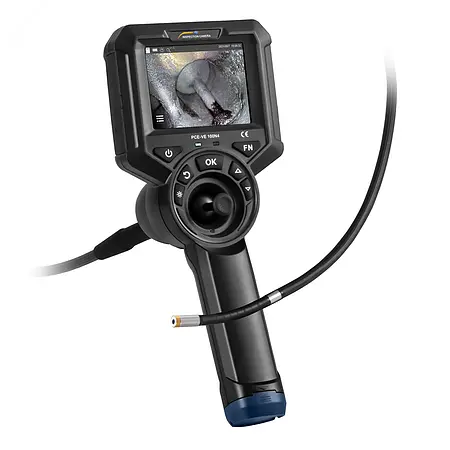

Multiway inspection camera with photo and video recording / 1280 x 720 pixels / 360° swivel /
6 mm (0.23") diameter / 1 meter (3 ft 2") cable length / LED lighting / Micro-SD card memory /
Transport case / Battery life >3 hours / IP 67

The multiway inspection camera with a cable length of one meter and a camera head diameter of 6 mm is the ideal tool for endoscopy. The LED illuminance on the camera head can be set in 5 steps up to 25,000 lux. This ensures that the test item is adequately illuminated. With the mini-HDMI interface on the multiway videoscope, the image can be transmitted to an external monitor or projector. This has the particular advantage that the multiway videoscope can be used for presentations. Thus, the multiway videoscope is used in car workshops, heating and air conditioning technology, or vocational schools, universities and other educational facilities.

Photos as well as videos can be recorded with the multiway inspection camera. The recordings are saved directly on the Micro SD card and can be viewed on the multiway videoscope. It is also possible to transfer the recordings from the Micro SD card to a computer. This means that the recordings from the multiway videoscope can be stored in expert reports, for example.

The 3500 mAh battery enables an operating time of more than 3 hours before it has to be recharged. To recharge the battery, the multiway videoscope can be connected to any 5 V USB interface.

Highlights

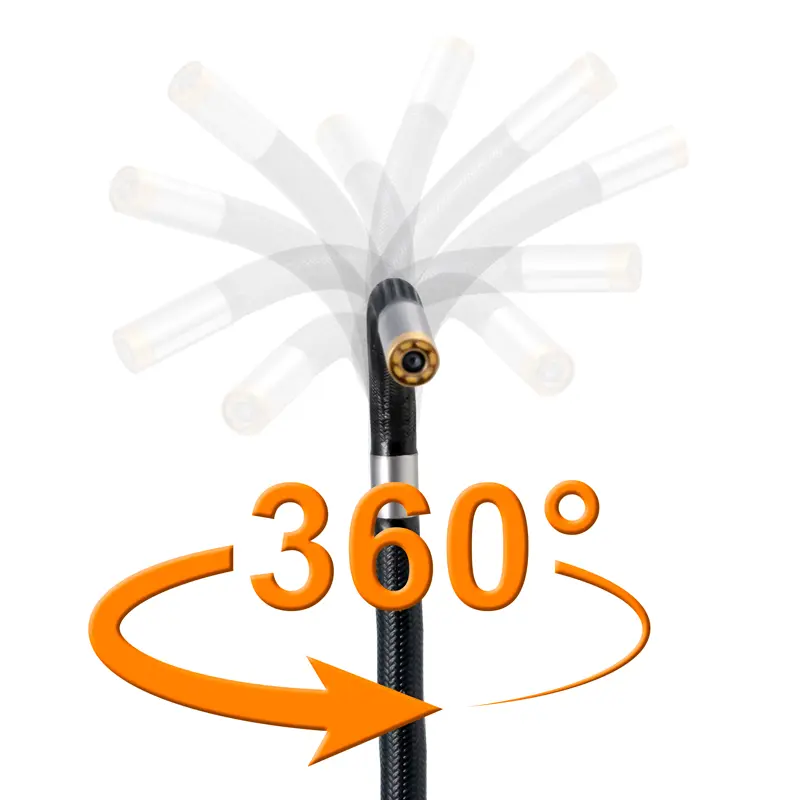

- Multiway 360° rotation head
- Rechargeable via USB interface

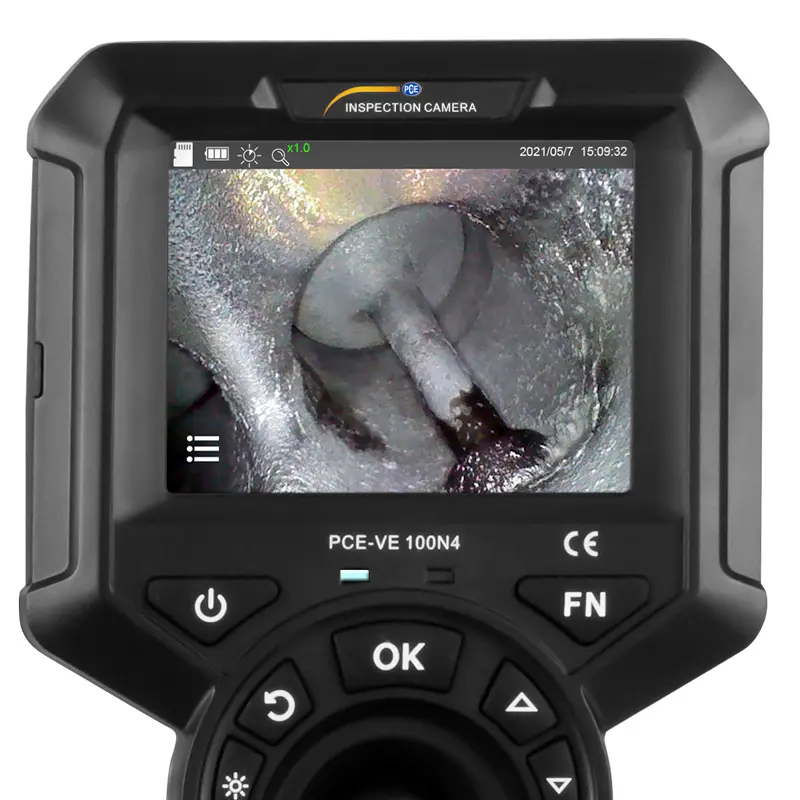

- 3.5" display
- Operating time of more than 3 hours
- Mini-HDMI interface for image output
- Braided tungsten tube with a length of 1 m / 3 ft 2"

Specification

Camera diameter6 mm  / 0.23"
Cable length1 m / 3 ft 2"
Camera pixels1,000,000
Depth of field7 ... 110 mm / 0.27 ... 4.33"
Field of view120°
Swivel range360°

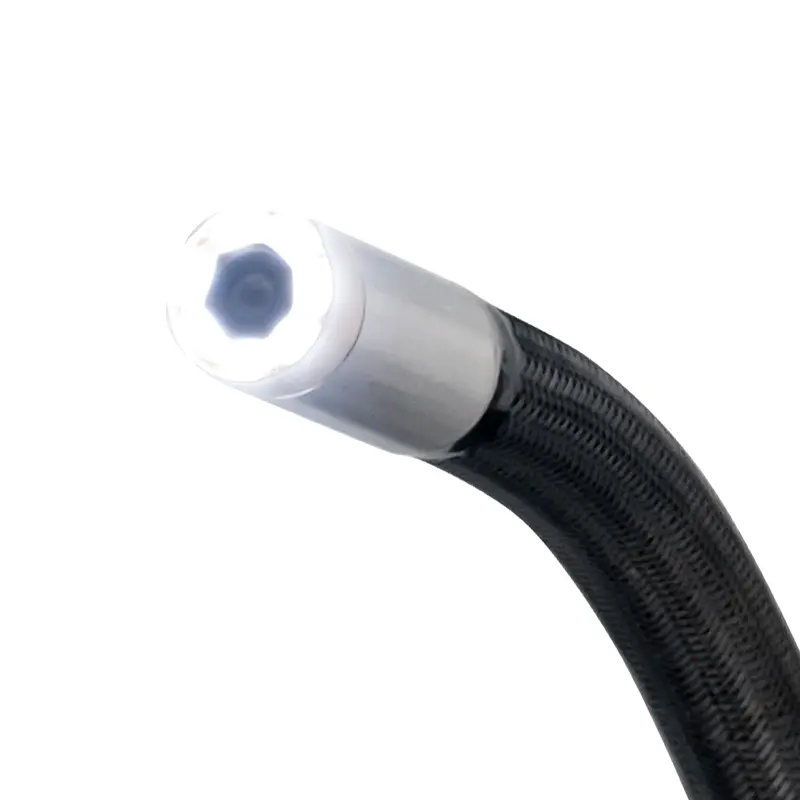

Illuminancecan be set in five levels up to 25,000 lx
Cable materialTungsten braided
Bending radius>220°
Display3.5" IPS
Display resolution640 x 480
Photo and video formatJPG / MP4
Photo and video resolution960 x 720, 1280 x 720
Magnification5-times
Protection classcamera cable: IP67
 display: IP65
Memory
16 GB Micro-SD card
Battery power supply
1 x 3.7 V 3200 mAh 18650 battery
Power consumption3.5 W
Operating time>3 hours
Mains power supply
primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.35 A
 secondary: 5 V DC, 2 A
InterfacesMini-HDMI (image transmission)
 Micro-USB connector (charging port)
Storage conditions-10 ... +63 °C / 14 ... 145 °F, <92 % RH, non-condensing
Operating conditions display*  -10 ... +50 °C / 14 ... 122 °F, <92 % RH, non-condensing
Operating conditions camera*-10 ... +80 °C / 14 ... 176 °F, <92 % RH, non-condensing


*at temperatures below 0 °C / 32 °F the display must be preheated
and the camera head must not be swivelled completely

Dimensions277 x 106 x 92 mm / 10.9 x 4.1 x 3.6"
Weightca. 500 g / 17.6 oz

Delivery Scope

1 x Multiway Inspection camera PCE-VE 100N4
1 x 3.7 V 18650 battery
1 x Micro USB cable
1 x USB power adapter
1 x Micro SD memory card
1 x Micro SD card adapter

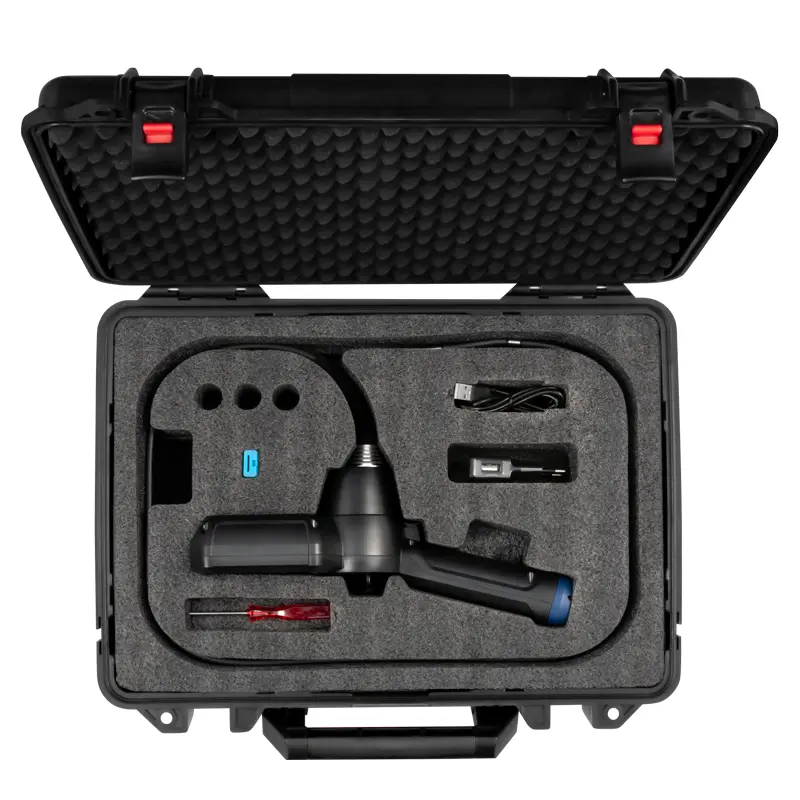

1 x Transport case
1 x Screwdriver
1 x Instruction manual
