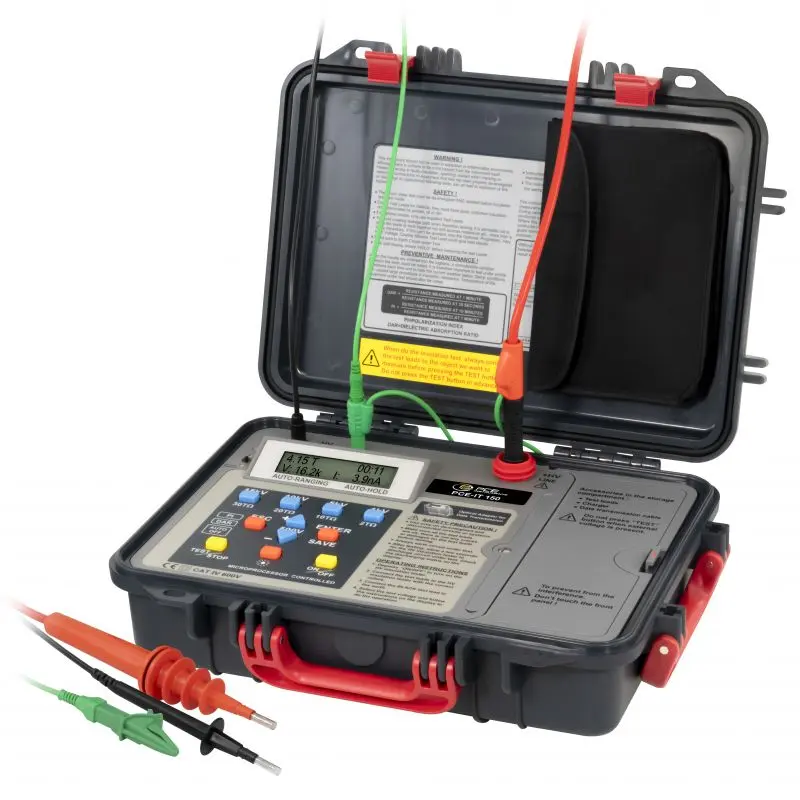

Insulation Tester PCE-IT 150

Order no.: PCE-IT 150
GTIN (EAN): 4250348734389
US$ 2,450.00
ex. VAT, ex. delivery costs
:
4250348734389
PCE-IT 150
Available in: 1-2 Days

Description

Insulation Tester up to 15 kV test voltage / Li-Ion battery / Date-time display / Test timer / Adjustable test voltage / External voltage alarm / Automatic switch-off

The insulation tester is designed for insulation measurements with a test voltage of up to 15 kV. The measuring range from 0 ... 30 TΩ and other measuring functions make the tester versatile. With 4 quick selection buttons for common test voltages and the option of setting the voltage in 500 V steps. Pre-configured diagnostic tests, including (PI), dielectric absorption ratio (DAR) and a memory function for 200 measurements. These can be transferred to the software via the interface, which also enables the insulation measuring device to be operated. The insulation tester can also be used to measure AC and DC voltages up to 600 V. The insulation tester is supplied in a robust case that offers IP66 protection even when the lid is closed.

In the course of its normal service life, electrical insulation is exposed to various stresses that lead to its deterioration. This is caused by thermal, mechanical and chemical influences as well as moisture. Although the insulation is designed to withstand these stresses over many years, abnormal stresses can intensify the natural ageing process and drastically shorten the service life. It is therefore advisable to regularly check whether an accelerated ageing process is taking place and, if necessary, to determine whether the effects are reversible.


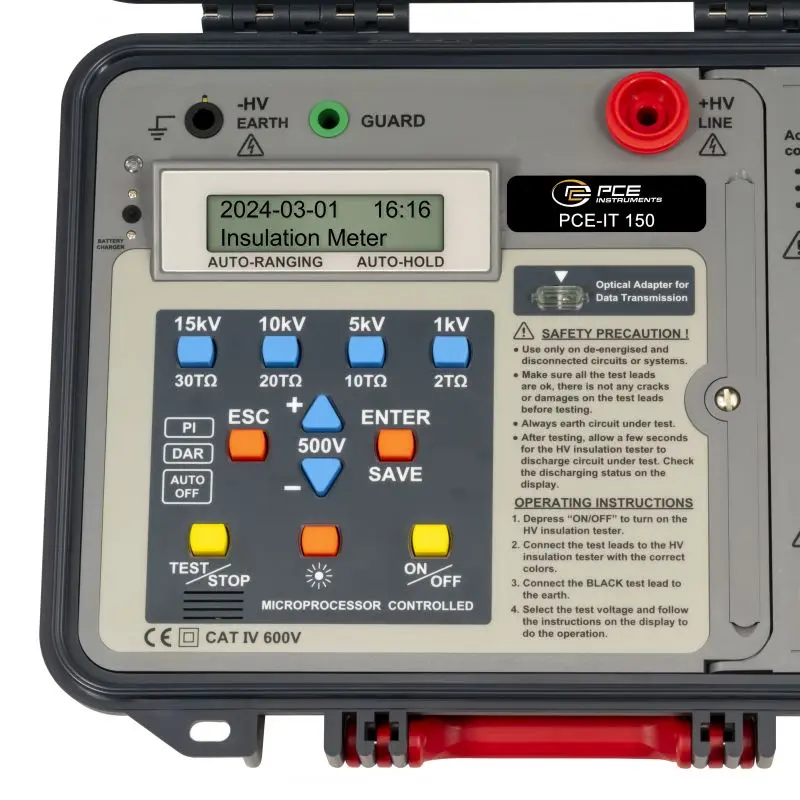

Highlights

- 15 kV insulation tester
- Insulation resistance up to 30 TΩ
- Polarisation index PI
- Dielectric absorption ratio DAR
- 4 buttons for test voltage
- Memory for 200 measured values
- incl. software

Specification

Direct voltage DC
Measuring range  30 V ... 600 V
Resolution  1 V
Accuracy  ±(2.0% v.Mw. +3 digits)

AC voltage AC
Measuring range  30 V ... 600 V
Resolution  1 V
Accuracy  ±(2.0% v.Mw. +3 digits)

Insulation resistance
Measuring range  0 GΩ ... 1 GΩ
Resolution  0.001 GΩ
Accuracy  ±(5% v.Mw.+5 digits)

Insulation resistance
Measuring range  1 GΩ ... 10 GΩ
Resolution  0.01 GΩ
Accuracy  ±(5% v.Mw.+5 digits)

Insulation resistance
Measuring range  10 GΩ ... 100 GΩ
Resolution  0.1 GΩ
Accuracy  ±(5% v.Mw.+5 digits)

Insulation resistance
Measuring range  100 GΩ ... 1 TΩ
Resolution  1 GΩ
Accuracy  ±(5% v.Mw.+5 digits)

Insulation resistance
Measuring range  1 TΩ ... 10 TΩ
Resolution  10 GΩ
Accuracy  ±20%

Insulation resistance
Measuring range  10 TΩ ... 30 TΩ
Resolution  100 GΩ
Accuracy  ±20%

General technical data
Measurement functions  HOLD, PI, DAR
Display type  LCD
Memory medium  Internal memory
Memory capacity  200 measurements
Interface  RS232
Automatic switch-off  5 min
Automatic switch-off can be deactivated  no
Test voltage  500 V ... 15 kV
Safety standard  CAT IV 600 V
Menu language  English
Protection class (device)  IP66
Protection class (additional information)  Only with closed lid
Power supply  100 ... 240 V | 50/60 Hz
Plug type  Euro plug device
Weight  6362 g
Dimensions (L x W x H)  325 x 430 x 132 mm
Operating conditions  0 ... 40 °C , 0 ... 80 % r.H
Storage conditions  0 ... 40 °C , 0 ... 80 % r.H
Capacity  5200 mAh

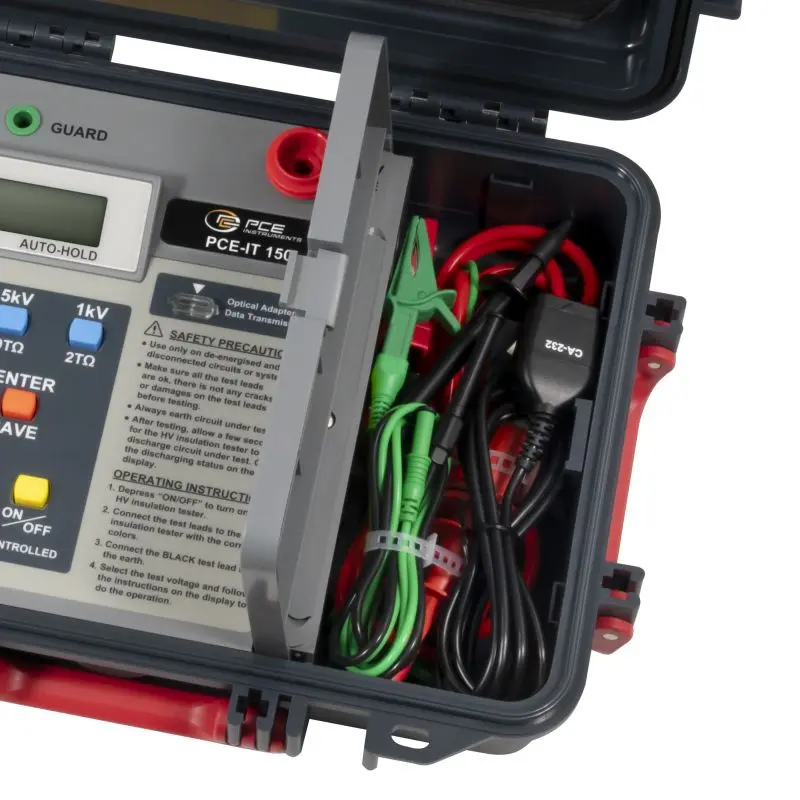

Delivery Scope

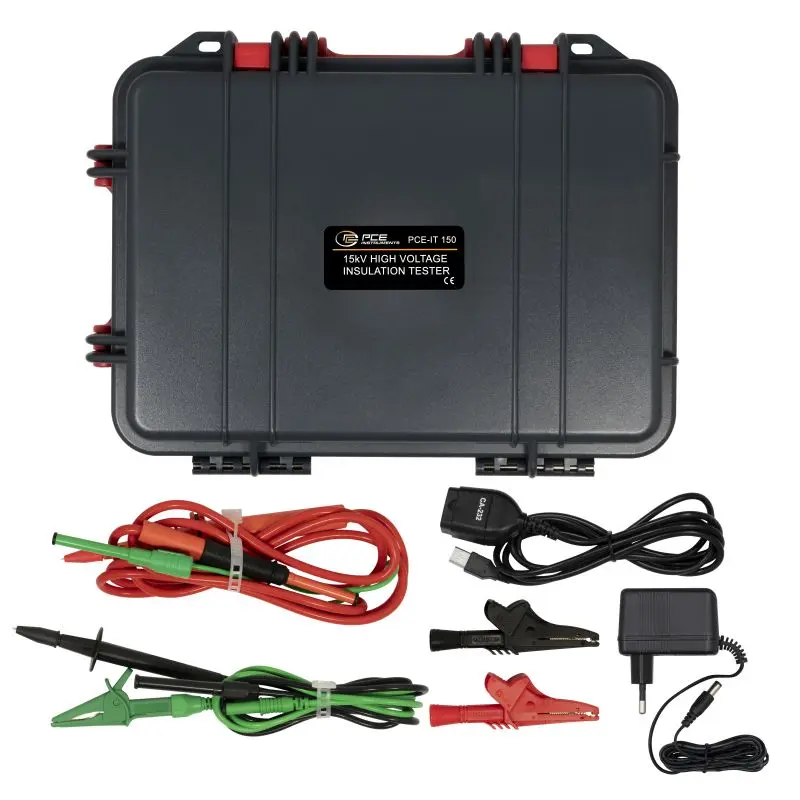

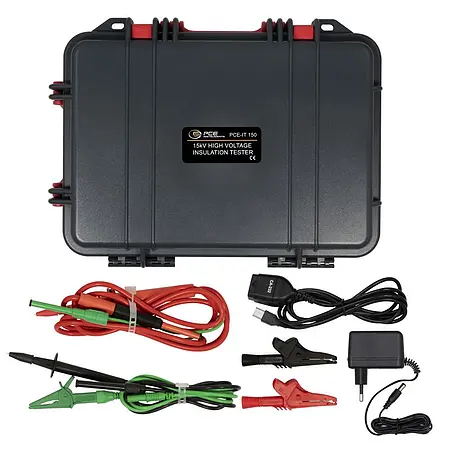

1 x Insulation Tester PCE-IT 150

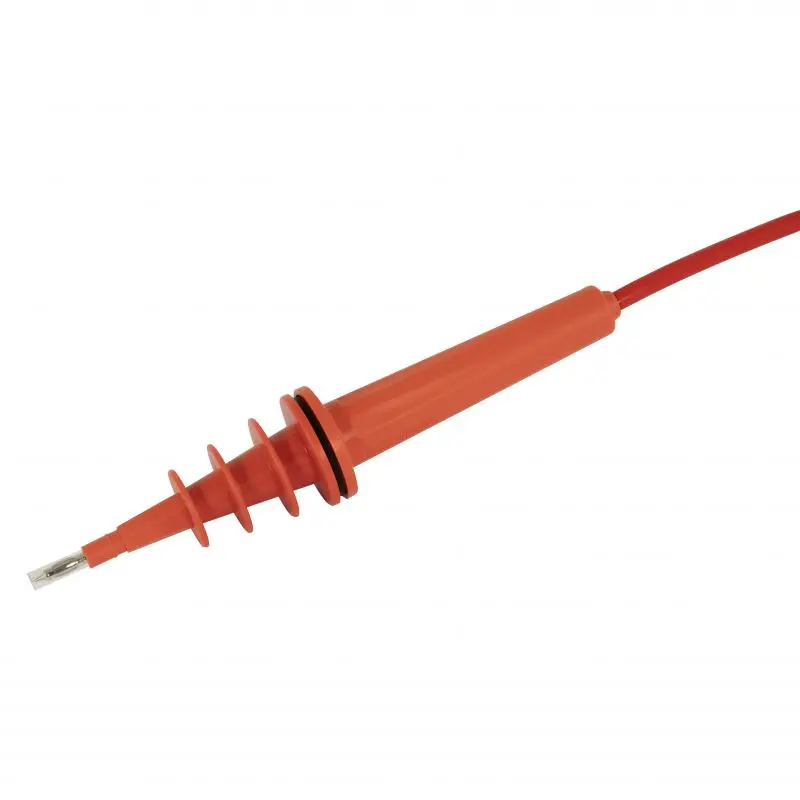

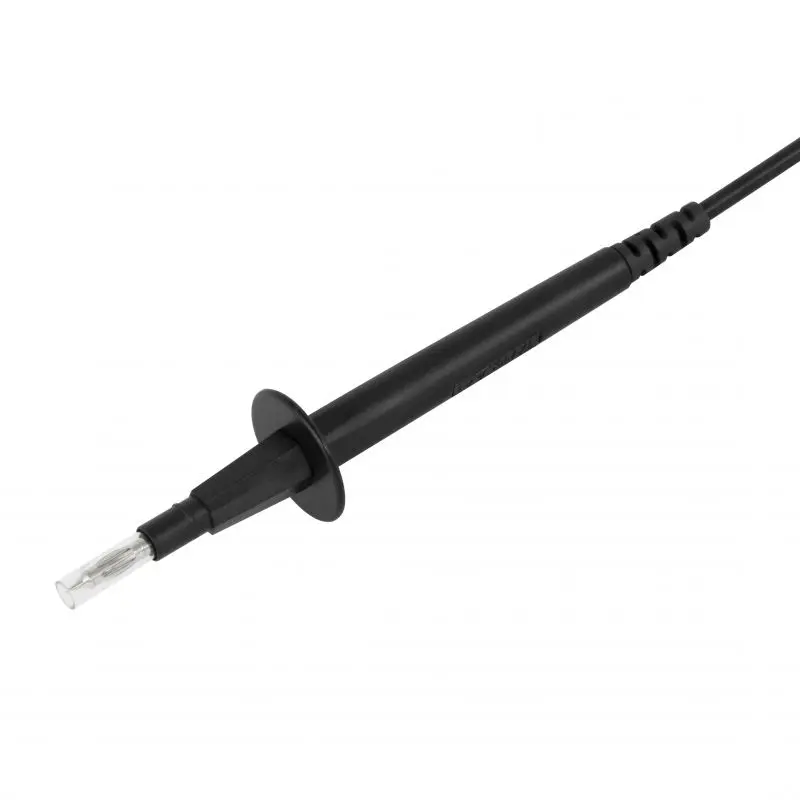

1 x approx. 2 m HV measuring lead

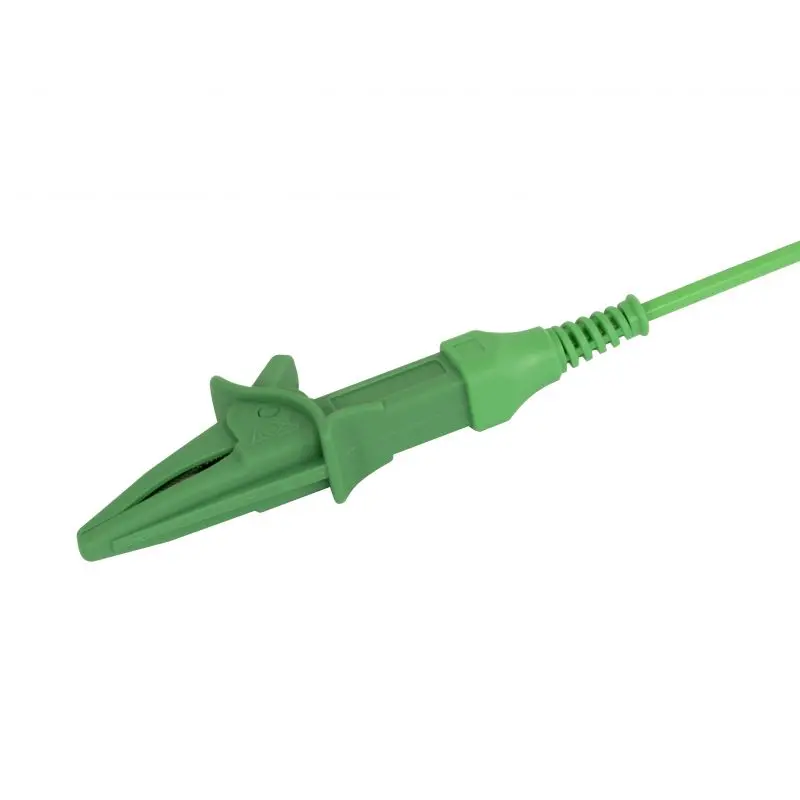

2 x approx. 1 m measuring leads

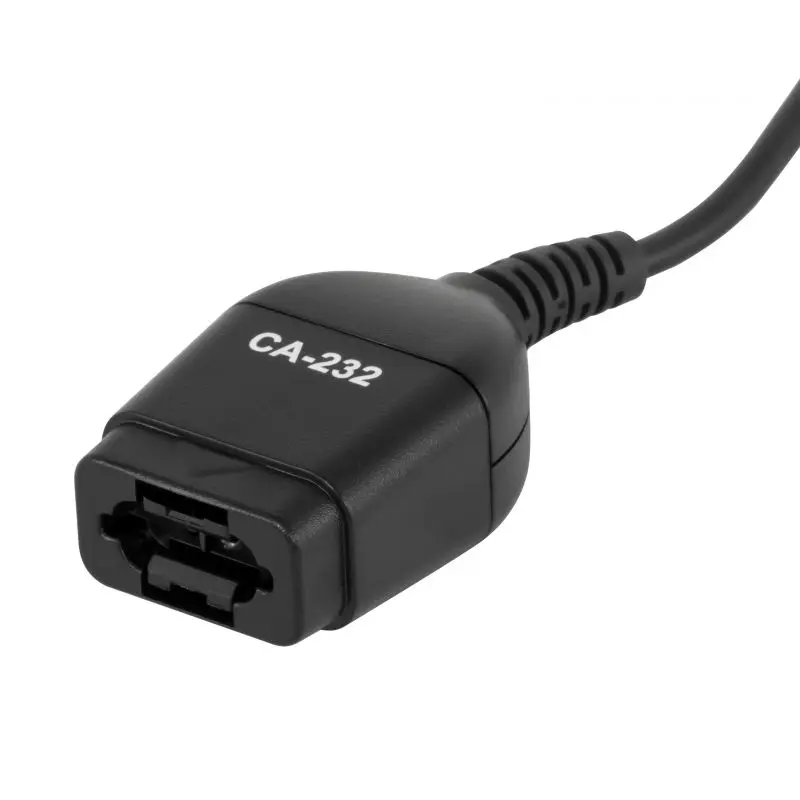

1 x data transmission cable
1 x PC software on USB stick
1 x power supply unit 24 VDC / 0.625 A
1 x operating instructions
1 x factory calibration certificate
