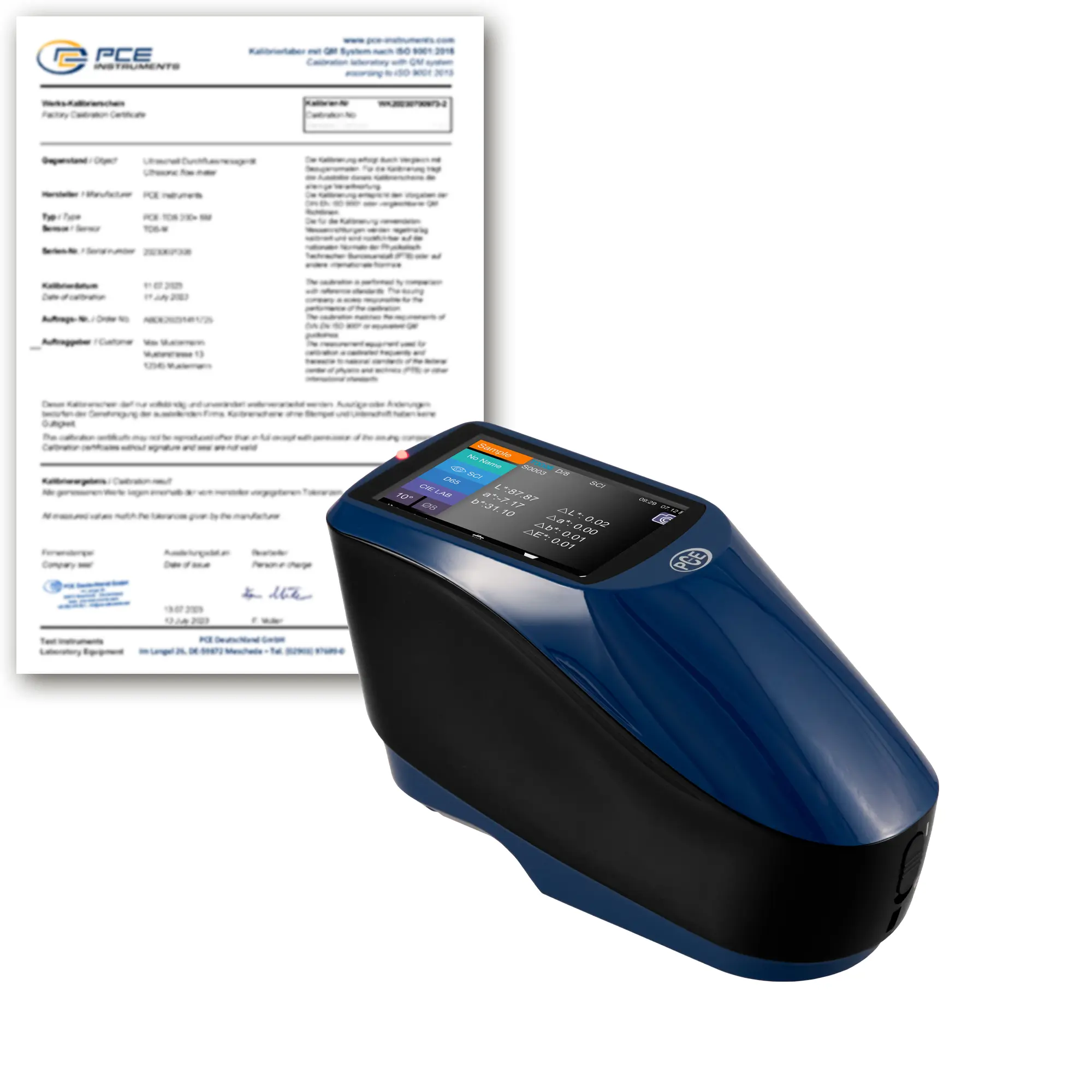

PCE-CSM 20 is a handheld IoT Meter / IoT Sensor used for high-quality color measurement. Featuring a single 8 mm aperture and including SCI and SCE specular modes for industrial color measuring applications, the IoT Meter / IoT Sensor offers a long battery life, a 4-color lamp life and an easy-to-use portable design. The powerful battery allows up to 5000 measurements. The lighting used on the IoT Meter / IoT Sensor is designed to carry out three million measurements. Camera/illumination locating for small samples.
The high-quality processing of the IoT Meter / IoT Sensor is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Four color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via included USB. Sophisticated analysis software is also included in the delivery contents.
| General technical data | |
| Display type | TFT colour display |
| Display size | 3,5 Inch |
| Storage medium | Internal memory |
| Storage capacity | 20000 Values |
| Memory capacity (additional information) | 2000 standard values, 25000 samples |
| Interface | Mini-USB |
| Sensor | CMOS |
| Light source | LED lighting system, UV light Illuminant: D65, A, C, D50 |
| Measurement time | 2,6 s |
| Colour spaces | XYZ, Yxy, LCh, CIE LUV |
| Measuring aperature | Ø 8 mm |
| Measuring geometry | 8°/d |
| Gloss component | SCI (Specular Component Included), SCE (Specular Component Excluded) |
| Wavelength range | 400 ... 700 Nm |
| Calibration | White or black calibration selectable |
| Colour difference | ΔE*ab ΔE*uv ΔE*94 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔE*00v ΔE(Hunter) |
| Menu language | English, Chinese |
| Connector type | Device-europlug |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 184 x 77 x 105 mm |
| Weight | 600 g |
