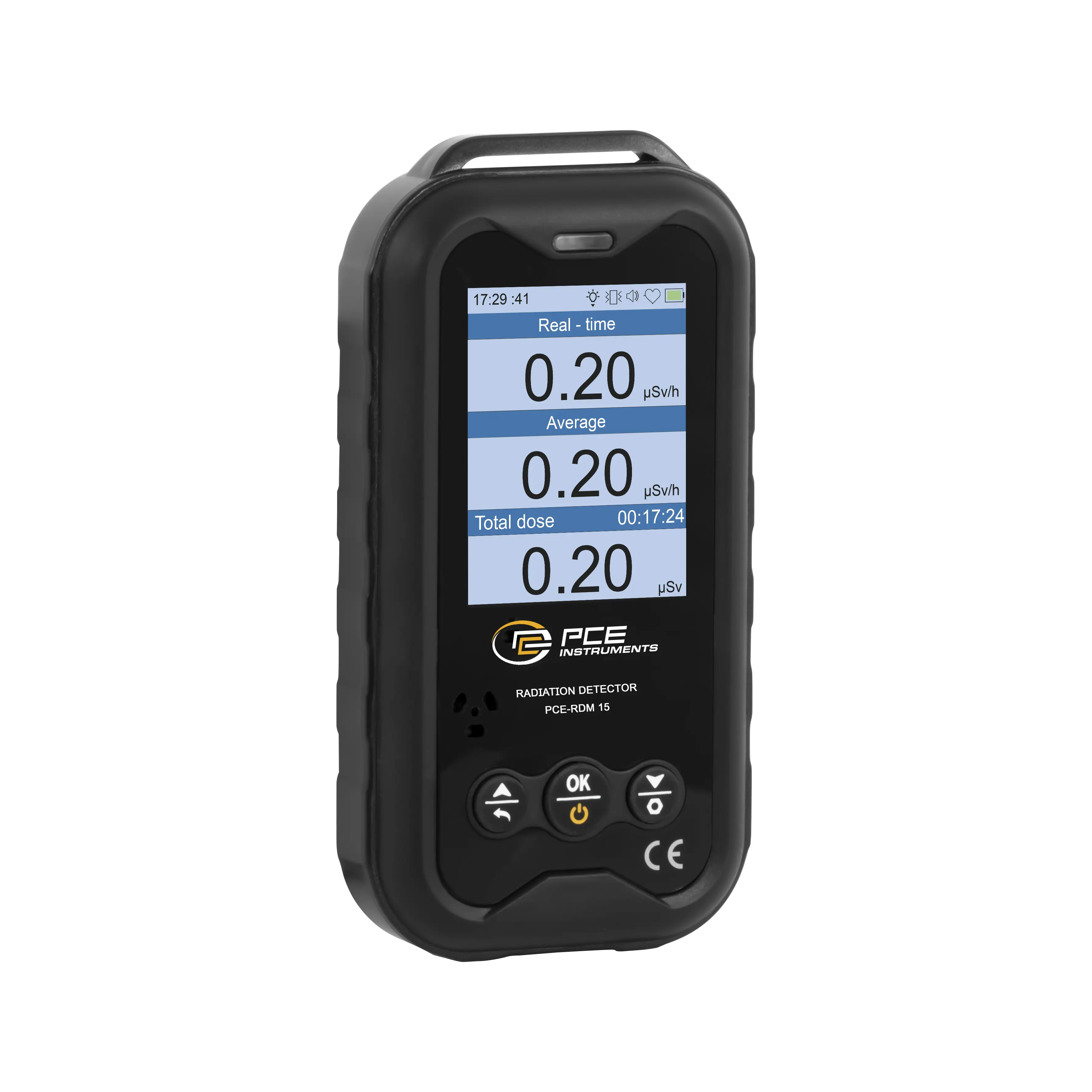

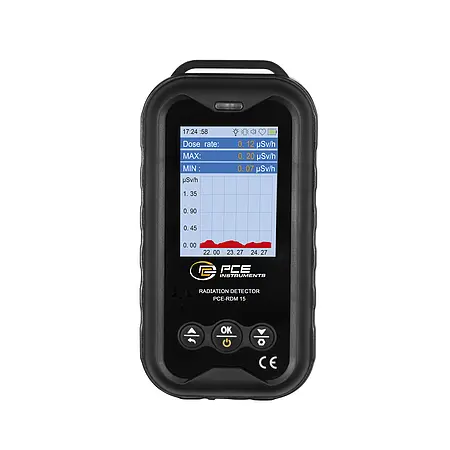

The IoT Meter / IoT Sensor is a portable device mainly used for monitoring X, γ and β radiation. The IoT Meter / IoT Sensor is equipped with a glass Geiger-Müller counter tube (GM tube), which is known for its high measurement accuracy and sensitivity, and has a 2.4-inch TFT LCD display.
The IoT Meter / IoT Sensor offers audible, visual and vibration alarms with customizable dose rate and total dose limits. It enables simultaneous real-time measurement of the dose rate and recording of the cumulative dose over a set period of time. In addition, the device displays the minimum, maximum and average values of the measurements.
The supplied software enables live measurement and data transfer from the internal memory. Thanks to its compact design, energy efficiency and versatility, the IoT Meter / IoT Sensor is ideal for both professional and private use.
| Radiation | |
| Measurement type | Real-time value |
| Measurement range up to | 0,01 µSv/h ... 50 mSv/h |
| Resolution | 0,01 µSv/h |
| Accuracy | <10 % at 1 mSv/h |
| Radiation | |
| Measurement type | Total dose |
| Measurement range up to | 0 µSv ... 1000 Sv |
| Resolution | 0,01 µSv |
| Accuracy | <10 % at 1 mSv/h |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Types of radiation | Beta radiation, Gamma rays, X-rays |
| Energy range | 48 ... 1500 keV |
| Display type | LCD |
| Display size | 2,4 Inch |
| Storage medium | Internal memory |
| Storage capacity | 10000 Values |

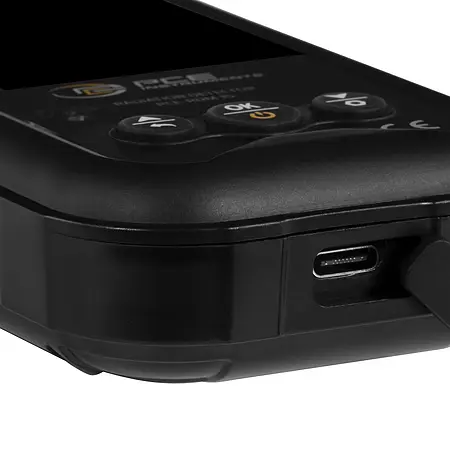

| Interface | USB-C |
| Sensor | Geiger-Mueller counter tube |
| Operating time | 30 Day(s) |
| Alarm | optical, Acoustic, Vibration |
| Alarm modes | Setting range for the dose rate: 0 ... 9.99 µSv/h Setting range for total dose: 0 ... 9999 µSv |
| Sensitivity | 1 cps/μSv/h (related to Co-60) |
| Menu language | English, Chinese, English (GB) |
| Protection class (device) | IP52 |
| Power supply | 5V DC |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium polymer battery |
| Capacity | 1800 mAh |
| Operating conditions | -10 ... 45 °C , 0 ... 95 % RH |
| Storage conditions | -10 ... 45 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 127 x 65 x 32 mm |
| Weight | 160 g |
