IoT Meter PCE-BDP 10

Order no.: PCE-BDP 10
GTIN (EAN): 4250348719485
US$ 120.00
Wireless
ex. VAT, ex. delivery costs
:
4250348719485
PCE-BDP 10
Available in: 1-2 days

Description

Bluetooth IoT Meter PCE-BDP 10
Bluetooth differential pressure gauge with LCD / Differential pressure gauge up to ± 2PSI

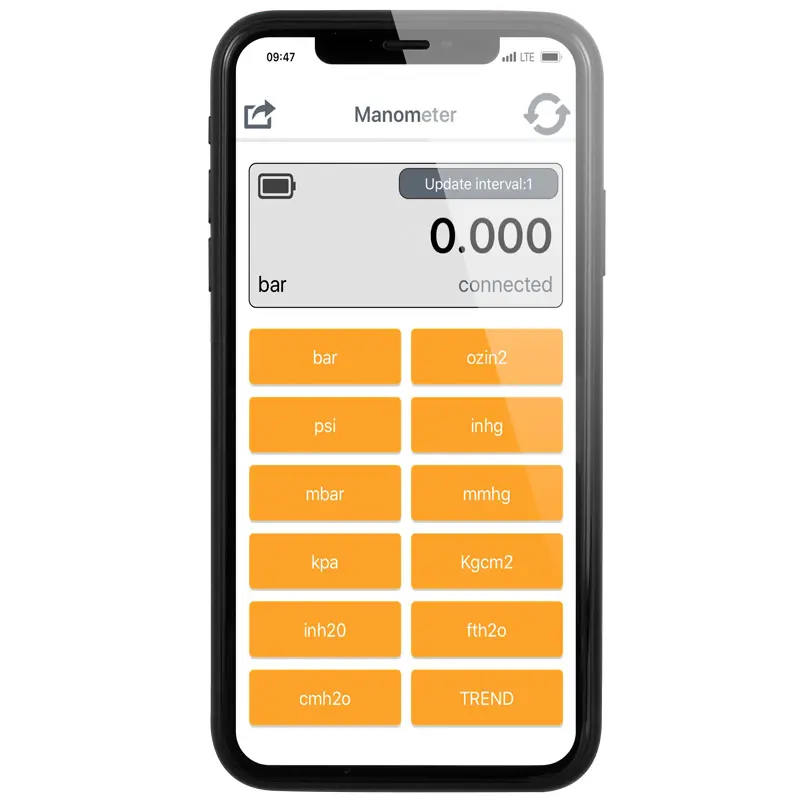

The Bluetooth IoT meter is used to quickly and easily check the differential pressure. The Bluetooth IoT meter finds its application, for example, in the ventilation and air conditioning technology with the help of a smartphone to measure the gas flow pressure or the static pressure. Also, the Bluetooth IoT meter can be used to check for pressure drops. Here is in the app of the IoT meter, a graphical display available. The measurement data can be sent by email for further processing.

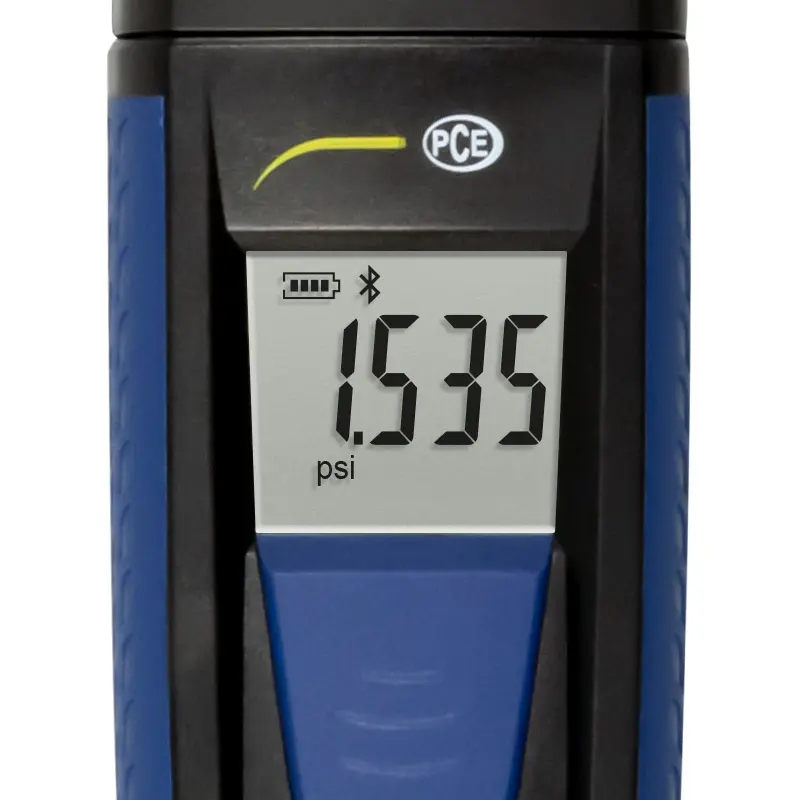

In order to use the IoT meter without a Bluetooth smartphone, the meter is equipped with a display. Thus, the Bluetooth IoT meter is also self-sufficient. The IoT meter may represent the differential pressure readings 11 units. The measuring range extends from -2 ... 2 PSI (± 137.9 mbar / hPa).

Highlights

- Android and iOS app
- Bluetooth interface
- ± 2 PSI measuring range
- 11 different units
- LC display
- Plug nipple connection

Specification

Measuring range± 2 PSI
Measurement accuracy         ± 0.006 PSI (0 ... 0.2 PSI)
 ± (0.006 PSI + 1.5% of Mw) (> 0.2 PSI)
Resolution0.001 PSI
Display units Bar, PSI, mbar, kPa, inH20, cmH2O,
 ozin2, inHg, mmHg, kg / cm², ftH2O
MediumAir

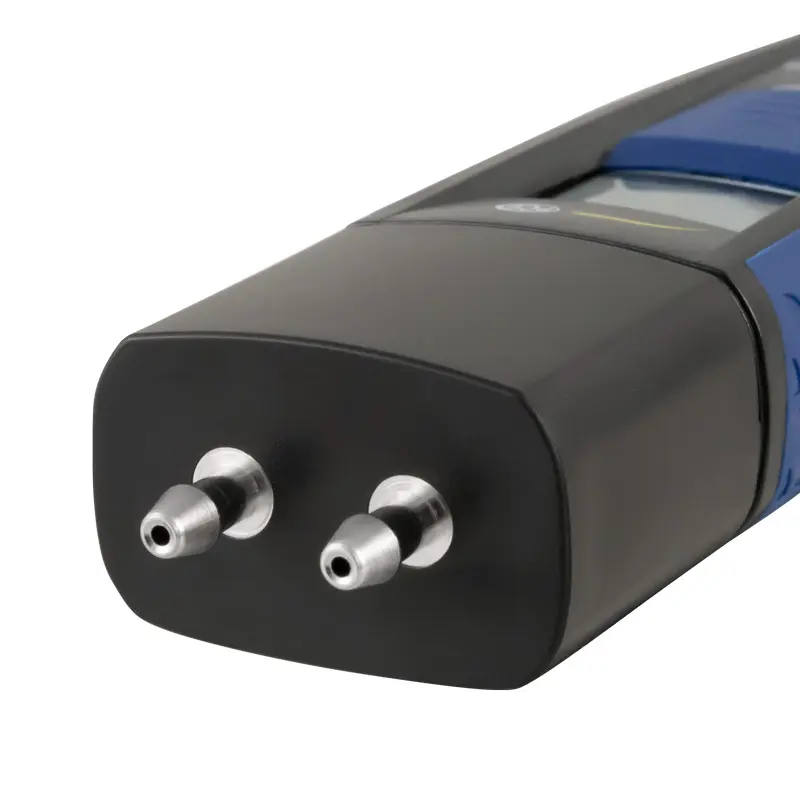

ConnectionPlug nipple for direct
 hose connection
Automatic shutdown    15 minutes
Power supply4 x 1.5V AAA batteries
Operating conditions0 ... 50°C / 32 ... 122°F
Location conditions -10 ... 60°C / 14 ... 140°F
Dimensions 178 x 38 x 24 mm / 7 x 1.5 x 0.9 in
Weight About 70 g / < 1 lb without batteries

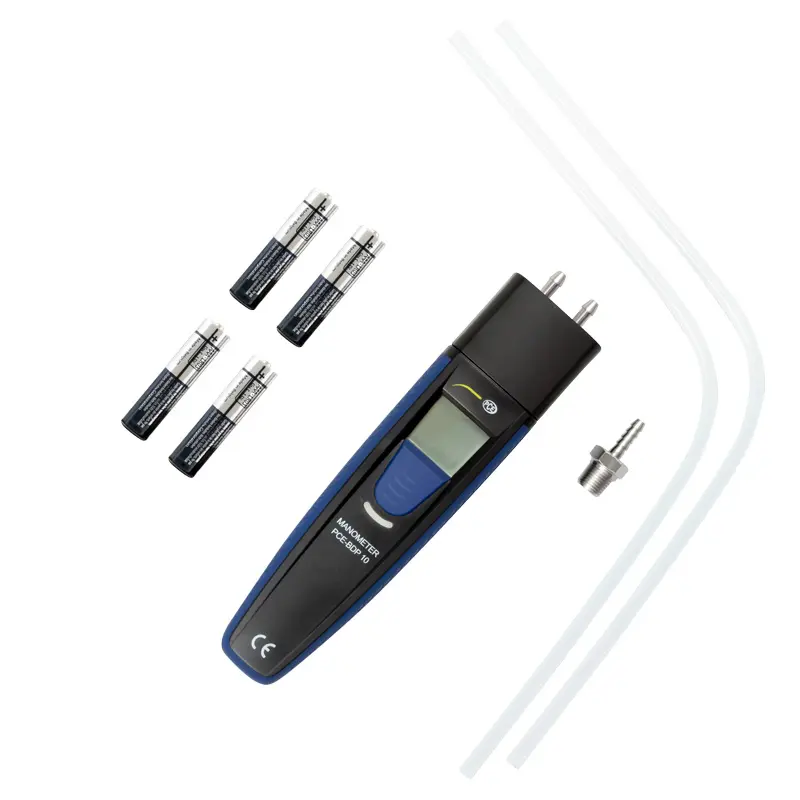

Delivery Scope

1 x Bluetooth IoT Meter PCE-BDP 10
2 x Connecting hose 3.5 x 3 mm
1 x Adapter piece to 1/4"
4 x 1.5V AAA battery
1 x User manual
