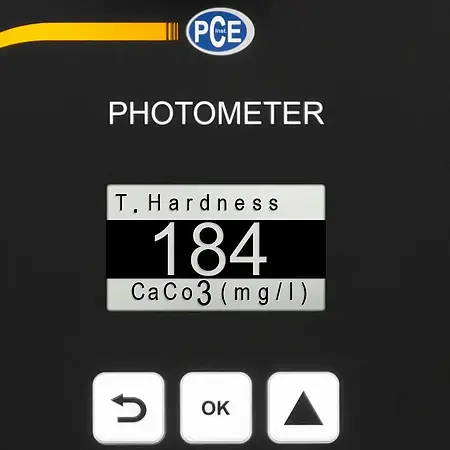

IoT Sensor PCE-CP 04

Order no.: PCE-CP 04
GTIN (EAN): 4250348727398
US$ 504.00
Wireless
ex. VAT, ex. delivery costs
:
4250348727398
PCE-CP 04
Available in: 1-2 days
measurement in liquids
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Reagent Kit Calcium Hardness
Reagent Kit Calcium Hardness
US$ 47.00
Reagent Kit Total Hardness
Reagent Kit Total Hardness
US$ 39.00
Reagent Tablets for pH Value Measurement
Reagent Tablets for pH Value Measurement
US$ 12.00
Calibration Set PCE-CP X0 Cal-Set
Calibration Set PCE-CP X0 Cal-Set
US$ 226.00
Replacement Cuvette PCE-CP X0 Cuvette
Replacement Cuvette PCE-CP X0 Cuvette
US$ 28.00
Carrying Case PCE-CP X0 Case
Carrying Case PCE-CP X0 Case
US$ 91.00
Light Protection Cover PCE-CP X0 Cuvette Cover
Light Protection Cover PCE-CP X0 Cuvette Cover
US$ 25.00
Microfiber Cloth PCE-CP X0 Microfibre Cloth
Microfiber Cloth PCE-CP X0 Microfibre Cloth
US$ 5.00
PCE-CP X0 PIP
Dosing Pipette 10 ml
US$ 3.00
Plastic stirring stick (10.5 cm) for the PCE-CP Series.
Stirring Stick for the PCE-CP Series PCE-CP X0 Spurtle
US$ 6.00
Alkalinity Tablets PCE-CP X0 Tab Alkalinity
Alkalinity Tablets PCE-CP X0 Tab Alkalinity
US$ 16.00
Tablets Starter Kit PCE-CP X0 Tab Starter Kit
Starter Tablets Kit PCE-CP X0 Tab Starter Kit
US$ 25.00

Description

Multi-parameter IoT Sensor with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 5 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

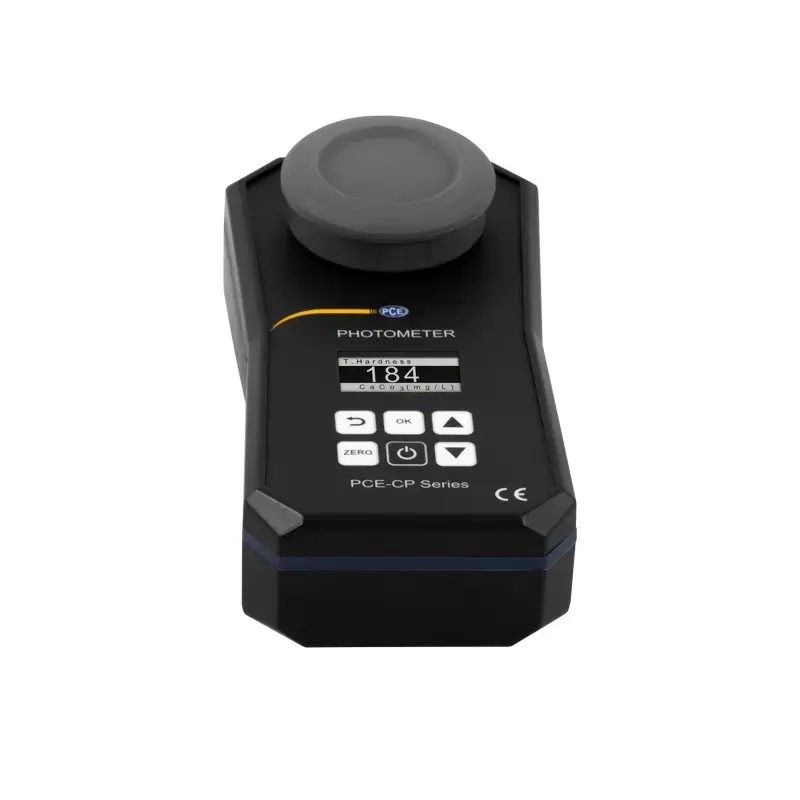

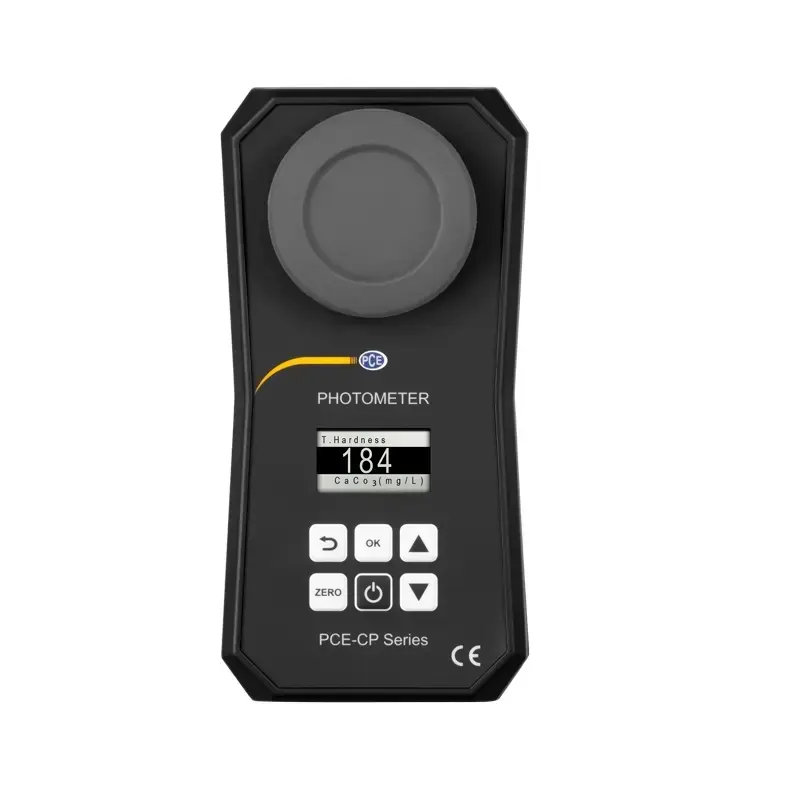

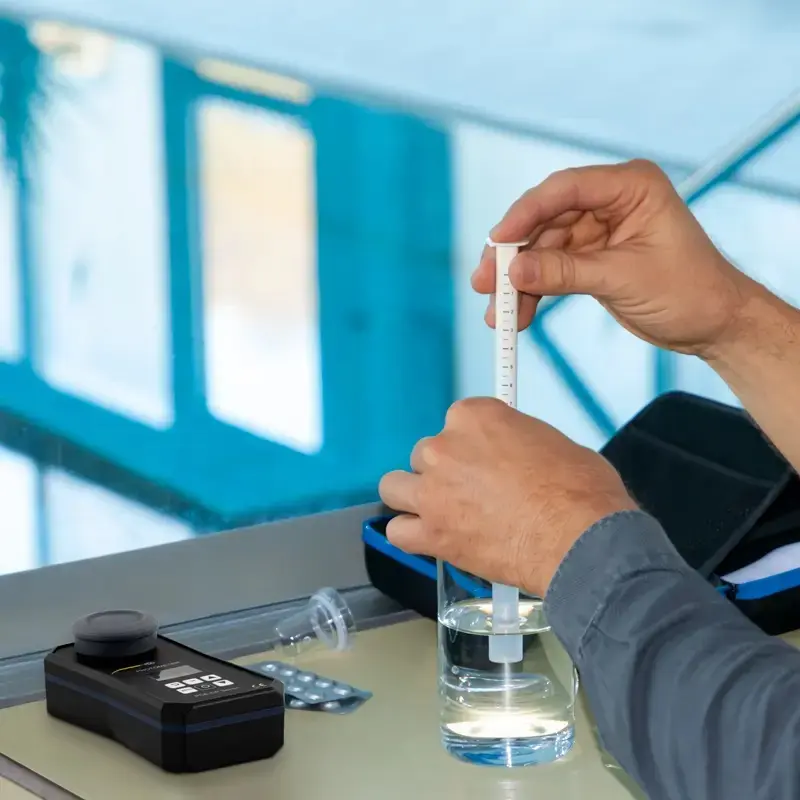

The multi-parameter IoT sensor is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter IoT sensor. With this multi-parameter IoT sensor, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter IoT sensor, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter IoT sensor generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

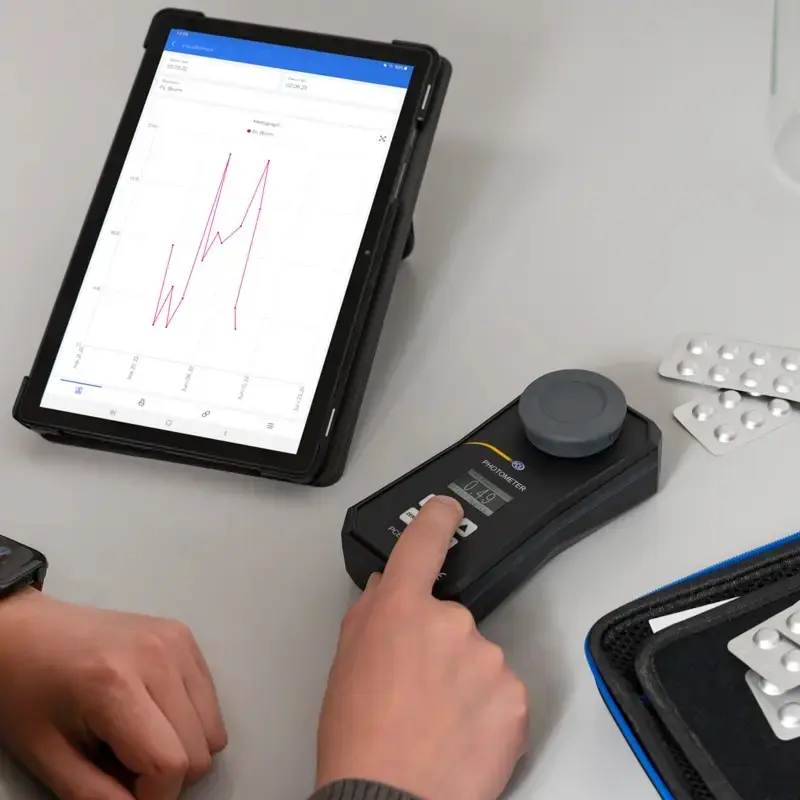

Each measurement is automatically saved by the multi-parameter IoT sensor. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter IoT sensor. A free app is available to analyze the measured values ​​from the multi-parameter IoT sensor. It is also possible to establish a Bluetooth connection between the multi-parameter IoT sensor and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter IoT sensor, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter IoT sensor is also free of charge.

Highlights

- Up to 5 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Alkalinity
Measuring range     0… 30 mg / l
    30… 60 mg / l
    60… 100 mg / l
  100… 200 mg / l

Accuracy   3 mg / l
    7 mg / l
  12 mg / l
  18 mg / l

Resolution   1 mg / l

pH
Measuring range 6.50 ... 8.40 pH
Accuracy 0.11 pH
Resolution 0.01 pH

Total hardness
Measuring range     0… 30 mg / l
    30… 60 mg / l
    60… 100 mg / l
  100… 200 mg / l
  200 ... 300 mg / l
  300 ... 500 mg / l

Accuracy   3 mg / l
    5 mg / l
  10 mg / l
  17 mg / l
  22 mg / l
  58 mg / l

Resolution   1 mg / l

Calcium hardness
Measuring range     0… 25 mg / l
    25… 100 mg / l
  100 ... 300 mg / l
  300 ... 500 mg / l

Accuracy   8 mg / l
  22 mg / l
  34 mg / l
  45 mg / l

Resolution   1 mg / l

Further specification


Hardness units
 mg/l CaCO3, ppm, mmol/l KS 4.3,

°dH (degree of German hardness),

°e (degree English hardness / Degree Clark),

°f (degree of French hardness)
Calibration Zero point calibration
Light source
 503 nm / 570 nm / 620 nm LED
Light detector Photodiode
Power supply
 4 x 1.5V AA batteries
Dimensions of the cuvette   36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages English, German, French, Spanish and Italian
Storage Automatic storage of measured values ​​and readout
Storage space 256 values
Interface Bluetooth connection with app and PC software
Automatic shutdown After 300 seconds of inactivity
Operating conditions 5… 45 °C, 20 ... 90% RH non-condensing
Storage conditions 5… 45 °C, 20 ... 90% RH non-condensing
Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight 230 g / 8.1 oz

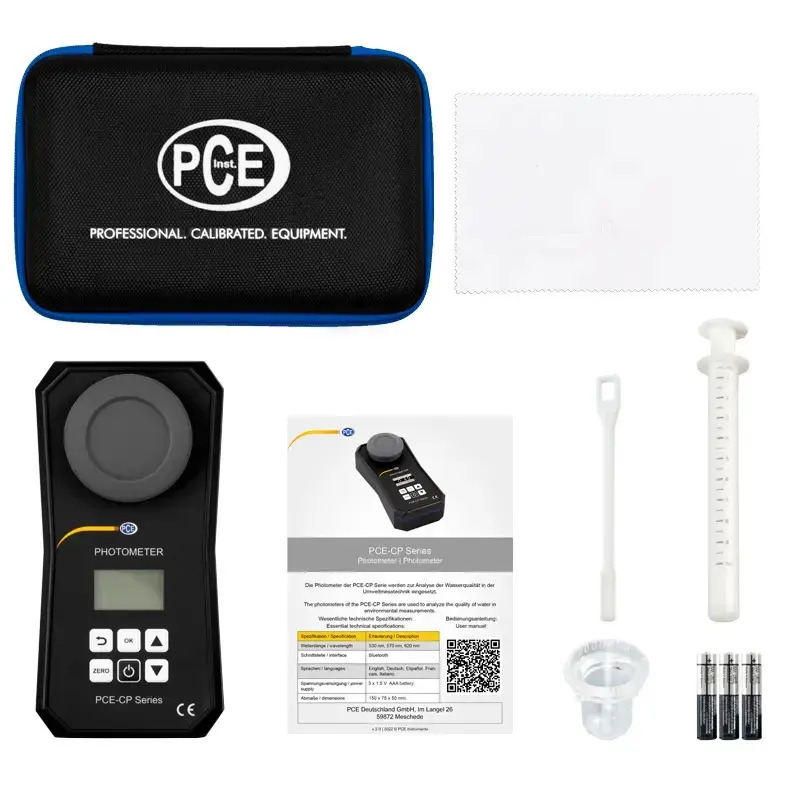

Delivery Scope

1 x Multi-parameter IoT Sensor PCE-CP 04 incl. cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
