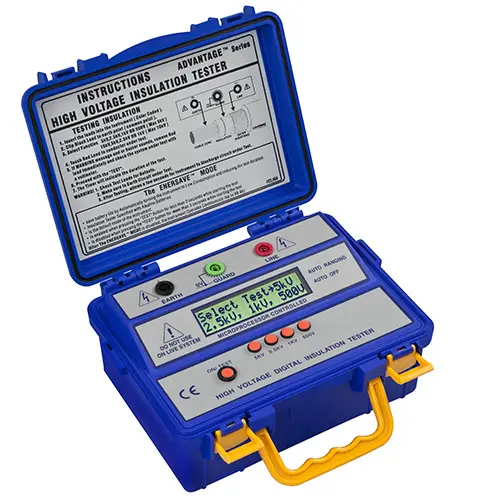

Isolation Meter PCE-IT413

Order no.: PCE-IT413

GTIN (EAN): 4250348700964

Description

Isolation Meter

For high tension up to 5,000

The Isolation Meter belongs to a series of highly accurate resistance devices that have a 6 digit display. These Isolation Meters have been developed specifically for technical service and for difficult measurement conditions.

One of the advantages is the built in protection to avoid errors originating from loss of current. The Isolation Meter contains a microprocessor and both optical and visual alarms. Factory calibration ensures the most accurate measurements with this series of Isolation Meters.

Highlights

- For professionals
- 6 digit LCD
- Measurements according to VDE 0413 part 1
- Test tension up to 5,000V
- 3 year warranty
- Safety standards:
IEC-1010-1; CAT III
IEC- 1010- 1
EN 61010- 1
- EMV
EN 50081- 1
EN 50082- 1
- Very good price / quality relationship

Specification

Model	PCE-IT413
DC test tension	500 / 1,000 / 2,500 / 5,000V
Range of measurement	30 GΩ / 500V 60 GΩ / 1,000V 150 GΩ / 2,500V 300 GΩ / 5,000V
Accuracy	± 3%
Potential output	Maximum of 1 watt
Insulation resistance between electrical conduction and the enclosure	2000 MΩ / 2000V
Static tension between enclosure and circuit	700V AC for a maximum of 1 minute
AC warning circuit	For tension > 450V AC
Power	8 batteries (1.5V)
Dimensions	250 x 110 x 190 mm / 9.8 x 4.3 x 7.5 in
Weight	1.5 kg / 3.3 lbs
