Leak Detector PCE-GA 10

Order no.: PCE-GA 10

GTIN (EAN): 4250348719201

Description

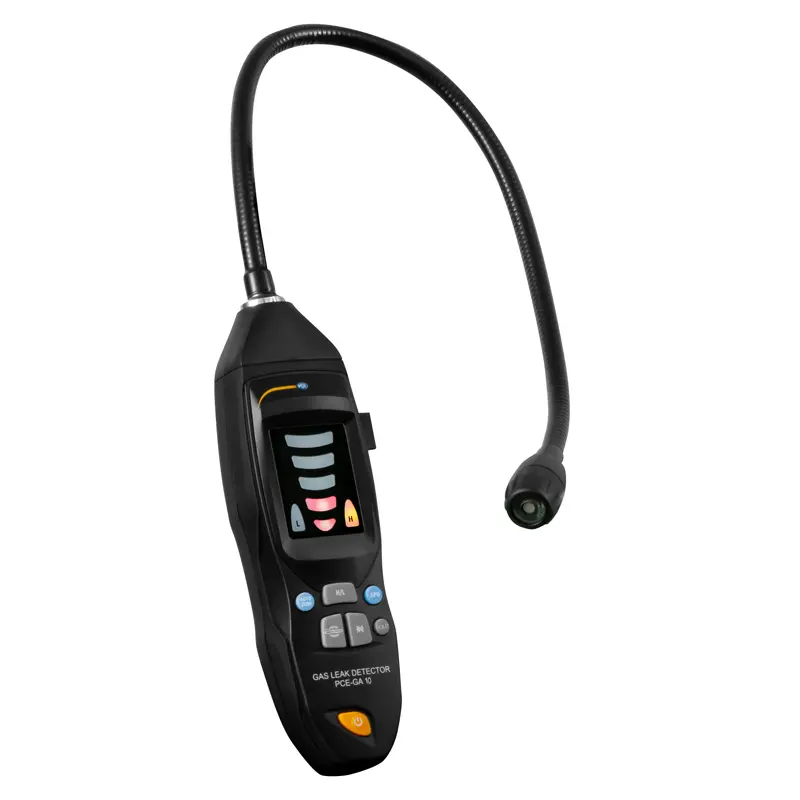

Leak detector PCE-GA 10
Gas leak detector for flammable gases / Optical, acoustic and haptic alarm / Battery operation / Simple LED display

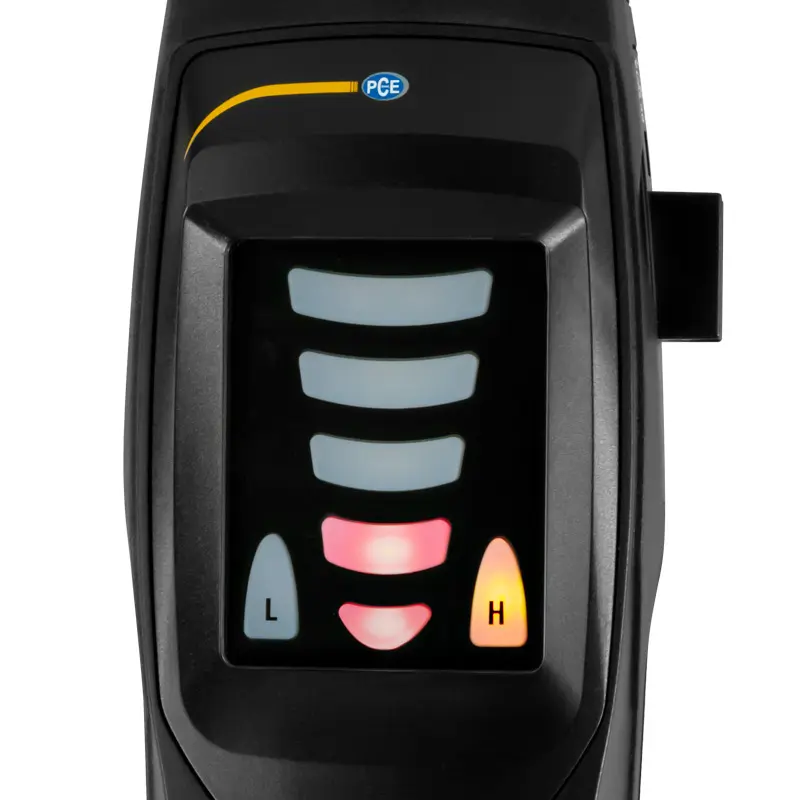

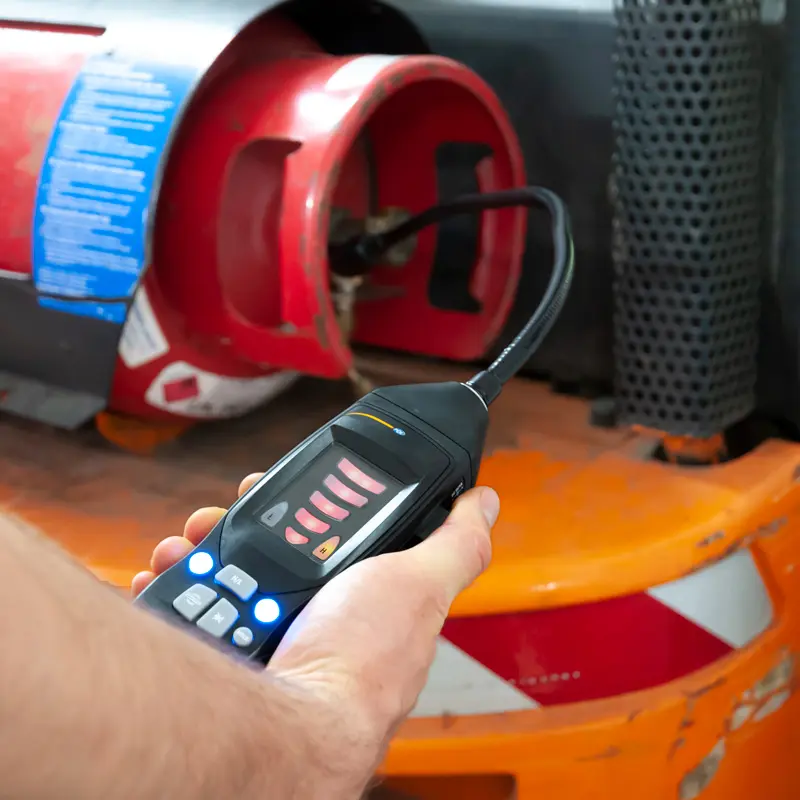

The gas leak detector PCE-GA 10 is used to check for leaks in gas pipes and connections. This gas leak detector is suitable for many flammable gases. The gas leak detector has 5 LEDs that inform the gas intensity. In addition to the visual information, the gas leak detector has an audible and haptic alarm. This means that, depending on the level, the gas leak detector emits an alarm tone and vibrates at the same time.

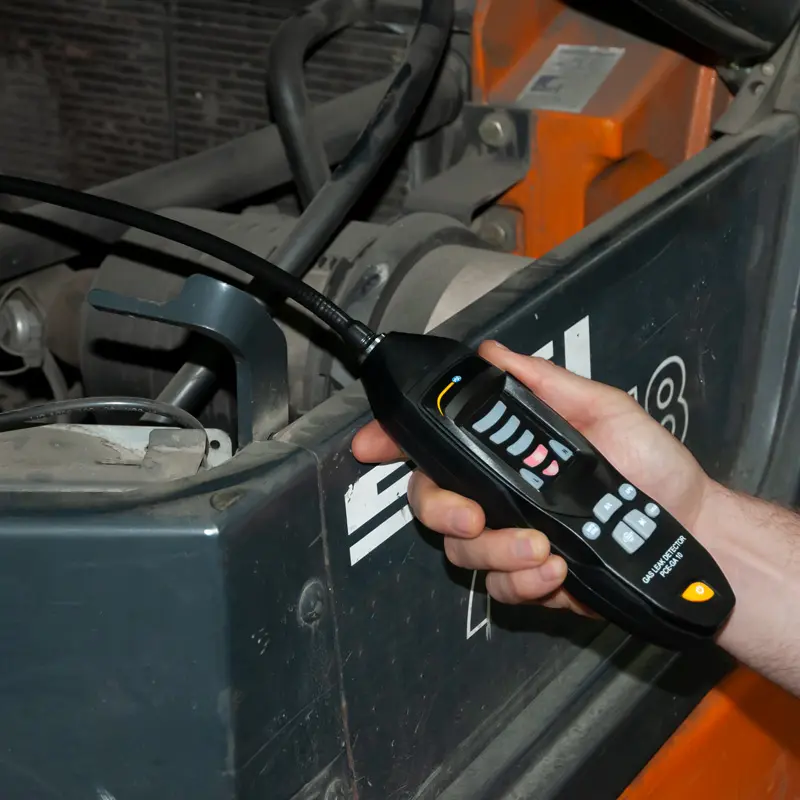

The leak detector is therefore ideal for detecting sporadic gases. The gas leak detector is therefore of great help to employees who want to inspect plants during a plant tour or inspect engines, supply lines or gas lines. The gas leak detector is supplied with a rechargeable battery. The sensor of the gas leak detector has an average life of approx. 5 years and can be exchanged without any problems.

Highlights

- LED display
- For flammable gases

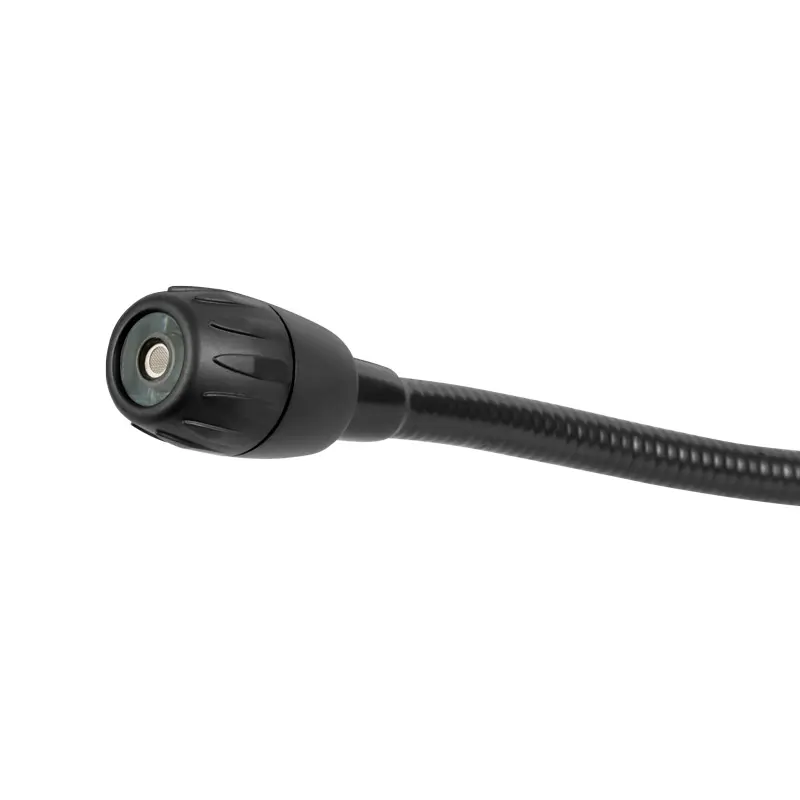

- 500 mm / 19.6" sensor
- Optical, acoustic and haptic alarm
- Fast response time
- Rechargeable battery

Specification

Testable gases	Acetaldehyde
	Ammonia
	Benzene
	Ethan
	Ethanol
	Ethylene
	Formaldehyde
	Hexane
	ISO-butane
	Methane
	Propane
	P-xylene
	Hydrogen sulfide
	Toluene
	Hydrogen
And compounds in which these gases occur

Measuring range (methane)	0 ... 10000 ppm
Sensitivity (methane)	< 50 ppm
Display stages	High: 100 / 400 / 700 /1000 ppm
	Low: 1000 / 4000 / 7000 / 10000 ppm
Response time	< 2 s
Heating time	ca. 50 s
Alarm types	Optical, acoustic, haptic
Power supply	3.7V Li-ion battery
Lifetime sensor	On average, 5 years
Sensor length	500 mm / 19.6"
Dimensions	211 x 70 x 45 mm / 8.3 x 2.7 x 1.7 in
Weight	ca. 400 g / < 1 lb
