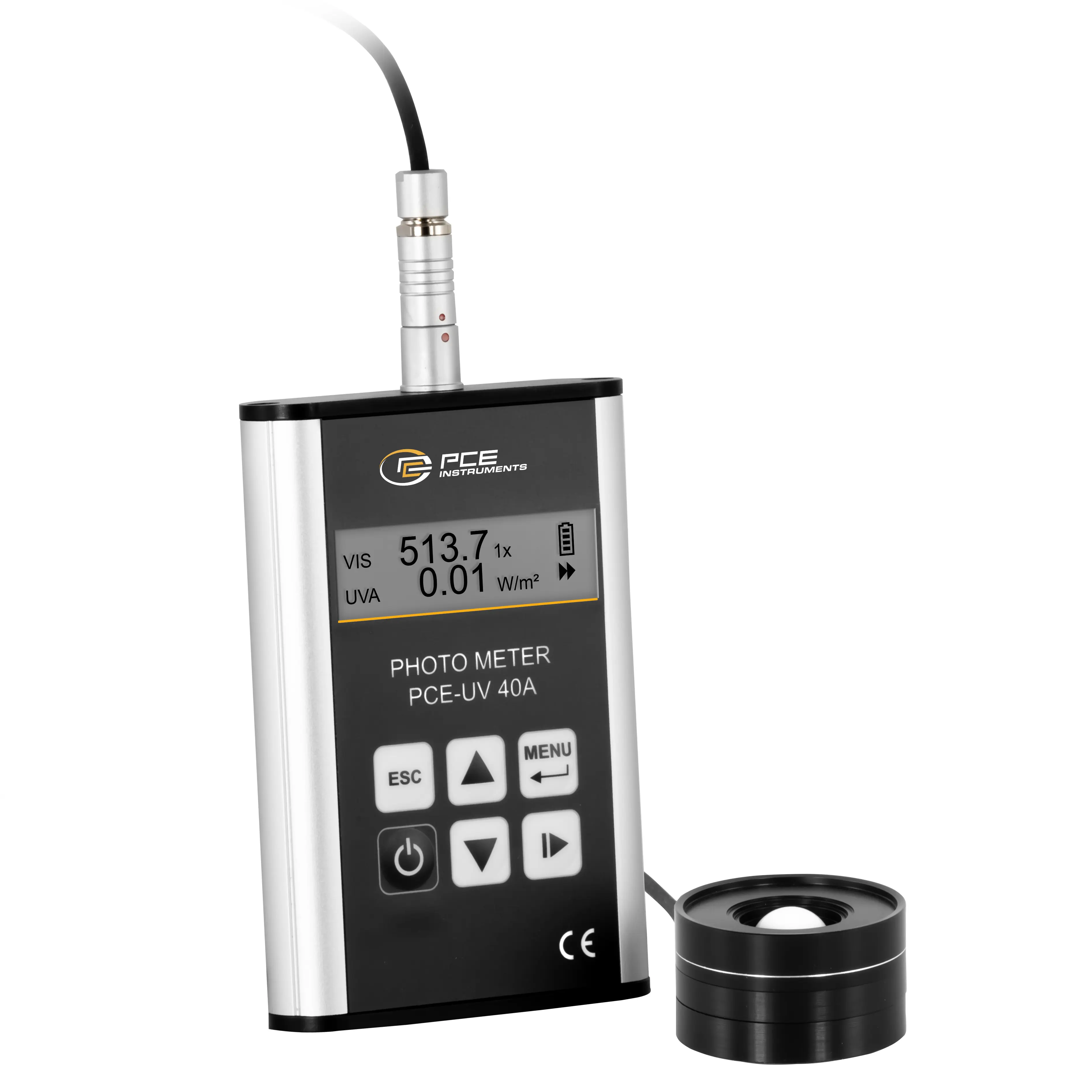

Light Meter / Lux Meter PCE-UV 40A

Order no.: PCE-UV 40A
GTIN (EAN): 4250348733863
US$ 2,947.00
ex. VAT, ex. delivery costs
:
4250348733863
PCE-UV 40A
Available in: 1-2 days

Description

Light meter / Lux meter with external sensor / Simultaneous measurement of UVA and light / Independent measurement of the lamp type / Measurement memory

The light measuring device / lux meter is a highly developed instrument that is characterized by its versatility and precision. With its dual measurement channels, the light measuring device / lux meter enables the simultaneous measurement of UV-A radiation and visible light. This UVA meter feature is particularly useful for applications that require comprehensive light characterization.

The external sensor allows the light measuring device / lux meter to be positioned flexibly to carry out precise measurements in different locations. This function is helpful, for example, when measuring UV lights for material testing according to the standards “EN ISO 9934-1 Non-destructive testing with magnetic powder” and “EN ISO 3059 Non-destructive testing, penetrant testing and magnetic particle testing” where precise UVA measurement is crucial. The precise measurements ensure reliable monitoring and quality assurance when processing UV-sensitive materials.

The ability to store data makes the device particularly user-friendly. Users can easily record and analyze measurement results to monitor long-term trends or document quality checks.

Overall, the UV/light meter offers a comprehensive solution for applications that require precise measurement of UV-A radiation and visible light. With its advanced features and simultaneous measurement capability, it is an indispensable tool for areas such as material testing, tanning bed control and workplace lighting control.

Highlights

- Two-channel measuring device UV-A and visible light
- External sensor
- Simultaneous measurement
- Two UV-A measuring ranges up to 100 W/m²
- Control of UV lights for material testing
- Automatic measuring range changeover 0 lx ... 10 klx
- Accurate measurement of illuminance regardless of lamp type
- Measured value memory

Specification

Light
Measuring range0 lx ... 10 klx
resolution0.1 lx
accuracyf1 ≤ 3%

UV
Measuring range0 W/m² ... +100 W/m²
resolution0.01W/m²
accuracyAccording to EN ISO 3059 V(λ) CIE
∆λ1/10 320 – 395nm
∆λ1/2 337 – 385nm
λmax 365nm
Sλ=313nm < 5%
Sλ=405nm < 0.5%

General technical data
Display typeLCD with lighting
Storage mediumInternal memory
Storage capacity20 records

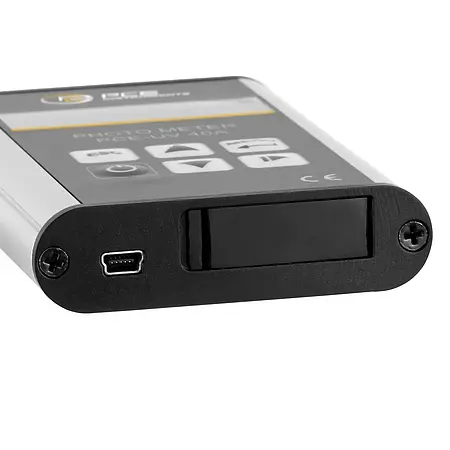

interfaceMini USB
Norm(s)ISO/CIE 19476, EN ISO 3059, EN ISO 9934
Measuring rate1Hz
Menu languageEnglish, Polish
Protection class (device)IP20
Weight148g / 0.3 lbs
Device weight with scope of delivery1198g / 2.6 lbs
Device weight including scope of delivery and outer packaging  1377g / 3 lbs
Dimensions (L x W x H)118 x 72 x 20 mm / 4.6 x 2.8 x 0.8 in
Other dimensionsProbe Ø44 x 25.5 mm
Cable length probe 1.5 m / 4.9 ft
Extension rod 460 mm / 18.1 in
Operating conditions-10 ... 50°C / 14 ... 122°F, 0 ... 90% RH
Storage conditions-10 ... 50°C / 14 ... 122°F, 0 ... 80% RH
Languages ​​of the instructionsEnglish

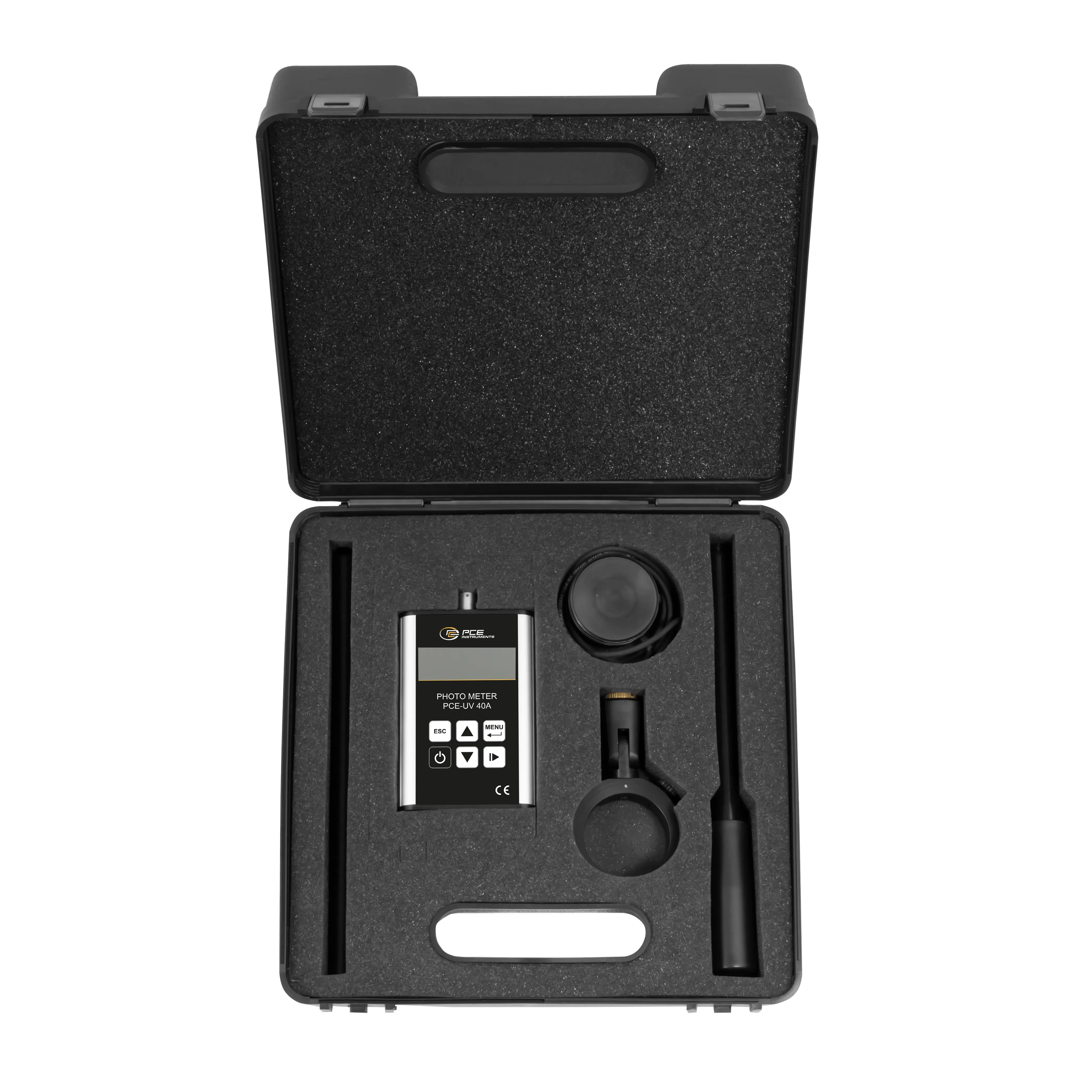

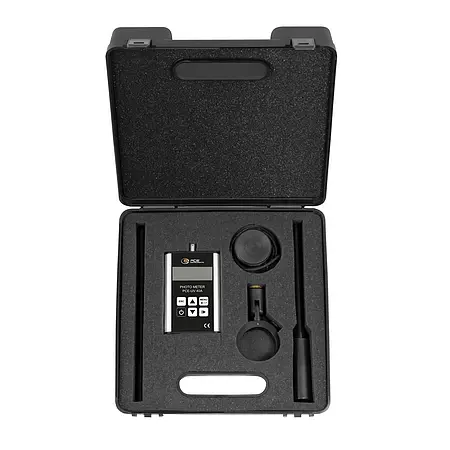

Delivery Scope

1 x Light meter / lux meter PCE-UV 40A

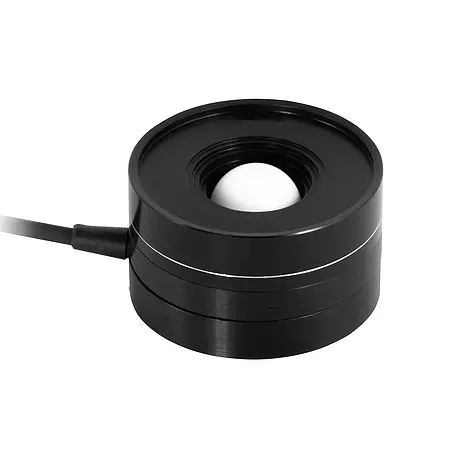

1 x UVA / Lux sensor

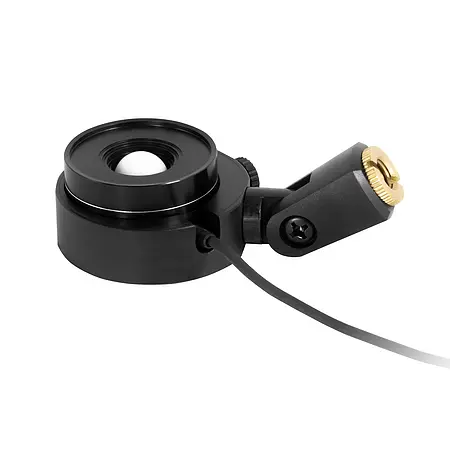

1 x Sensor Holder
1 x Extension rod short to the sensor holder
1 x Transport case
1 x User Manual
