Light Meter PCE-UV34

Order no.: PCE-UV34

GTIN (EAN): 4250348701473

Description

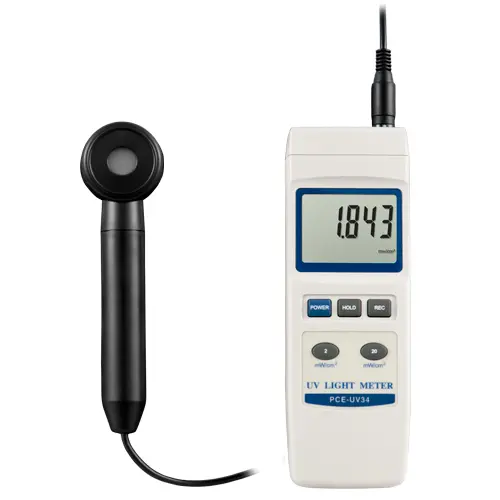

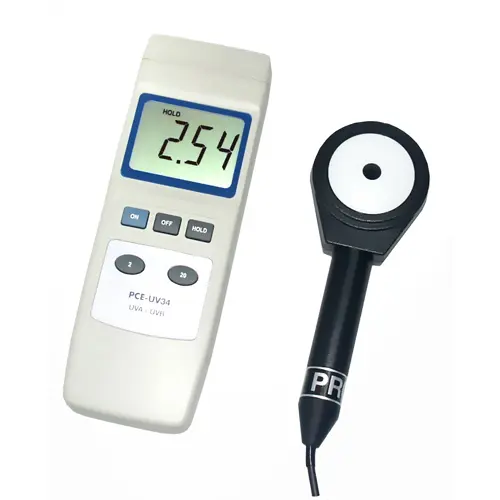

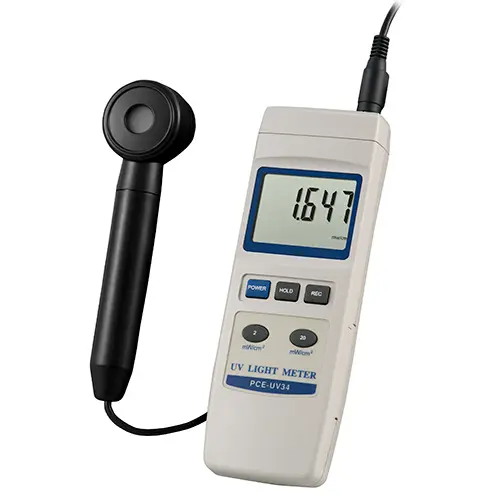

PCE-UV34 Light Meter

measures radiation UV, with an external sensor

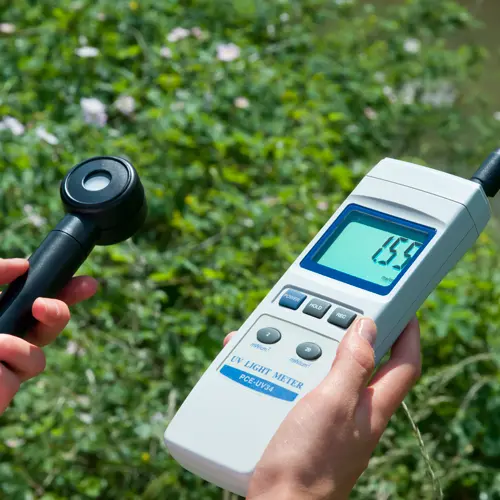

The PCE-UV34 Radiation Meter is a device used to measure UVA and UVB radiation. This accurate device operates on a wave length of 290 to 390 nm. With this Radiation Meter you can measure UVA radiation from the sun or in tanning salons in order to protect yourself from damage of high exposure and possible sunburn. With the industrial sector we frequently find elevated UVA radiation level, such as the arc light used in soldering. The UV Radiation Meter is very versatile thanks to its external sensor. Other fields of use are the sterilization of UVA rays, photo chemical compensation, in virology laboratories or in DNA research

Highlights

- Two measurement ranges:
- 0.000 to 1.999 mW/cm2 or 0.000 to 19.9 W/m²
- 1.999 to 19.99 mW/cm2 or 19.99 to 199.9 W/m²
- External sensor with UV correcting filter
- Auto after 10 minutes of inactivity to conserve battery power
- Large LCD
- Minimum, Maximum and Data Hold functions
- Compact design

Specification

Ranges	0.000 to 1.999 mW/cm² or 0.000 to 19.9 W/m² 1.999 to 19.99 mW/cm² or or 19.99 to 199.9 W/m²
Resolution	0.001 mW/cm²
Accuracy	±4% + 2 positions
Response time	0.4 s
Wave length	Wide band of 290 to 390nm
Zero reset	By pressing a key
Light sensor	Photodiode with UV correcting filter
Memory	Minimum, maximum and hold values
Auto shut-off	Automatic after 10 minutes of inactivity
Display	22 mm / 0.9 in LCD
Over range indicator	"- - - -"
Operating conditions	0 to 50°C / 32 ... 122°F max. 80% r.h.
Power	9V battery
Dimensions	Device: 68 x 200 x 30 mm / 2.7 x 7.9 x 1.2 in Light sensor: 68 x 60 x 27 mm / 2.7 x 2.4 x 1.1 in
Weight	220 g / < 1 lb (with battery)

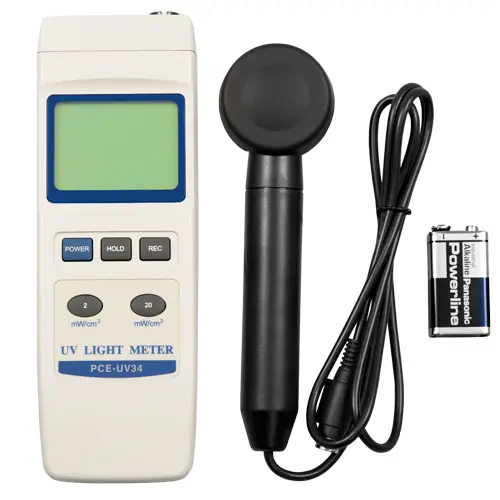

Delivery Scope

1 x PCE-UV34 Light meter

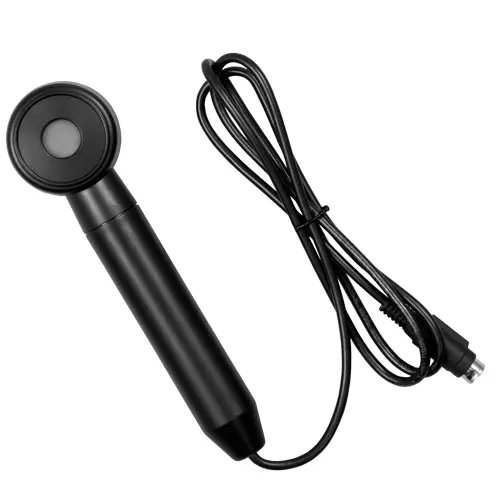

1 x Combined UV sensor
1x 9V battery
1 x User's manual
