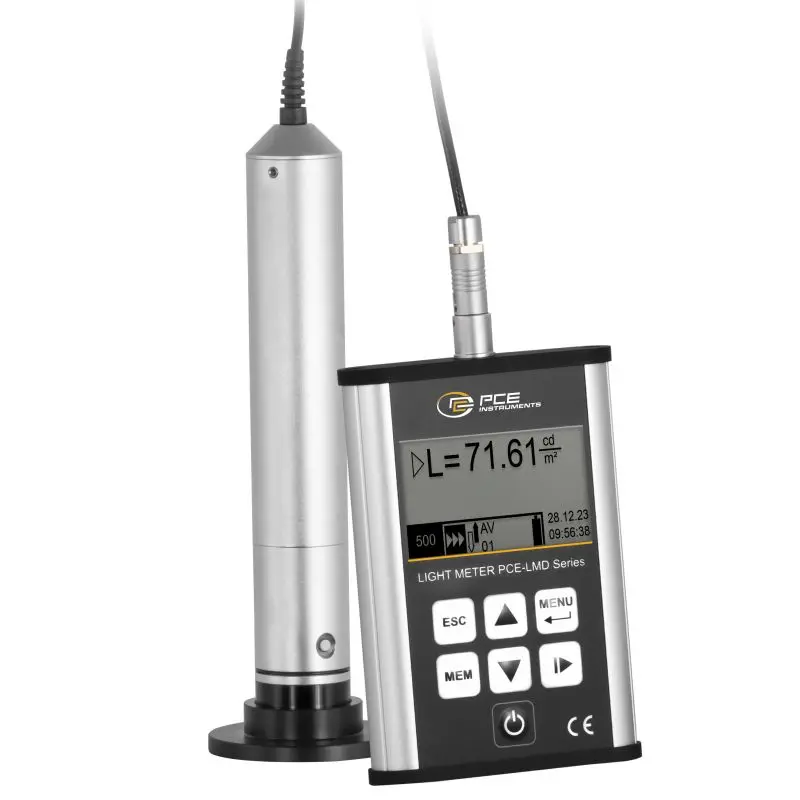

The luminance meter is designed for measuring the luminance of self-illuminating surfaces, such as monitor matrices, TV screens, negatoscopes, reading boards, etc. e.g. monitor matrices, TV sets, negatoscopes, reading panels, etc. The luminance meter guarantees an accurate measurement, regardless of the spatial distribution of the measured luminance or the backlighting of the surface to be tested. It is indispensable for checking medical screens and negatoscopes.
The unit cd/m² relates the photometric quantity cd (abbreviation for candela) to the area of the display, expressed in square metres. Another feature of the luminance meter is the integrated measured value memory. With this function, measurement results can be easily saved and automatically recorded. The luminance meter creates a text document in which the measured values are stored one after the other.

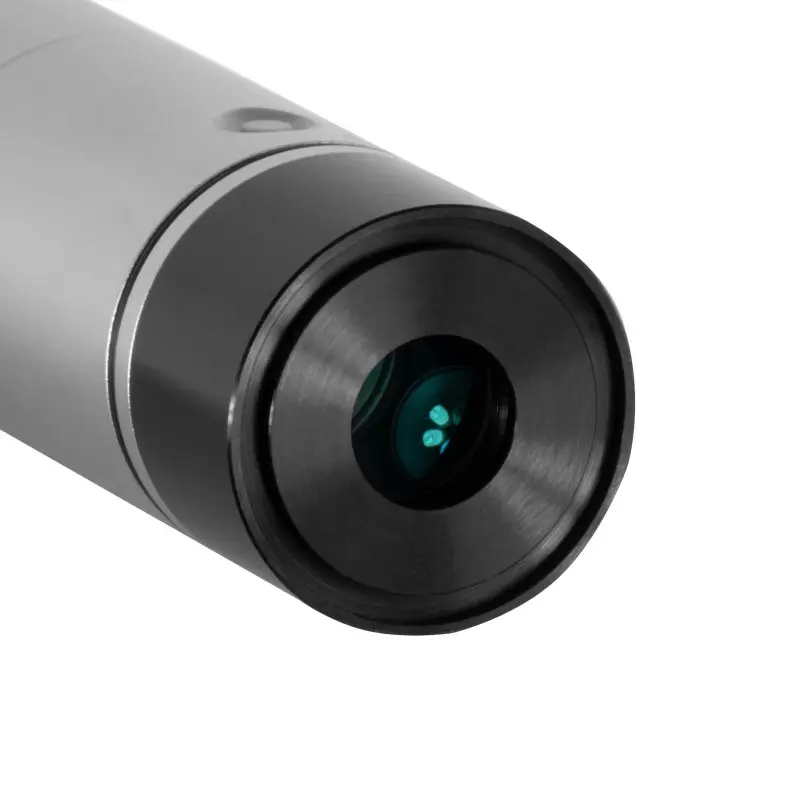

Due to its technical parameters, the luminance meter is classified in class A according to DIN 5032-7 and TC-2.2 CIE. The measuring probe is equipped with a multifunction button that can be used to trigger a measurement, save results and set the desired measurement method, e.g. for testing the greyscale reproduction of monitors according to DICOM GSDF 1) function.
Luminance | |
Measuring range | 0 cd/m² ... +500 cd/m² |
Resolution | 0.01 cd/m² |
Accuracy | Total error at +10 ... +40°C: 2.5% Total error at -10 ... +50°C: 3% Class A (CIE, DIN 5032-7) |
Luminance | |
Measuring range | +500 cd/m² ... +50000 cd/m² |
Resolution | 1 cd/m² |
Accuracy | Total error at +10 ... +40°C: 2.5% Total error at -10 ... +50°C: 3% Class A (CIE, DIN 5032-7) |
General technical data | |
Display type | NULL |
Display refresh rate | 1 x per second |
Storage medium | Micro SD card |
Storage interval of | 1 s |
Memory interval up to | 60 s |
Memory capacity | 8 GB |

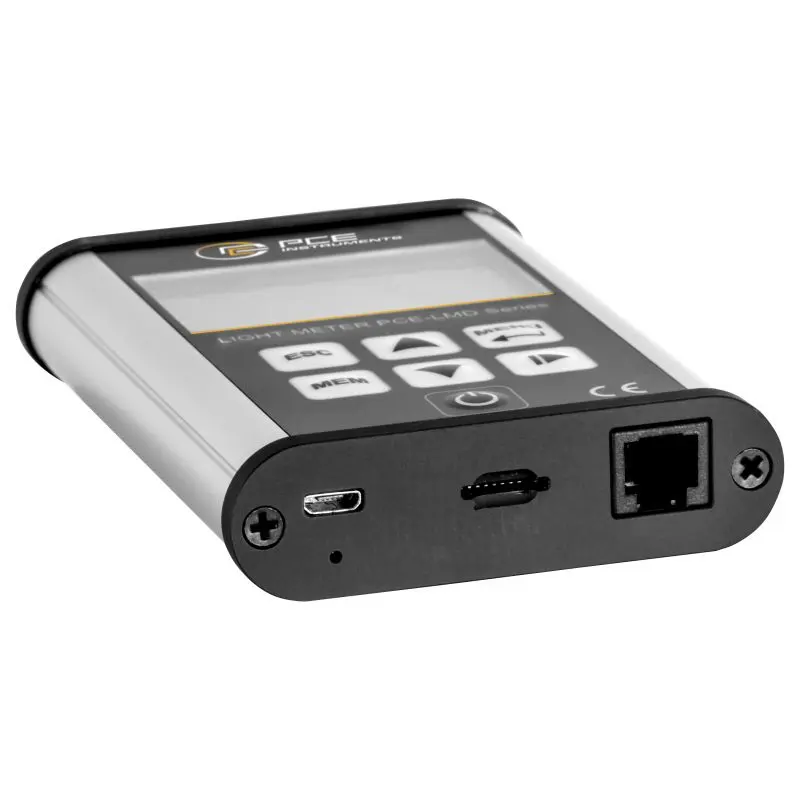

Interface | Micro-USB |
Operating time | 23 h |
Measurement rate | 1 Hz |
Measuring field | 10 mm |
Measuring angle | 1 ° |
Menu language | English, Polish |
Protection class (device) | IP20 |
Power supply | 5V DC / max. 2.1A |
Weight | 172 g |
Device weight with scope of delivery | 1.4 kg |
Device weight with scope of delivery and outer packaging | 1.8 kg |
Dimensions (L x W x H) | 118 x 74 x 21 mm |

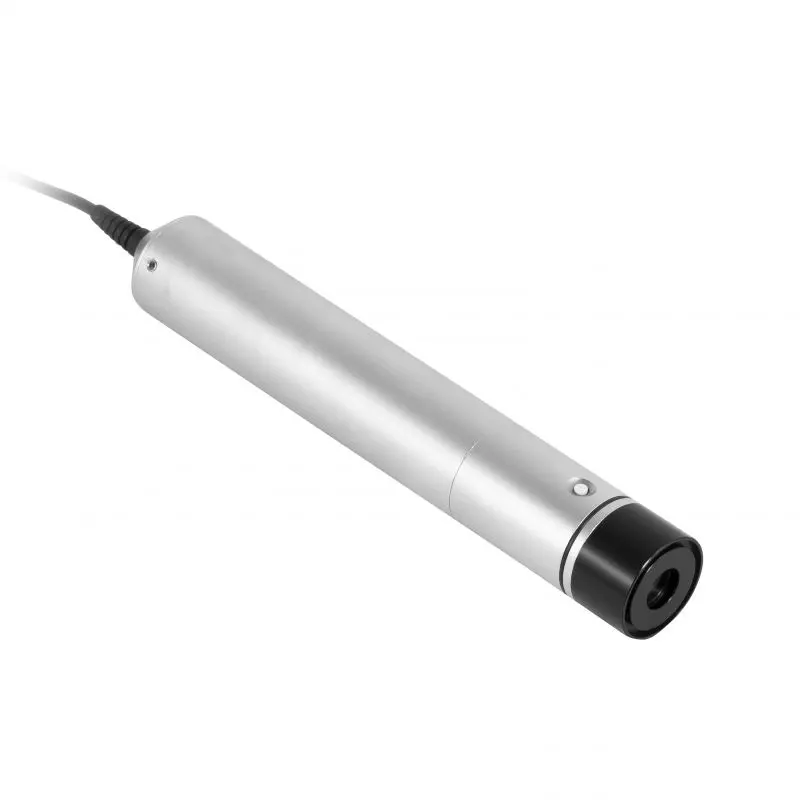

Other dimensions | Probe dimensions: Ø 25 x 160 mm |
Operating conditions | -10 ... 50 °C , 90 % r.h. |
Storage conditions | -10 ... 50 °C , 90 % r.h. |
