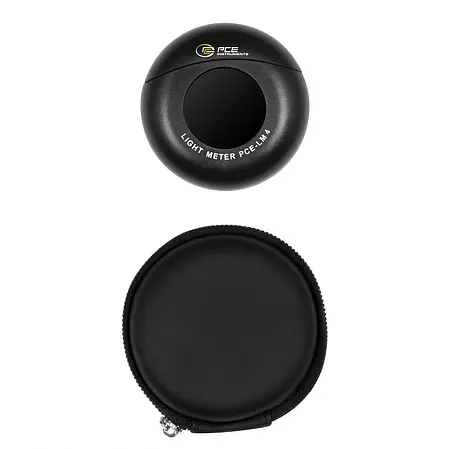

With its compact size and easy handling, this lux meter is the ideal measuring device for anyone who wants to take quick light measurements. After removing the cover, the lux meter delivers reliable results in seconds. With a large measuring range of up to 200 klx or 20 kfc, the luxmeter offers a wide range of applications in different lighting environments.
With the min-max hold value display, the lux meter ensures that the most important values are not overlooked, while the temperature display provides additional information about the measuring environment. The luxmeter has an easy-to-read LC display. Up to 12 measured values can be stored and recalled in the internal memory.
The automatic switch-off function prevents uncontrolled battery discharge. The lux meter switches off automatically after 15 minutes when the lid is open and after one minute of inactivity when the lid is closed. An operating time of up to 60 hours can be achieved with standard AAA batteries.
Light | |
Measuring range | 0 lx ... 999.9 lx |
Resolution | 0.1 lx |
Accuracy | ± (3 % v.Mw. ±8 digits) |
Light | |
Measuring range | 1000 lx ... 200 klx |
Resolution | 1 lx |
Accuracy | ± (3 % of VAT ±8 digits) <10,000 lx, ± (4 % of VAT ±10 digits ) >=10,000 lx |
Light | |
Measuring range | 0 fc ... 99.9 fc |
Resolution | 0.01 fc |
Accuracy | ± (3 % f.m. ±8 digits) <1000 fc, ± (4 % f.m. ±10 digits ) >=1000 fc |
Light | |
Measuring range | 100 fc ... 20 kfc |
Resolution | 0.1 fc |
Accuracy | ± (3 % f.m. ±8 digits) <1000 fc, ± (4 % f.m. ±10 digits ) >=1000 fc |
Temperature | |
Measuring range | -20 °C ... +70 °C |
Resolution | 0.1 °C |
Accuracy | ±1.5 ℃ |
Temperature | |
Measuring range | -4 °F ... +158 °F |
Resolution | 0.1 °F |
Accuracy | ±2.7 °F |
General technical data | |
Measurement functions | MIN, MAX, HOLD |
Units | lx, fc, °C, °F |
Display type | LCD with illumination |
Display refresh rate | 2 x per second |
Memory medium | Internal memory |
Memory capacity | 12 values |
Operating time | 60 h |
Automatic switch-off | 15 min |
Menu language | English |
Protection class (device) | IP20 |
Weight | 90 g |
Depth | 31 mm |
Diameter | 80 mm |
Operating conditions | -20 ... 60 °C , 0 ... 90 % r.H |
Storage conditions | -20 ... 60 °C , 0 ... 75 % r.H |
