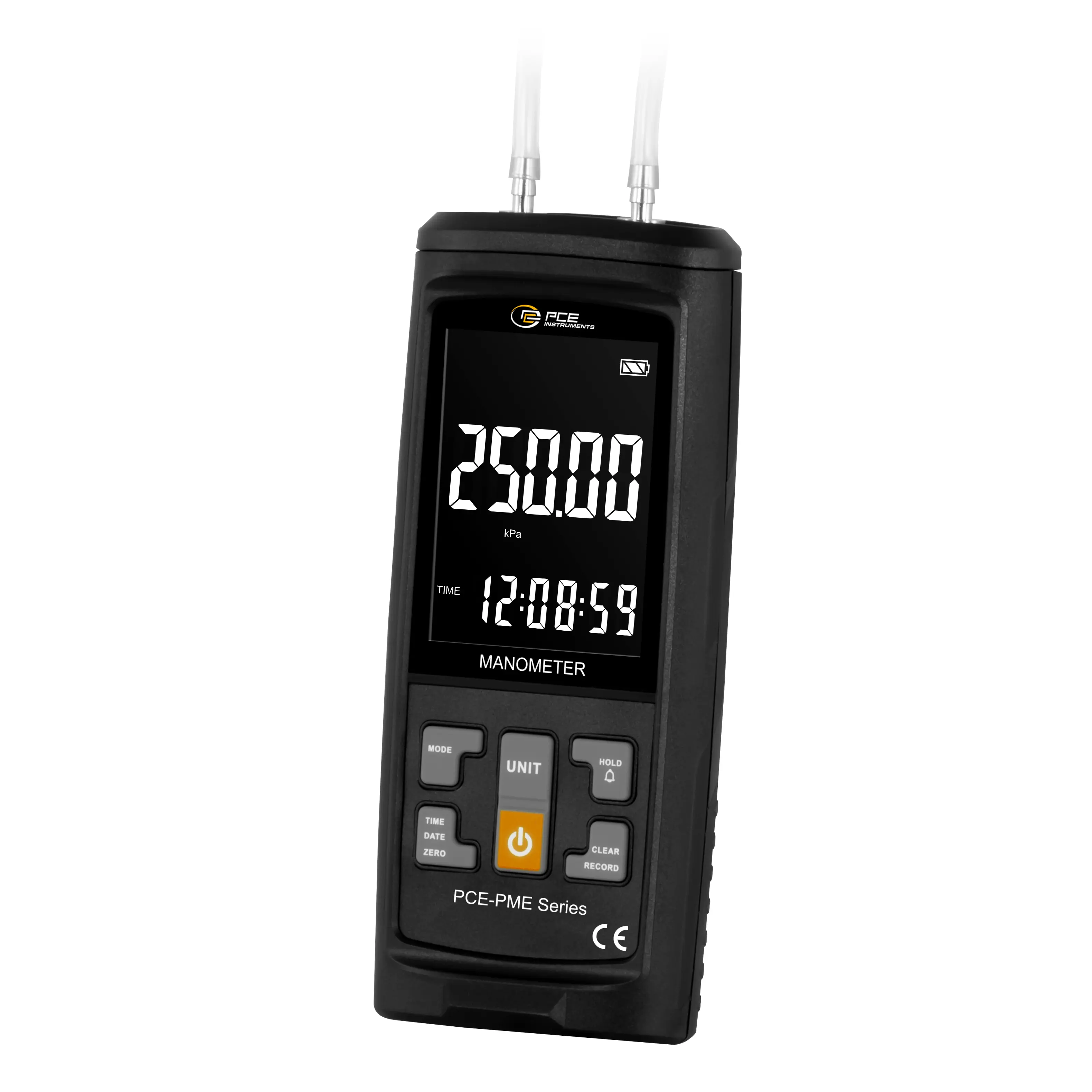

The digital Manometer is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Manometer is suitable for measuring non-aggressive and non-explosive gases.
The Manometer offers a variety of measuring functions such as maximum, minimum and average value calculation and a HOLD function. It offers an integrated data logging function with adjustable logging interval and real-time communication with a PC as well as export of the logged data as an xls file. The rechargeable battery enables an operating time of approx. 13 hours. The Manometer has an audible alarm for monitoring during use. With 13 selectable pressure units, it can be flexibly adapted to individual requirements.
Differential pressure | |
Measurement range up to | -250 ... +250 kPa |
Resolution | 0,01 kPa |
Accuracy | ±1 % FS |
Differential pressure | |
Measurement range up to | -2,5 ... +2,5 bar |
Resolution | 0,01 bar |
Accuracy | ±1 % FS |
General technical data | |
Measuring functions | MIN, MAX, HOLD, AVG |
Units | inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O |
Display type | LC colour display |
Storage medium | Internal memory |
Storage capacity | 15996 Measurements |
Storage interval from | 1 s |
Storage interval to | 9999 s |

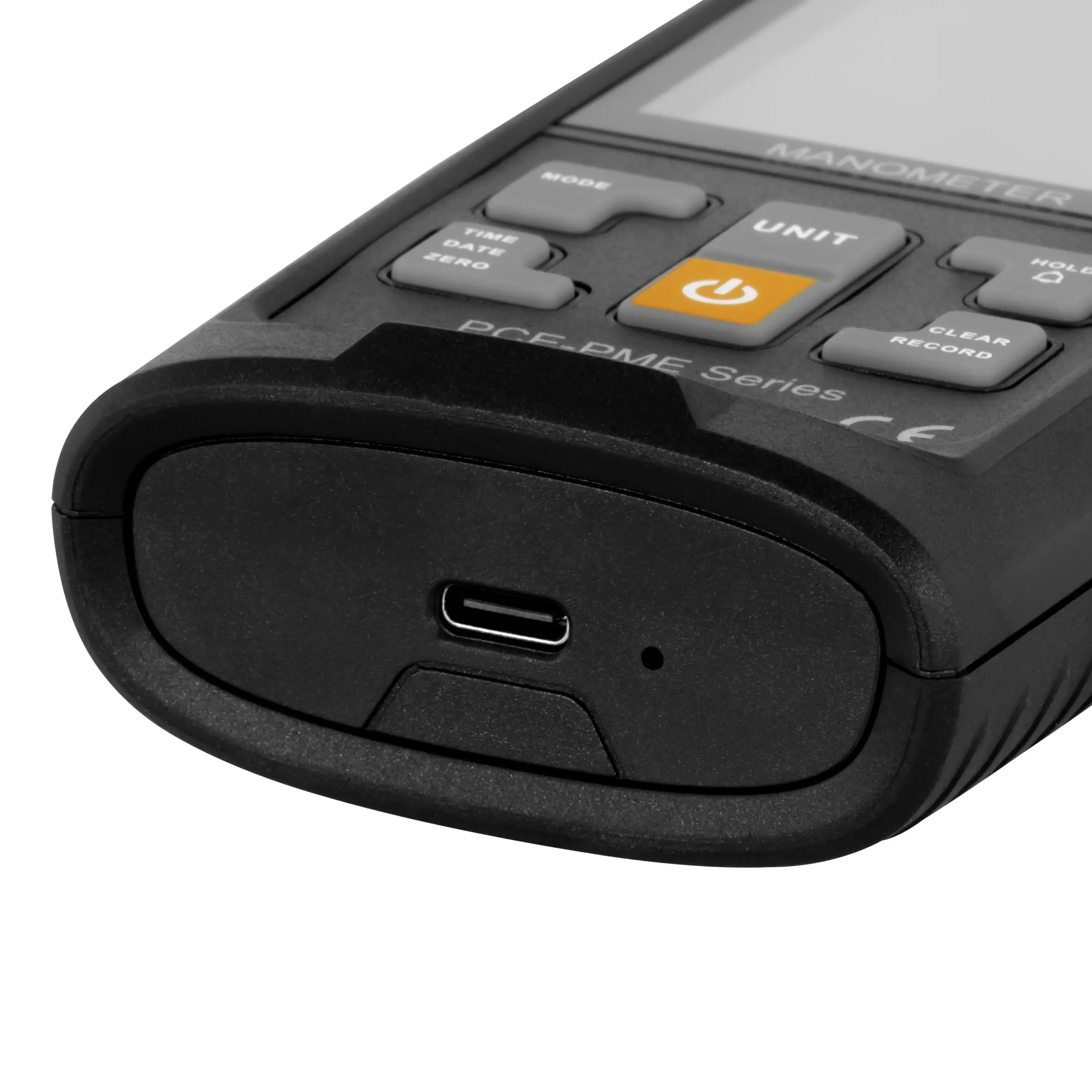

Interface | USB-C |
Operating time | 13 h |
Automatic power-off from...to | 1 ... 99 min. |
Automatic power-off can be deactivated | Yes |
Alarm | Acoustic |
Alarm modes | Above, below |
Overpressure | 3 kPa |
Menu language | English |
Protection class (device) | IP20 |
Power supply | 5 V |
Weight | 180 g |
Operating conditions | -10 ... 60 °C , 0 ... 95 % RH |
Storage conditions | -10 ... 60 °C , 0 ... 95 % RH |
Capacity | 1000 mAh |
Dimensions ( W x H x D ) | 63 x 162 x 32 mm |
