Material Tester PCE-GMM 10

Order no.: PCE-GMM 10
GTIN (EAN): 4250348719911
US$ 347.00
ex. VAT, ex. delivery costs
:
4250348719911
PCE-GMM 10
Available in: 1-2 days

Accessory

ISO Calibration Certificate CAL-PCE-GMM
ISO Calibration Certificate for the PCE-GMM 10
US$ 210.00

Description

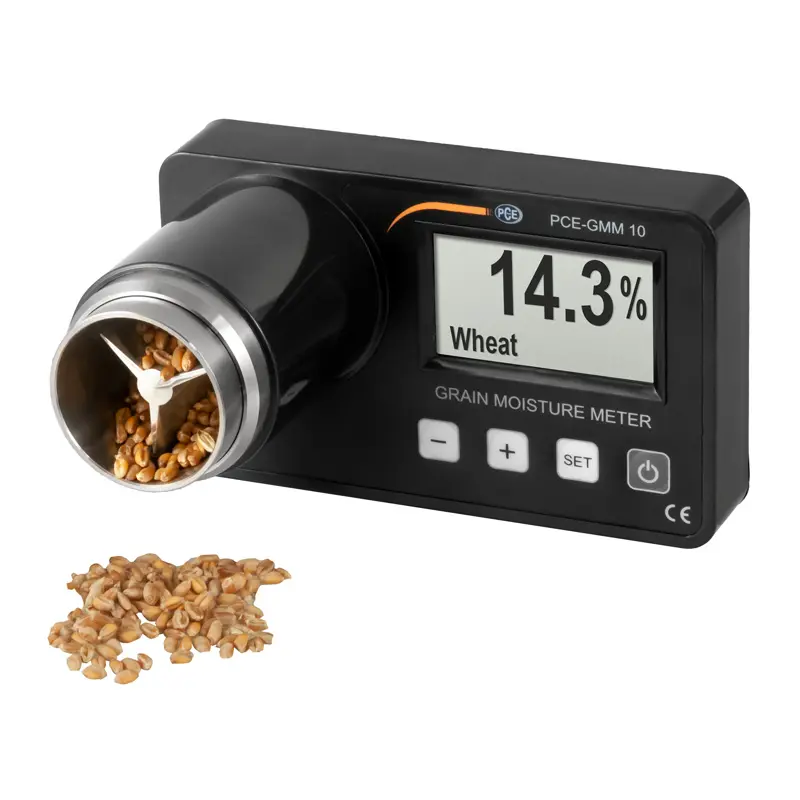

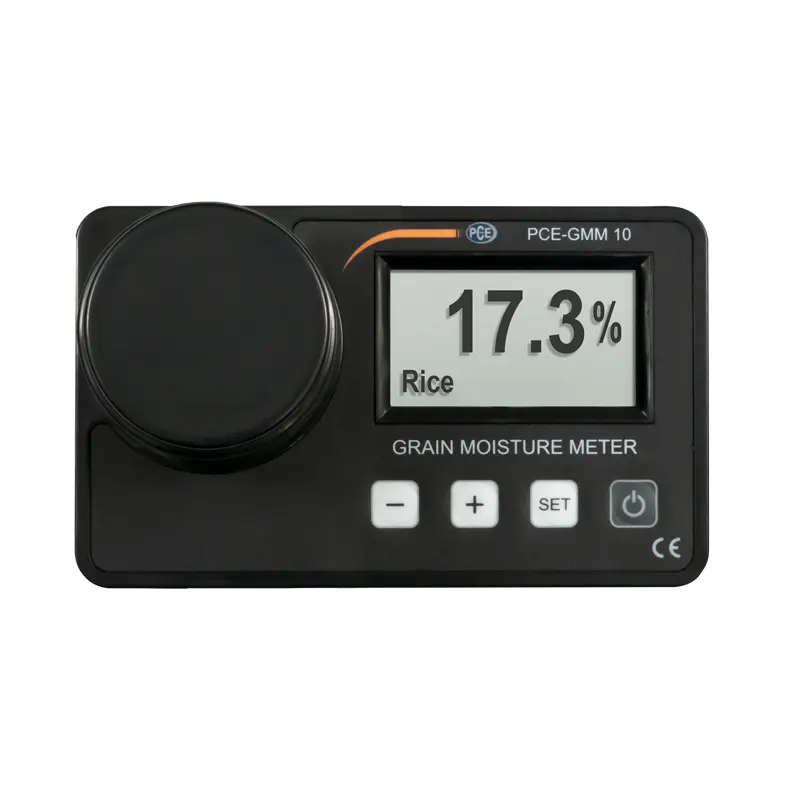

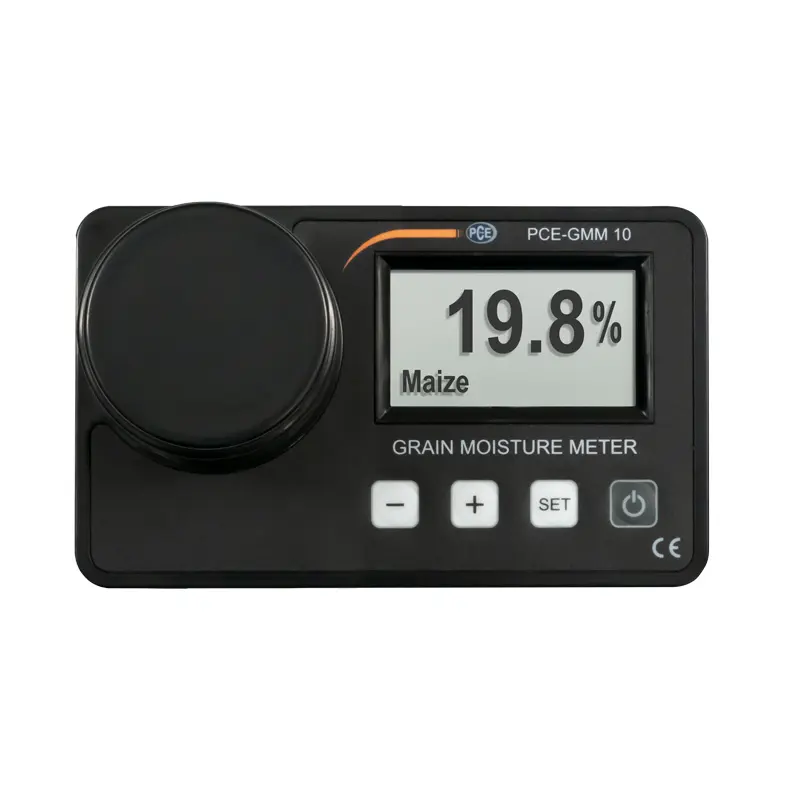

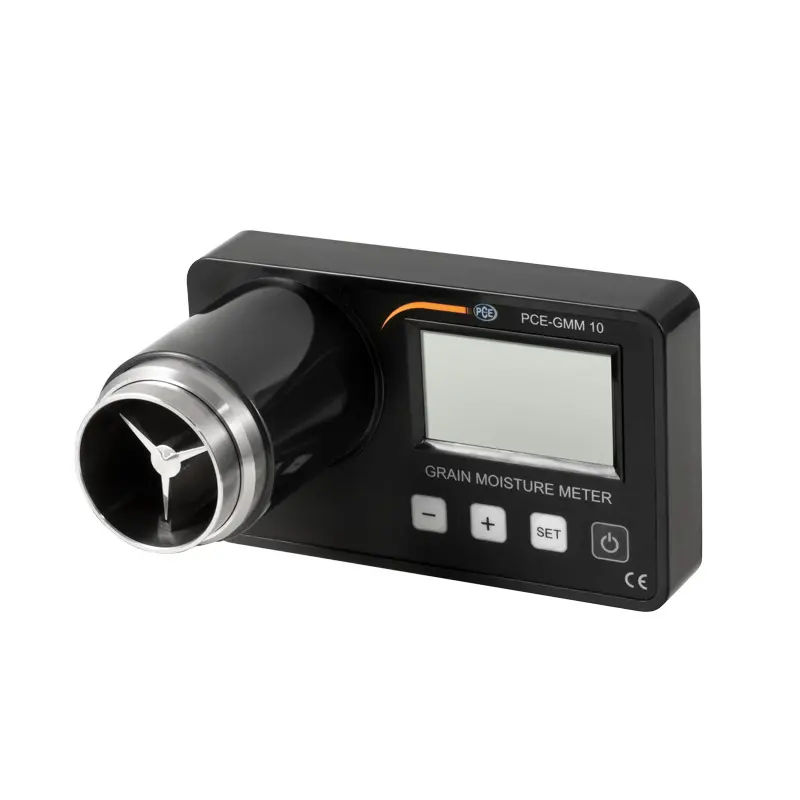

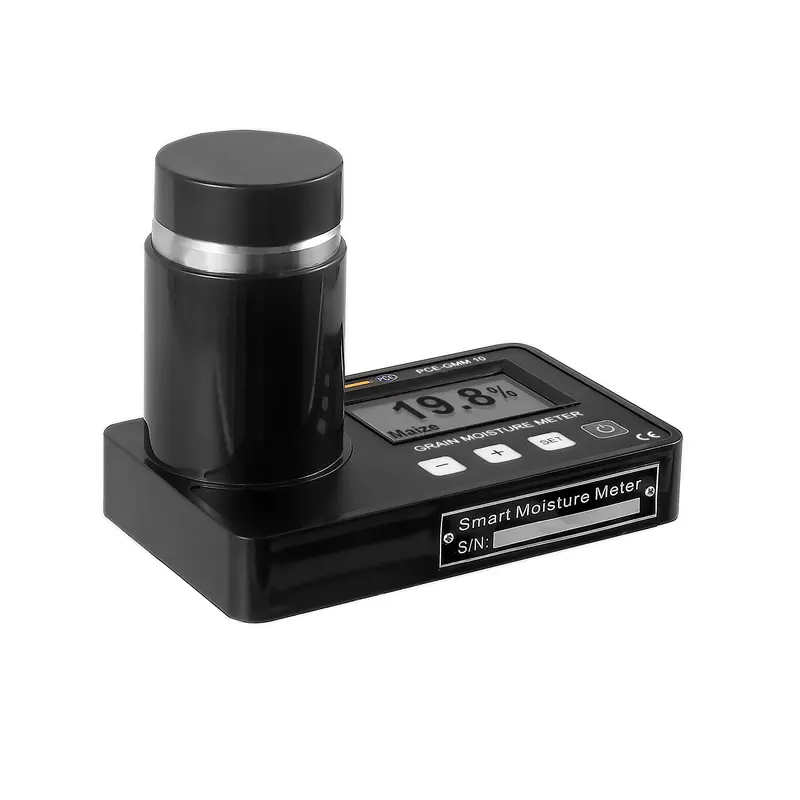

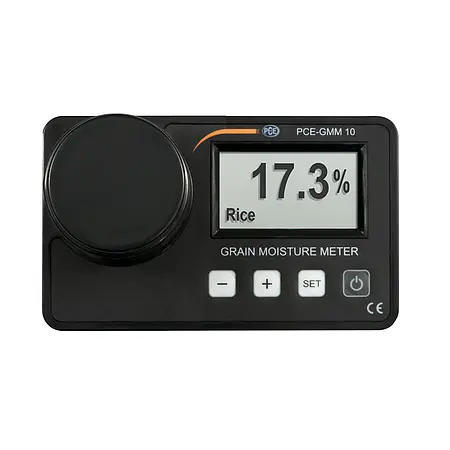

Material tester PCE-GMM 10
Grain moisture meter for 18 crops / Small sample size / LCD display Automatic temperature compensation / Manual measured value correction possible

The grain moisture meter PCE-GMM 10 is a compact moisture analyzer for up to 18 different cereals. This grain moisture meter is an important tool in mills, granaries or in processing industries of cereals and legumes. The cereal moisture meter helps to protect against storage, processing or buying and selling the bulk material before spoiling, due to high humidity.

The garden moisture meter requires only a very small sample volume to measure the moisture content. Within a short time, the grain moisture is shown on the display. The operation of the grain moisture meter is done via the 4 buttons. The test device is operated with a 9V block battery. Due to its compact dimensions, the grain moisture meter can be used very easily for whole grain.

Highlights

- Small amount of sample
- For 18 cereals
- Adjustment option
- Temperature compensation
- Easy handling
- Graphic display

Specification

Cereal     Measuring range     Resolution Accuracy
Wheat 9 ... 38% 0.1% ± 0.5%
Japonica rice 8.5 ... 40% 0.1% ± 0.5%
Indian rice 8.9 ... 30.4% 0.1% ± 0.5%
Soybeans 8.9 ... 33.4% 0.1% ± 0.5%
Rice 10.4 ... 26.4% 0.1% ± 0.5%
Sorghum 8 ... 35% 0.1% ± 0.5%
Rapeseed 6.4 ... 25.4% 0.1% ± 0.5%
Millet 9.4 ... 28.4% 0.1% ± 0.5%
Peanuts 5.4 ... 18.9% 0.1% ± 0.5%
Barley 9.4 ... 26.4% 0.1% ± 0.5%
Sunflower seeds 7.9 ... 24.4% 0.1% ± 0.5%
Coffee beans 10 ... 30% 0.1% ± 0.5%
Cocoa beans 4.5 ... 17% 0.1% ± 0.5%
Sesame
 6 ... 18% 0.1% ± 0.5%
Linseed/flaxseed
 4.5 ... 18% 0.1% ± 0.5%
Almonds
 4.5 ... 21% 0.1% ± 0.5%
Cashew
4.5 ... 15%0.1%± 0.5%
Repeatability 0.2%
Adjustment range ± 9.9%
Sample size About 65 ml
Operating temperature range  0 ... 40 °C / 32 ... 104 °F
Temperature compensation Automatically
Power supply 9V block battery
Automatic shutdown After 3 minutes

Delivery Scope

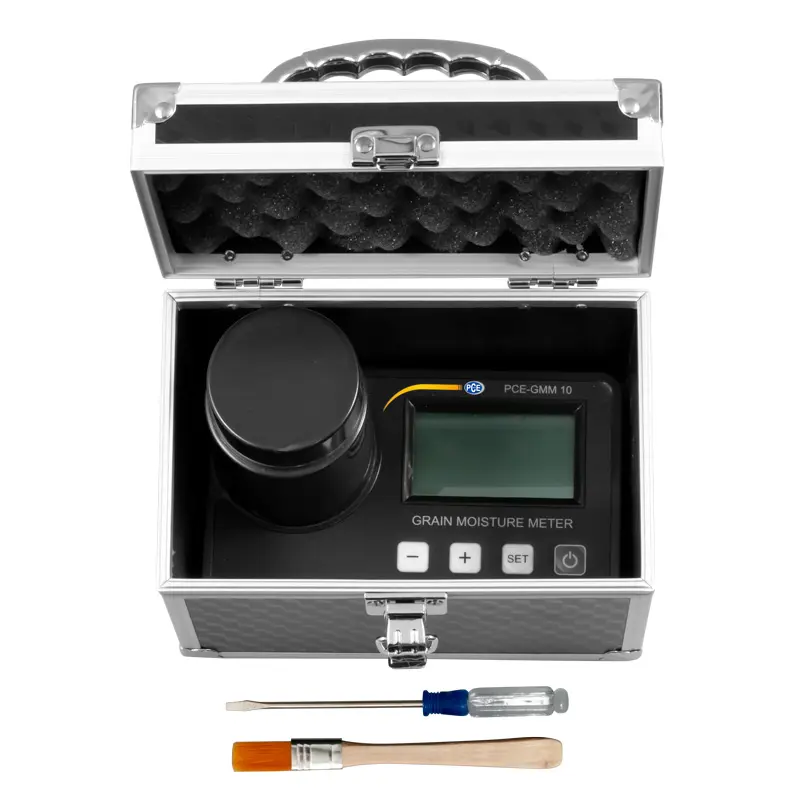

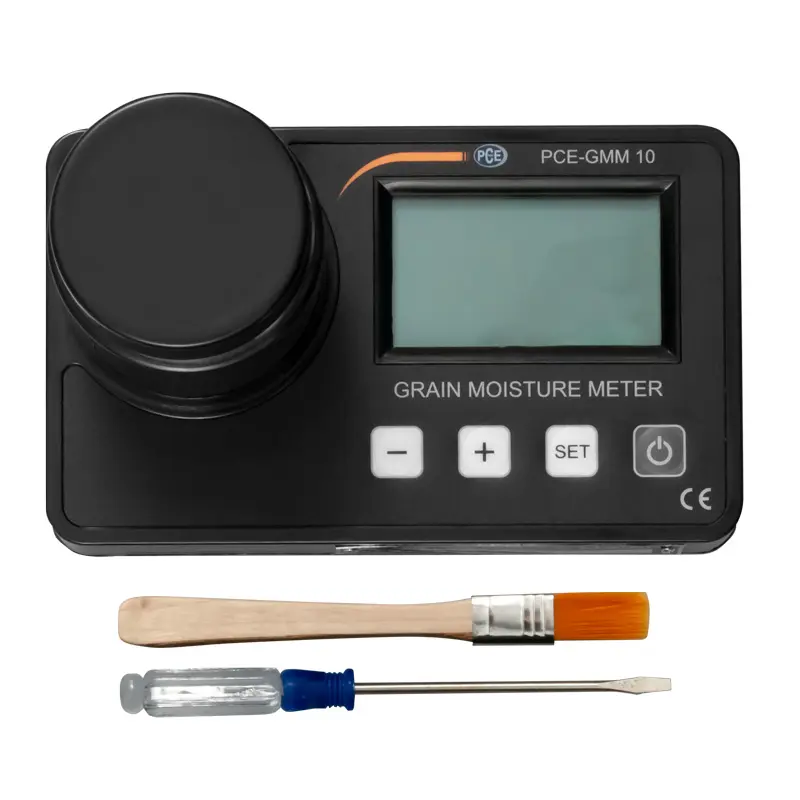

1 x Material tester PCE-GMM 10
1 x Carrying case
1 x Cleaning brush
1 x Screwdriver
1 x 9V block battery
1 x User manual
