Moisture Meter PCE-DPM 10-SFKIT incl. Smart Features

Name: Moisture Meter PCE-DPM 10-SFKIT incl. Smart Features
Brand: PCE Instruments
SKU: 6114788
Price: 5438 USD
Availability: InStock

Order no.: PCE-DPM 10-SFKIT

GTIN (EAN): 4250348734204

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Optional activation of the Smart Features PCE-DPM 10-SF

US$ 336.00

Description

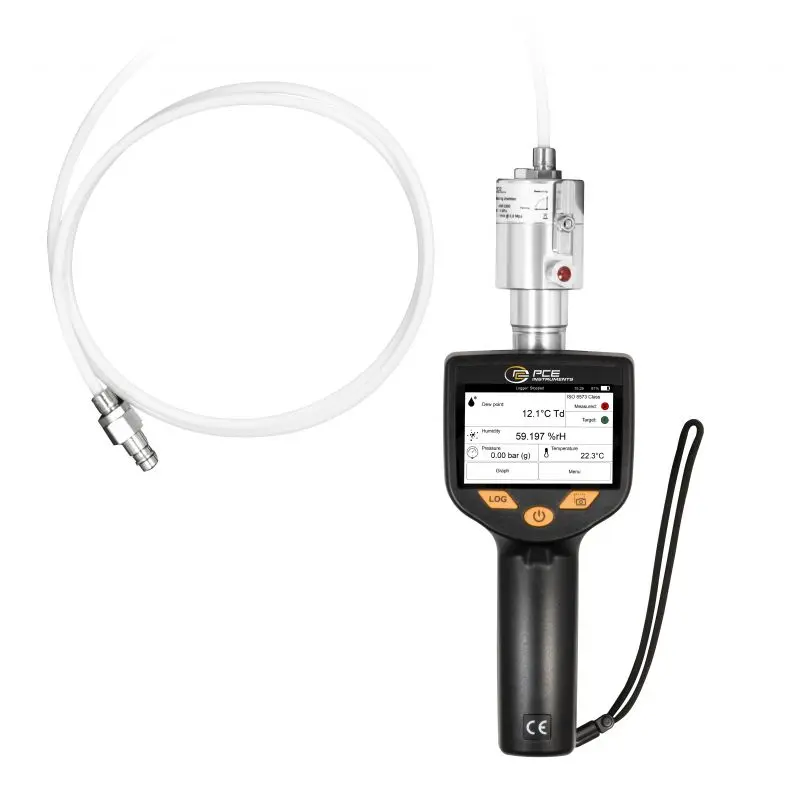

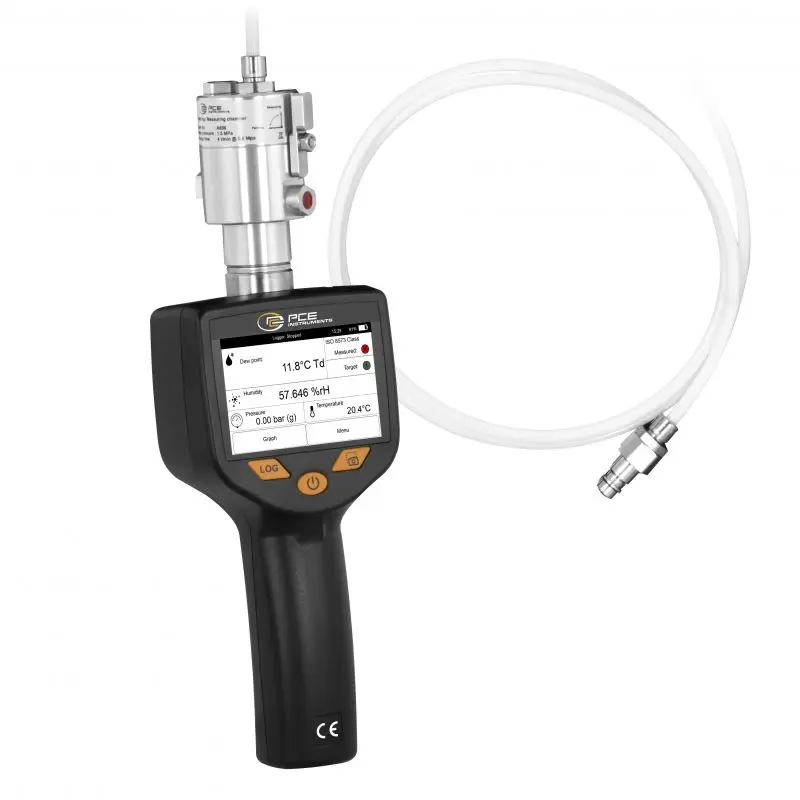

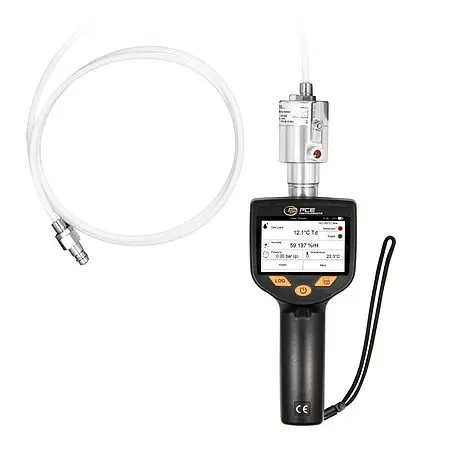

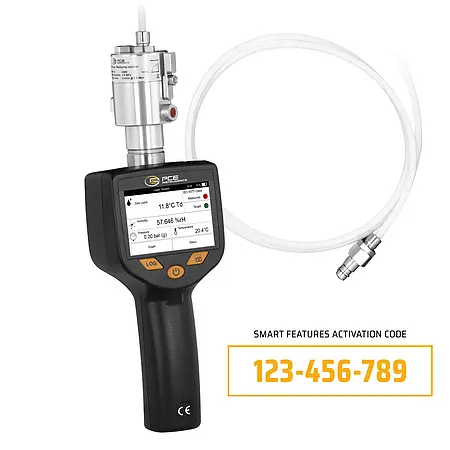

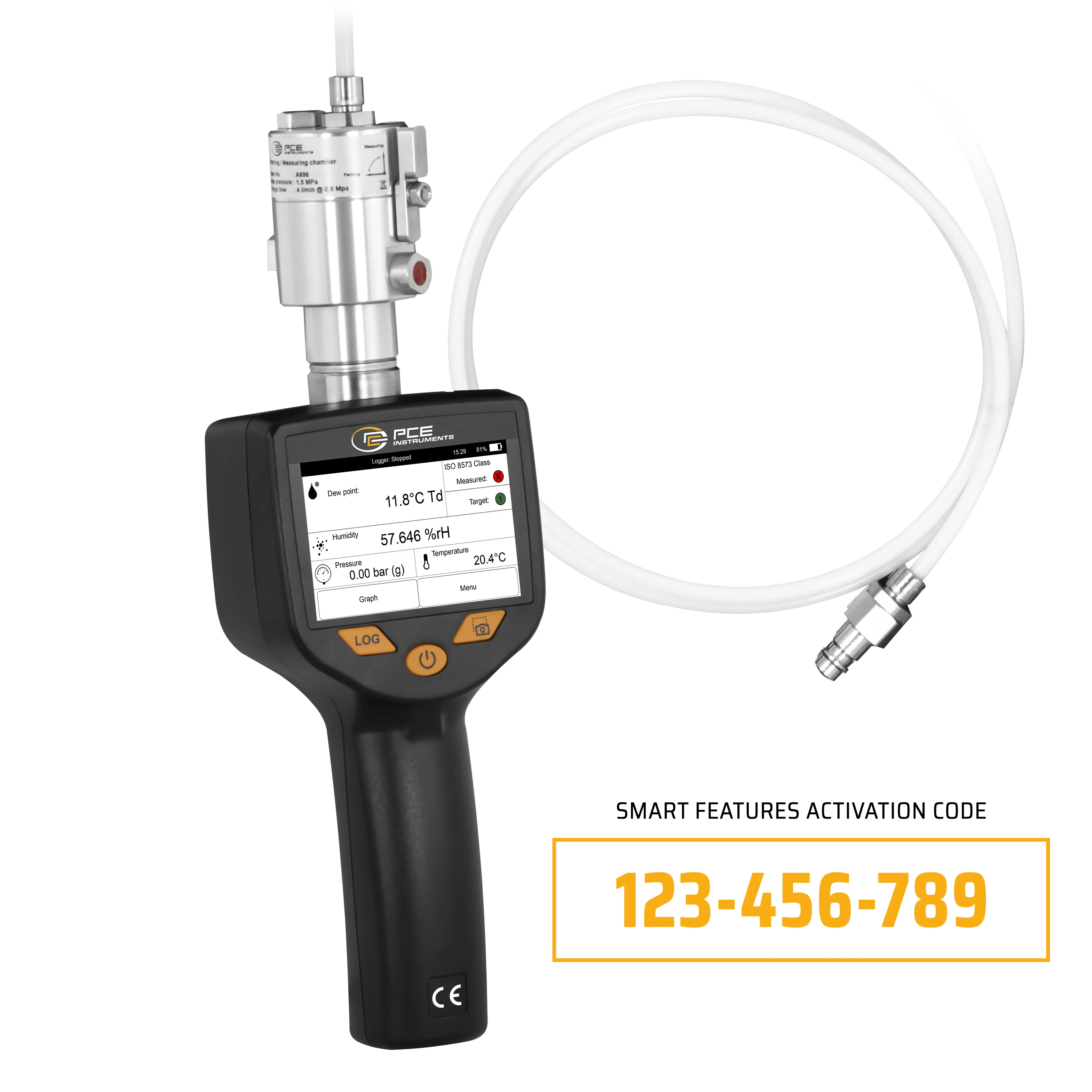

Moisture Meter for pressure systems / precise measurement / alarm limits / battery-operated handheld device / touch display

The precise moisture meter from PCE Instruments enables the reliable measurement of humidity and temperature in a measuring range of up to 15 bar. The moisture meter is versatile and provides accurate results for air and various gases.

The moisture meter offers a robust and handy design, the housing of the moisture meter was specially developed for industrial applications.

The operation of the moisture meter is particularly easy thanks to the touch display, which further emphasises the user-friendliness of the moisture meter. The moisture meter offers the option of storing your own calibration data, e.g. to quickly adjust the pressure to the current atmosphere.

In addition, the moisture meter is able to display the humidity in many different units of measurement, saving the user the hassle of converting the values. The quick coupling included in the scope of delivery enables the moisture meter to be used quickly and also saves time during measurement.

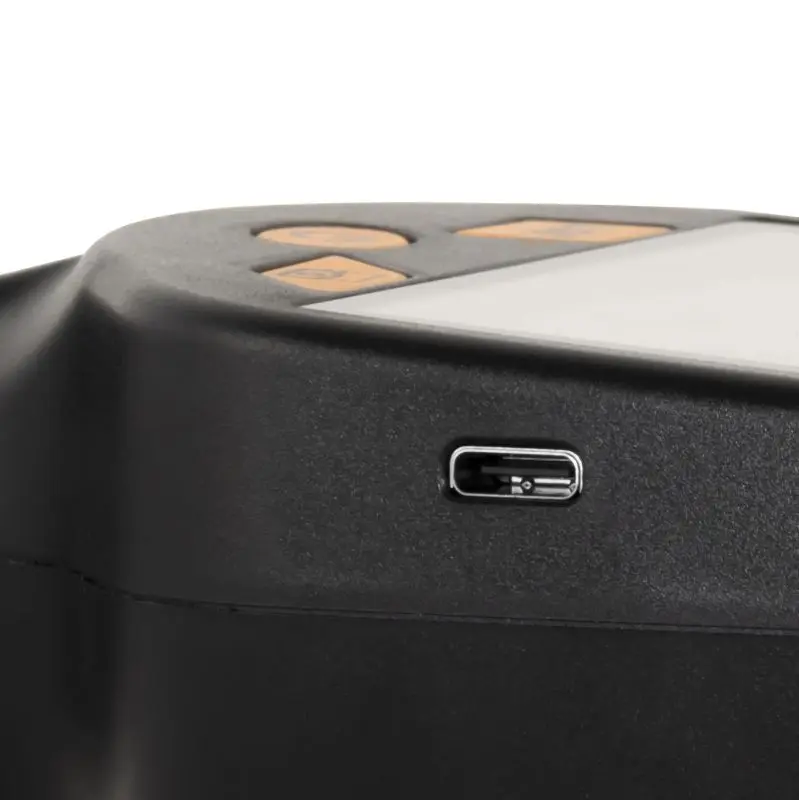

In addition, the moisture meter has a moisture meter function for up to 100 million measured values. These can be conveniently read out and processed via the USB C interface and the USB-C stick supplied.

When the optional Smart Features are purchased, the moisture meter can not only measure the current dew point, but also create a forecast for the final value of the dew point. In addition, it enables the moisture meter to document the measurement location using the integrated camera.

Highlights

- Taupunkt Messbereich von -100 ... +50 °C

- Druckbereich bis 15 bar Differenzdruck

- Datenlogger für bis zu 100 Millionen Messwerte

- Alarmgrenzen einstellbar.

- Touch LC Display

Specification

Differential pressure
Measurement range	0 bar . ... +15 bar
Resolution	0,01 bar
Accuracy	0,5 % v. Mb.

Dew point
Measurement range	-100 °C ... +50 °C
Resolution	0.1 °C

Dew point
measurement range	0 °C . .. +20°C
Resolution	0.1°C
Accuracy	± 1°C

Dew point
measurement range	-60 °C . .. +50 °C
Resolution	0.1 °C
Accuracy	± 2°C

Dew point
measuring range	-100 °C . .. -60 °C
Resolution	0.1 °C
Accuracy	± 3°C

Temperature
measuring range	-30 °C . .. +50 °C
Resolution	0.1 °C
Accuracy	± 0.3 °C

General technical data
Measurement functions	Average value, dew point forecast
Units	°C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.

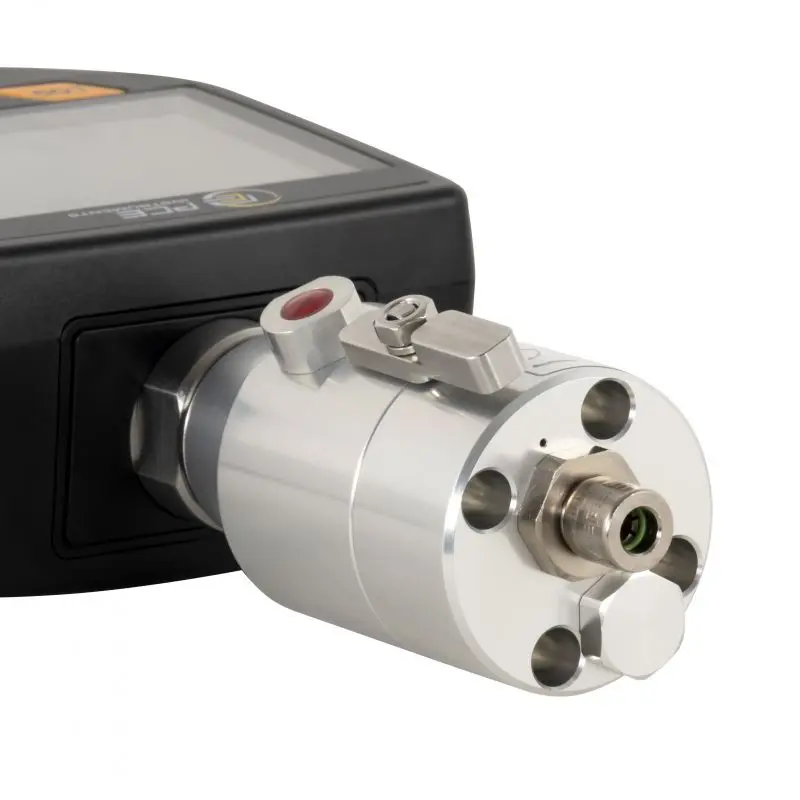

Connections	G1/2" with 6mm quick coupling
Display size	3, 5 inch
Display refresh rate	1 x per second
Storage medium	Internal memory
Storage interval of	1 s
Storage interval up to	60 s
Storage capacity	100 million values
Other functions	PDF Export
Interface	USB- C
Standard(s)	ISO8573- 1
Current consumption measuring device	400 mA DC
Response time	1 s
Measuring medium	Air, Nitrogen, Argon, Carbon Dioxide, Oxygen
Camera resolution	5 Megapixel
Operating time	8 h
Operating time Additional information	Charging takes approx. 3h.
Automatic shutdown adjustable	10 ... 60 min.

Menu language	English, German, French, Spanish, Chinese, Korean, Japanese
Protection class (device)	IP30
Power supply	5V DC 3 A (via USB C)
Weight	775 g
Device weight with delivery	2, 83 kg
device weight with scope of delivery and outer packaging. outer packaging	2,93 kg
Dimensions (L x W x H)	310 x 100 x 60 mm
Other dimensions	PTFE hose 1, 5 m with 6mm quick coupling
Operating conditions	0 . .. 80 % RH
Storage conditions	0 ... 40 °C , 0 ... 80 % RH
Instruction languages	German, English
Battery	3500 mAh, 3,7 V

Delivery Scope

1x Moisture Meter PCE-DPM 10-SFKIT
1x activation of the Smart features for PCE-DPM 10-SFKIT

1x PTFE hose with quick coupling

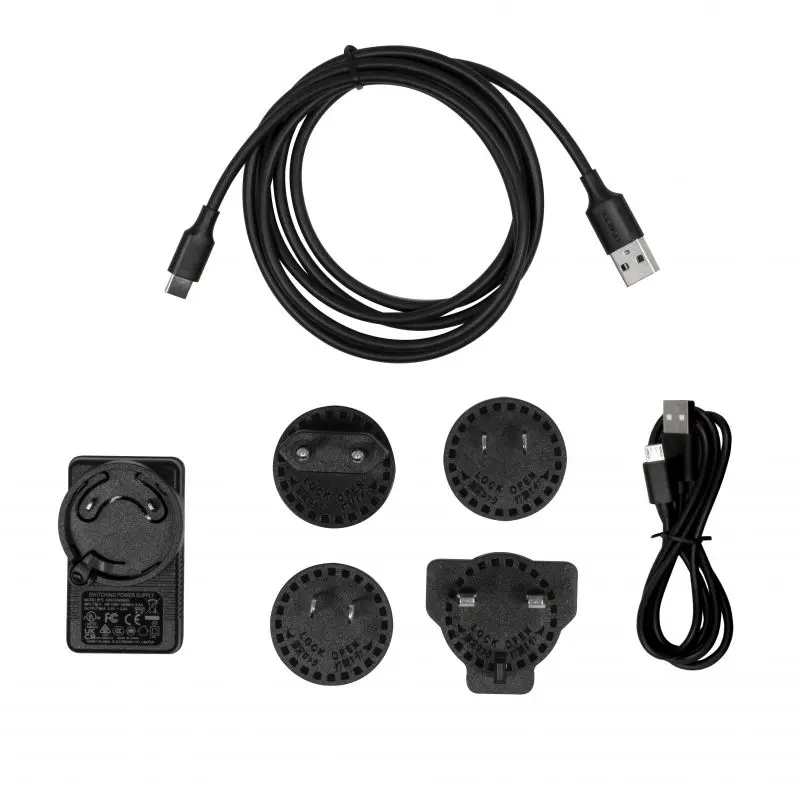

1x USB power supply with adapters

1x USB-C cable

1x USB-C stick

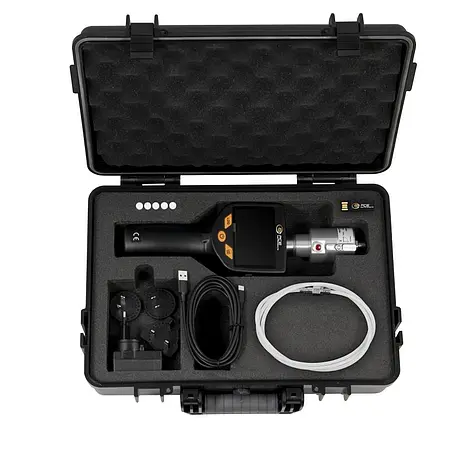

1x transport case

1x software (download)

1x operating instructions
