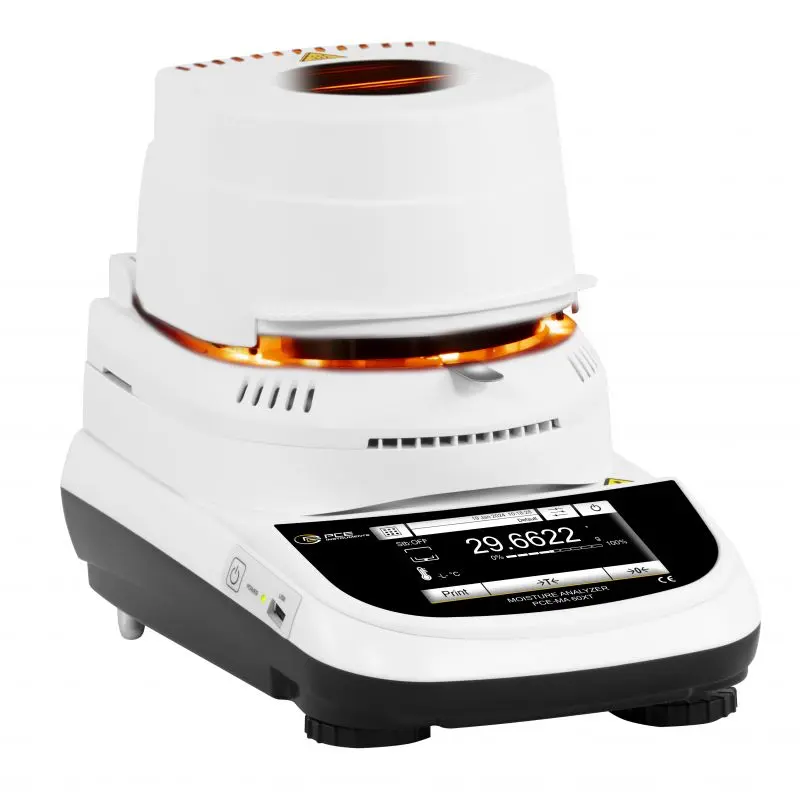

Moisture Meter PCE-MA 60XT

Order no.: PCE-MA 60XT

GTIN (EAN): 4250348732552

Description

Precision moisture meter up to max. 60 g sample weight / measuring resolution 0.1 mg = 0.0001 g = 0.001 % moisture content

drying temperature up to 160°C / 5" touch color display / internal product database / measurement data can be stored as TXT file directly on USB stick

The precision moisture meter enables accurate and simple moisture determination in a wide range of materials. The sample is automatically weighed, dried and the weight loss is displayed as moisture content. This measuring principle requires therefore no complex characteristic curve production and is immediately operational shortly after setting up.

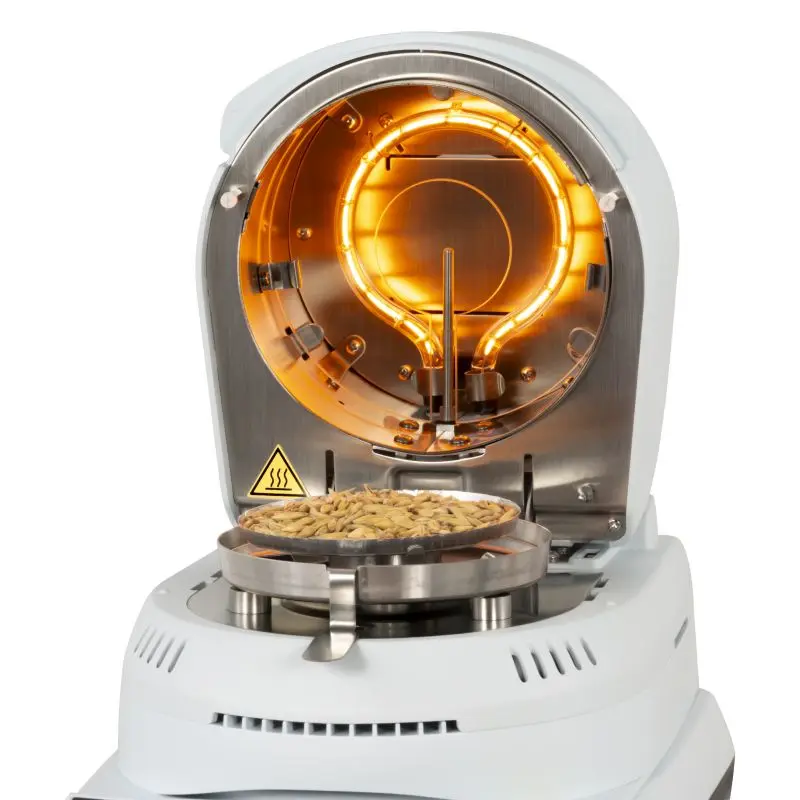

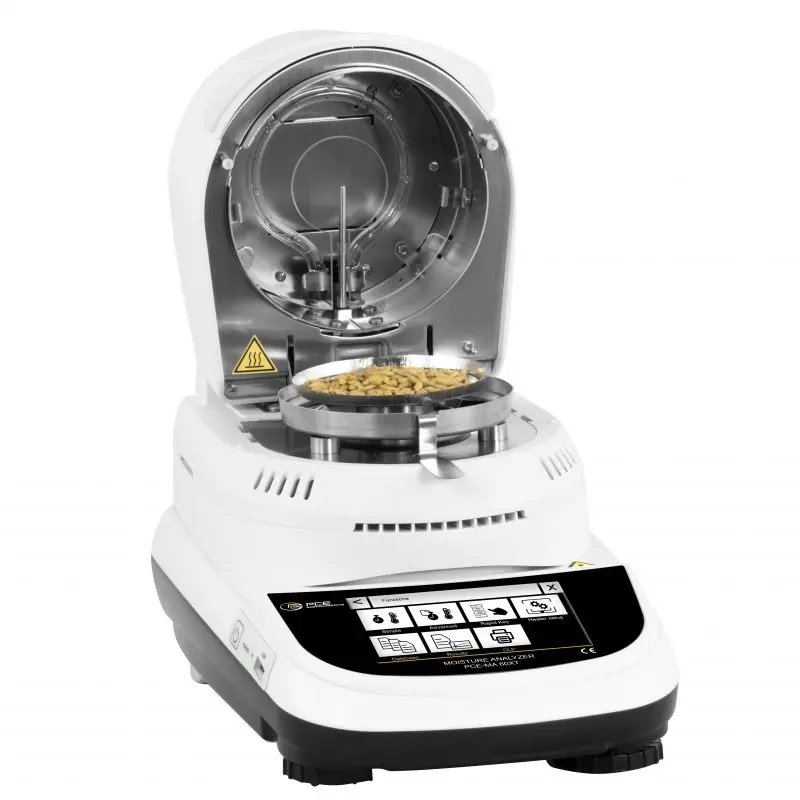

For the weighing task, the precision moisture analyzer has an electromagnetic load cell installed which registers the weight loss with a measuring resolution of 0.1 mg = 0.0001 g. For drying the sample, a moisture analyzer is installed in the sample chamber. For drying the sample a 400 Watt halogen round lamp is used in the lid to ensure an even heat distribution.

To avoid burning the sample, the user of the moisture analyzer can access the internal product database or set the drying temperature between 35 °C and 160 °C in 1 °C steps, product specific. The product database has preset drying parameters that can be easily expanded and changed by the user.

Highlights

- Sample weight max. 60 g

- Readability 0.1 mg = 0.0001 g = 0.001 % humidity

- Round 400 watt IR halogen lamp

- Drying temperature adjustable from 35 °C up to 160 °C in 1 °C steps

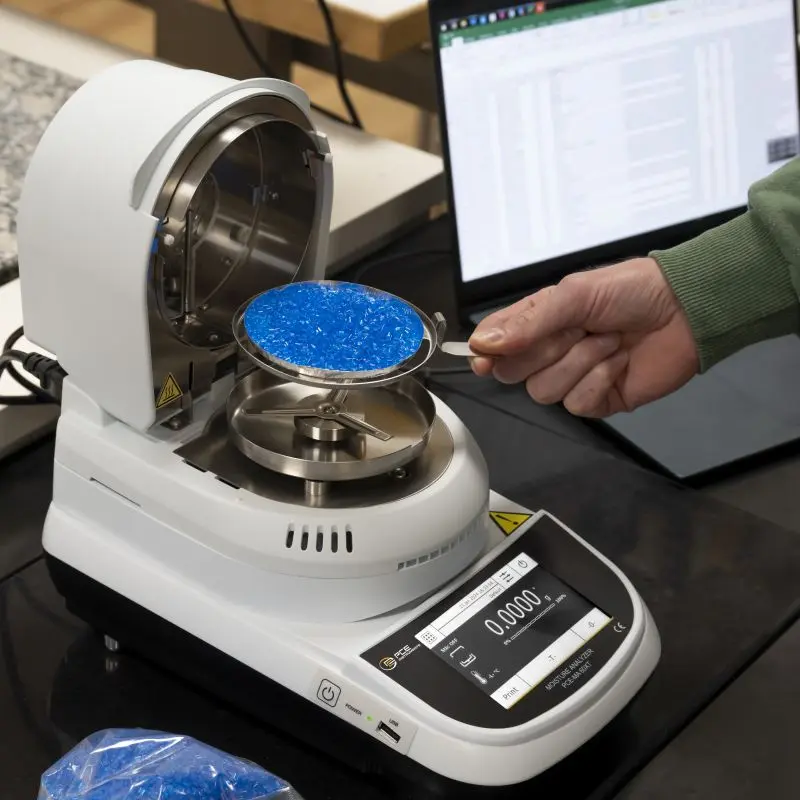

- Sample dish size Ø100 mm / h= 8 mm

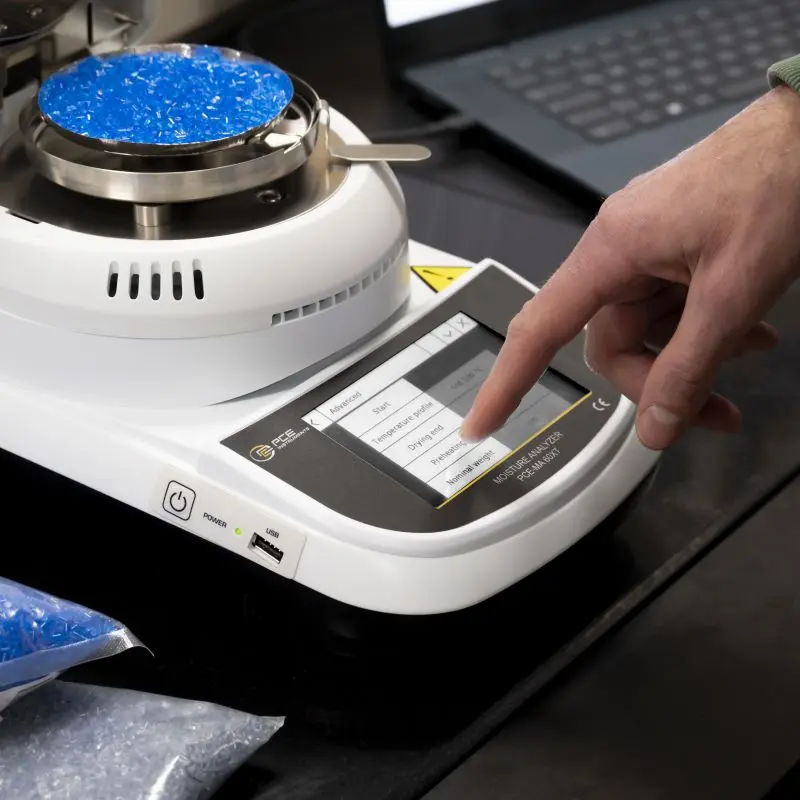

- 5" color touch display

- Memory for up to 300 performed moisture determinations

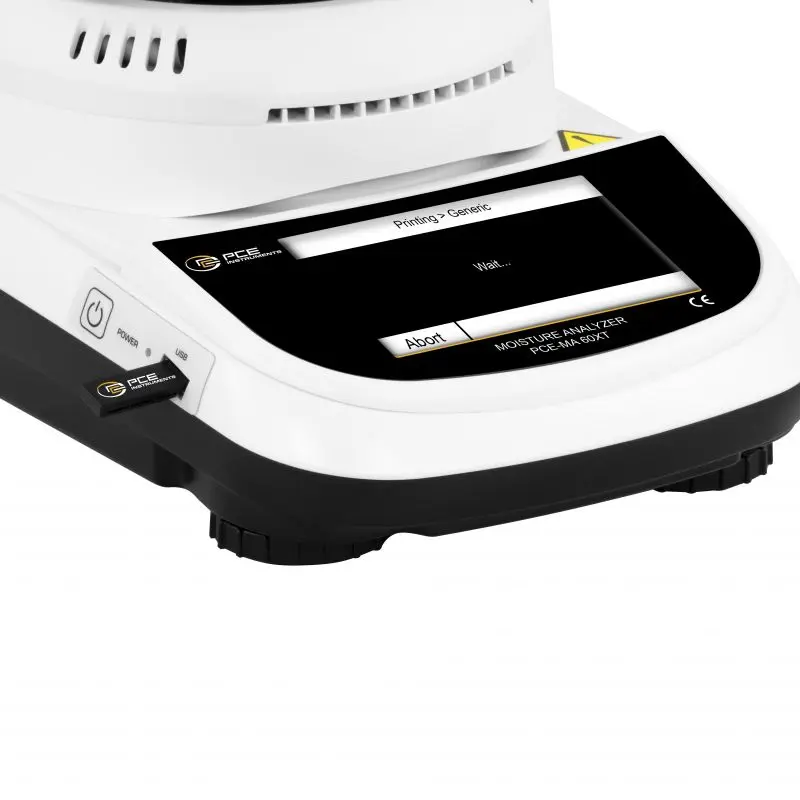

- Data transfer as TXT file to USB stick directly possible

- User database / product database / measurement database

Specification


Measuring principle	Gravimetric moisture determination
Weighing range (Max)	60 g
Readability	0.1 mg / 0.0001 g / 0.001 % humidity
Weighing electronics	Electromagic force compensation cell
Repeatability	Weight measurement ± 0.0003g
Moisture measurement	± 0.18 % (referred to 2 g sample)
Sample weight	Min. 2 g / Max. 60 g
Sample area	approx. Ø 100 mm / height max. 25 mm
Determination options	Moisture content % / Dry content % / ATRO % / Weight
End of measurement	no weight loss / time lapse / manual
Drying temperature range	+35 ... +160 °C in 1°C steps
Heating profiles	Standard / Fast / Mild / Steps
Heating element	400 Watt IR round heater
Databases	300 measurement protocols performed
Drying database	for over 30 products
User database	for 10 users

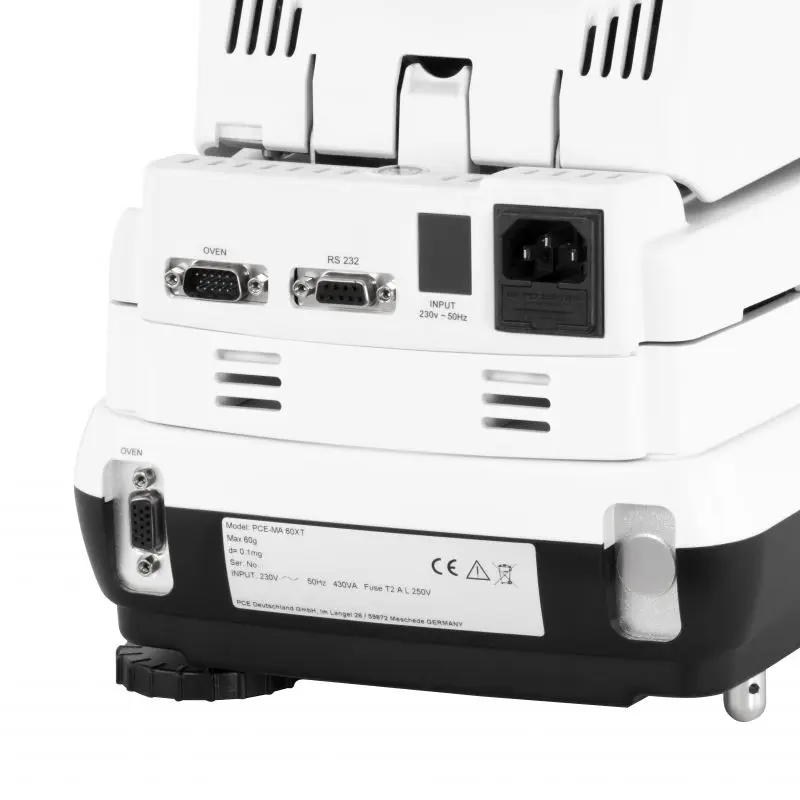

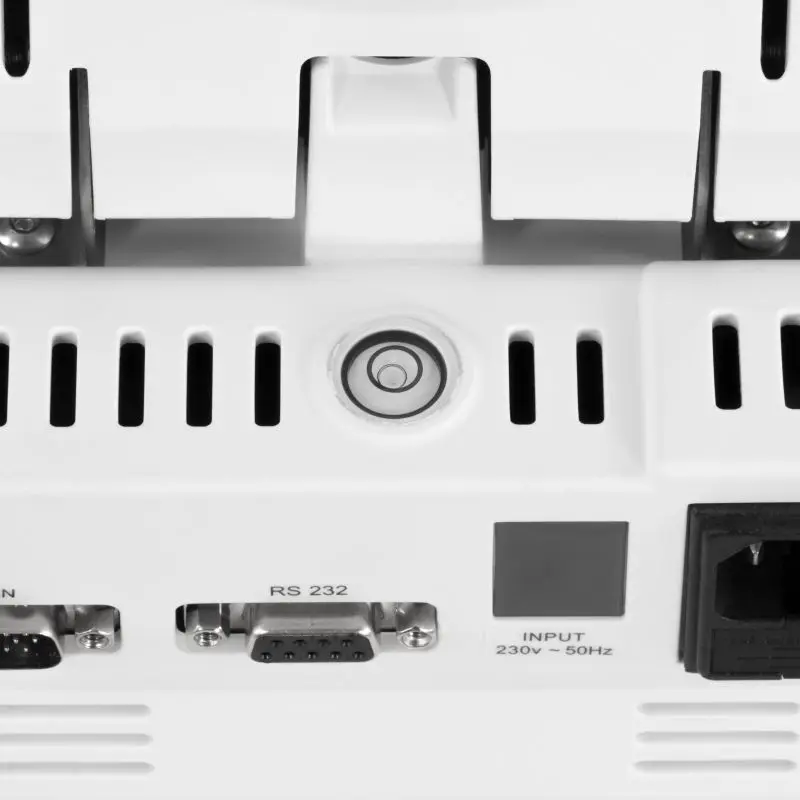

Interface	RS-232 / USB-A for USB stick

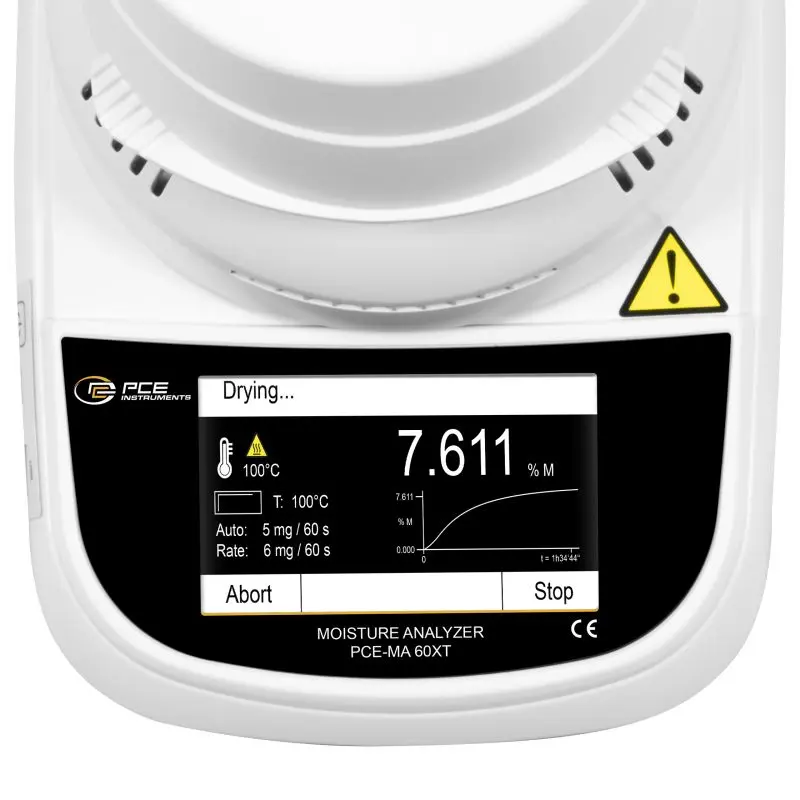

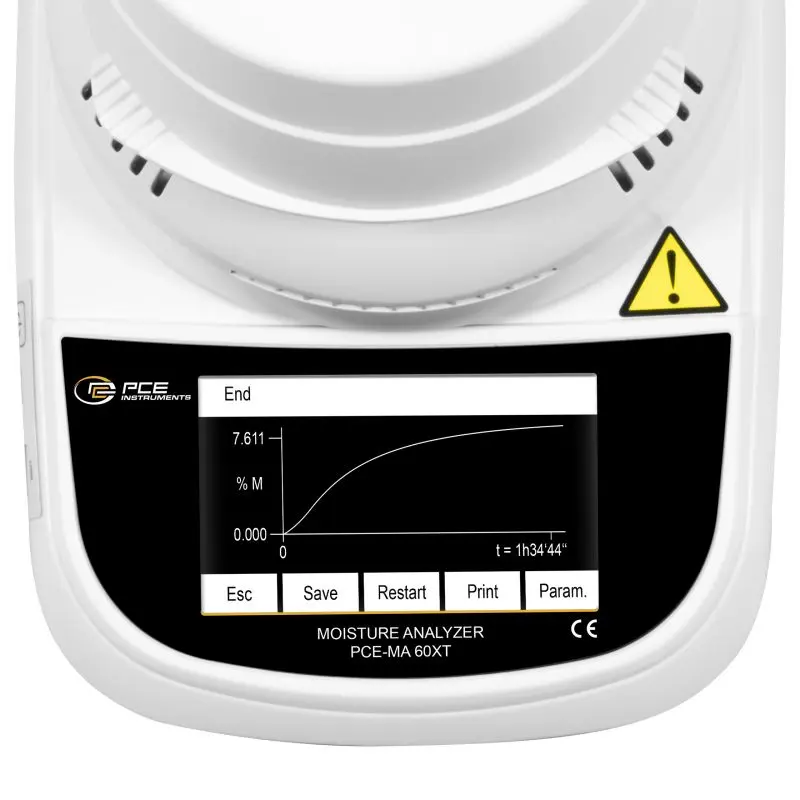

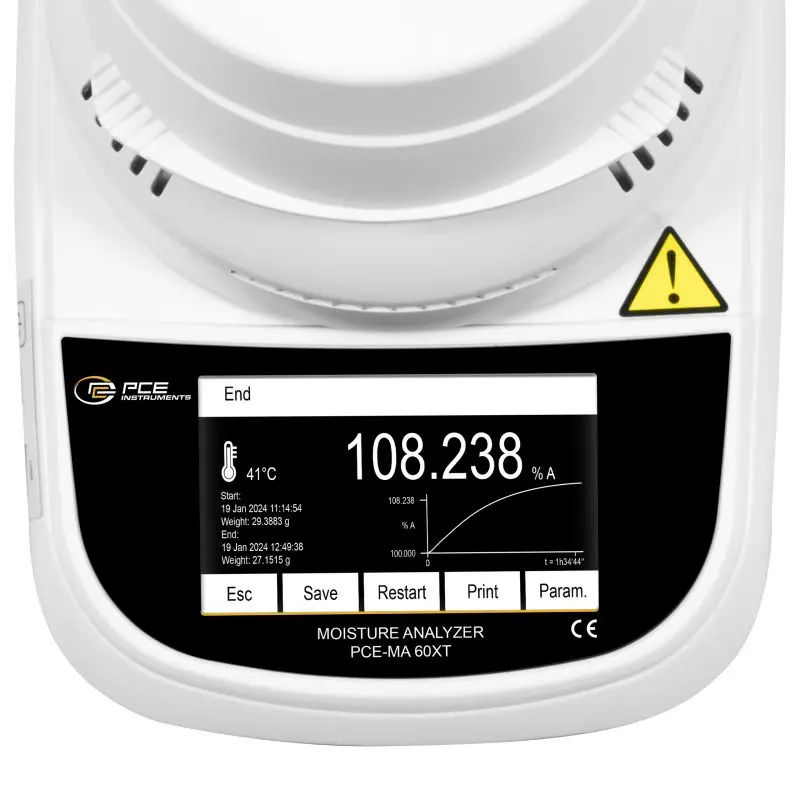

Display	5" touch color display
Menu language	German / English / French / Italian / Spanish
Power supply	220 V / 50 Hz
PCE-MA 60XT-US	110 V / 50 Hz
Dimensions	345 x 215 x 235 mm
Weight	6,1 kg
Recommended calibration weight	50 g

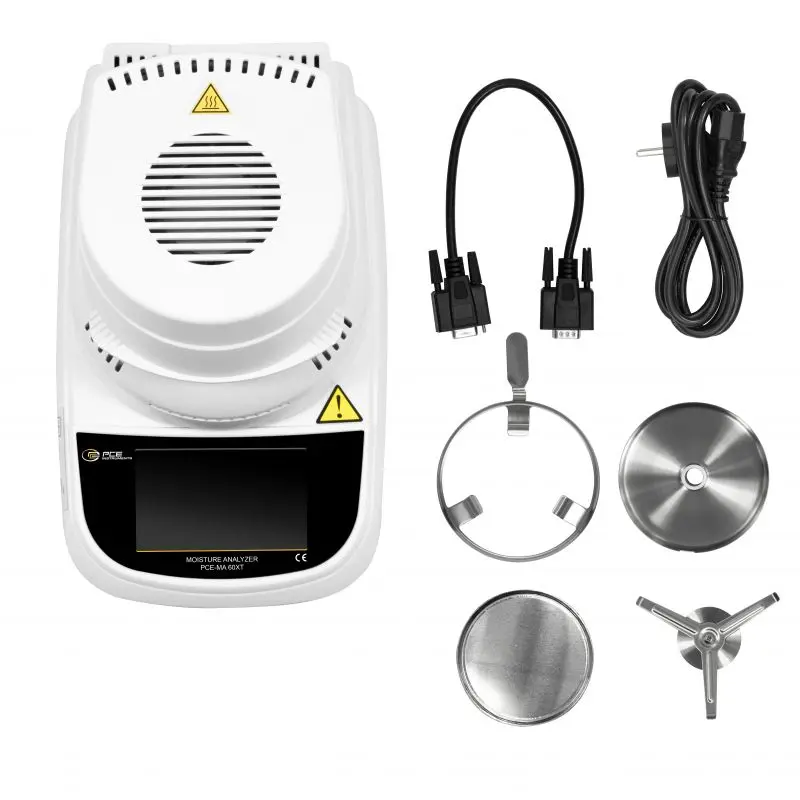

Delivery Scope

1 x Precision moisture meter PCE-MA 60XT

10 x aluminum sample trays,

1 x cold appliance plug
