Description

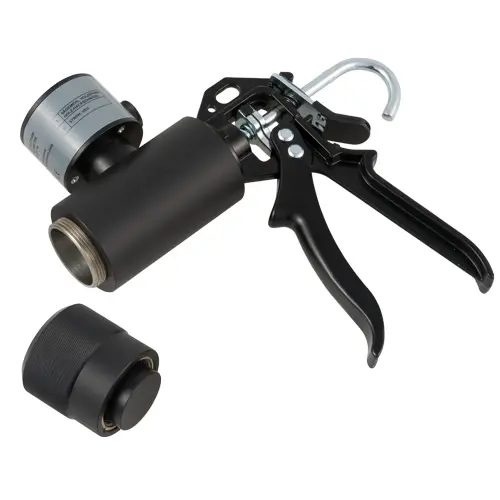

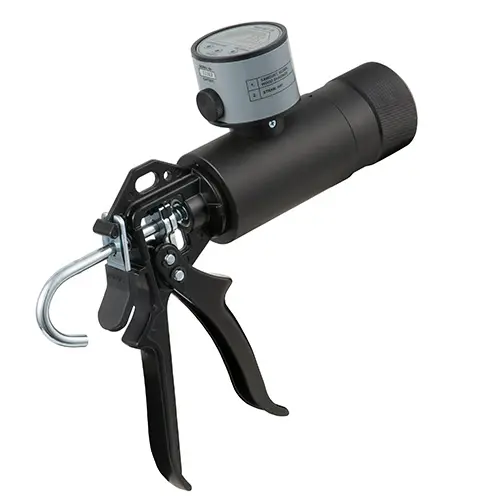

Moisture tester for wood PCE-WT1N
Sawdust moisture meter for the absolute humidity of sawdust / sawdust (in% H2O) with very robust measuring chamber and easy operation

The moisture meter is intended for professional use in the exit control of sawmills or in the entrance inspection of pelleting plants, manufacturers of heating briquettes and other branches of production. The moisture meter determines the absolute humidity of sawdust and other types of biomass such as wood chips, hay, straw. The operation is fast and easy. The sawdust moisture meter is filled, the sample is pressed in the device and after setting the type of sample in the sawdust moisture meter, the moisture can be read. The sawdust moisture meter determines the humidity with the electrical resistance method. The sawdust moisture meter helps to quickly determine the moisture content. Another advantage lies in the practical handling, the small size and the very robust construction. The saw blade moisture meter is factory calibrated.

Highlights

- Fast moisture determination
- Electrical resistance method
- For biomass such as straw, hay, sawdust etc.
- Sample size up to 120 cm³
- Simple and fast operation
- Robust design with overpressure protection
- Battery operated
- Incl. Carrying case

Specification

Measuring range Saw chip moisture meter
Sawdust, wood chips*
Straw, hay
8 ... 30%
8 ... 25%
General information about the sawdust moisture meter
Resolution0.1%
Accuracy± 10% of measured value
Example: measured value 15% = possible tolerance ± 1.5%
Volume of the measuring chamber120 cm³
Sample size for wood chips*Max. 20 x 15 x 15 mm
Pressure during the measurement                  About 0.2 MPa
Temperature compensationDigital adjustable

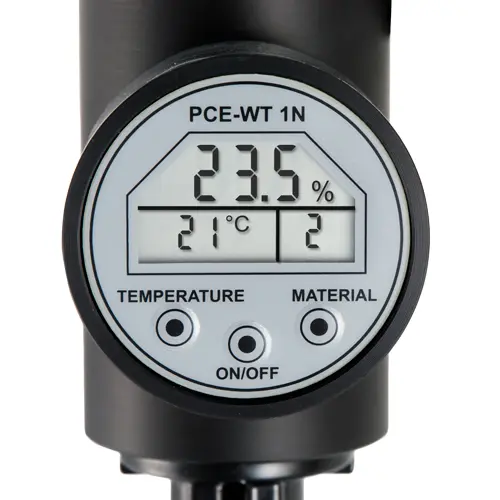

Display3-digit LCD
Care12V, battery type 23A
Ambient temperature range0 ... 50°C / 32 ... 122°F
Dimensions300 x 220 x 65 mm / 11.8 x 8.7 x 2.6 in
Weight990 g / 2.2 lbs

Delivery Scope

1 x Wood moisture meter PCE WT1N
1 x Battery
1 x Carrying case
1 x Instruction manual
