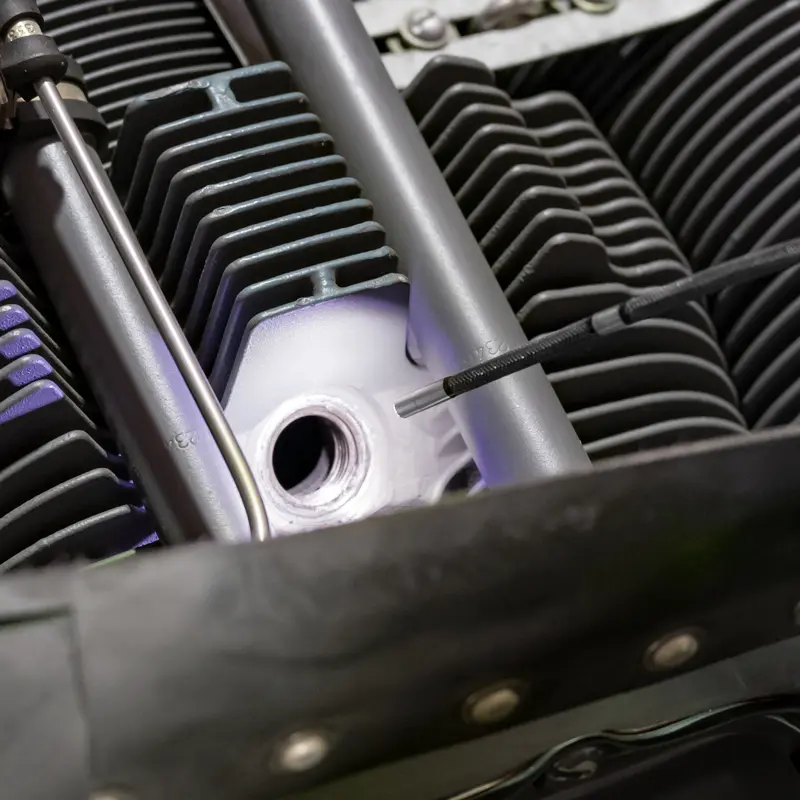

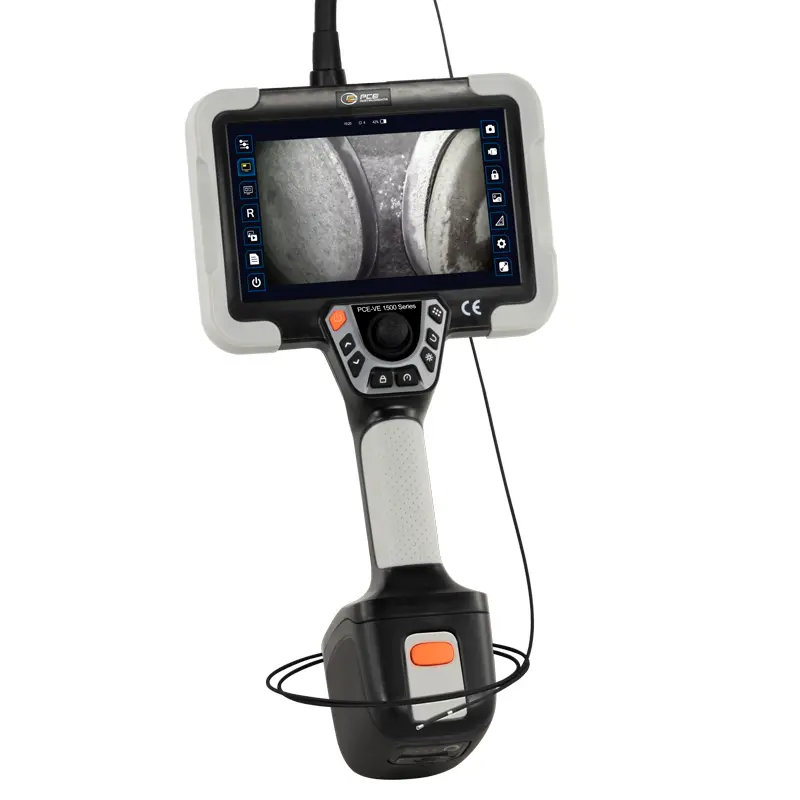

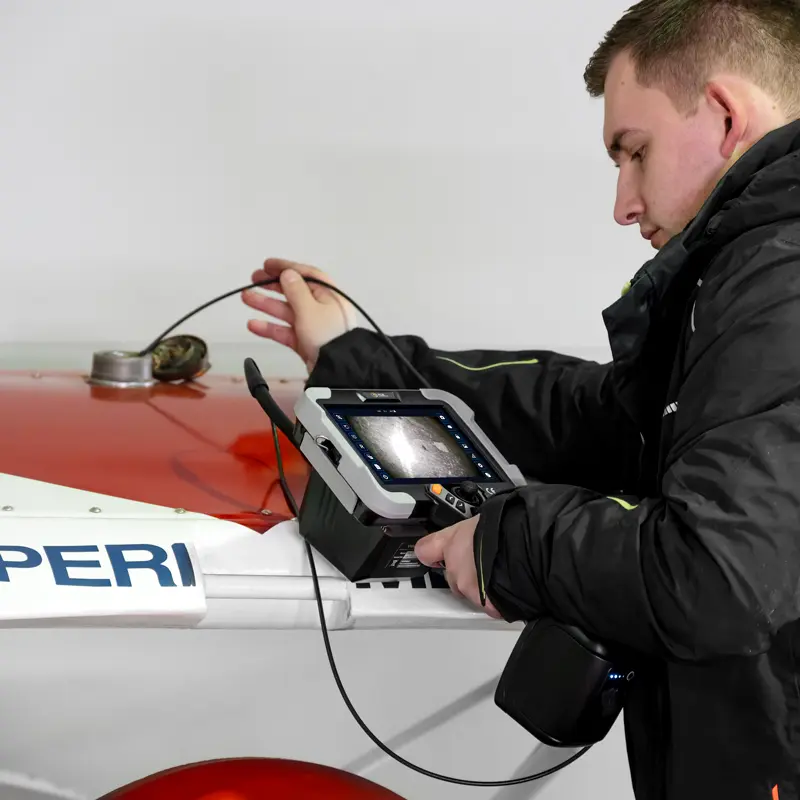

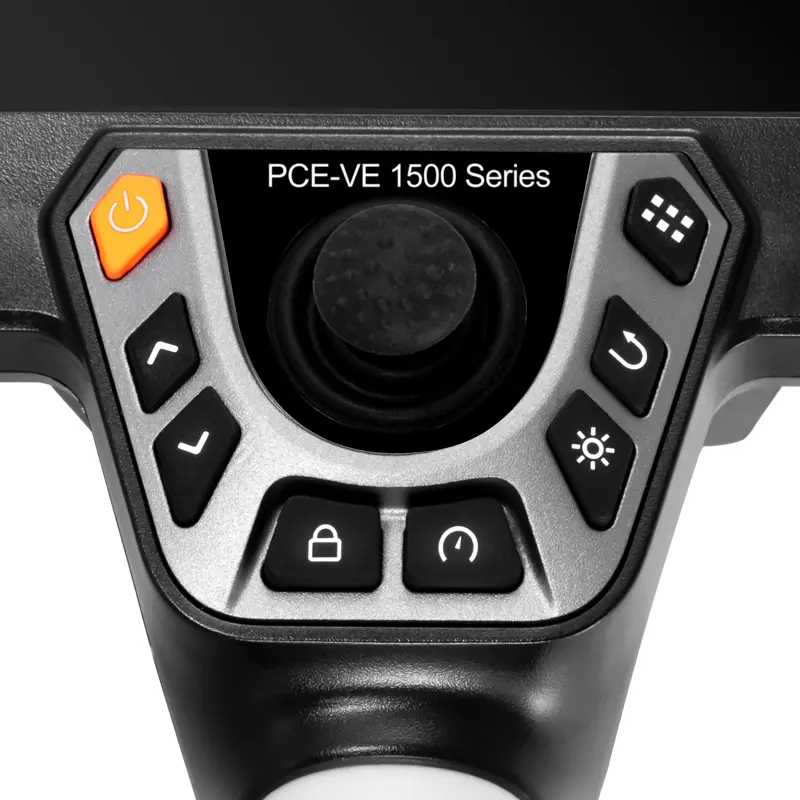

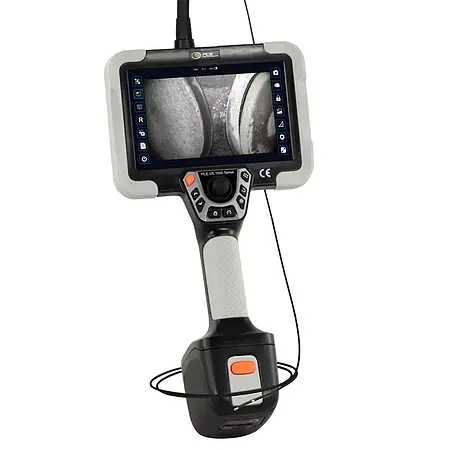

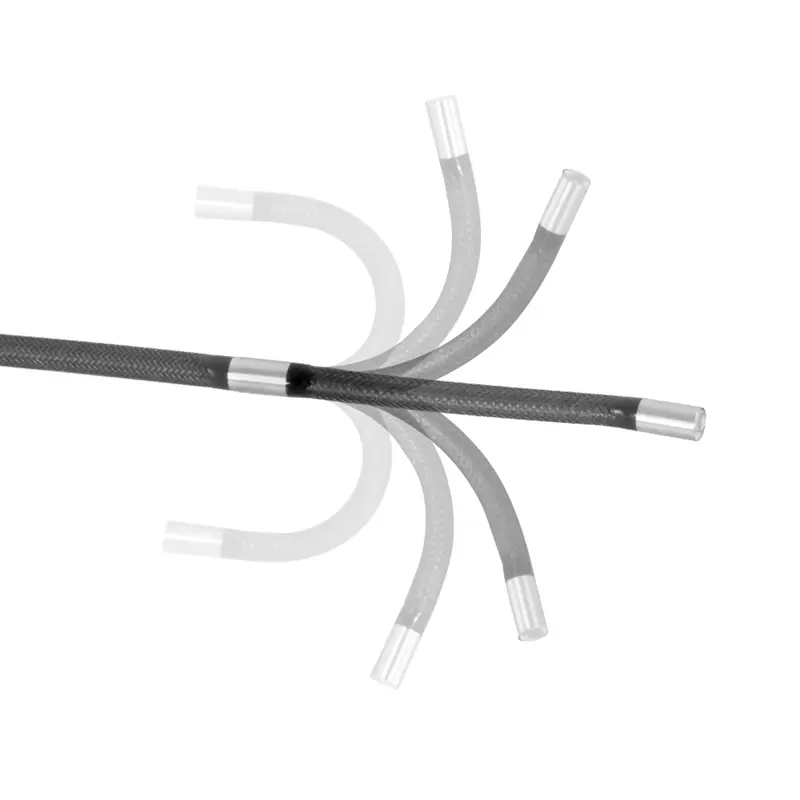

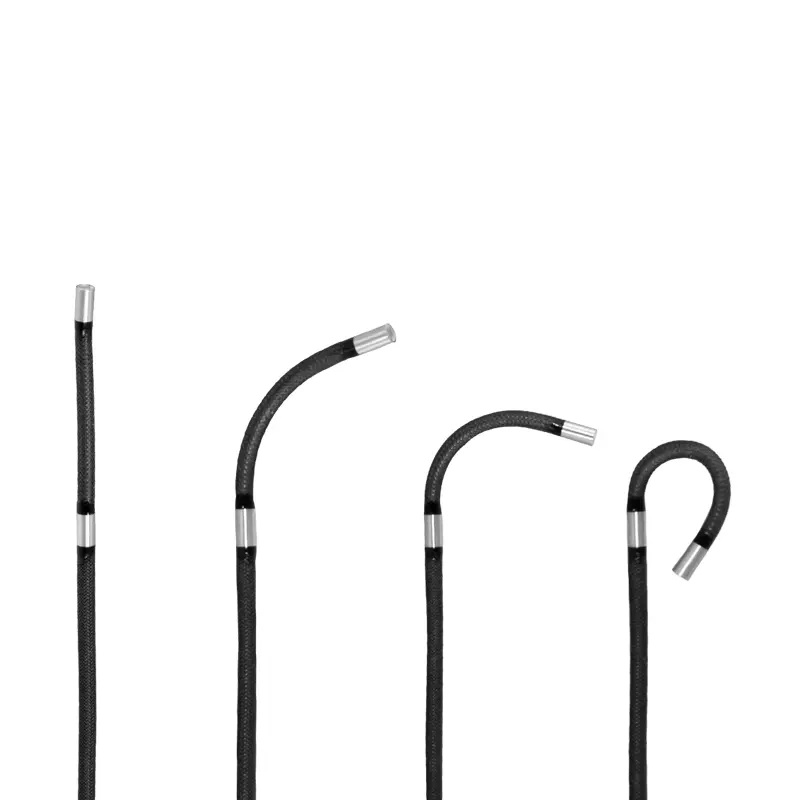

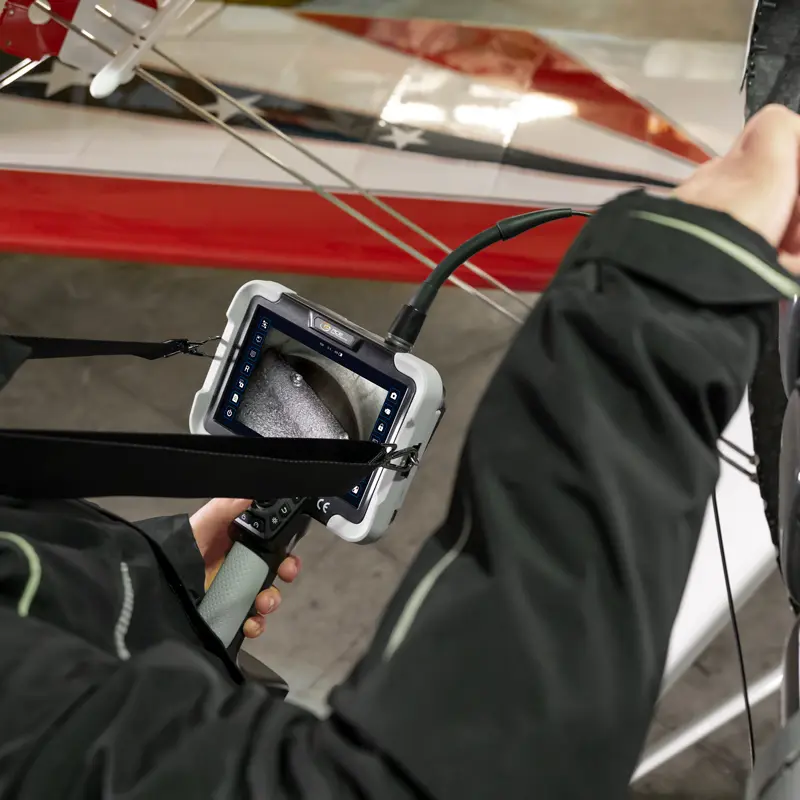

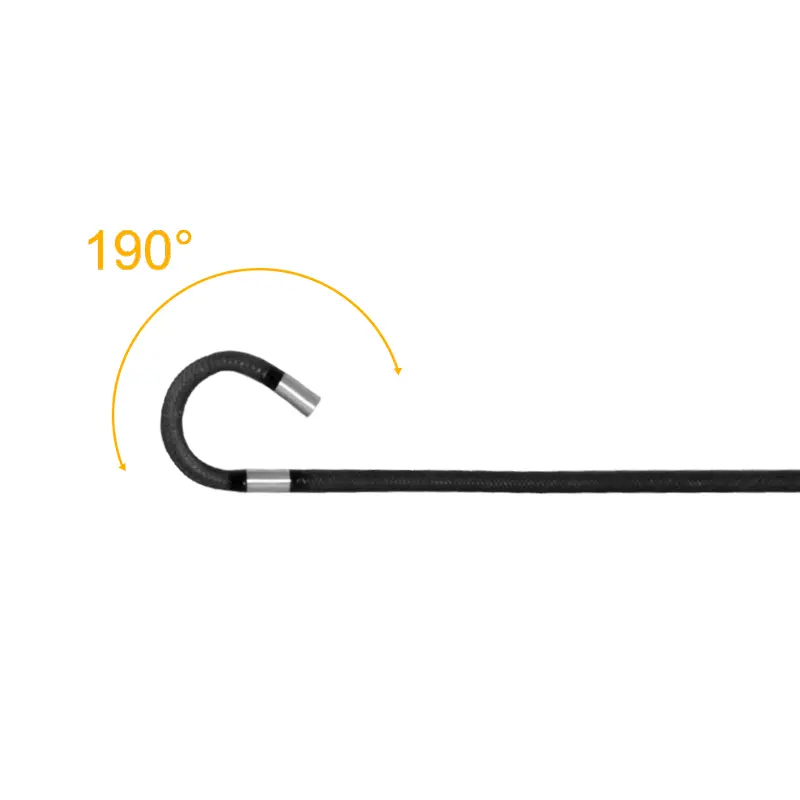

The 4-way system makes it possible to move the camera head from the NDT test instrument in a 190° bending radius. The viewing angle of the borescope is 120°. It is controlled via a joystick, which controls the electric motors on the boroscope. Thanks to the particularly narrow camera head with a diameter of between 2.2 and 6 mm, the borescope can be used for endoscopy in engines, firearms, bores and other narrow openings, for example. This means that weld seams, wear and tear and damage can be assessed quickly and easily with the boroscope in order to make quick diagnoses. The sheathing of the endoscope cable from the borescope consists of braided tungsten. The borescope camera head is made of titanium alloy. This makes the endoscope cable from the borescope particularly robust. The boroscope is therefore used in engineering offices, quality control and for expert opinions.

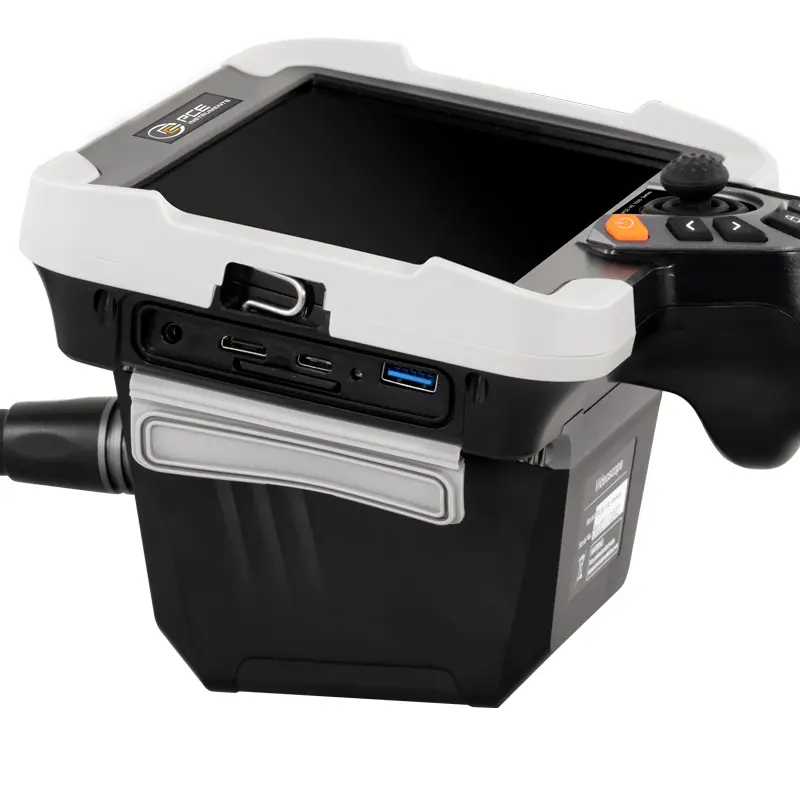

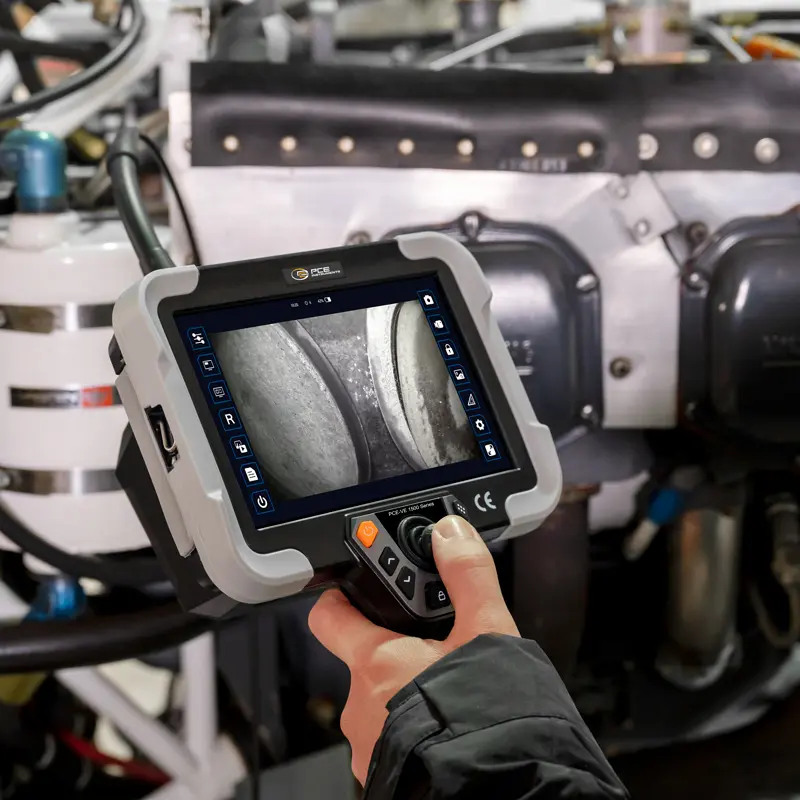

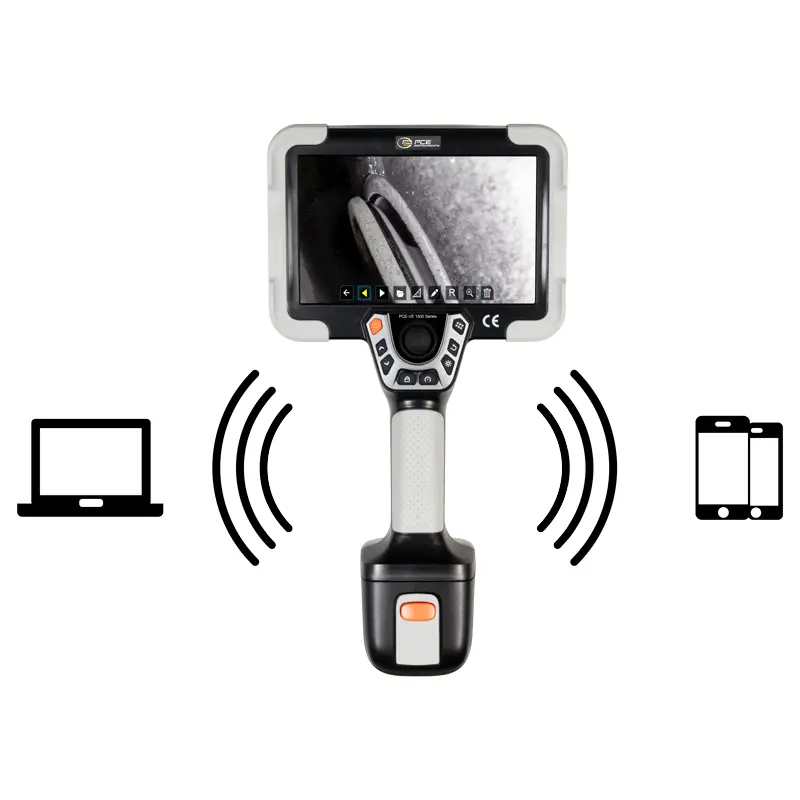

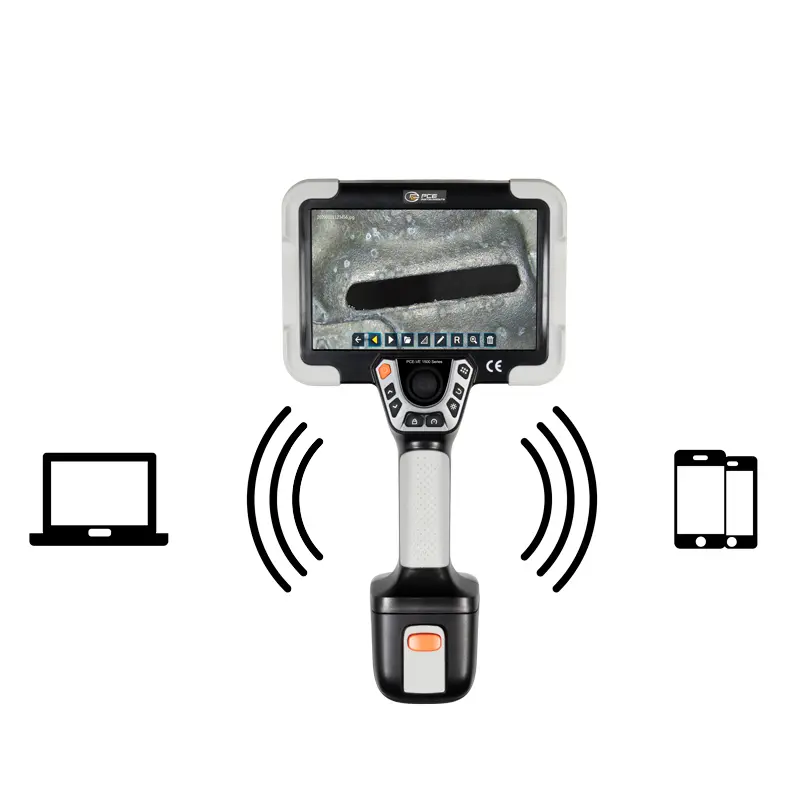

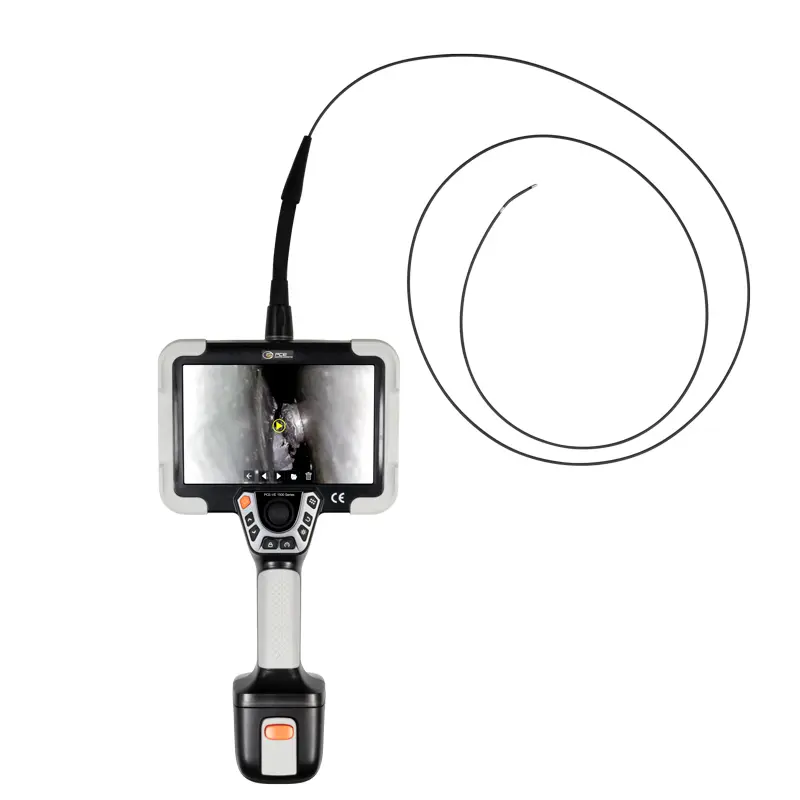

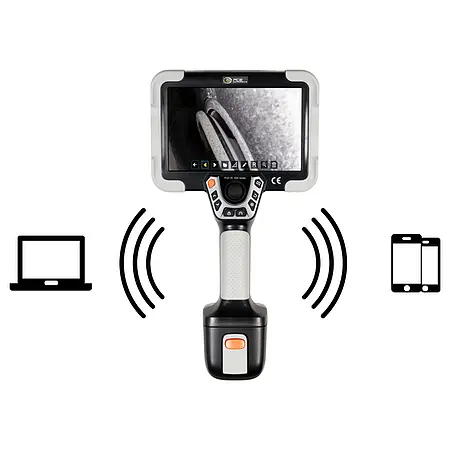

The touch screen of the NDT test instrument has a size of 7". The resolution of the borescope display is 1920 x 1200 pixels. Thanks to the touchscreen, easy operation of the borescope is guaranteed. If required, the live image from the borescope can be transmitted to an external screen or beamer via the HDMI interface. In addition, approx. 285,000 images or 1500 minutes of video recording with the borescope can be saved on an SD card. In this way, the recordings from the borescope can be examined again at a later point in time or entered into documentation.

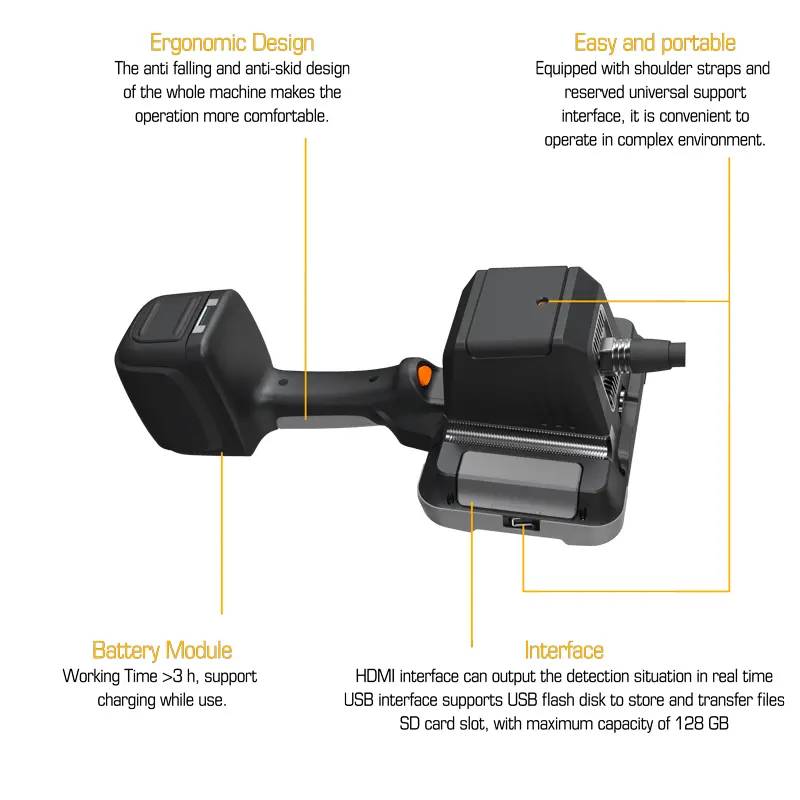

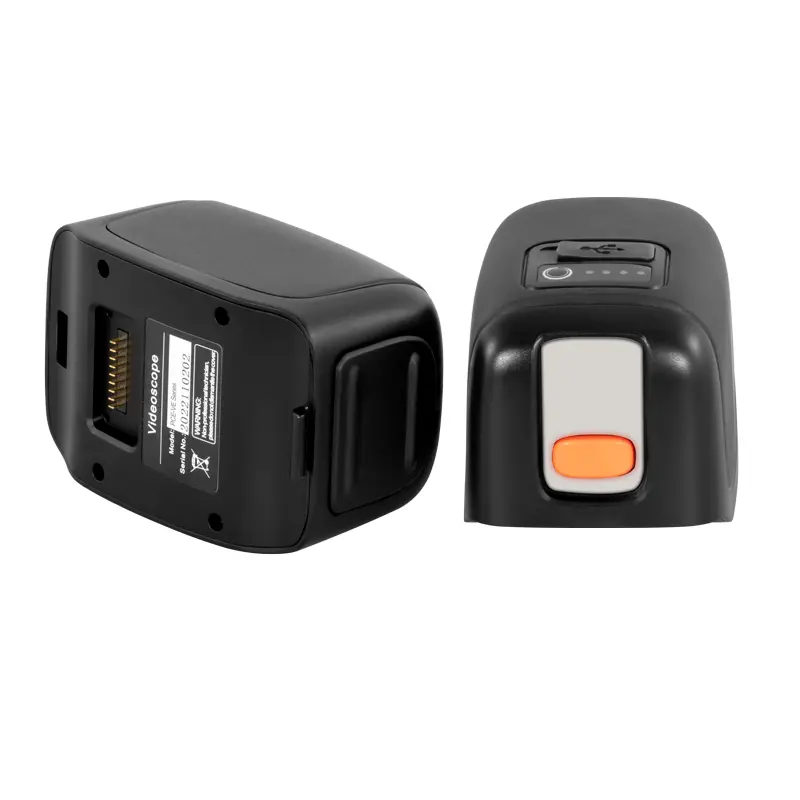

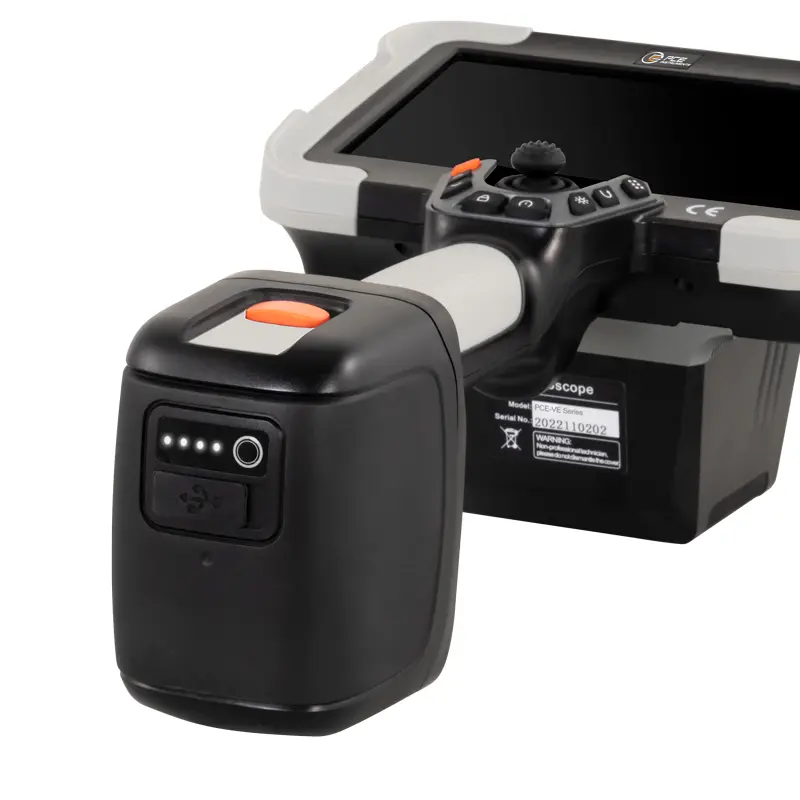

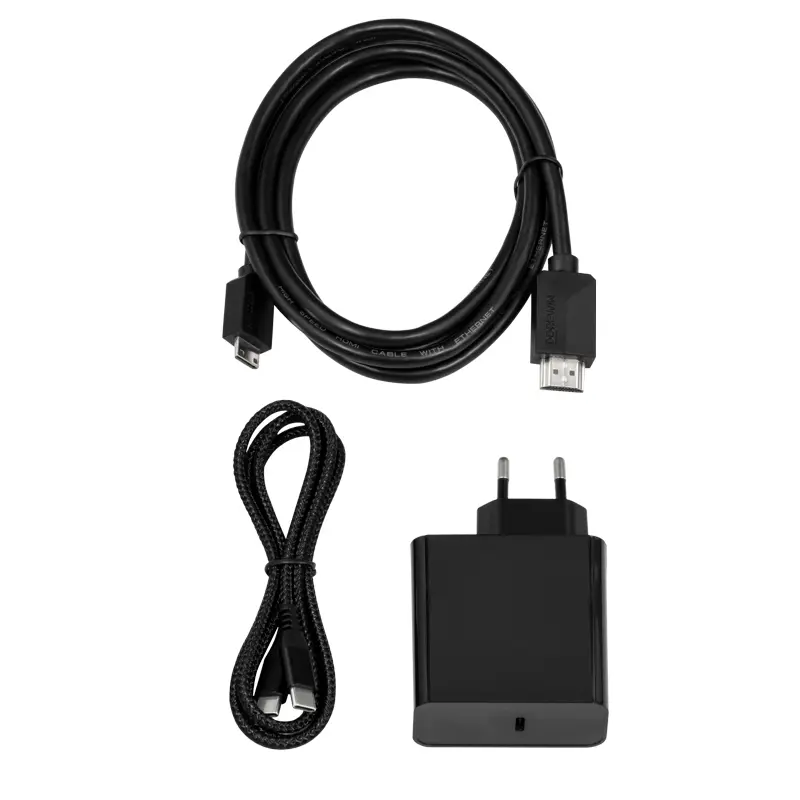

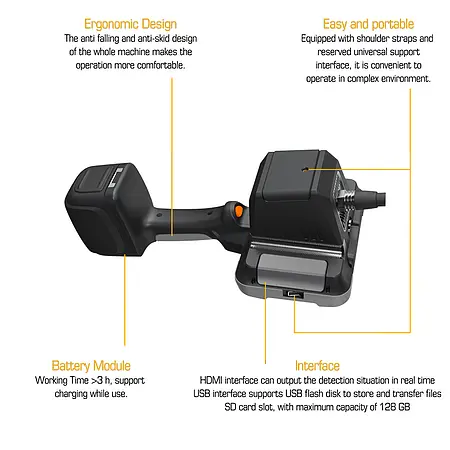

The battery for the NDT test instrument has a capacity of 6400 mAh. This means that the borescope can be used for endoscopy for more than 3 hours. The current battery charge can be read on the battery itself, independently of the borescope, via a five-point diagram. If the battery in the borescope is discharged, it can be connected to a USB-C (PD) interface. The borescope can still be used while charging. Alternatively, the battery can be removed and replaced with a new one so that the boroscope is immediately ready for use again.

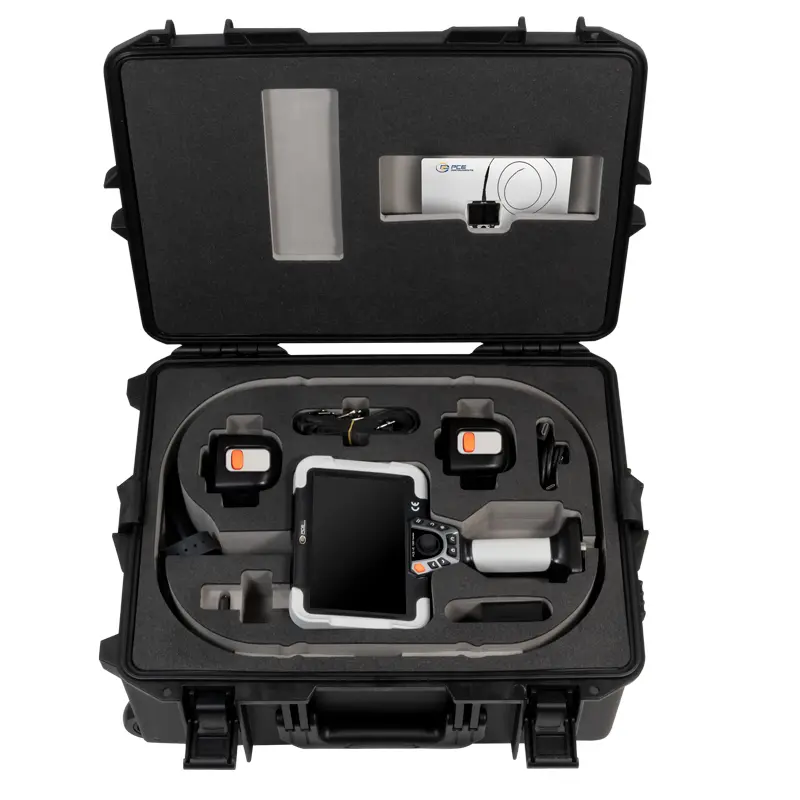

The transport case is designed to protect the NDT test instrument during transport to minimize damage. Thanks to the fourfold locking and the rubber coating on the lid, the transport case protects the boroscope from water ingress. For easy transport of the boroscope, there are also wheels on the transport case so that it can be pulled.
