- Impact energy: 11 Nmm
- Mass of the impactor: 7.3g
- Max. sample hardness: 940 HVDepth of impression
- At 300 HV: diameter 0.54 mm, depth 24 μm
- At 600 HV: diameter 0.45 mm, depth 17 μm
- At 800 HV: diameter 0.35 mm, depth 10 μm

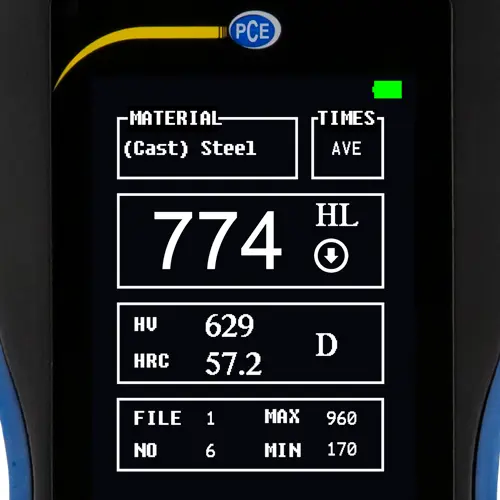

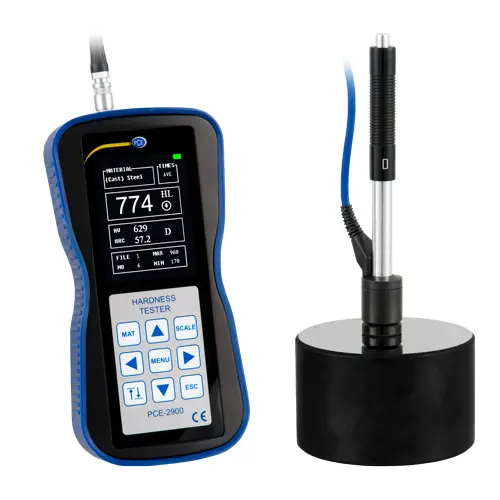

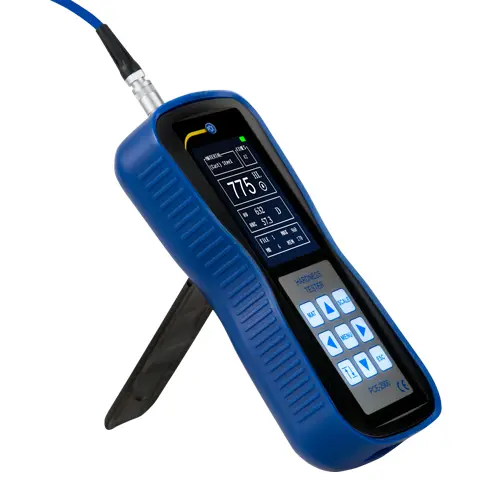

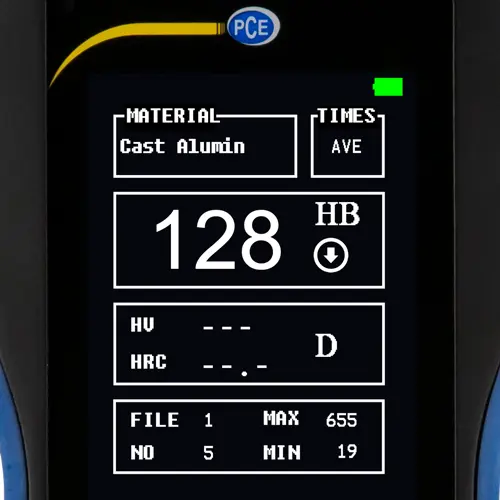

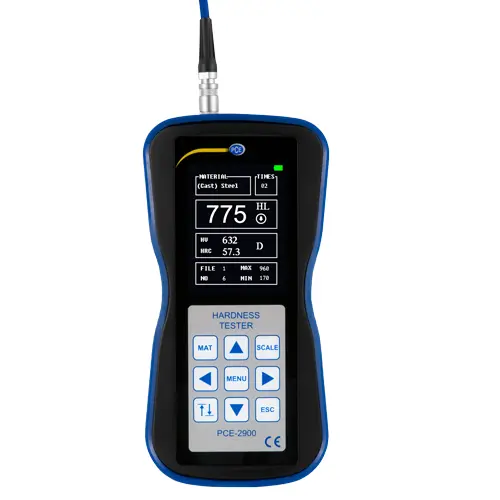

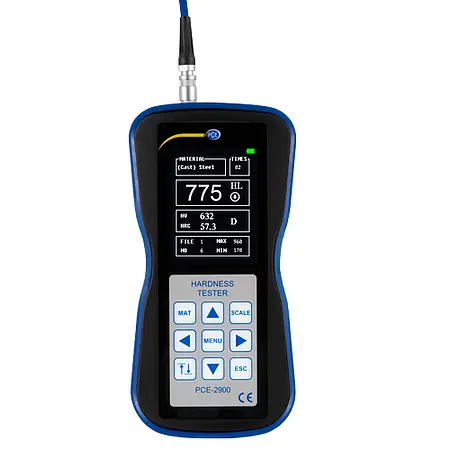

The hardness tester PCE-2900 has been developed for hardness measurements on metallic materials. The hardness tester measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The hardness tester PCE-2900 measures the hardness according to the Leeb rebound principle. An impactor bounces on the workpiece via a firing pin and the metal hardness is measured via the rebound. The PCE-2900 hardness meter is equipped with a backlit colour display.

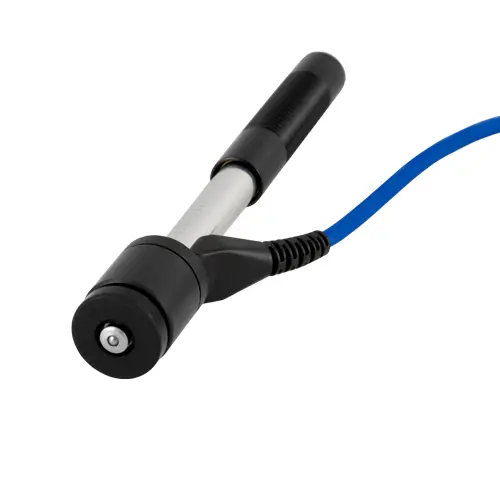

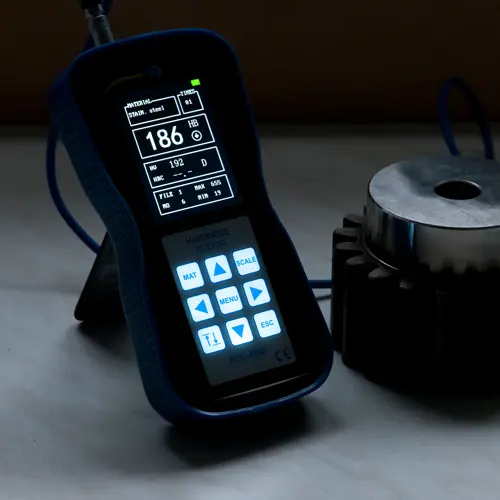

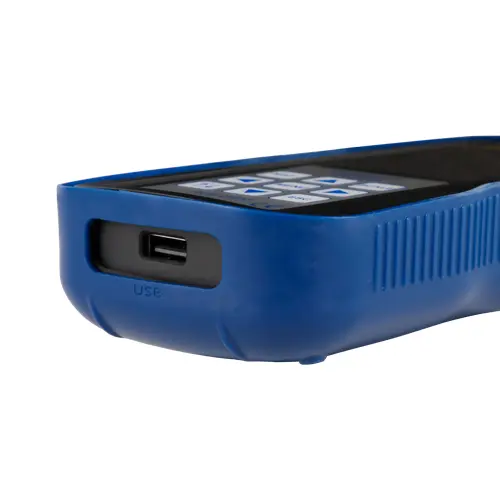

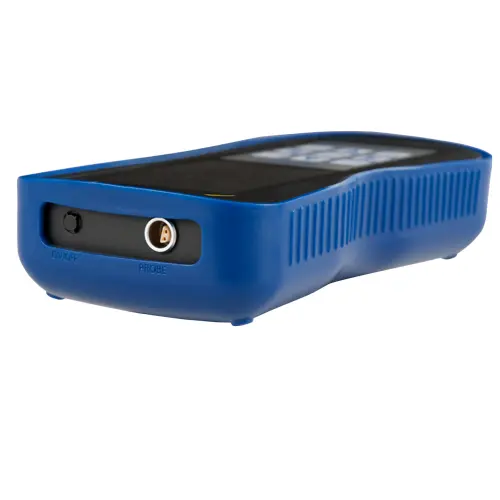

Likewise, the buttons on the PCE-2900 are illuminated. Thus, the display can be read well even in low light conditions. The impact device is connected to the hardness tester via a cable. The hardness tester PCE-2900 has an internal memory of 6 x 100 measurement sets. The memory thus allows a documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the hardness tester via software to a PC. The hardness tester is powered by commercially available 1.5V AA batteries and has a battery life of about 50 hours.
Measuring range |
170 ... 960 HLD |
Reproducibility | ± 6 HLD |
Impactor | Type D |
Measuring direction | 360° |
Adjustable scales | Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore |
Surface quality Ra of the workpiece | 2 µm |
Minimum weight of the workpiece | Direct measurement: 5 kg / 11 lbs Tied measurement: 2 ... 5 kg / 4.4 ... 11 lbs With coupling gel: 0.05 ... 2 kg / 0.1 ... 4.4 lbs |
Minimum thickness of the workpiece | Direct measurement: > 5 mm / > 0.19 in With coupling gel: 0.8 ... 5 mm / 0.03 ... 0.19 in |
Display | Colour LCD |
Internal measured value memory | 600 records in 6 files |
Interface | USB, WiFi |
Power supply | 2 x 1.5V AA batteries |
Operating time | ca. 50 hours |
Operating conditions | 10 ... 50°C / 50 ... 122°F max. 90% r.H. |
Storage conditions | -30 ... 60°C / -22 ... 140°F max. 90% r.H. |
Dimensions | 160 x 80 x 35 mm / 6.3 x 3.1 x 1.3 in |
Weight | 350 g / < 1 lb |

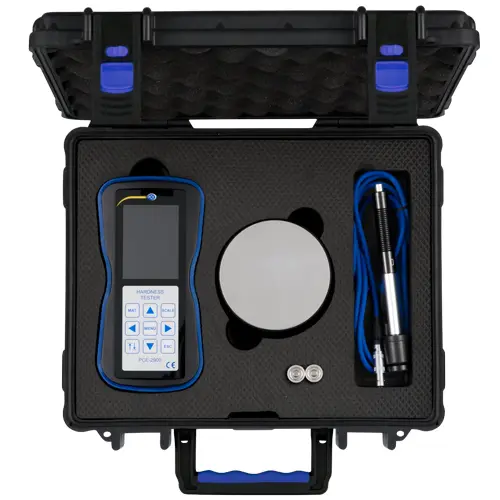

1 x Hardness Tester PCE-2900

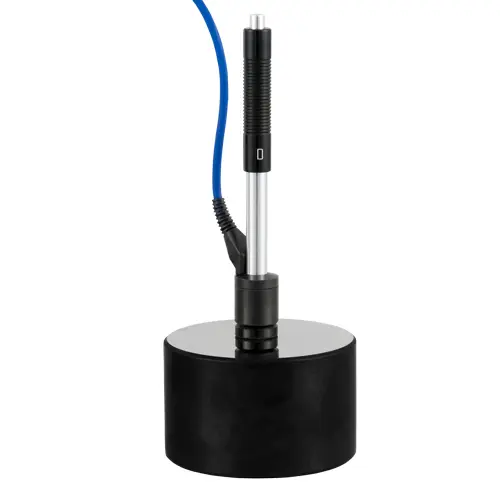

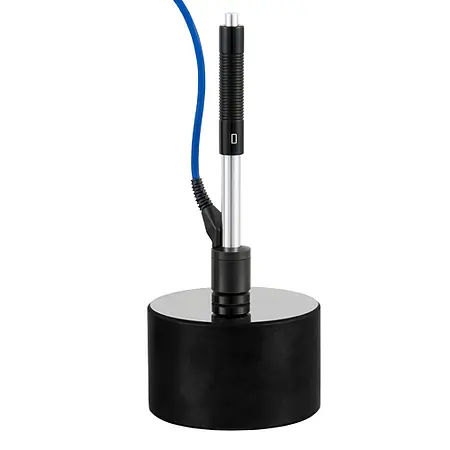

1 x Impactor D
1 x Test block
2 x 1.5V AA batteries
1 x User manual
1 x Carry case

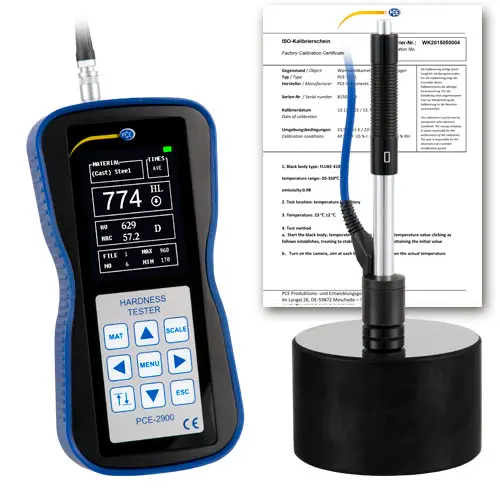

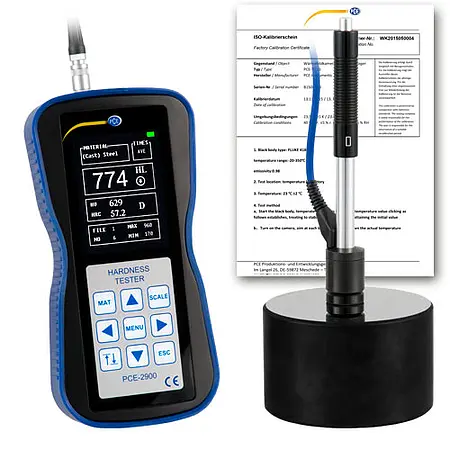

1 x ISO Calibration Certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
