Photovoltaic Meter PCE-IT55

Order no.: PCE-IT55
GTIN (EAN): 4250348700988
US$ 297.00
ex. VAT, ex. delivery costs
:
4250348700988
PCE-IT55
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

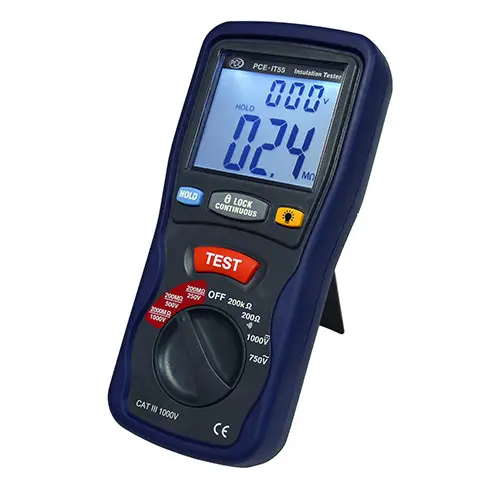

PCE-IT 55 Photovoltaic Meter
CAT III 1000V / for insulation resistance up to 2000 MΩ
The PCE-IT 55 Photovoltaic Meter determines insulation resistance up to a maximum of 2000 MΩ (for auxiliary voltages of 250, 500 and 1000V). This Photovoltaic Meter also offers the ability to measure alternate and continuous currents up to a maximum 750V / 1000V and resistance up to 2 kΩ. Includes test current and a warning whistle. Readings can be stored by pressing a single key. The device meets with these standards: DIN 57 411 part 1 / VDE 0411 part 1, protective measures for electronic devices (IEC1010-1) and DIN VDE 0413 (Insulation Tester). It comes calibrated from the manufacturer and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations.

Highlights

- Meets the standards: IEC1010-1,
CAT III 1000 V
- Has a large dual, backlit  display
- Individual or prolonged measurements can be
made by pressing the "lock" key

- Indicates overload and battery level
- Auto shut of to conserve battery power
- Comes ready to use in its own carrying case
- optional ISO calibration certificate

Specification

Technical Specifications
Measurement ranges:  Voltage AC
 Voltage DC
Resistance
Insulation resistance
0 ... 750 V
0 ... 1000 V
0 ... 200 Ω / 200 ... 2000 Ω
0 ... 200 MΩ / 200 ... 2000 MΩ
Resolution Voltage AC
Voltage DC
Resistance
Insulation resistance
1V
1V
0.1 Ω / 1 Ω
100 kΩ to1 MΩ
Accuracy             Voltage AC
Voltage DC
Resistance
Insulation resistance
±1.2% ±10 digits
±0.8% ± 3 digits
±1.0% ± 2 digits
±3.5% ± 5 digits
Test voltages 250V - 200 MΩ
500V - 200 MΩ
1000V - 2000 MΩ
Test current whistle: ≤40 Ω, test current ≤200mA
Power6 AA batteries
Operating conditions0 to 40°C / <80% r.h.
Dimensions200 x 92 x 50mm
Weight700g
StandardsIEC10101, CAT III 1000V

Delivery Scope

Delivery contents
1 x PCE-IT 55 Photovoltaic Meter,
1 x test cables,

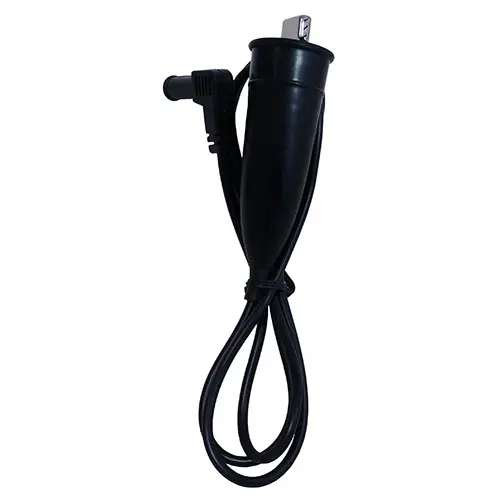

1 x extractable clamp with 1m cable,
1 x 6 batteries,
1 x carrying case
1 x user's manual (see image)
